ZTT-6.00MT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> ZTT-6.00MT

ZTT-6.00MT: Descriptioncer resonator 6.00mhz; CategoryPassive components; File Size218KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZTT-6.00MT Overview

cer resonator 6.00mhz

ZTT-6.00MT Parametric

Parameter Name	Attribute value
Datasheets
ZTT Series
Product Photos
ZTT-MT_MX Series
Catalog Drawings
ZTT Series Side 2
ZTT Series Side 1
Standard Package	500
Category	Crystals and Oscillators
Family	Resonators
Packaging	Bulk
Frequency	6MHz
Type	Ceramic
Features	Built in Capaci
Frequency Stability	±0.3%
Frequency Tolerance	±0.5%
Impedance	30 Ohm
Capacitance	30pF
Operating Temperature	-20°C ~ 80°C
Mounting Type	Through Hole
Package / Case	Radial - 3 Lead, 2.50mm Pitch
Size / Dimensi	0.394" L x 0.197" W (10.00mm x 5.00mm)
Heigh	0.394" (10.00mm)
Other Names	X904

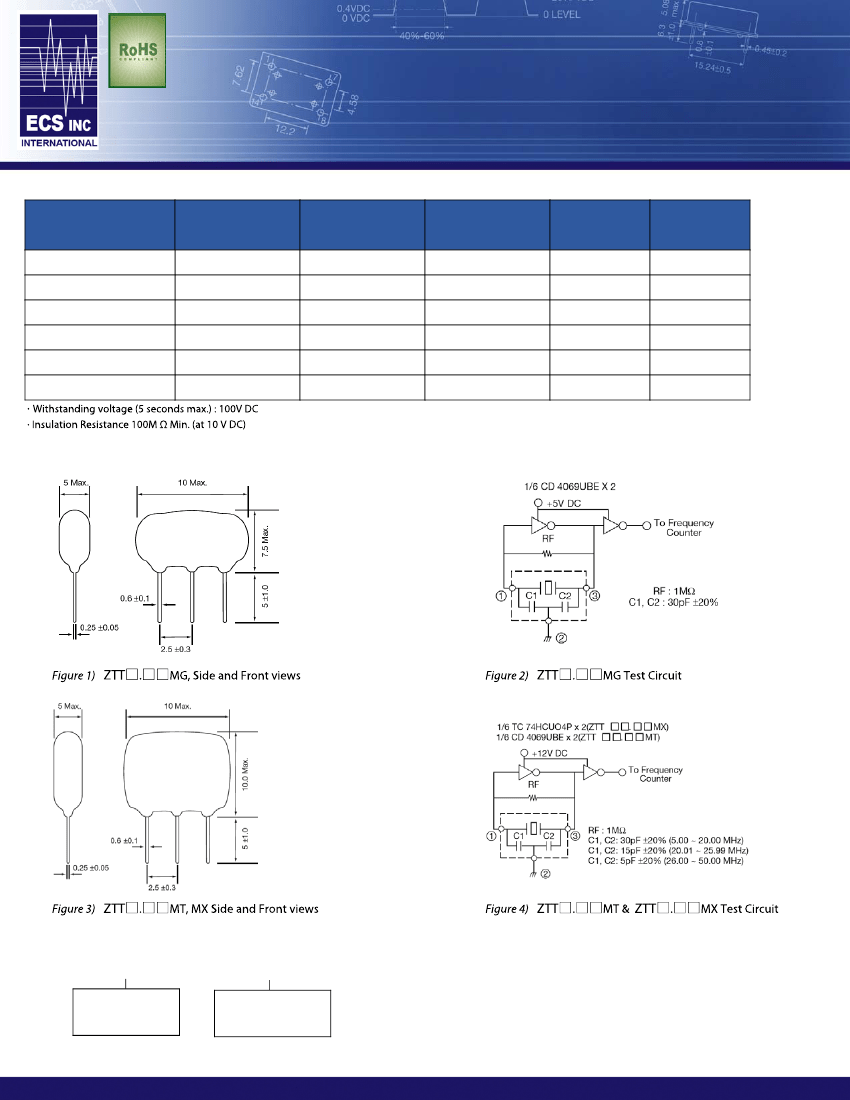

Preview

Download Datasheet

View All

Low Profile

Wide Frequency range

Extended temperature range

Built-in load capacitance

RoHS Compliant (Note 7 Exemption)

ZTT Series

Ceramic Resonator

The ZTT Series ceramic resonator offers a wide frequency

range and extended temperature range capabilities with

built-in load capacitance.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PART NUMBER *

ZTT

□.□□

ZTT

□.□□

ZTT

□.□□

ZTT

□.□□

ZTT

□□.□□

ZTT

□□.□□

FREQUENCY

RANGE

(MHz)

2.00 ~ 2.99

3.00 ~ 3.49

3.50 ~ 8.00

6.01 ~ 6.99

7.00 ~ 13.00

13.01 ~ 50.00

FREQUENCY

ACCURACY

@ 25°C(%)

±0.5

STABILITY IN

TEMPERATURE

-20~ +80°C (%)

±0.3

AGING FOR

TEN YEARS

(%)

±0.3

RESONANT

RESISTANCE

(Ω) MAX

PACKAGE DIMENSIONS (mm)

PART NUMBERING GUIDE: Example ZTT-4.00MG

ZTT

Frequency

Suffix

MG (2~8 MHz)

MT (6.01~13 MHz)

MX (13.01~50 MHz)

Note: ECS does not approve the use of it's products in Automotive,

Military, Avionics, Life Sustaining or Life Support systems or any other

related medical applications without written approval from ECS INC.

Rev 5/08

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com

4.00 MHz
