100SP3T2B9M51RE datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 100SP3T2B9M51RE

100SP3T2B9M51RE: DescriptionToggle Switch; CategoryMechanical and electronic products switch; File Size193KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

100SP3T2B9M51RE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	100SP3T2B9M51RE	-	-	View	Buy Now

100SP3T2B9M51RE Overview

Toggle Switch

100SP3T2B9M51RE Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	100SP3T2B9M51RE
Switch type	TOGGLE SWITCH
Base Number Matches	1

Preview

Download Datasheet

View All

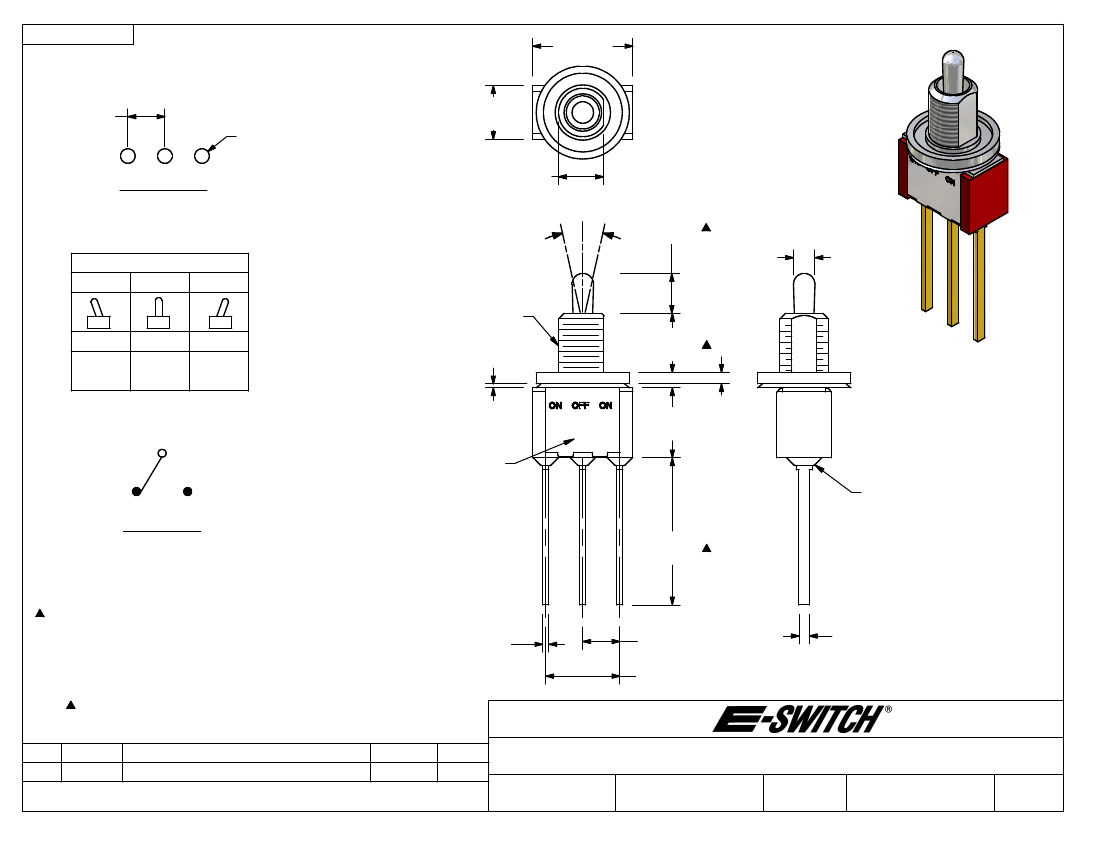

SHEET 1 OF 1

12.70

[.500 in]

4.70

[.185 in]

1.85

[.073 in]

6.86

[.270 in]

P.C. MOUNTING

5.72

[.225 in]

FLAT

POS. 1

POS. 2

POS. 3

5.08

[.200 in]

[.105 in]

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

1/4-40 UNS

THREADS

2-3

OFF

OPEN

2-1

.51

[.020 in]

E-SWITCH

MARKING ON

OPPOSITE SIDE

18.70

[.736 in]

7.52

[.296 in]

2.67

ISOMETRIC

1.44

8.89 [.057 in]

[.350 in]

EPOXY SEAL

CIRCUI: SPDT

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: GOLD

5. RATING: 0.4 (VA) Max. @20V Max.

6. ELECTRIC LIFE: 40,000 make-and-break cycles

at full load.

7. INSULATION RESISTANCE: 1,000 Mega-ohm min.

8. DIELECTRIC STRENGTH: 1,000 V RMS @sea level.

9. OPERATING TEMP.: -30°C to 85°C

10.

DENOTES CRITICAL PARAMETER.

.76

[.030 in]

4.70

[.185 in]

9.40

[.370 in]

1.27

[.050 in]

REV

14205

PCR NO

RELEASED FOR PRODUCTION

DESCRIPTION

7/29/04

DATE

TITLE

SCALE

100SP3T2B9M51RE

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

7/29/04

T113056
