FPR2-26140R022K2%

Description
Fixed Resistor, Metal Foil, 2W, 0.022ohm, 2% +/-Tol, -50,50ppm/Cel,
CategoryPassive components    The resistor
File Size296KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

FPR2-26140R022K2% Overview

Fixed Resistor, Metal Foil, 2W, 0.022ohm, 2% +/-Tol, -50,50ppm/Cel,

FPR2-26140R022K2% Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid286229539
Reach Compliance Codecompliant
Country Of OriginIsrael
ECCN codeEAR99
YTEOL10
structureRectangular
Lead length5 mm
lead spacing20.32 mm
Number of terminals2
Maximum operating temperature130 °C
Minimum operating temperature-40 °C
Package height13 mm
Package length26 mm
Package shapeRECTANGULAR PACKAGE
Package formRadial
Package width3.4 mm
Rated power dissipation(P)2 W
resistance0.022 Ω
Resistor typeFIXED RESISTOR
seriesFPR2-2614
technologyMETAL FOIL
Temperature Coefficient50 ppm/°C
Tolerance2%

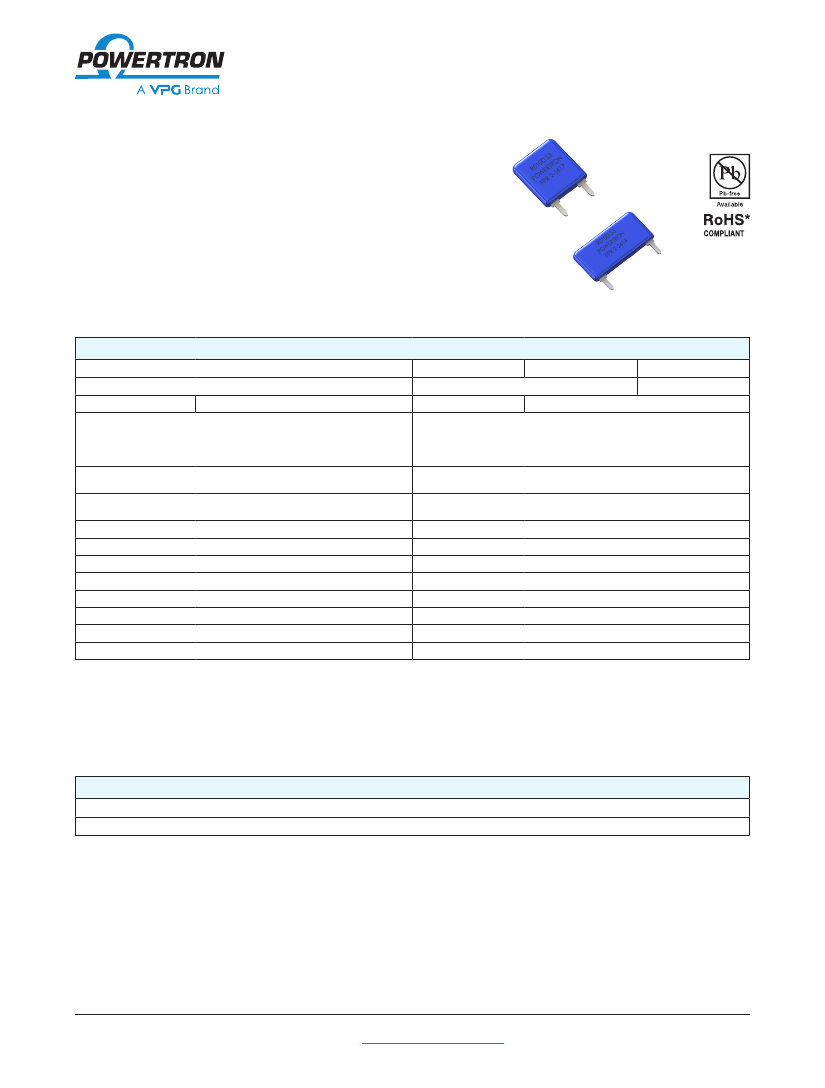

FPR 2-1617 1623 2614
FEATURES
Resistances from 0.01Ohm to 100Ohms
Power Rating to 2Watt
Resistance Tolerances to ±0.1%
TCR to ±15ppm/K
Load Stability to 0.1%
TABLE 1—SPECIFICATIONS
TYPE
Resistance Range
Power Rating
Free air 70°C
Tolerances
from 0.01 Ohms
from 0.02 Ohms
from 1.0 Ohms
Stability (1000h)
Temperature Coefficient
Insolation Resistance
Thermal EMF
Operating Temperature Range
Resistor Material
Substrate
Housing
Connector Material
Terminals
1W
0.5% / 1% / 2% / 5%
0.25% / 0.5% / 1% / 2% / 5%
0.1% / 0.25% / 0.5% / 1% / 2% / 5%
0.1% / 0.2% / 0.5%
(depends on stress)
±50ppm/K (20 to 60°C)
other specifications upon request
> 10 GOhm
<0.1 μV/K
–40°C to 130°C
CuNiMn-Foil
Anodized aluminium
Epoxy sintered
Cu / tinned
2
FPR 2-1617
FPR 2-1623
2W
FPR 2-2614
0.01 to 100 Ohms
0.01 to 20 Ohms
ORDERING INFORMATION
Part Number - Resistance - Contact - Tolerance
FPR 2-2614 0R010 A 1%
Document No.: 64201
Revision: 03-05-2016
For technical questions,
contact
powertron@vpgsensors.com
www.powertron.de
