2SD1172 datasheet, PDF - EEWORLD Datasheet

2SD1172: DescriptionSI NPN TRIPLE DIFFUSED JUNCTION MESA; CategoryDiscrete semiconductor The transistor; File Size298KB，6 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

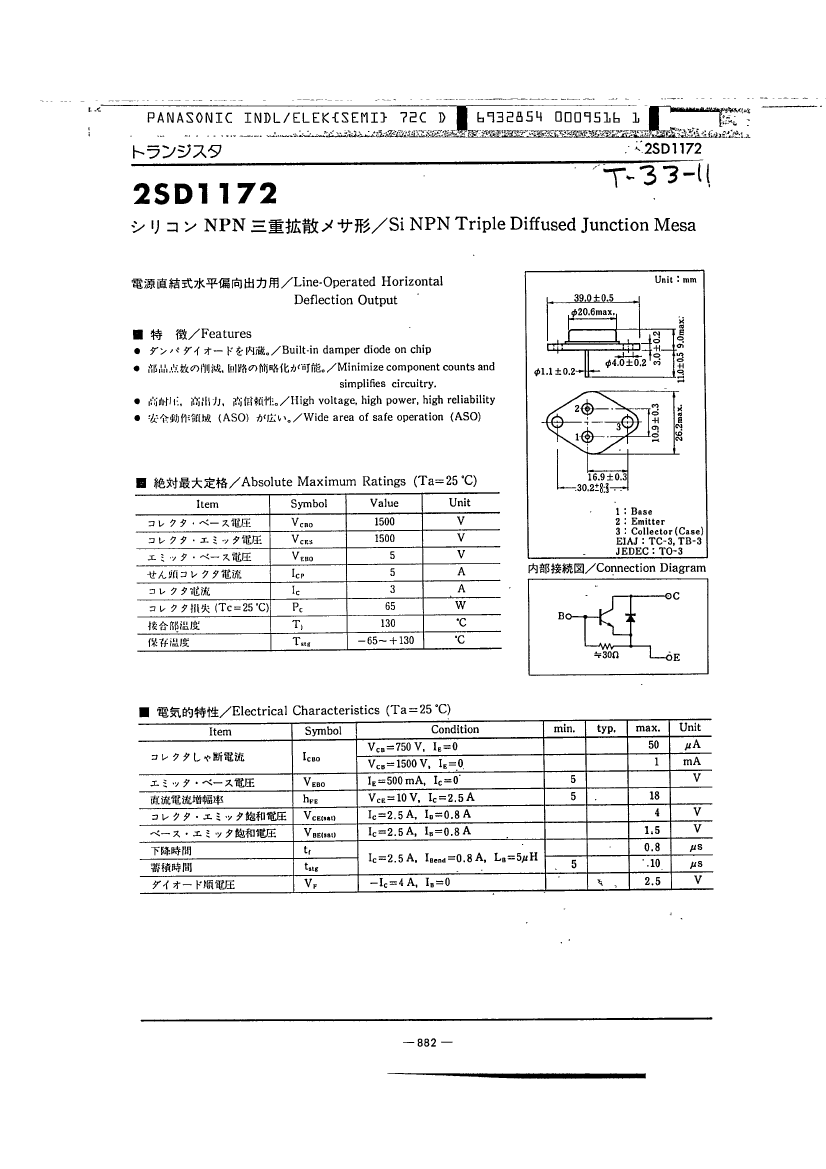

2SD1172 Overview

SI NPN TRIPLE DIFFUSED JUNCTION MESA

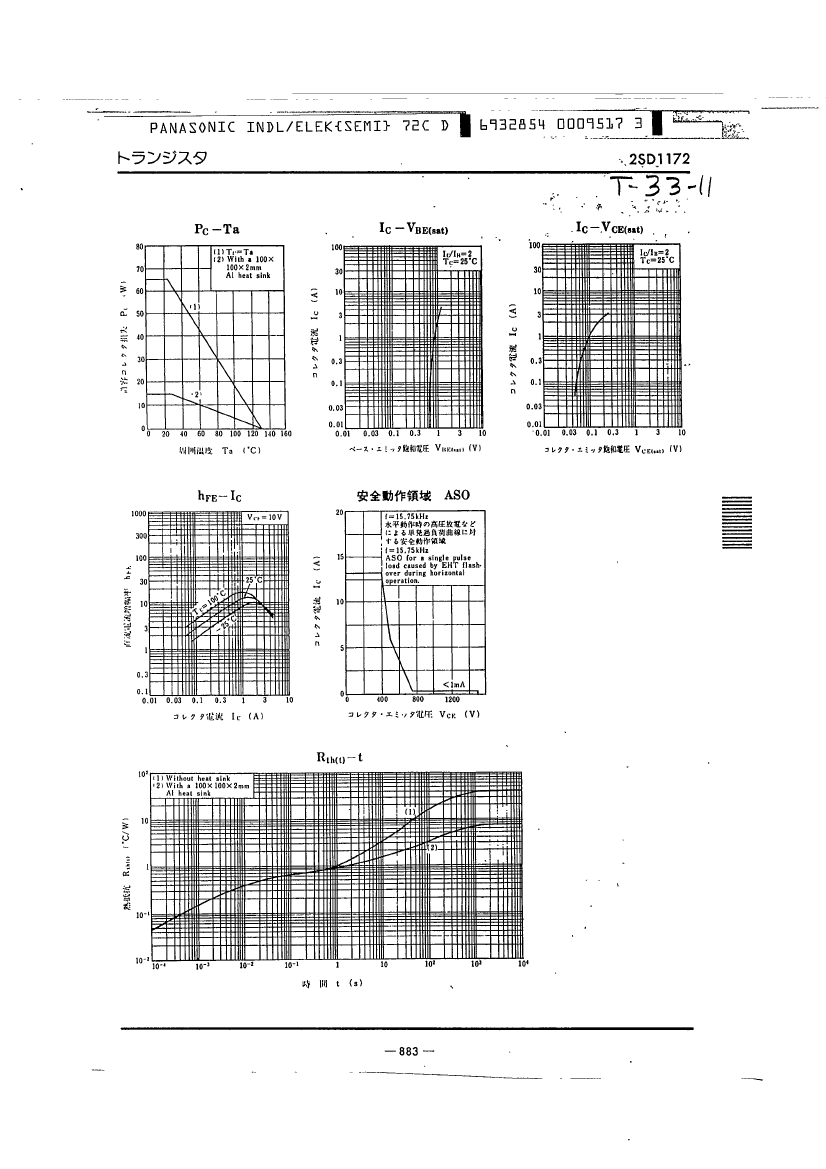

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	3 A
Configuration	Single
Minimum DC current gain (hFE)	5
JESD-609 code	e0
Maximum operating temperature	135 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	65 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

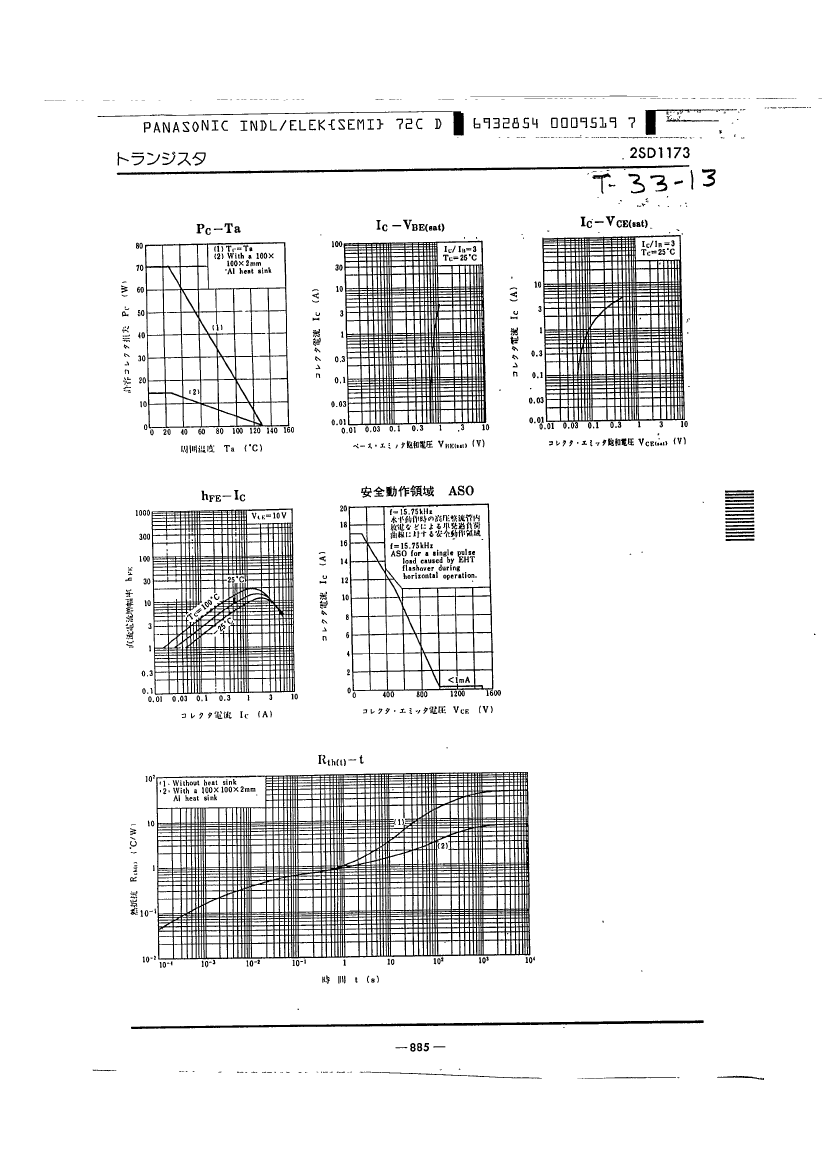

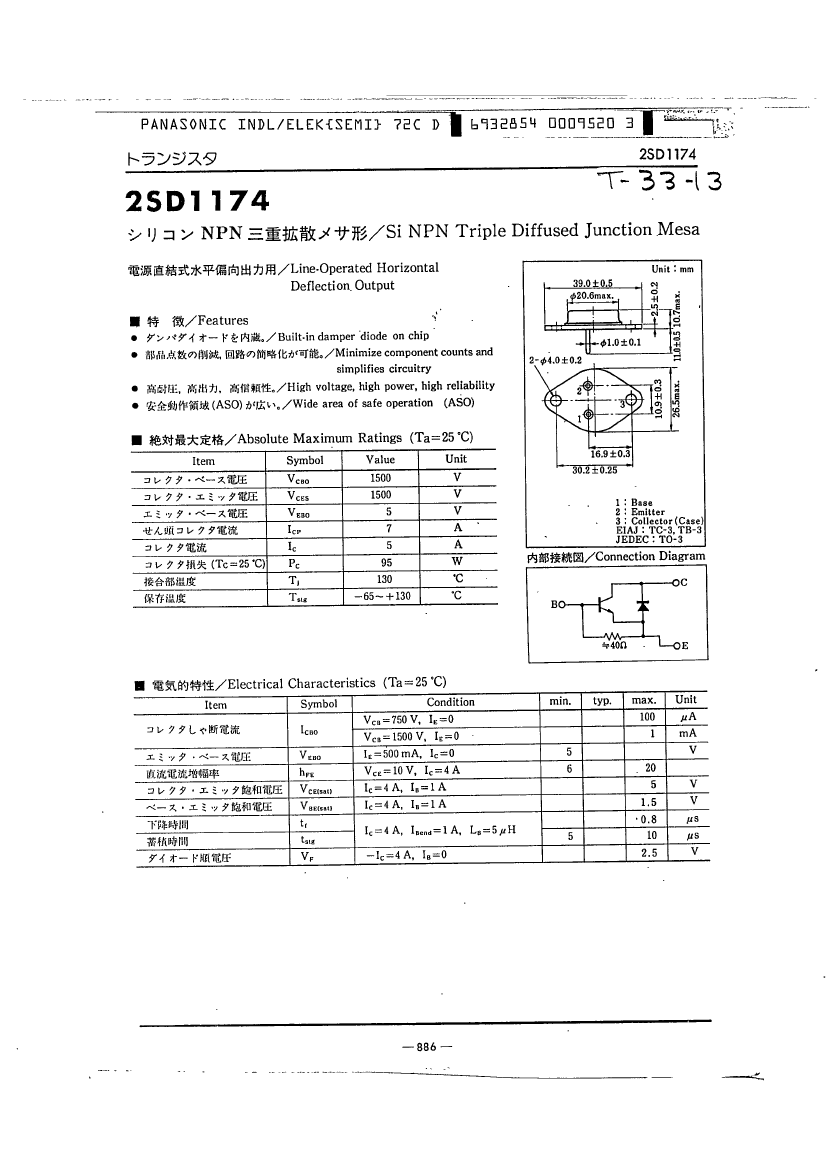

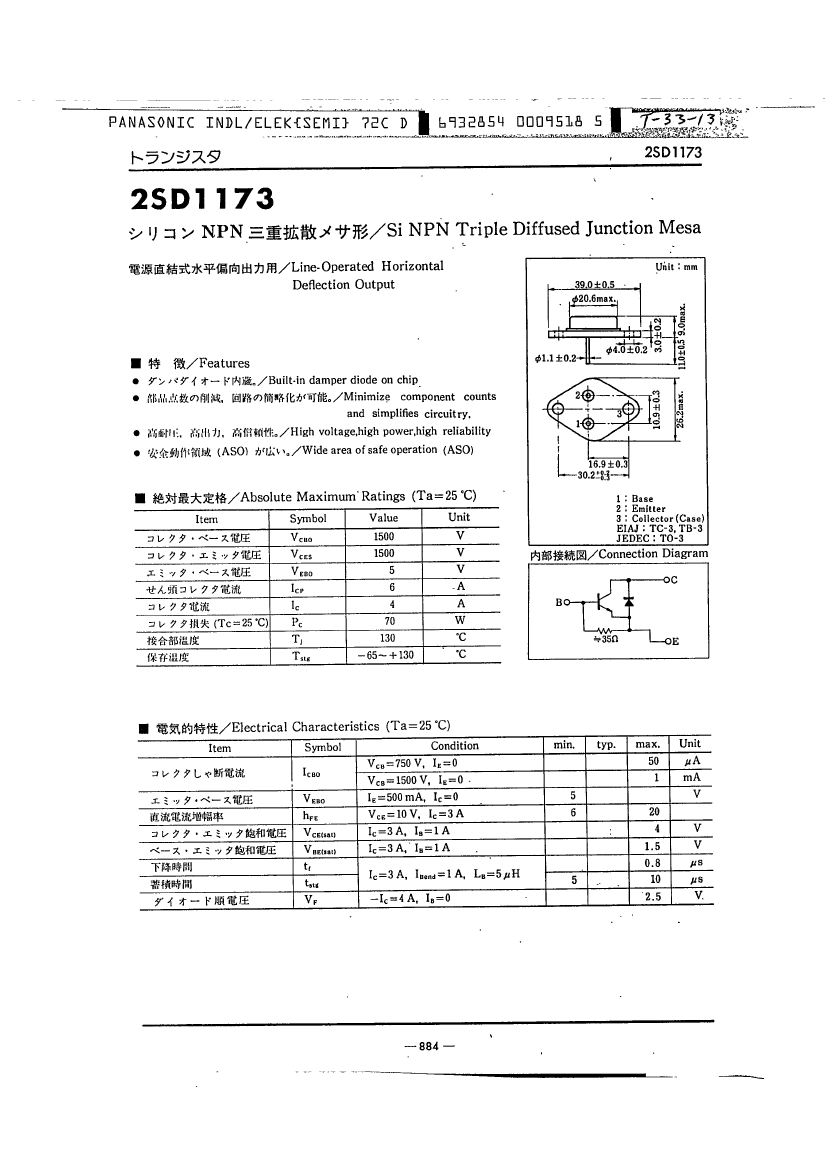

	2SD1172	2SD1173	2SD1174
Description	SI NPN TRIPLE DIFFUSED JUNCTION MESA	SI NPN TRIPLE DIFFUSED JUNCTION MESA	SI NPN TRIPLE DIFFUSED JUNCTION MESA
Is it Rohs certified?	incompatible	incompatible	-
Reach Compliance Code	unknow	unknow	-
Maximum collector current (IC)	3 A	4 A	-
Configuration	Single	Single	-
Minimum DC current gain (hFE)	5	6	-
JESD-609 code	e0	e0	-
Maximum operating temperature	135 °C	135 °C	-
Polarity/channel type	NPN	NPN	-
Maximum power dissipation(Abs)	65 W	70 W	-
surface mount	NO	NO	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Base Number Matches	1	1	-
