SUNON AC Axial Fan & Blower
Page
Engineering Information
Fan Model Numbering System
AC Fan Series

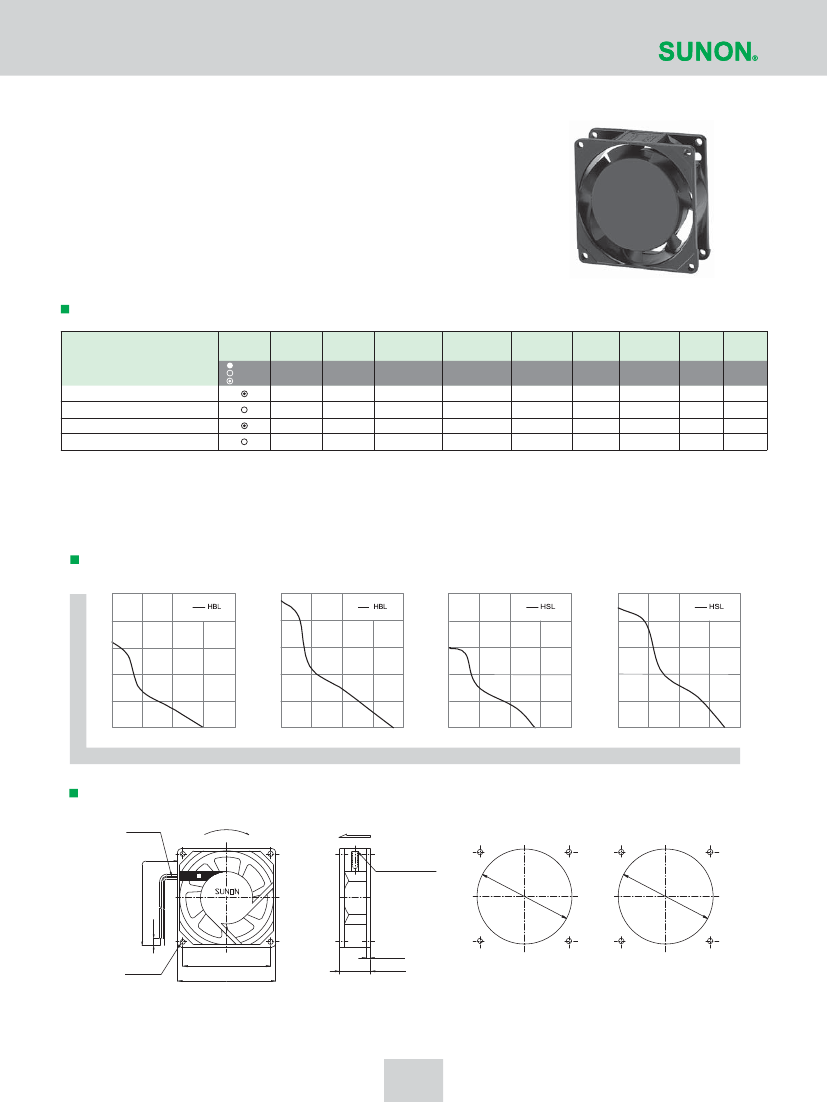

80x80x25mm
80x80x38mm
92x92x25mm
120x120x25mm (115V)
120x120x25mm (220-240V)
120x120x38mm (115V)
120x120x38mm (220-240V)
120x120x38mm (Plastic Frame)
120x120x38mm (New Type)
120x120x38mm (New Type-High Air Flow)
120x120x38mm (Dual AC Voltage)
120x120x38mm (Low Power Consumption)
171x151x51mm
171x151x51mm ( Alveolate Motor)
ø171x51mm ( Alveolate Motor)
176x176x89mm ( Alveolate Motor)
ø254x89mm ( Alveolate Motor)
120x120x31mm (Blower)
p.01
p.02
Air Flow (CFM)
17 ~ 22
23 ~ 31
21 ~ 37
46 ~ 80
46 ~ 80
70 ~ 117
70 ~ 117
85 ~ 100
95 ~ 117
112 ~ 124
95 ~ 115
49 ~ 50
180 ~ 200
203 ~ 239
203 ~ 239
315 ~ 335
425 ~ 870
20 ~ 22
p.03
p.04
p.05
p.06
p.07
p.08
p.09
p.10
p.11
p.12
p.13
p.14
p.15
p.16
p.17
p.18
p.19
p.20
Certification
N
* Note: For critical or extreme environments, including non stop operation, please contact SUNON and we will gladly provide
assistance with your product selection to ensure an appropriate cooling product for your application.
* Note: The “Life Expectancy” of the fan has not been evaluated for use in combination with any end application. Therefore,
the Life Expectancy Test Reports(L10 and MTTF Report) that relate to the fan are only for reference.
N
N
N
ISO/
ISO9
S
T
16
949
01
0
:2000
ENGINEERING INFORMATION
Alveolate Motor AC fan series with automatic motor-wire
wrapping technology ensures stable performance of high
wind volume, low acoustic noise, also available with
functions of dual spinning rate, and
thermal cutout.

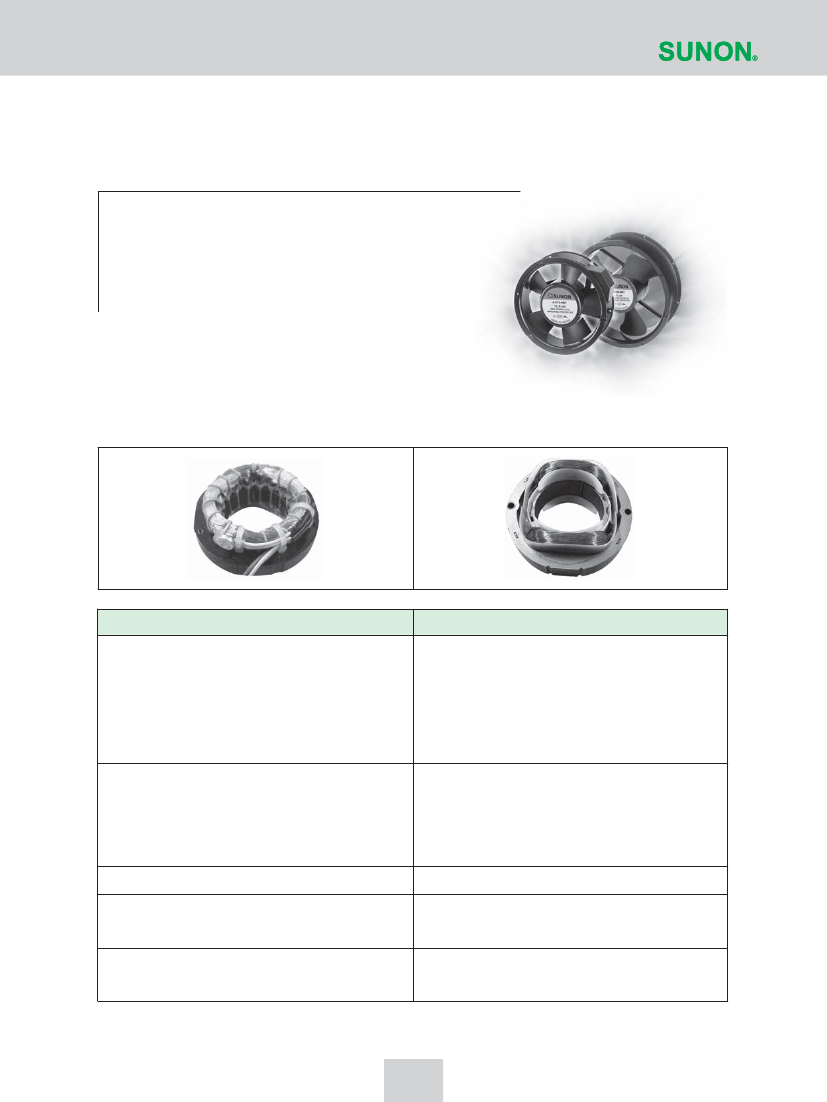

SUNON-Alveolate Motor VS. Traditional Shaded-pole Motor
SUNON-Alveolate Motor
1.The Alvolate Motor is equipped with starting
stator coils and working ones. The starting coils
form a low starting voltage with the capacitors.
For example, an 115VAC (the fixed voltage)
Alveolate Motor can be started with 60 VAC.
Traditional Shaded-Pole Motor
1.The Traditional Shaded-Pole Motor, designed
with single-wire wrapping, is started by “the
starting copper”and cannot be started with
low voltage. An 115VAC Traditional Shaded-
Pole motor will need more than 80VAC to run,
20VAC more than the Alveolate one.
2.The coils do not produce high temperature and
consumes less electricity. The temperature is
normally around 50℃. Therefore, the motor is
always stable and reliable.
3.The Thermal Cutout can protect the motor.
4.The motor has a large torsion to produce high
wind pressure and wind volume.
5.The motor is equipped with the third wire, ready
to comply with the customer’s systems.
2.The Traditional Shaded-Pole Motor consumes
electricity twice as much as the Alveolate
Motor. It is not reliable because the
temperature is usually higher than 70℃.
3.The Thermal Cutout is an option.
4.General wind pressure and wind volume.
5.Without the third wire.
01
AC Fan Model Numbering System
General AC Fan
Ex)
SF11580AT
1
08 2
H
B
L .GN
RoHS Compliance
TERMINALS
T : Terminal
L : Lead wire
BEARING SYSTEM
B : Ball
S : Sleeve
SPEED
X : Super
H : High
M : Middle
L : Low
MODEL SERIES
SFxxx
SPxxx
DPxxx
VOLTAGE
1 : 115 VAC
2 : 220 -240 VAC
FRAME SIZE
08 : 80 mm
09 : 92 mm
12 : 120 mm
FRAME THICKNESS
2 : 25 mm
3 : 38 mm
New Type AC Fan
Ex)
A
MODEL SERIES
A : New AC fan series
AB : New AC blower series
MA : MagLev AC Fan series
VOLTAGE
1 : 115 VAC
3 : 380 VAC
2 : 220-240 VAC
FRAME SIZE
08 : 80 mm
09 : 92 mm
12 : 120 mm
17 : 172 mm
25 : 254 mm
1
17 5
H
B
T
TERMINALS
T : Terminal
L : Lead wire
BEARING SYSTEM
V: MagLev
S : Sleeve
B : Ball
SPEED
X : Super
H : High
M : Middle
L : Low
FRAME THICKNESS
2 : 25 mm
7 : 72 mm
3 : 31~38mm
9 : 89~90mm
5 : 50~51 mm
P/N
P/N Suffixes have the following significance :
T
: Thermal Cutout
TC
: Alveolate Motor with Thermal Cutout and Capacitor
TC.R : Round Frame , Alveolate Motor with Thermal Cutout and Capacitor
N : New frame
GN : RoHS compliance
* Alveolate Motor only available in P/N : TC model
02
