TCE2135600PF5%100V datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TCE2135600PF5%100V

TCE2135600PF5%100V: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.0056uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size184KB，1 Pages; ManufacturerEXXELIA Group

Download Datasheet Parametric View All

TCE2135600PF5%100V Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.0056uF, Through Hole Mount, RADIAL LEADED

TCE2135600PF5%100V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1714680418
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.15
capacitance	0.0056 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal shape	WIRE

Preview

Download Datasheet

View All

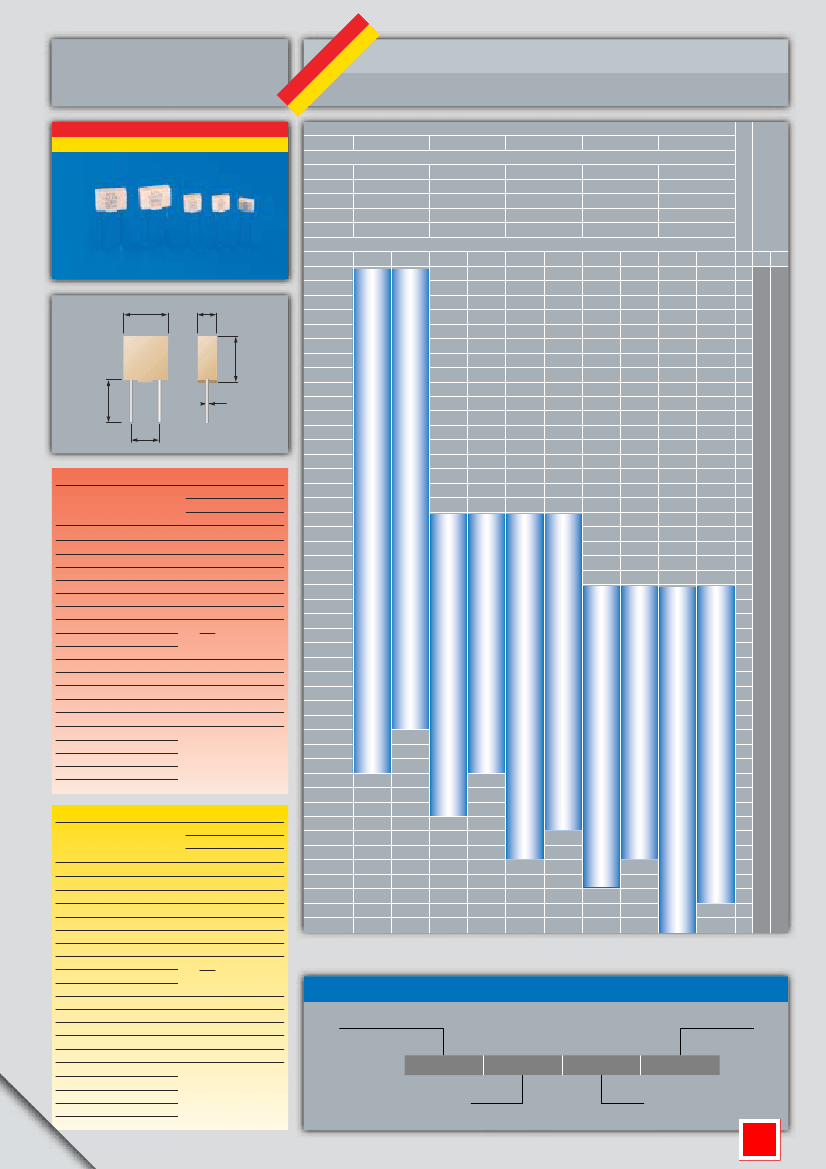

TCE 212

à/to

216

HAUTE TEMPERATURE

HIGH TEMPERATURE

UTO

CONDENSATEURS CERAMIQUE AUTOPROTEGES CLASSE 1

SELFPROTECTED CERAMIC CAPACITORS CLASS 1

Appellation commerciale /

Commercial type

Dimensions /

Dimensions

(mm)

2,5

3,8

5,08

0,6

0,8

Tension nominale /

Rated voltage

100

Code des valeurs de C

Capacitance value coded

Tolérances sur capacité

Tolerance on capacitance

TCE 212

L ±

0,3

W ±

0,3

T max.

X ±

0,2

Ø -

0,05

10%

(V)

10 pF

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10 nF

7,2

6,2

2,5

5,08

0,6

100

TCE 213

TCE 214

TCE 215

14,2

10,6

2,5

10,16

100

TCE 216

14,2

10,6

3,8

10,16

100

E12 E24

100

120

150

180

220

270

330

390

470

560

680

820

101

121

151

181

221

271

331

391

471

561

681

821

102

122

152

182

222

272

332

392

472

562

682

822

103

123

153

183

223

273

333

393

473

563

> 12

Diélectrique

Technologie

Céramique classe 1

Chips multicouches

autoprotégés

Connexions nickel étamé

– 55°C + 200°C

0 ± 30 ppm/°C

50 V - 100 V

0,5 U

2,5 U

1,25 U

150 + 7 .10

–4

10.10

–4

10.10

–4

CARACTERISTIQUES ELECTRIQUES

Température d’utilisation

Caract. capacité temp.

Tension nominale U

à 20°C

Tension de catégorie à 200°C

Tension de tenue à 20°C

Tension de tenue à 200°C

Tangente à 1 MHz

50 pF

50 pF C

100 pF

Tg à 1 kHz C

100 pF

Résistance d’isolement

à 20°C sous U

à 200°C sous 0,5 U

± 10 % (K)

(

)

50 000 M

1000 M

MARQUAGE

Modèle

Capacité

Tolérance

Tension

Date-code

Dielectric

Technology

Ceramic class 1

Selfprotected

multilayer chips

Tinned nickel leads

– 55°C + 200°C

0 ± 30 ppm/°C

50 V - 100 V

0,5 U

2,5 U

1,25 U

150 + 7 .10

–4

10.10

–4

10.10

–4

ELECTRICAL CHARACTERISTICS

Operating temperature

Capac. temp. charact.

Rated voltage U

at 20°C

Voltage category at 200°C

Test voltage at 20°C

Test voltage at 200°C

Tangent at 1 MHz

50 pF

50 pF C

100 pF

Tg at 1 kHz C

100 pF

Insulation resistance

at 20°C under U

at 200°C under 0,5 U

(

)

Exemple de codification à la commande /

How to order

Appellation commerciale

Commercial type

Tension nominale

Rated voltage

50 000 M

1000 M

MARKING

Model

Capacitance

Tolerance

Voltage

Date-code

TCE 213

3300 pF

Capacité

Capacitance

10 %

Tolérance

Tolerance

100 V

± 5 % (J)
