with the full circle of terminals regardless of the
number of active positions
Stop Strength:
1.70 Nm maximum (15.0 in-
lbs)
Switching torque:
8 to 16 in-ozs
Switch Base:
Thermoset plastic
Switch housing:
Nylon
Detent rotor:
Nylon
Detent Balls:
Steel, nickel-plated
Detent Springs, and contact Springs:
Stainless steel
common ring: Brass, gold plate over silver
plate
terminals: Brass, gold over silver and nickel
plate
rotor contact:
Precious metal, gold alloy

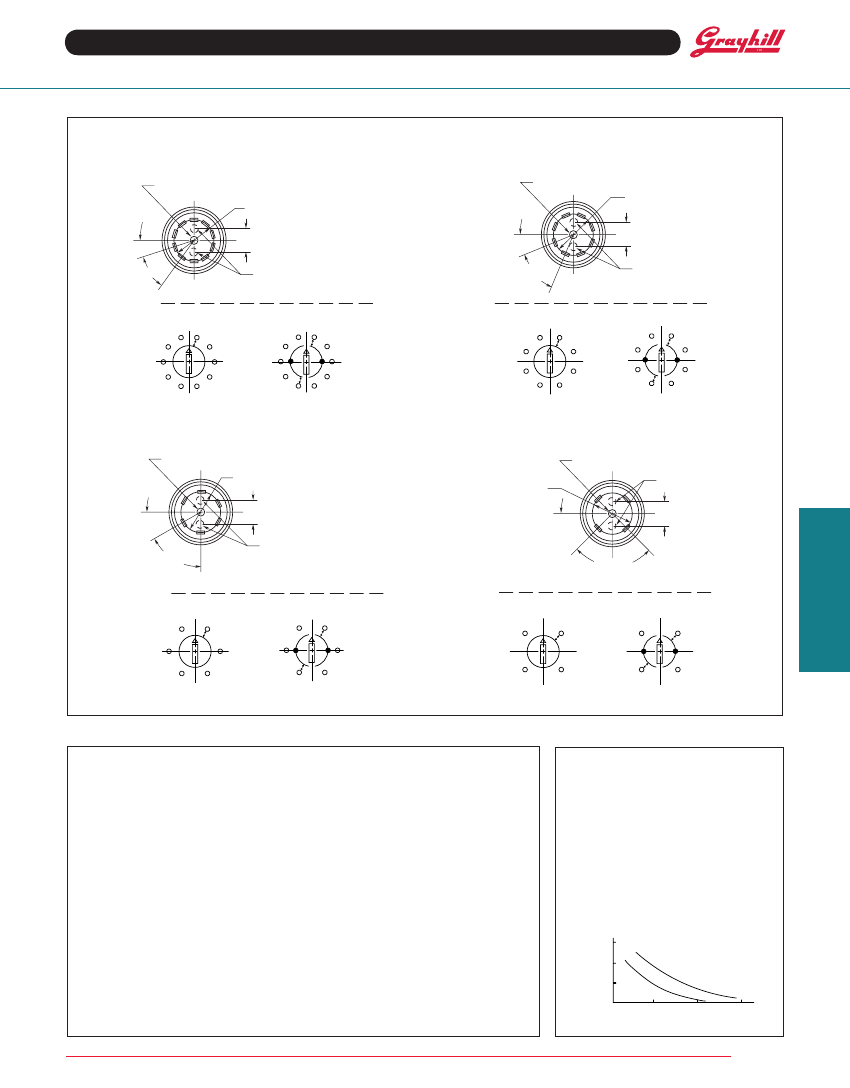

choiceS AND LiMitAtioNS
Lock Style and
Description*
Switch Style and
Description
Series 58J Switches
J4: Standard–key pulls at Position 1
and at 90 Degree increments
A
P
= Standard, Solder Lugs
= Standard, PC Mount
45°
36°
J8: Standard–key Pulls at each
Position
Rotary Switches
J9: Standard–key Pulls at Position 1
and at 180 Degrees
A
P
= Standard, Solder Lugs
= Standard, PC Mount
A
P
= Standard, Solder Lugs
= Standard, PC Mount
45°
90°
36°
45°
60°
90°
1
1
1
1
1
1
1
1
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
02 to 08
02 to 04
02 to 10
02 to 05
02 to 08
02 to 04
02 to 04
02
02 to 10
02 to 05
02 to 08
02 to 04
02 to 06
02 to 03
02 to 04
02
N or S
N or S
N or S
N or S
N or S
N or S
N
N
N or S
N or S
N or S
N or S
N
N
N
N
Angle of
throw
No. of
Decks
Poles/
Deck
Positions
Per Pole**
Shorting or
Non-Shrtg.
*Standard Keylock has anti-static protection. All keylock versions available without anti-static protection, with a reduced overall body length. Contact
Grayhill for more information.
**For single pole switches with maximum positions, specify continuous rotation or fixed stop when ordering.
orDeriNg iNforMAtioN
Series
Lock Style: per Choices Chart J4, J8, J9
Switch Style:
per Choices Chart A or P
Angle of throw:
36, 45, 60 or 90 (per Choices chart)
Number of Decks:
01
Poles per Deck:
= 1 or 2 (per Choices chart)
Positions per Pole:
02 thru 10 (per Choices chart)
type of contacts:
(per Choices chart)
N = Non-shorting
S = Shorting
Stop Arrangement Suffix:
(needed only for 1-pole switches with maximum positions)
F = Fixed stop between last and first positions
*Leave blank for continuous rotation
58J8A36-01-1-10N-f
Available from your local grayhill Distribu-
tor.
For prices and discounts, contact a local
Sales Office, an authorized local Distributor
or Grayhill.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
