BR03BQ2262ERA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> BR03BQ2262ERA

BR03BQ2262ERA: DescriptionArray/Network Resistor, Isolated, Metal Film, 0.4W, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, BGA; CategoryPassive components The resistor; File Size212KB，1 Pages; ManufacturerThin Film Technology Corp (TFT)

Download Datasheet Parametric View All

BR03BQ2262ERA Overview

Array/Network Resistor, Isolated, Metal Film, 0.4W, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, BGA

BR03BQ2262ERA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1716403683
package instruction	BGA
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION
The first element resistor	22600 Ω
JESD-609 code	e0
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	175 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	0.4 W
Rated temperature	125 °C
Resistor type	ARRAY/NETWORK RESISTOR
surface mount	YES
technology	METAL FILM
Temperature Coefficient	25 ppm/°C
Temperature coefficient tracking	2 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	BALL
Tolerance	0.1%

Preview

Download Datasheet

View All

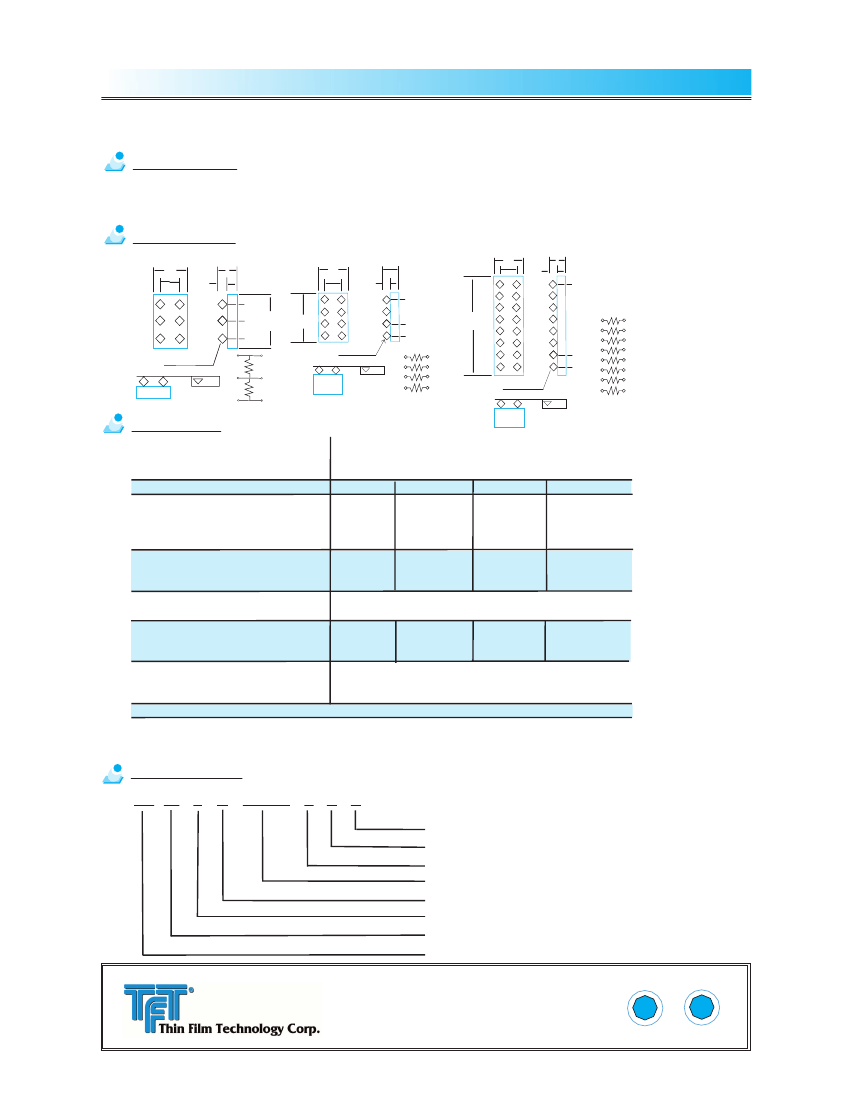

Precision Resistor Network

BR Series

Specification subject to change - Please call factory.

1.0 Description

The BR series resistor networks are precision-class metal film components featuring tight resistance tolerance

and low values of temperature coefficient of resistance (TCR). This paired resistor network package provides

both excellent resistance and TCR tracking with BGA terminations.

2.0 Mechanical

0.80

MAX

3.81

±0.20

2.54

1.65

MAX

-Please refer to page 51 for land pattern

BR01 Series

6.57

±0.20

5.30

dimension mm (not drawn to scale)

5.30

0.80

MAX

6.57

±0.20

1.65

MAX

0.80

MAX

Pitch

0.711 (28 mil.) Dia.

63 / 37 Sn / Pb Sphere

0.076

2.54 x 2

6.35

±0.20

5.08

±0.20 B

0.711 (28mil.) Dia.

63/37 Sn/Pb Sphere

0.076

Pitch

1.27 x 3

10.16

±0.20

3.0 Electrical

BR01 series: 40K

BR02 series: 32K

BR03 series: 32K

Resistance range (ohms):

10 - <20

20 - <100

100 - <16K 16K - Max

Absolute resistance tolerance (%): ±0.05 (A)

±0.02 (Q)

±0.01 (T)

±0.10 (B)

±0.05 (A)

±0.02 (Q) ±0.02 (Q)

±0.10 (B)

±0.05 (A)

±0.10 (B)

Absolute TCR (ppm/°C)

±25 (E)

±5 (M)

±10 (Y)

±25 (E)

Resistance ratio tolerance (%)

±0.02 (Q)

±0.05 (A)

TCR tracking (ppm/°C)

±5 (M)

±2 (R)

±1 (X)

±2 (R)

(refer to note 1 & 2)

±5 (M)

±2 (R)

±5 (M)

Package power rating:

BR01 series: 0.3 watt @125°C

BR02 series: 0.8 watt @125°C

BR03 series: 0.4 watt @125°C

Operating temperature:

-40°C to +175°C

Storage temperature:

-55°C to +125°C

Note 1:

Ratio values greater than 50:1 only available in ±5 ppm/°C TCR tracking tolerance

Note 2:

±1ppm/°C TCR Tracking only available for identical resistance values.

Maximum resistance (ohms):

4.0 Part Number

BR 02

****/****

Y R

Call Factory/Check website for RoHS part Numbering

Packaging (1,000 on tape and reel)

TCR tracking tolerance

Absolute TCR tolerance

Resistance value

Resistance ratio tolerance

Absolute resistance tolerance

Form factor

Product designator

TERE

1.65

MAX

BR03 Series

BR02 Series

Pitch

1.27 x 7

0.711 (28mil.) Dia.

63 / 37 Sn / Pb Sphere

0.076

TERE
