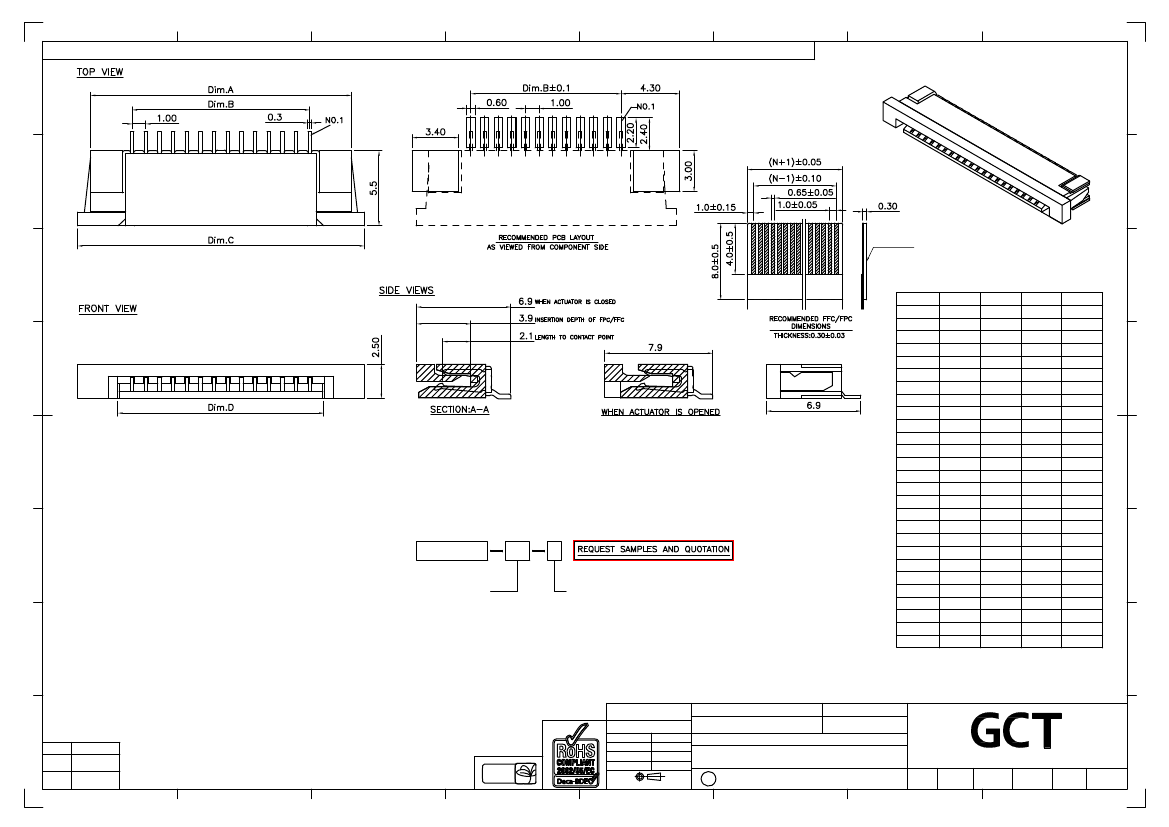

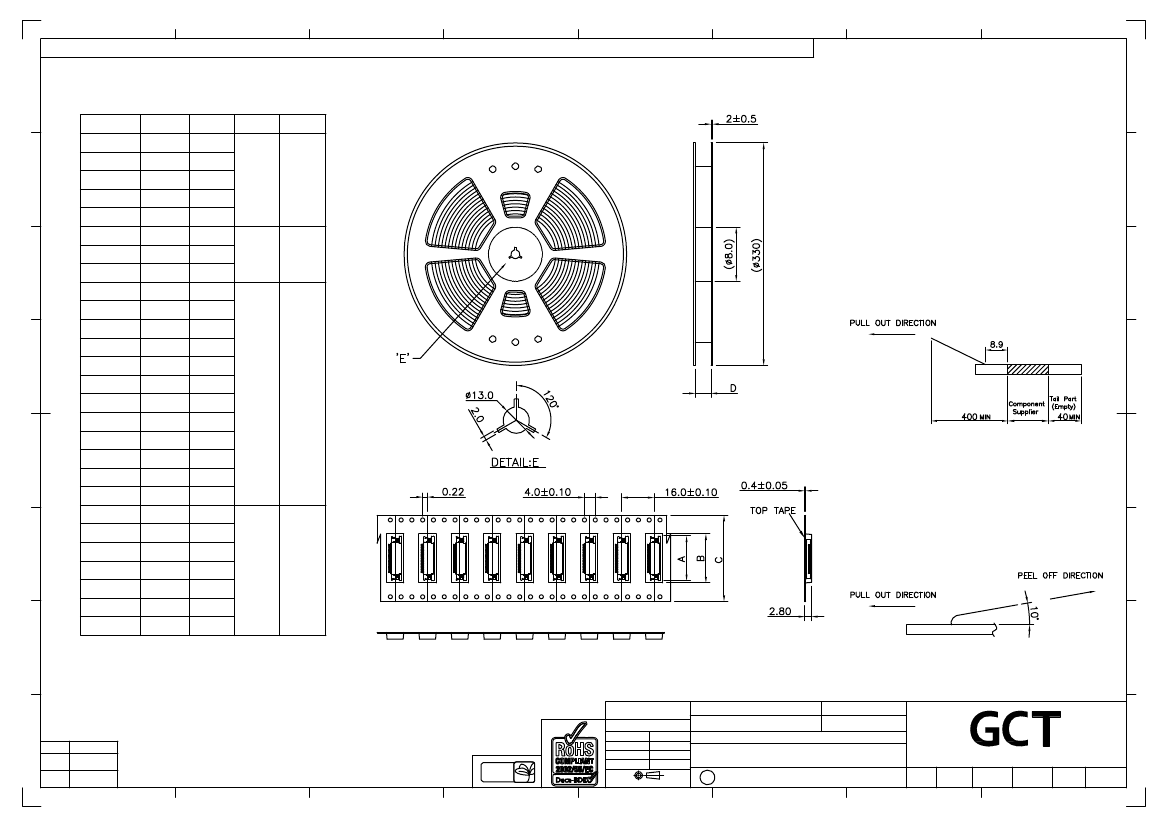

Global Connector Technology Ltd. - FFC3B05 : FPC 1.0mm Pitch Side Entry, Bottom Contact, SMT, Height=2.5mm, ZIF, Slide Type
A
A
B
B
C
Pin No.
*
4
*
5
*
6
*
7
*
8
*
9
*
10
*
11
*
12
*
13
*
14
*
15
*
16
*
17
*
18
*
19
*
20
21
22
23
*
24
25
26
27
28
29
*
30
Dim.A
9.10
10.10
11.10
12.10
13.10
14.10
15.10
16.10
17.10
18.10
19.10
20.10
21.10
22.10
23.10
24.10
25.10
26.10
27.10
28.10
29.10
30.10
31.10
32.10
33.10
34.10
35.10
Dim.B
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
21.00
22.00
23.00
24.00
25.00
26.00
27.00
28.00
29.00
Dim.C
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
21.00
22.00
23.00
24.00
25.00
26.00
27.00
28.00
29.00
30.00
31.00
32.00
33.00
34.00
35.00
36.00
37.00
Dim.D
5.10
6.10
7.10
8.10
9.10
10.10
11.10
12.10
13.10
14.10
15.10
16.10
17.10
18.10
19.10
20.10
21.10
22.10
23.10
24.10
25.10
26.10
27.10
28.10
29.10
30.10
31.10
C
D
D
Specification
规格
:
E
Material
物料规格
:
Housing Material: High-Temp Plastic LCP (UL 94V-0), White
高温塑胶
Actuator: LCP (UL 94V-0), Black
Contact: Phosphor Bronze
磷青铜
Finish (a) Contact Plating: see ordering grid
(b) Underplating: Nickel-plated all over
Fitting Nail: Brass, tin plated
黄铜，镀锡
Durability: 20 Cycles
E
Ordering Grid
F
Mechanical
Electrical
电气规格
:
Voltage Rating (Max.): 50V AC/DC
最大额定电压
50V AC/DC
Current Rating (Max.): 0.4A AC/DC
最大额定电流
0.4A AC/DC
Dielectric Strength: 500V AC for 1 minute
between adjacent terminal, no breakdown
G
电介质强度：
500V AC
于相邻端子，1分钟，无损害
Insulation Resistance: 50 MΩ Min. 250V DC
for 1 minute between adjacent terminal
绝缘阻抗:
50MΩ, 250V DC
于相邻端子1分钟
Contact Resistance: 40 mΩ Max.
连接阻抗：
40
毫欧
Operating Temperature: -25°C to +85°C
工½温度：
-25
°
to +85
°
Solder Profile: Peak Temp 260°C (+0/-5°C) Maximum (5 seconds)
FFC3B05
XX
X
Contact Plating
T=Tin Plating over all (Standard) - reel qty=1500pcs
G=Gold Flash over all - reel qty=1500pcs, MOQ 4 reels
F
No. of Contacts
04 - 30
(see dimension table)
*
=
Tooled Parts
Please contact GCT for non-tooled parts
Non-tooled MOQ 10k pcs
Tolerances
(Except as noted)
G
Part Number:-
Date:-
Dimensions in mm
FFC3B05
24 MAY 10
H
By
DETAIL
REV
DATE
PKN
DRAWING
RELEASE
A
24/05/10
X.X ± 0.30
X.X ± 2°
Description:-
X.XX ± 0.15 X.XX ± 1°
FPC 1.0mm
X.XXX ± 0.10 X.XXX ± 0.5°
H
www.globalconnectortechnology.com
Scale
NTS
PITCH SIDE ENTRY, BOTTOM CONTACT,
SMT, HEIGHT=2.5mm, ZIF, SLIDE TYPE
Halogen
Free
1
2
3
4
Third Angle Projection
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
A
Material
See Note
Drawn by
PKN
E & OE
Sheet No.
1/2
5
6
7
8
1
2
3
4
5
6
7
8
Global Connector Technology Ltd. - FFC3B05 : FPC 1.0mm Pitch Side Entry, Bottom Contact, SMT, Height=2.5mm, ZIF, Slide Type
A
A
B
C
D
E
F
PIN NO.
4P
5P
6P
7P
8P
9P
10P
11P
12P
13P
14P
15P
16P
17P
18P
19P
20P
21P
22P
23P
24P
25P
26P
27P
28P
29P
30P
DIM.A
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
DIM.B DIM.C DIM.D
11.5
12.5
24
24.5
13.5
14.5
15.5
16.5
32
32.5
17.5
18.5
19.5
20.5
21.5
22.5
23.5
24.5
44
44.5
25.5
26.5
27.5
28.5
29.5
30.5
31.5
32.5
33.5
56
56.5
34.5
35.5
36.5
37.5
NOTES:
1.Number of Connectors:
1500 Pcs/Reel
2.Material
Carrier Tape:PET,PE,PEF
Reel:PS
3.Lead Tape Length:
C
B
D
E
4.Peeling off force of top tape
0.1N~0.7N(10.2gf~71.4gf)
(Peeling direction as shown in
follwing fig)
F
G
G
Tolerances
(Except as noted)
Part Number:-
Date:-
Dimensions in mm
FFC3B05
24 MAY 10
H
By
DETAIL
REV
DATE
PKN
DRAWING
RELEASE
A
24/05/10
Halogen
Free
X.X ± 0.30
X.X ± 2°
Description:-
X.XX ± 0.20 X.XX ± 1°
FPC 1.0mm
X.XXX ± 0.10 X.XXX ± 0.5°
H
www.globalconnectortechnology.com
Scale
NTS
PITCH SIDE ENTRY, BOTTOM CONTACT,
SMT, HEIGHT=2.5mm, ZIF, SLIDE TYPE
Third Angle Projection
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
A
Material
See Note
Drawn by
PKN
E & OE
Sheet No.
2/2
1
2
3
4
5
6
7
