ECCM1-23.59296MTR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECCM1-23.59296MTR

ECCM1-23.59296MTR: DescriptionQUARTZ CRYSTAL RESONATOR, 23.59296 MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size124KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ECCM1-23.59296MTR Overview

QUARTZ CRYSTAL RESONATOR, 23.59296 MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ECCM1-23.59296MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164143974
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.01%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	23.59296 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	30 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

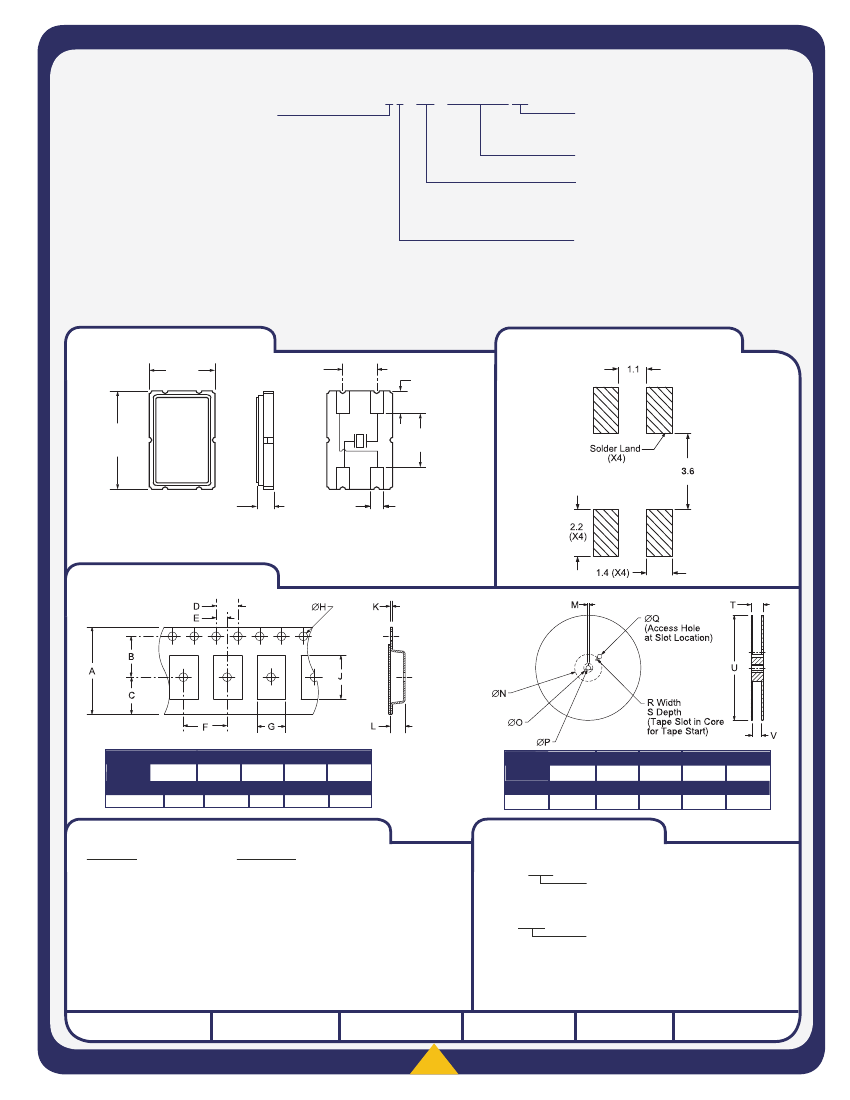

ECCM1

Series

• RoHS Compliant (Pb-Free)

• Four pad ceramic SMD package

• AT cut

• Tight tolerance/stability

• Tape and reel available

ECCM1

1.3

7.0

5.0

CRYSTAL

ELECTRICAL SPECIFICATIONS

Frequency Range (MHz)

6M, 7.3728M, 8M, 10M, 10.178125M, 10.24M, 10.245M, 10.368M, 10.446875M, 10.488M, 11M, 11.0592M,

11.1386M, 11.2896M, 11.34M, 11.6M, 11.71875M, 11.895094M, 11.9808M, 12M, 12.288M, 12.352M, 12.5M, 12.58M, 12.8M, 12.96M, 13M,

13.0625M, 13.2258M, 13.234375M, 13.248M, 13.4008M, 13.5M, 13.56M, 13.56797M, 13.568M, 13.58145M, 13.581641M, 13.824M, 14.1219M,

14.133M, 14.2891M, 14.318M, 14.3181M, 14.31818M, 14.3734M, 14.375M, 14.725M, 14.7456M, 15M, 15.29182M, 15.36M, 16M, 16.000312M,

16.108M, 16.368M, 16.384M, 16.4M, 16.666M, 16.67M, 16.9344M, 17.28M, 17.664M, 17.734475M, 18M, 18.10859M, 18.432M, 19.2M, 19.44M,

19.53125M, 19.6608M, 19.8M, 20M, 20.25M, 20.48M, 21.25M, 22.1184M, 22.118405M, 22.12M, 22.5792M, 23.4375M, 23.59296M, 23.593M,

24M, 24.279156M, 24.4344M, 24.5535M, 24.567M, 24.576M, 24.8832M, 24.993M, 24.9984M, 25M, 25.000625M, 25.45625M, 25.576M, 26M,

26.05M, 26.45125M, 26.453M, 26.5625M, 27M, 27.184062M, 27.648M, 27.7M, 28M, 28.224M, 28.322M, 28.375M, 28.5M, 28.636M, 28.6363M,

28.63636M, 28.636363M, 29.4912M, 30M, 31M, 32M, 32.768M, 33M, 33.3021M, 33.33M, 33.3333M, 33.8688M, 35.328M, 36M, 36.864M, 38M,

39M, 39.168M, 40M, 40.5M, 40.96M, 41.25M, 41.6M, 44M, 44.2368M, 44.736M, 45.1584M, 46.88M, 48M, 48.213333M, 48.551727M, 49.152M,

49.740625M, 49.744444M, 49.75025M, 49.755555M, 49.756055M, 49.756666M, 49.7567M, 50M, 52.416M, 52.992M, 53M, 54M, 54.24875M,

54.25125M, 54.25625M, 54.25875M, 54.26125M, 54.26375M, 54.26625M, 54.26875M, 54.27125M, 54.27375M, 54.27875M, 54.28125M,

54.28625M, 54.32625M, 54.34625M, 54.36625M, 54.37625M, 54.75375M, 54.75625M, 54.76625M, 54.77625M, 54.84625M, 56.75M, 57.2727M,

57.27272M, 61.44M, 64M, 65M, 65.1M, 66M

±50ppm / ±100ppm, ±30ppm / ±50ppm,

Frequency Tolerance / Stability

±15ppm / ±30ppm, ±15ppm / ±20ppm, or ±10ppm / ±15ppm

Over Operating Temperature Range

Operating Temperature Range

Aging (at 25°C)

Spurious Response

Storage Temperature Range

Shunt Capacitance

Insulation Resistance

Drive Level

Load Capacitance (C

)

0°C to +70°C, -20°C to +70°C, or -40°C to +85°C

±3ppm / year Maximum

-3dB Minimum; F

to F

+5000ppm

-40°C to +85°C

7pF Maximum

500 Megaohms Minimum at 100V

50 µWatts Maximum, 50 µWatts Correlation

18pF Parallel Resonant

Series Resonant

12pF Parallel Resonant to 50pF Resonant

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT

Frequency Range

6.000MHz to 9.999MHz

10.000MHz to 10.999MHz

11.000MHz to 13.999MHz

14.000MHz to 15.999MHz

MANUFACTURER

ESR (Ω)

90 Max

60 Max

50 Max

40 Max
