MWDM1L-21P-0J1-18 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MWDM1L-21P-0J1-18

Preview

MWDM1L-21P-0J1-18: DescriptionD Microminiature Connector, 21 Contact(s), Male, Crimp Terminal,; CategoryThe connector The connector; File Size522KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MWDM1L-21P-0J1-18 Overview

D Microminiature Connector, 21 Contact(s), Male, Crimp Terminal,

MWDM1L-21P-0J1-18 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1862303447
Reach Compliance Code	not_compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	6.51
Other features	STANDARD: MIL-DTL-83513
body width	0.308 inch
subject depth	0.233 inch
body length	1.085 inch
Connector type	D MICROMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.668 N
Minimum insulation diameter	0.026 inch
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER/GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4
MIL compliance	YES
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	JACKPOST
Installation option 2	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Options	WITH CABLE ASSEMBLY
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	C
Terminal length	18 inch
Termination type	CRIMP
Total number of contacts	21
Maximum wire diameter	30 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	0.139 N

Preview

Download Datasheet

View All

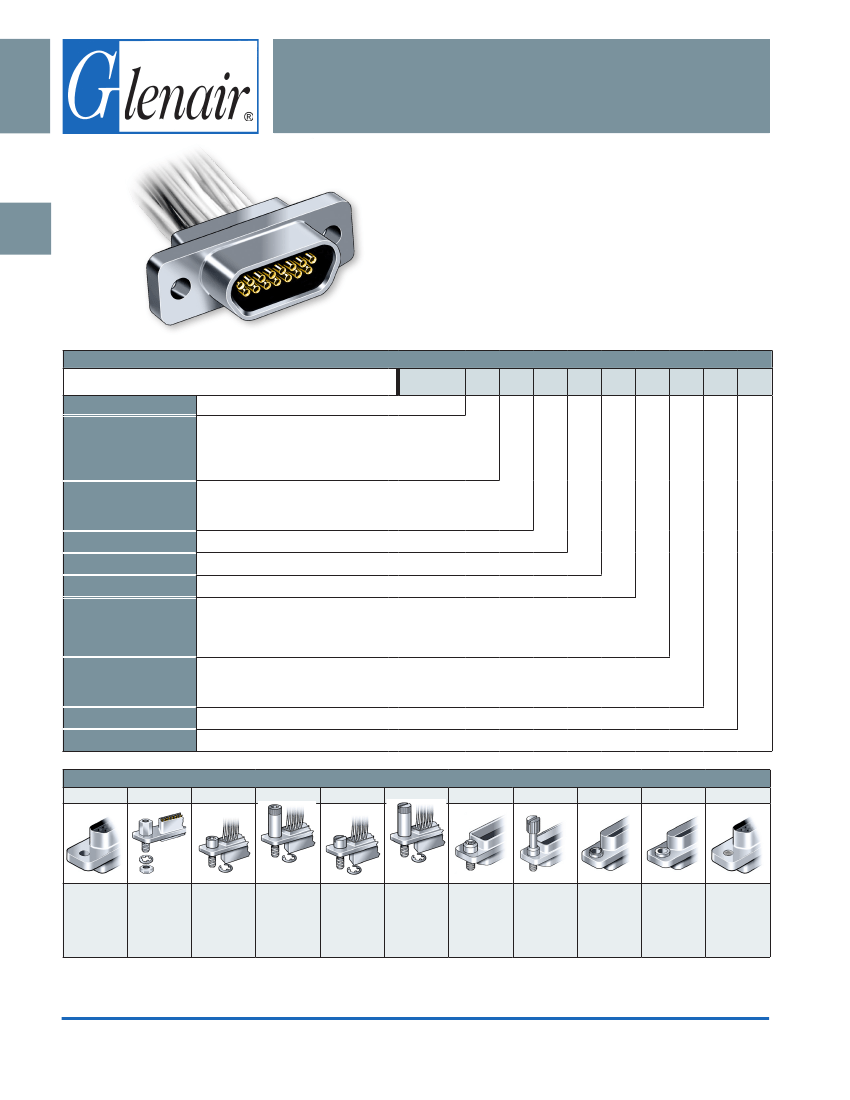

B

Micro-D Harness

Sample Part Number

Series

MWDM

Glenair Micro-D

Aluminum Shell

1

- Cadmium

2

- Nickel

4

- Black Anodize

5

- Gold

6

- Chem Film

Shell Material and Finish

Insulator Material

Contact Layout

Contact Type

Wire Gage (AWG)

Wire Type

P

- Pin

S

- Socket

4

- #24

6

- #26

8

- #28

K

– M22759/11

600 VRMS

Fluoropolymer (TFE)

Wire Color

Wire Length Inches

Hardware

B

P

M

M1

S

Thru-Hole

Jackpost

Micro-D MWDM

Insulated Wire Metal Shell Connectors

Micro-D Insulated Wire Pigtails–These

connectors feature

gold-plated TwistPin contacts and mil spec crimp termination.

Specify nickel-plated shells or cadmium plated shells for best

availability. 100% tested and backpotted, ready for use.

Choose the Wire Type and Size To Fit Your Application–If

on-hand availability is most important, choose #26 AWG Type

K mil spec fluoropolymer wire. Select M22759/33 Type J for

space applications.

How To Order Insulated Wire Connector

MWDM

2

L-

25

S-

4

K

7-

18

B

Stainless Steel Shell

3

- Passivated

L

- LCP or PPS

LCP - 30% Glass-Filled Liquid Crystal Polymer

PPS - 40% Glass filled polyphenylene sulfide

9, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 75, 100, 130

(See Table II)

0

- #30

J

– M22759/33

600 VRMS Modified Cross-

Linked Tefzel® (ETFE)

E

– NEMA HP3-EB

600 VRMS Type E M16878/4 (TFE)

1

– White

2

– Yellow

5

– Color-Coded Stripes Per MIL-STD-681 (up to 51 colors)

7

– Ten Color Repeating

18

- Wire Length In Inches. “18” Specifies 18 Inches.

B, P, M, M1, S, S1, L, K, F, R, H

(See Table I)

Table I: Mounting Hardware

S1

L

K

F

R

H

Hex Head

Jackscrew

Hex Head

Jackscrew,

Extended

Slot Head

Jackscrew

Slot Head

Jackscrew,

Extended

Hex Head Slot Head

Float Mount Float Mount

Jackscrew Jackscrew

For Front

For Rear

Non-

Panel

Removable Removable

Mounting

Extended

Threaded

Insert

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-10

E-Mail: sales@glenair.com

Rev. 05.13.19
