PZ12E152MSA: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 1500uF, THROUGH HOLE MOUNT, CAN; CategoryPassive components capacitor; File Size96KB，2 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric View All

PZ12E152MSA Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 1500uF, THROUGH HOLE MOUNT, CAN

PZ12E152MSA Parametric

Parameter Name	Attribute value
Objectid	1921580850
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1500 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	75 mΩ
leakage current	7.5 mA
Manufacturer's serial number	PZ1
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
ripple current	5340 mA
surface mount	NO
Terminal shape	SNAP-IN

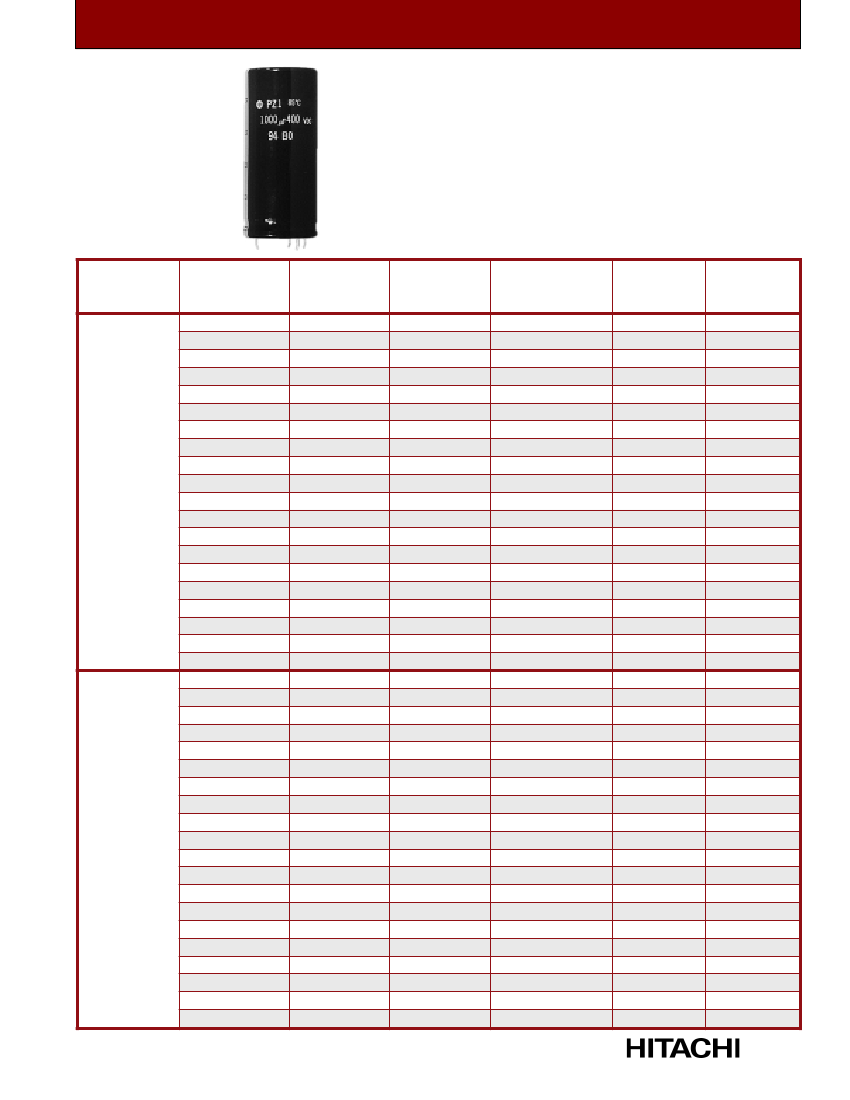

Preview

Download Datasheet

View All

ALUMINUM ELECTROLYTIC CAPACITORS

PZ1 Series

•Life rating to 3,000 hours at 85°C

•Temperature range –40°C to +85°C

Rated

Voltage

(WVDC)

Part

Number

PZ12D221MRX

PZ12D271MRX

PZ12D331MRX

PZ12D331MRY

PZ12D391MRX

PZ12D391MRY

PZ12D471MRX

PZ12D471MRZ

PZ12D561MRX

PZ12D561MRZ

PZ12D681MRX

PZ12D681MRA

PZ12D821MRY

PZ12D821MRA

PZ12D102MRY

PZ12D102MRA

PZ12D122MRZ

PZ12D122MRA

PZ12D152MRA

PZ12D182MSA

PZ12E221MRX

PZ12E271MRX

PZ12E271MRY

PZ12E331MRX

PZ12E331MRY

PZ12E391MRX

PZ12E391MRZ

PZ12E471MRX

PZ12E471MRA

PZ12E561MRX

PZ12E561MRA

PZ12E681MRY

PZ12E681MRA

PZ12E821MRY

PZ12E821MRA

PZ12E102MRZ

PZ12E102MRA

PZ12E122MRZ

PZ12E122MRA

PZ12E152MSA

Capacitance

220

270

330

390

470

560

680

820

1,000

1,200

1,500

1,800

220

270

330

390

470

560

680

820

1,000

1,200

1,500

Case Size

ØD x L (mm)

22

25

22

25

22

30

22

30

22

35

25

35

25

35

30

35

22

25

22

25

22

30

22

35

22

35

25

35

25

35

30

35

30

35

X

25

30

25

30

25

35

25

40

25

45

25

40

25

50

30

40

36

40

50

25

30

25

35

30

35

25

40

25

50

25

45

30

50

30

45

36

50

40

50

Maximum Ripple

Current (A rms)

@85° C,120Hz

1.36

1.50

1.76

1.89

1.92

1.90

2.23

2.54

2.44

2.92

2.86

3.26

3.13

3.92

3.66

4.19

4.25

4.93

5.84

1.36

1.60

1.58

1.87

1.86

2.04

2.35

2.38

2.81

2.59

3.11

3.01

3.55

3.31

4.00

3.88

4.55

4.40

5.34

Maximum

ESR (m

Ω)

485

395

325

275

230

190

160

130

110

90

75

60

485

395

325

275

230

190

160

130

110

90

75

Typical

ESL (nH)

5

6

7

9

11

13

14

15

5

6

7

8

9

10

11

12

200 Volts

(Code: 2D)

250 Volts

(Code: 2E)

79
