Surge arrester
3-electrode arrester
Series/Type:
Ordering code:
Version/Date:
Version:
EZ3-A250XF1
B88069X4521B502
Issue 02 / 2007-09-06
01
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white" (or invisible). This ensures that the table disappears for the customer
PDF. To update the data sheet, click on the symbol "Preview" and then "Close". Please do not alter the header or
footer when copying the content.
Identification/Classification 1:
(header 1 + top left header bar)
Identification/Classification 2:
(header 2 + bottom left header bar)
Ordering code:
(top right header bar)
Series/Type:
(top right header bar)
Surge arrester
3-electrode arrester
B88069X4521B502
EZ3-A250XF1
Preliminary data (optional):
(if necessary)
2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
EPCOS AG
contained therein without EPCOS' prior express consent is prohibited.
AB PM
Department:
KB AB E / KB
Date:
EPCOS AG is a TDK Group Company.
Issue 02 / 2007-09-06
Surge arrester
3-electrode arrester
B88069X4521B502
EZ3-A250XF1
1)
2)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
3)
Test according to ITU-T Rec. K.12
4)
Tip or ring electrode to center electrode
5)
Total current through center electrode, half value through
tip respectively ring electrode.
Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845
Arrester fail safe works at temperatures > 260 °C. The arrester has to be
fixed mechanically, if the arrester is contacted by soldering and if the solder
temperature is less than 260 °C.

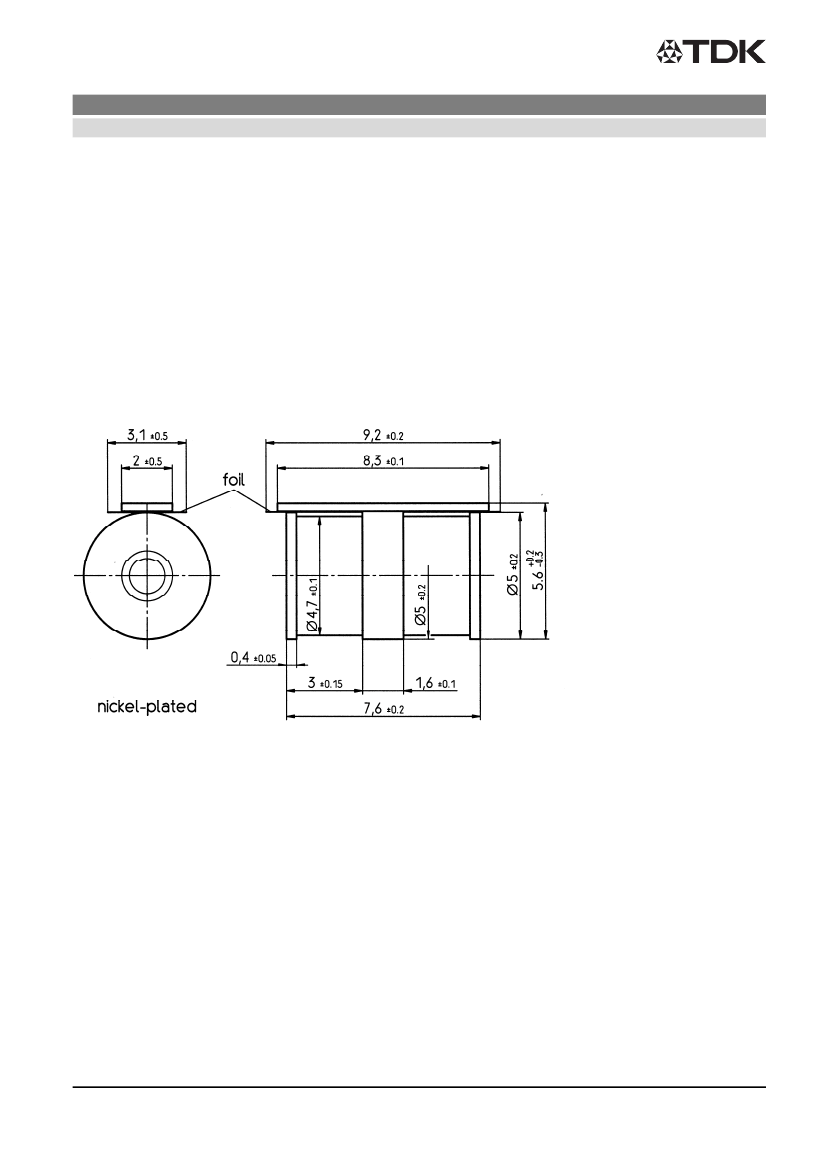

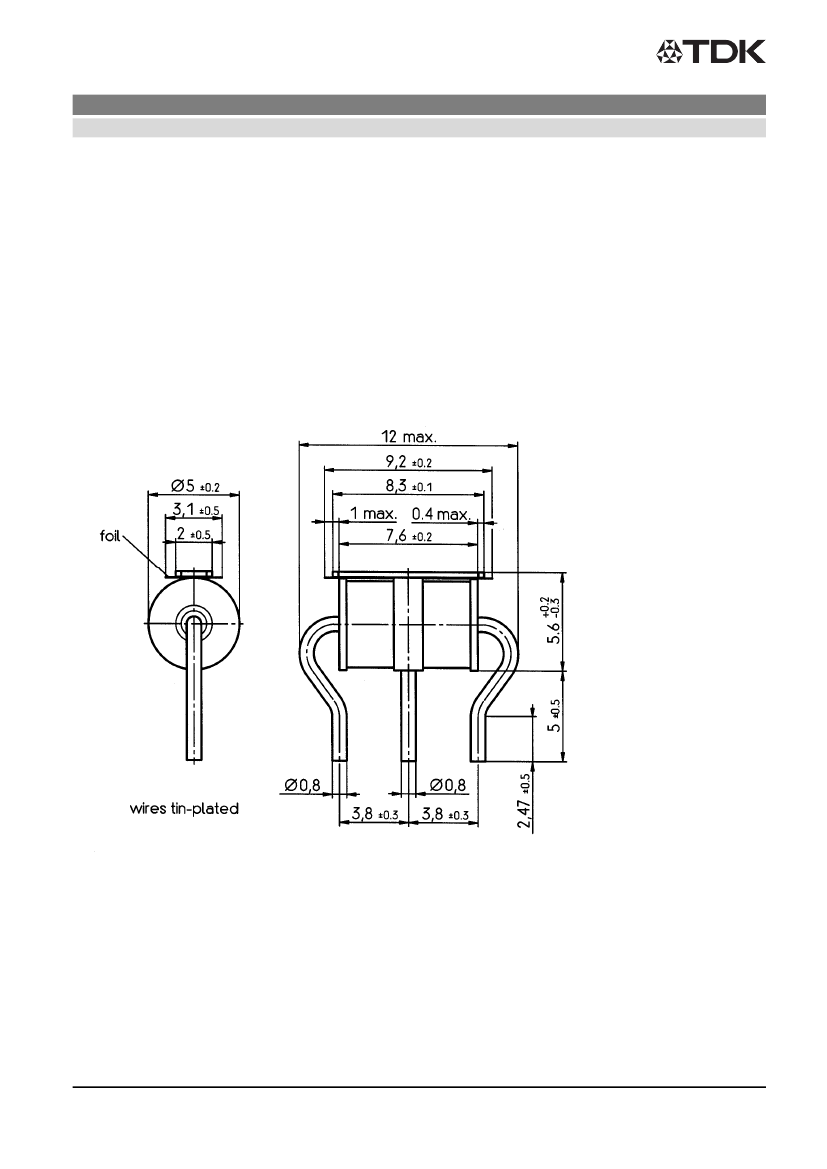

Dimensional Drawing
Not to scale
Dimensions in mm
Non controlled document
Cautions and warnings
Surge arresters must not be operated directly in power supply networks.
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
Surge arresters may be used only within their specified values. In case of overload, the head
contacts may fail or the component may be destroyed.
Damaged surge arresters must not be re-used.
Surge arrester with triggered short-circuit mechanism must not be re-used.
KB AB E / KB AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 4
Issue 02 / 2007-09-06
