FPK-1722-55PD10-P datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> FPK-1722-55PD10-P

Preview

FPK-1722-55PD10-P: DescriptionMIL Series Connector, 55 Contact(s), Stainless Steel, Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

FPK-1722-55PD10-P Overview

MIL Series Connector, 55 Contact(s), Stainless Steel, Male, Crimp Terminal, Receptacle

FPK-1722-55PD10-P Parametric

Parameter Name	Attribute value
Objectid	1060339477
Reach Compliance Code	unknown
YTEOL	8.85
Other features	STANDARD: MIL-C-26500, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FIRE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	FPK-17
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	22
Termination type	CRIMP
Total number of contacts	55

Preview

Download Datasheet

View All

Firewall Class K

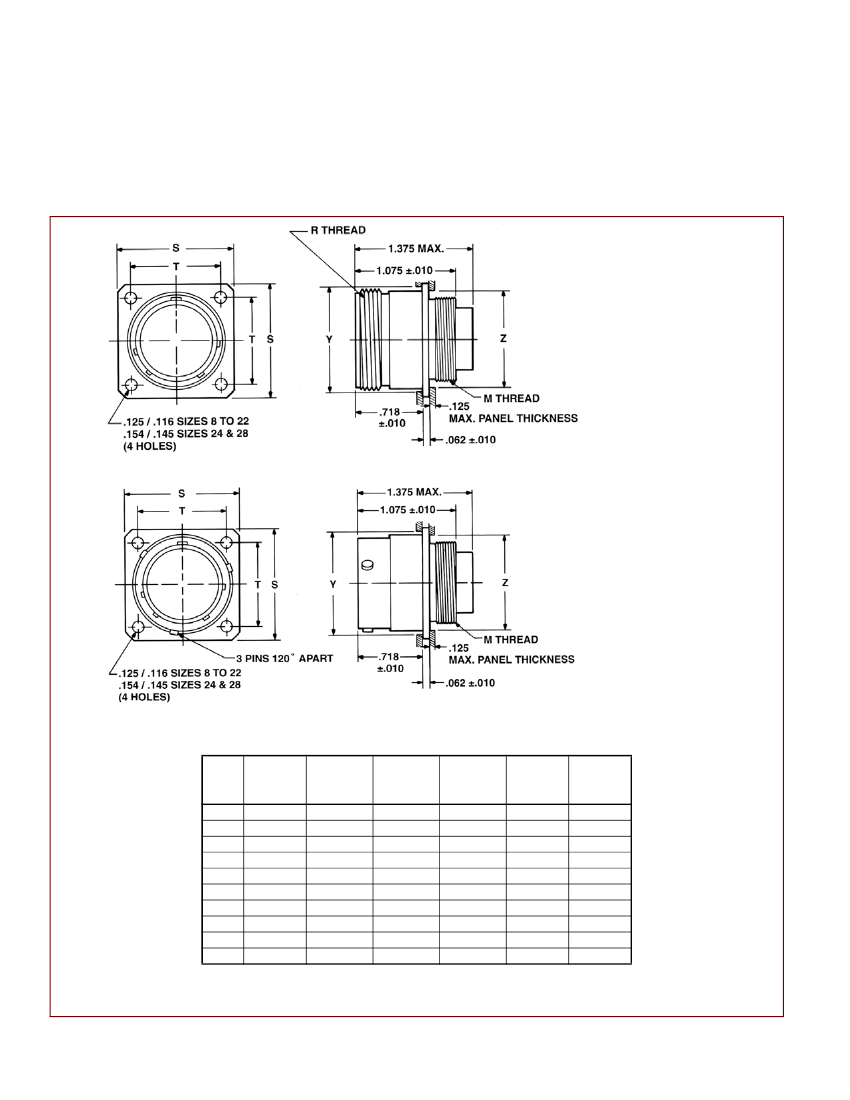

Flange Mounted Receptacle

Class K stainless steel,

threaded/bayonet coupling

THREADED COUPLING

Class K Stainless Steel

Pyle FPK-17XX* Series

MS27613KXXTXX*

Military Class K

BAYONET COUPLING

Class K Stainless Steel

Pyle FYL-17XX* Series

MS27613KXXBXX*

Military Class K

* To complete order number,

see how to order, page 21.

Shell

Size

Cable

Support

Thread M

Coupling

Thread

R

Flange

Width

S ±.005

Mounting

Hole

Centers

T ±.005

Back

Mount

Min. Hole

Y

Front

Mount

Min. Hole

Z

08

10

12**

14

16

18

20

22

24**

28**

NA

.733-36

.803-36

.930-36

1.036-36

NA

1.286-36

1.411-36

1.661-36

NA

.875-20

.937-20

1.062-18

1.187-18

NA

1.437-18

1.562-18

1.812-16

NA

1.031

1.125

1.250

1.343

NA

1.562

1.703

2.000

NA

.812

.906

.969

1.062

NA

1.250

1.375

1.562

NA

.913

.980

1.107

1.209

NA

1.452

1.577

1.827

NA

.760

.822

.948

1.072

NA

1.322

1.422

1.700

NA designates not available. ** Available in Threaded Coupling only.

All dimensions for reference only.

22
