502386-0742 datasheet, PDF - EEWORLD Datasheet

502386-0742: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Red Insulator, Receptacle; CategoryThe connector The connector; File Size690KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

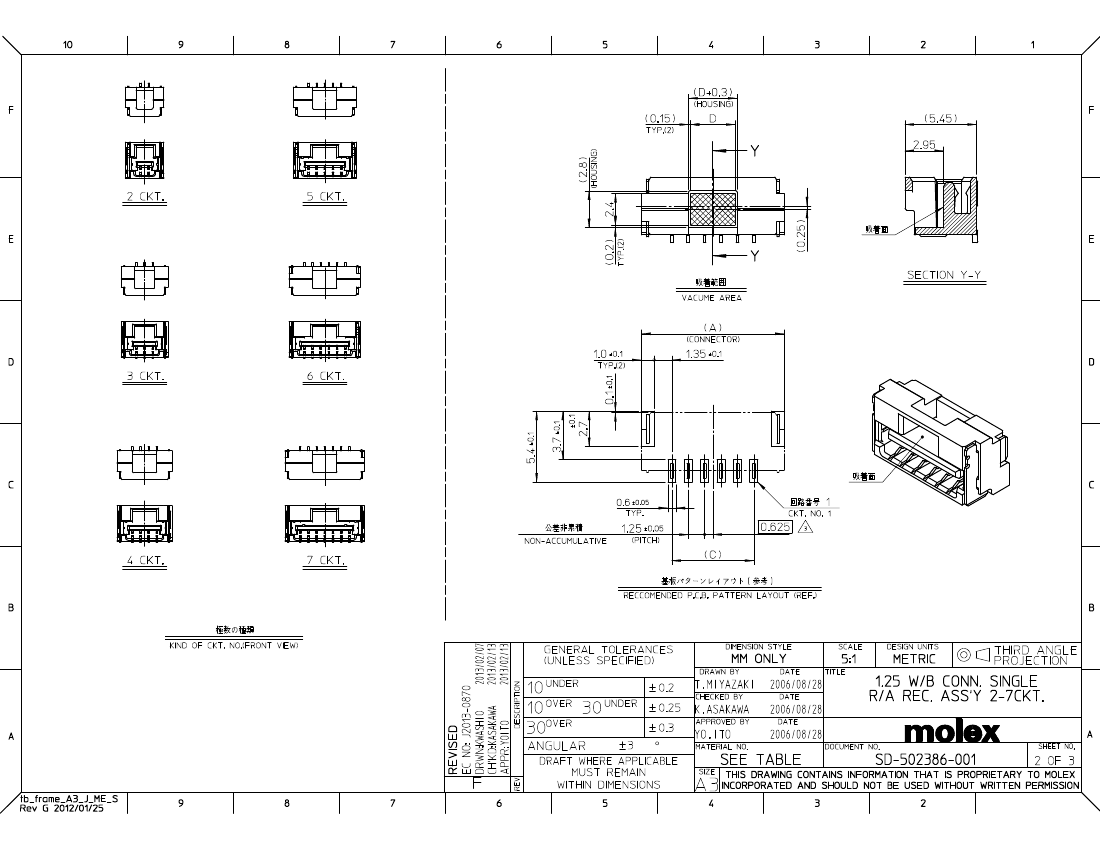

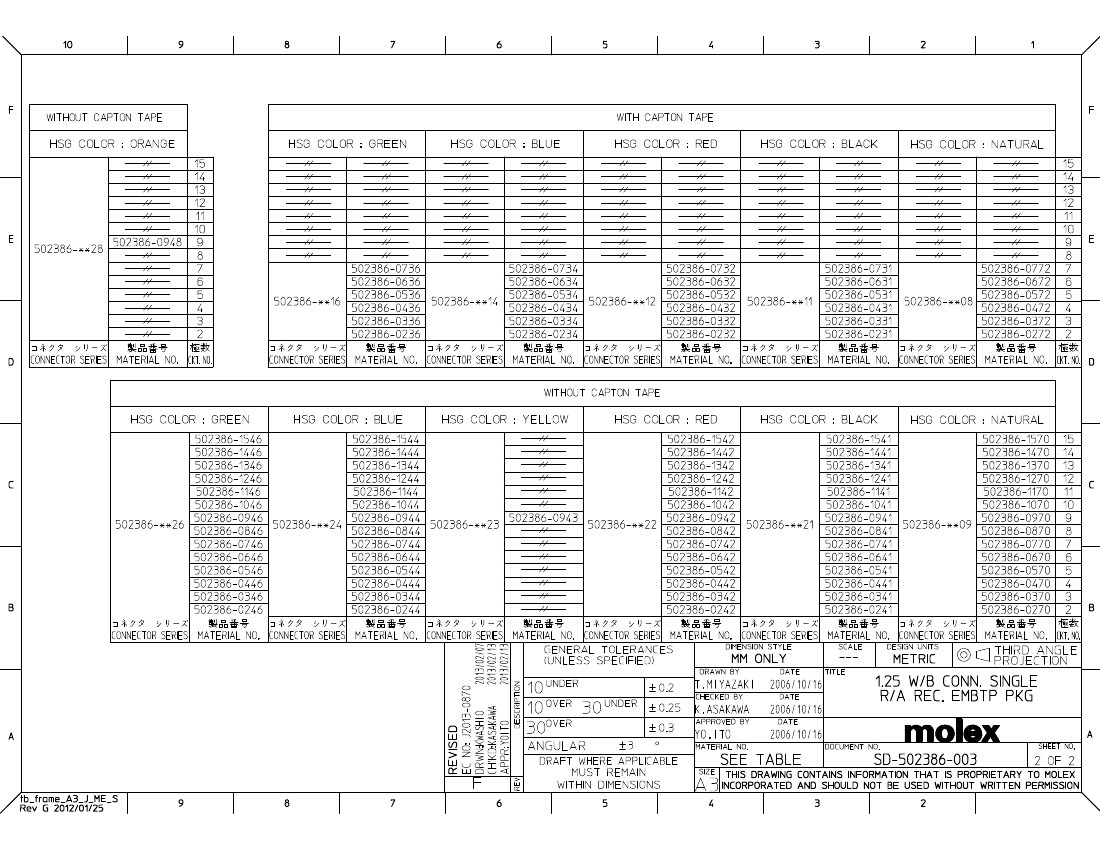

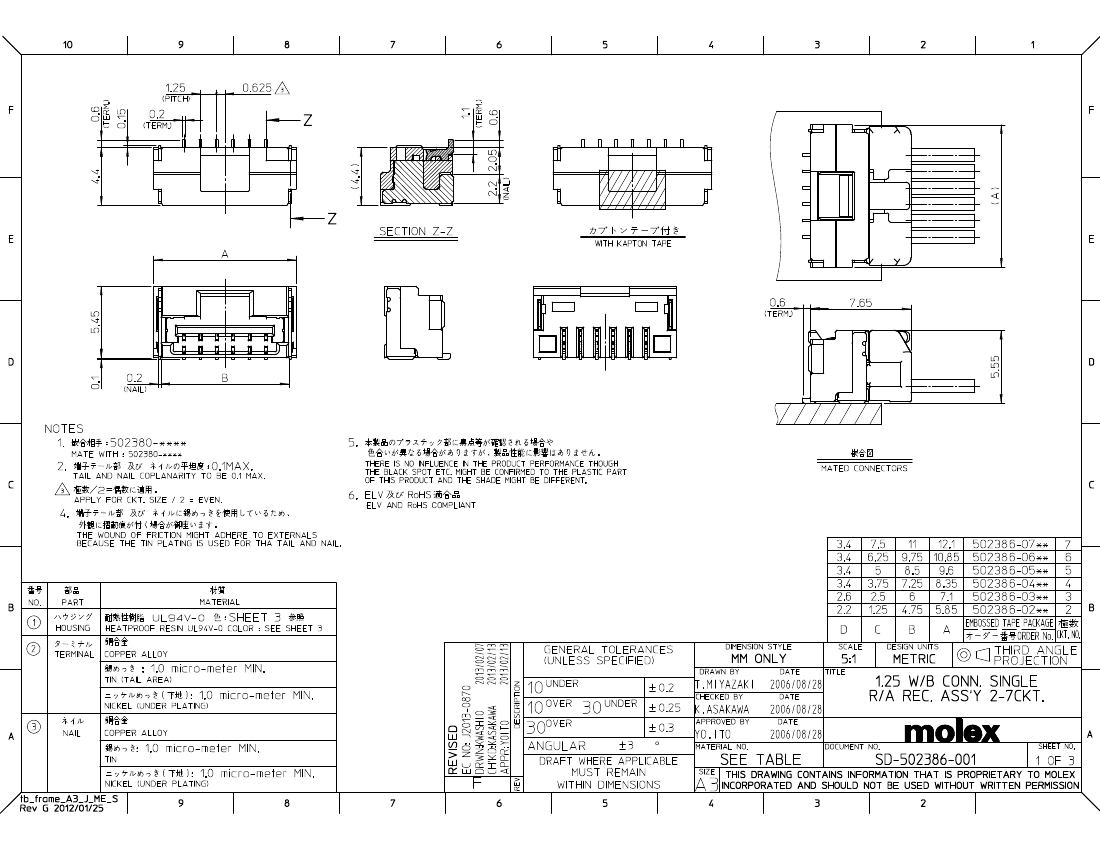

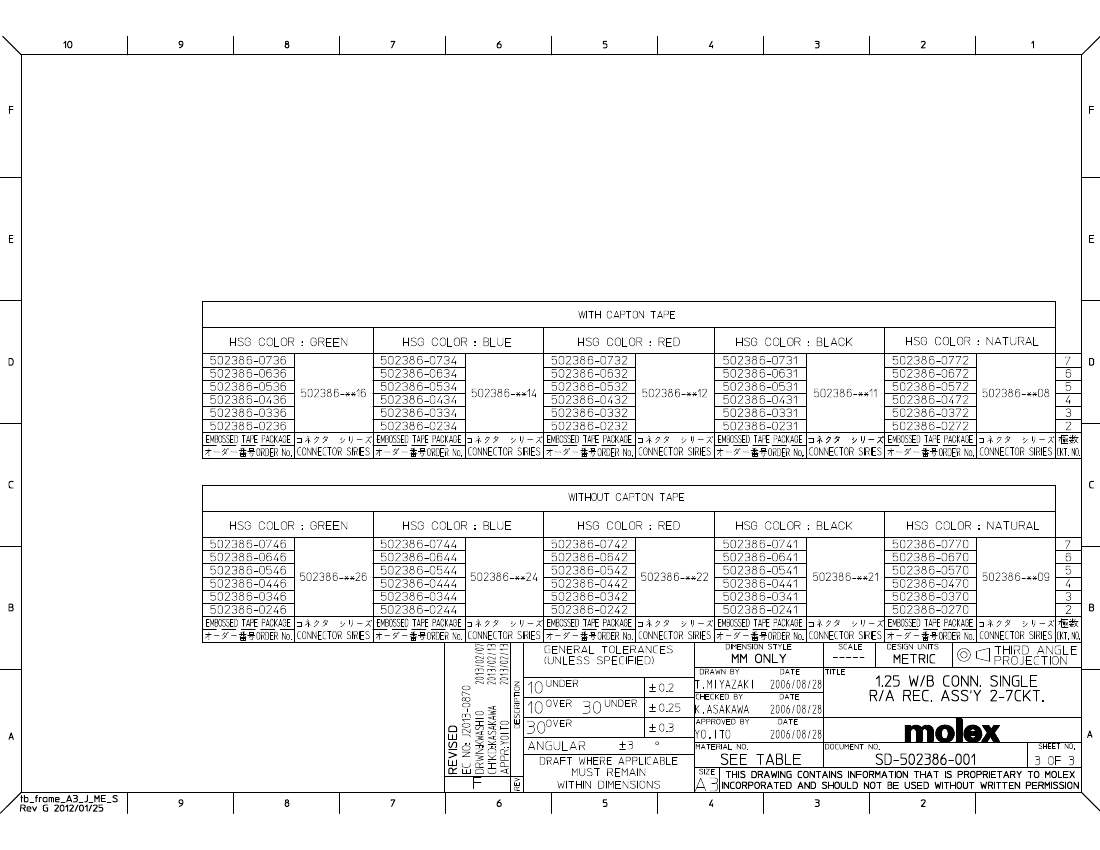

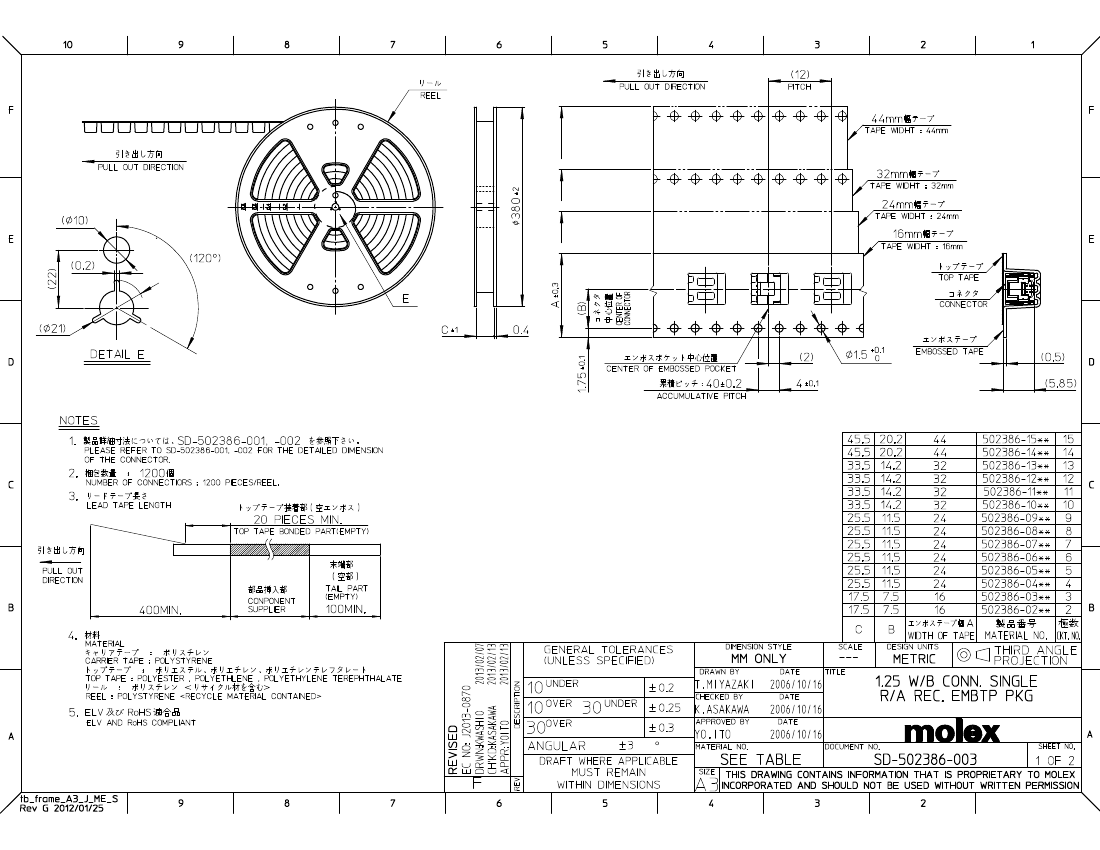

502386-0742 Overview

Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Red Insulator, Receptacle

Parameter Name	Attribute value
Objectid	316210350
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8
body width	0.215 inch
subject depth	0.197 inch
body length	0.476 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Dielectric withstand voltage	700VAC V
Insulation resistance	100000000 Ω
Insulator color	RED
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
