T4 MINI TRIM SWITCHES
4-WAY MINI TRIM, COMMERCIAL & MILITARY GRADES
T4 MINI TRIM
SWITCHES
MT
The T4 Mini Trim is a single pole, 4 throw, center off, momentary
contact (self return to center off). Numerous button styles are
available on both the Commercial and Military grade switch
versions. Mini Trims are typically press fit into control grips or
panel mounted usingversions with an 11/16” threaded case.
Mini Trims are also available with multiple sealing levels to fit all
applications.
TRIM SWITCHES

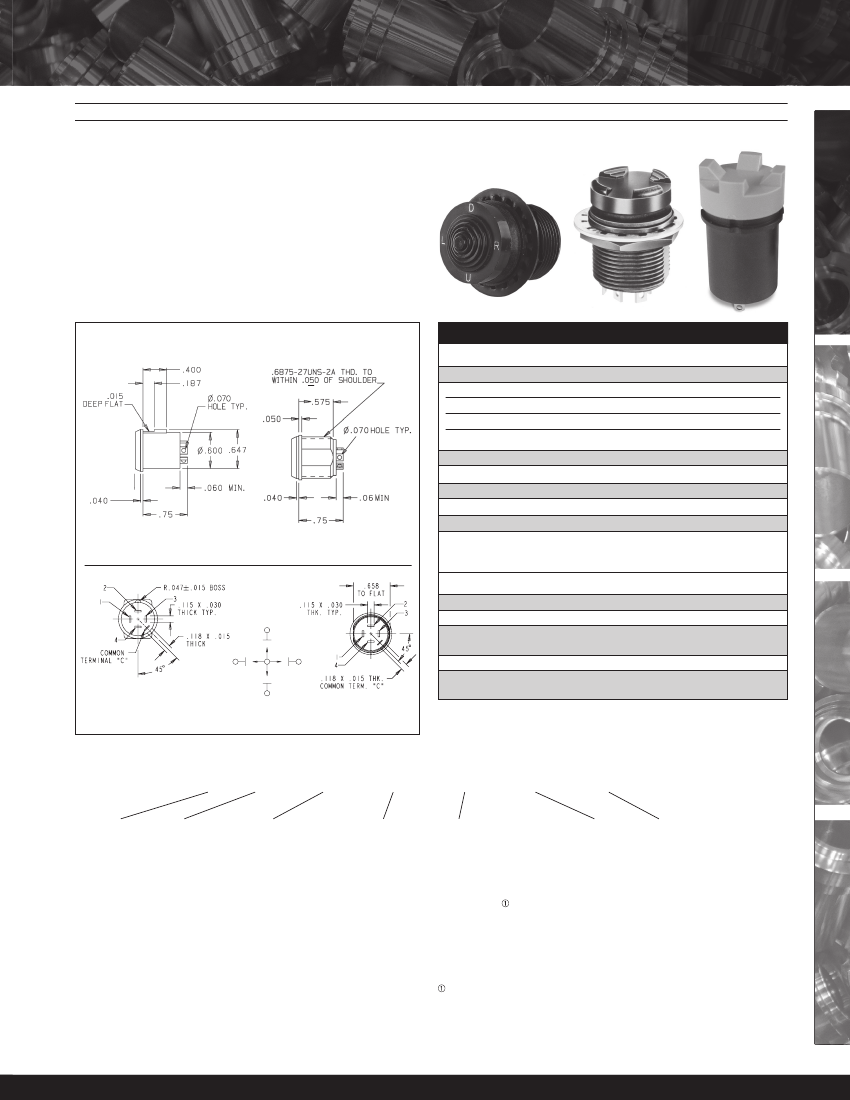

Typical Dimensions
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
DWV
Low Level
Electrical Life:
Lever Travel:
Seal:
Operating Temp Range:
Operating Force:
Rating
10mA @ 5VDC (low level)
1A @ 28VDC
1050Vrms
10mA Resistive @ 5VDC
100,000 cycles 1A Inductive @ 28VDC
15° max from center OFF
IP64 or IP68S or MIL-PRF-8805 Design 3
-55°C to +85°C
16 oz +/- 6 oz
Switch is capable of withstanding a force of 25.0 lbs.
applied to the actuating button. The button also
withstands 15.0 lbs. minimum pull force.
Press Fit
Threaded Body
Lever Pivot & Stop Strength:
T4
POS. 2
2
MATERIALS:
Case:
Button:
Terminals:
Aluminum alloy or thermoplastic
Thermoplastic
Silver over brass
Brass with gold over silver for low level
None provided
Hex nut, tooth lockwasher, panel seal gasket
where applicable
POS. 1 1
C
3 POS. 3
Terminal Hardware:
Mounting Hardware:
Press Fit
4
POS. 4
SCHEMATIC
Threaded Body
T4
Series
T4.
4-Way
–
X
Button Style
T4 MINI TRIM PART NUMBER CODE
X
X
X
X
X
Current Rating
Button Color*
1.
Red
2.
Black
8.
Gray
N.
Not Applicable**
Grade
C.
Commercial
M.
Military
Case Style
1.
Press Fit
2.
Threaded
Seal Level
A.
2-Way Jog
B.
Tall Jog
C.
Rocker
D.
Cone
E.
LRUD Hat
F.
IOUD Hat
G.
Hat
H.
Stadium
J.
Castle
K.
4-Way Jog
L.
Short Bat
M.
Bat
N.
Post
P.
4-40 Threaded Post
1.
IP64 Dusttight
1. Standard
2.
IP68S Watertight
2. Low Level
3.
Design Symbol 3 Watertight
per MIL-PRF-8805 and Meets
Environmental Testing per
MIL-DTL-9419
Only available with military grade.
* Contact factory for additional button colors.
** Use when specifying button styles L, M, N and P.
