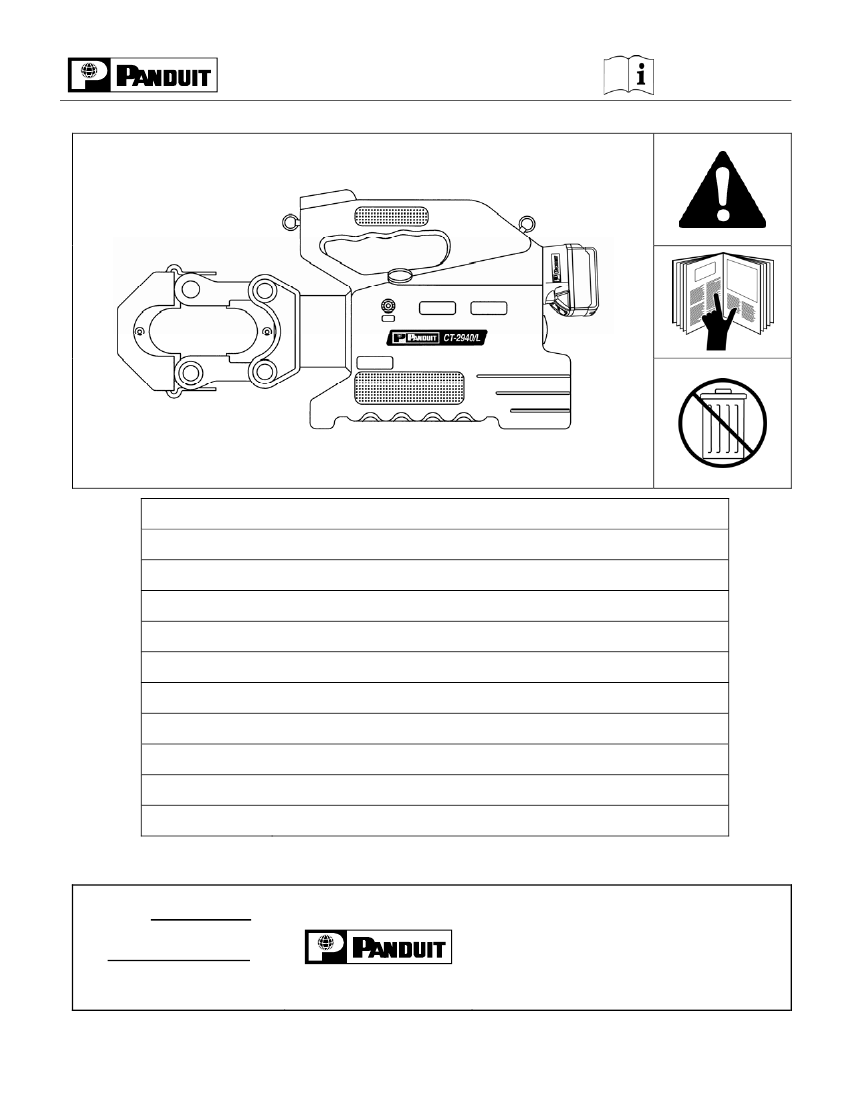

CT-2940/L and CT-2940/LE
© Panduit Corp. 2009
PA26010A01
Rev. 00 5-2009
ENGLISH
DEUTSCH
FRANÇAISE
ITALIANA
ESPAÑOL
ÈESKÝ
NEDERLANDSE
DANSKE
SVENSKA
SUOMEN
NORSK
Pg. 1
Pg. 11
Pg. 16
Pg. 21
Pg. 26
Pg. 31
Pg. 36
Pg. 41
Pg. 46
Pg. 51
Pg. 56
Website: www.panduit.com
Email: cs@panduit.com
EU Website:
www.panduit.com/emea
EU Email: EMEA-
Toolservicecenter@panduit.com
Panduit Corp. • USA Headquarters • Tinley Park, IL
Tel: 888-506-5400, ext. 3255 • Fax: 630-759-7532
PANDUIT
Europe • EMEA Headquarters
Tel: +31 (0) 546 580 452 • Fax: +31 (0) 546 580 441
CT-2940/L and CT-2940/LE ENGLISH
SYSTEM SPECIFICATIONS
...................................................................................................................................... 1

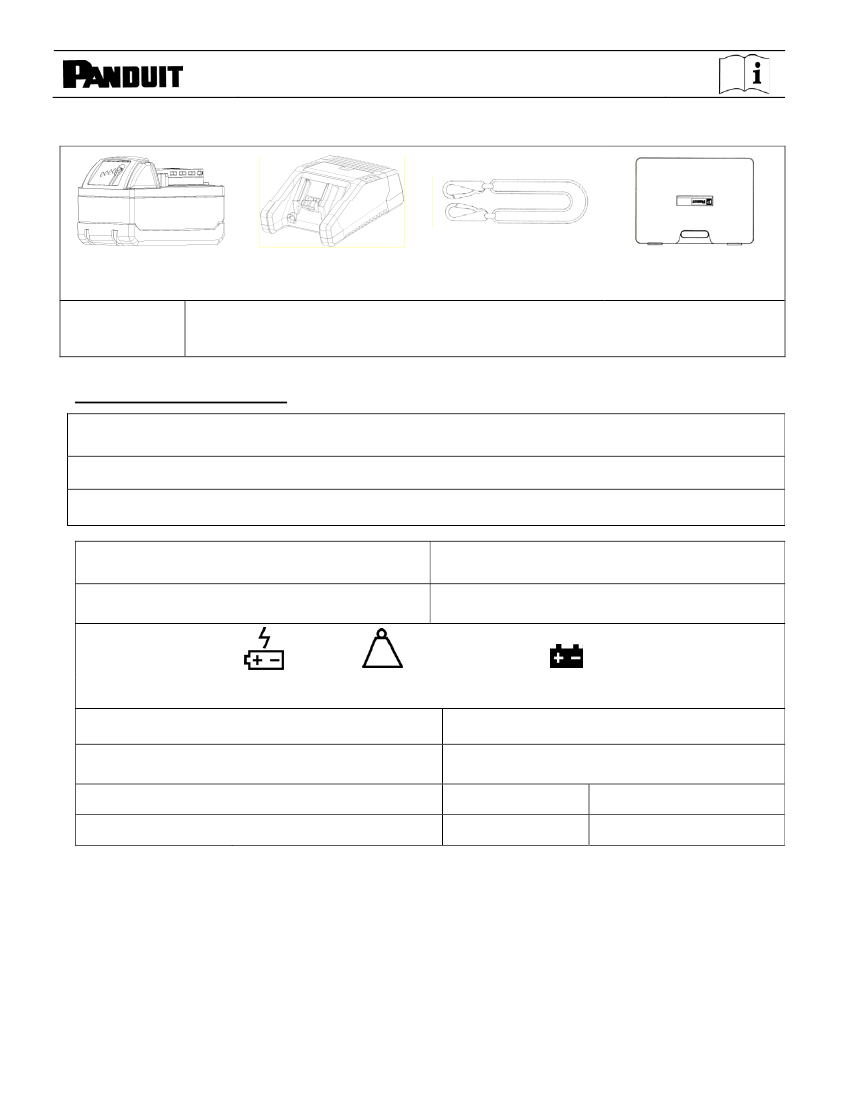

OPTIONAL ACCESSORIES
(sold separately)
........................................................................................................ 2
PRECAUTIONS AND GENERAL GUIDELINES
....................................................................................................... 3
DIE SELECTION
........................................................................................................................................................ 5
MAINTENANCE
......................................................................................................................................................... 5
DIE INSTALLATION
.................................................................................................................................................. 6
TOOL OPERATION
................................................................................................................................................... 7

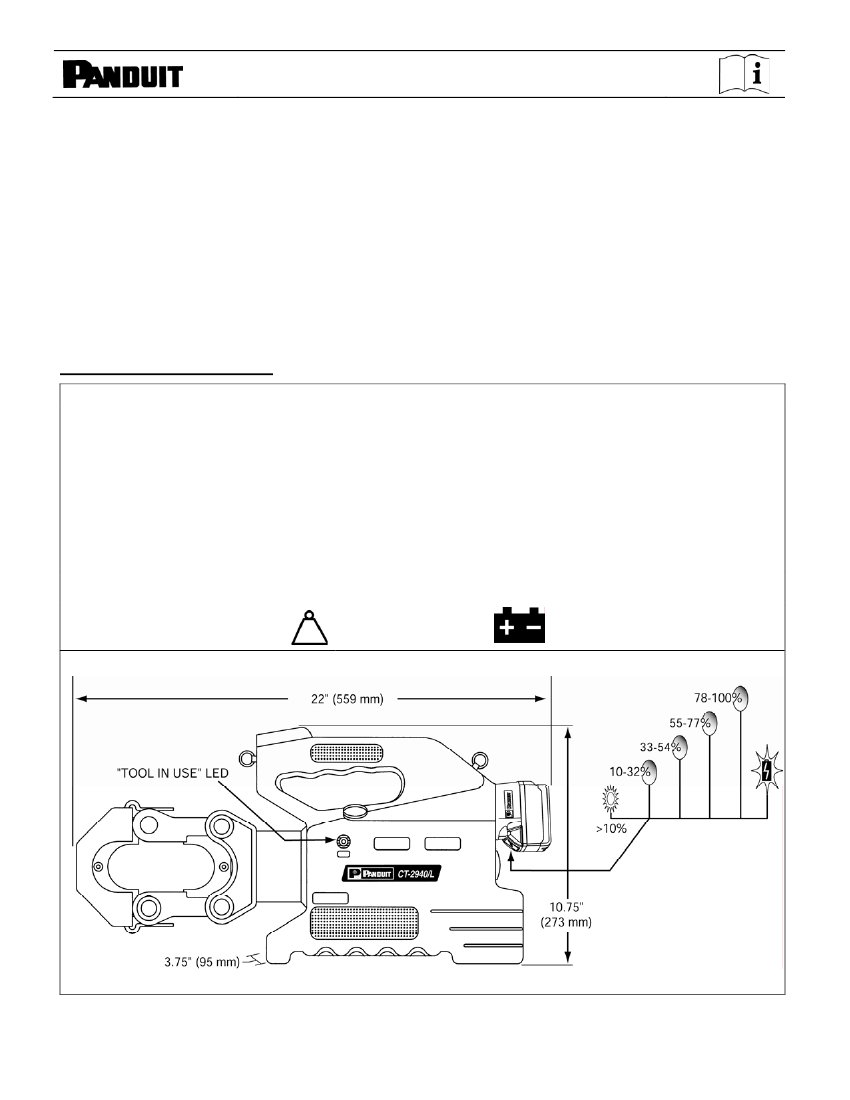

SYSTEM SPECIFICATIONS
Output:
Applicable Range:
PANDUIT
Connectors
15 tons / 13.6 (metric tons)
• Cu lugs and splices for #8 AWG – 1000 kcmil code conductor
• Cu lugs for #8 AWG – 777.7 kcmil flex conductor
• Cu lugs and splices for 10mm² – 630mm² class 2R conductor
•
StructuredGround®
Direct Burial Compression Grounding System
connectors #6 AWG – 250 kcmil code conductor
• Cu CTAPF taps for #10 – 3/0 AWG code conductor
• Cu CTAP taps for #8 – 4/0 AWG code conductor
• Cu HTCT taps for #14 AWG – 1000 kcmil code conductor,
#14 AWG – 777.7 kcmil flex conductor
• Al lugs and splices for #6 AWG – 1000 kcmil code conductor
14.4 V DC motor
24.35 lbs. / 11.04 kg
(+
Motor:
)
CT-2940/L & CT-2940/LE_ENGL
PA26010A01_00
Page: 1 of 60
5-2009
CT-2940/L and CT-2940/LE ENGLISH
MILWAUKEE
®
Li-Ion 18V,
Battery Packs
(2)
English
MILWAUKEE
®
Li-Ion 18V
Battery Charger
CA21414B01
Shoulder Strap
Carrying Case
NOTE: In the interest of higher quality and value,
PANDUIT
products are continually being improved and
updated. Consequently, pictures may vary from the enclosed product.
OPTIONAL ACCESSORIES
(sold separately)
CD-920, CD-930 and CD-940 Series
Compression Dies
CD-940-DA Die Adapter
CG-940 Compression Gauge
CT-2940/L
Lithium Ion (Li-Ion) Battery Pack
Milwaukee
18V Battery Pack
Part No.: 48-11-1828 18 V DC, 2.8 Ah
®
Consult
PANDUIT
catalog or website for part numbers
and specific die application information.
Use with CD-920 and CD-930 series dies.
Verifies the compression force of the CT-2940/L and
CT-2940/LE Hydraulic Compression Tools
CT-2940/LE EUR
Lithium Ion (Li-Ion) Battery Pack
Milwaukee
18V Battery Pack
Part No.: C18B 18 V DC, 3.0 Ah
®
45 min.
1.85 lbs. / 0.84 kg
(+
)
Refer to
Milwaukee
®
Operator’s Manuals which are supplied with battery pack and charger.
CT-2940/L Battery Charger
Milwaukee
Battery Charger
Part No.: 48-59-1801
Input:
Output:
120 V AC; 60 Hz, 2.1A
18 V DC, 3.5A
®
CT-2940/LE EUR Battery Charger
Milwaukee
Battery Charger
Part No.: C18C
Input:
Output:
230 V AC; 50-60 Hz, 1.2A
18 V DC, 3.5A
®
Replacement
Milwaukee
®
Batteries and Battery Chargers are available for purchase from local
Milwaukee
®
products distributors or resellers.
Milwaukee
®
is a registered trademark of Milwaukee Electric Tool Corporation
The information contained in this literature is based on our experience to date and is believed to be reliable. It is intended as
a guide for use by persons having technical skill at their own discretion and risk. We do not guarantee favorable results or
assume any liability in connection with its use. Dimensions contained herein are for reference purposes only. For specific
dimensional requirements consult the factory. This publication is not to be taken as a license to operate under, or a
recommendation to infringe any existing patents. This supersedes and voids all previous literature, etc.
CT-2940/L & CT-2940/LE_ENGL
PA26010A01_00
Page: 2 of 60
5-2009
CT-2940/L and CT-2940/LE ENGLISH
PRECAUTIONS AND GENERAL GUIDELINES
This symbol is used to call your attention to hazards or unsafe practices which could result in an
injury or property damage. The signal word, defined below, indicates the severity of the hazard.
The message after the signal word provides information for preventing or avoiding the hazard.
WARNING
CAUTION
Hazards which, if not avoided, COULD result in severe injury or death.
Hazards or unsafe practices which, if not avoided, MAY result in injury or
property damage.
WARNING
Read and understand all of the instructions and safety information in this manual before
operating or servicing this tool.
WARNING
Electric Shock Hazard:
This tool is not insulated. When using this unit on or near energized electrical lines, use proper
personal protective equipment.
WARNING
Wear eye protection when operating or servicing this tool.
Failure to wear eye protection can result in serious eye injury from flying debris or hydraulic oil.
WARNING
Skin Injection Hazard:
Oil under pressure easily punctures skin causing serious injury, gangrene, or death. If you are
injured by escaping oil, seek medical attention immediately.
•
Do not use hands to check for leaks.
•
Depressurize the hydraulic system before servicing.
WARNING
Do not use solvents or flammable liquids to clean this tool. Solvents or flammable liquids could
ignite and cause serious injury or property damage. During the operation of electric motors,
sparks can occur which might ignite highly flammable or explosive liquids and materials.
Do not use tool in or near a highly flammable or explosive atmosphere and/or materials.
WARNING
Keep hands away from the tool head when crimping.
CT-2940/L & CT-2940/LE_ENGL
PA26010A01_00
Page: 3 of 60
5-2009
CT-2940/L and CT-2940/LE ENGLISH

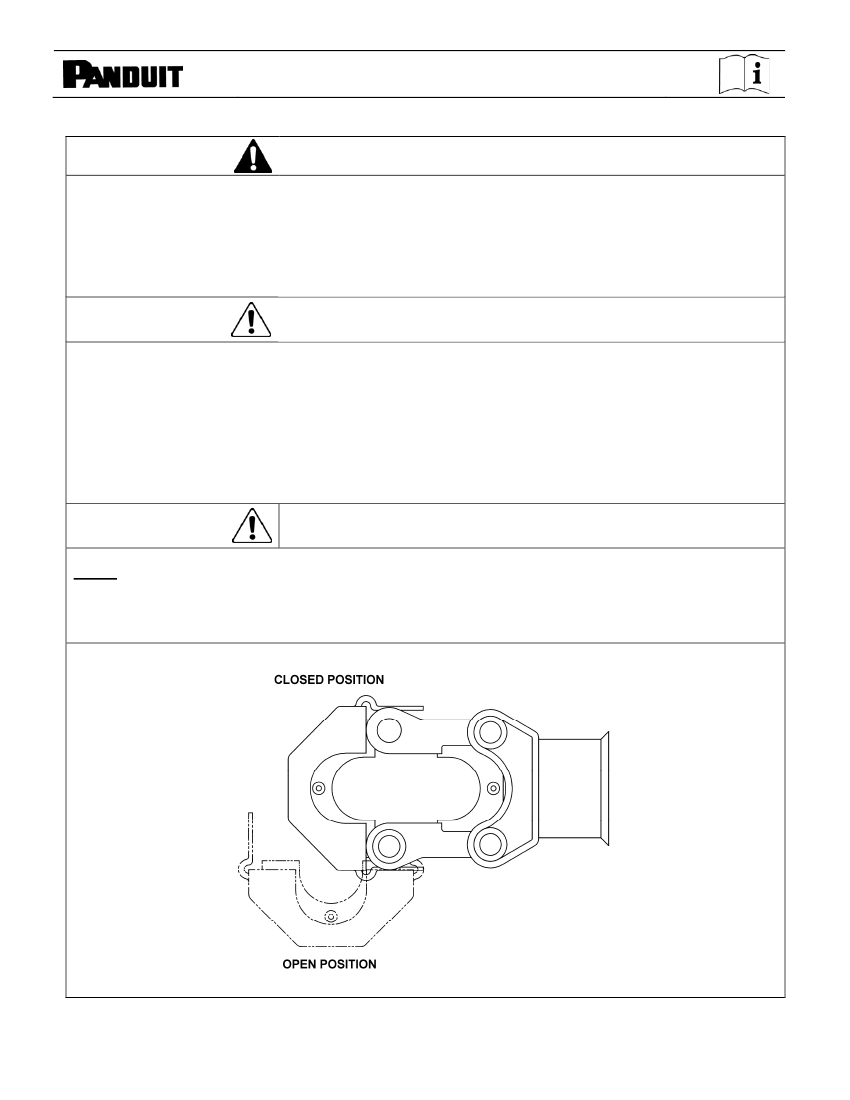

WARNING
An incomplete crimp can cause a fire.
•
Use proper connector and cable combinations. Improper combinations can result in an incomplete crimp.
•
The relief valve will sound to indicate a completed crimp. If you do not hear the sound of the relief valve, the
crimp is not complete.
•
Inspect tool before use. A worn or damaged tool may result in breakage striking the operator or nearby
personnel.
CAUTION
•
•
•
•
•
•
•
•
Do not perform any service or maintenance other than as described in this manual.
Injury or damage to the tool may result.
Do not operate the tool without dies. Damage to the ram or crimping tool head can result.
This tool is not designed for continuous use.
After 30 to 40 cycles, allow the tool to cool for 15 minutes.
Do not place the tool in a vise. The tool is designed for hand-held operation.
Protect the tool from rain and moisture. Water will damage the tool and battery.
Electric-hydraulic tools should not be operated in pouring rain or under water.
Use this tool for the manufacturer’s intended purpose only.
CAUTION
Before crimping a connection, verify that the tool top on the tool head is locked in the closed position.
The lockout pin must be engaged completely through the tool head and both surfaces of the tool top.
Failure to lock the tool top in the closed position may result in damage to the tool and personal injury.
CT-2940/L & CT-2940/LE_ENGL
PA26010A01_00
Page: 4 of 60
5-2009
