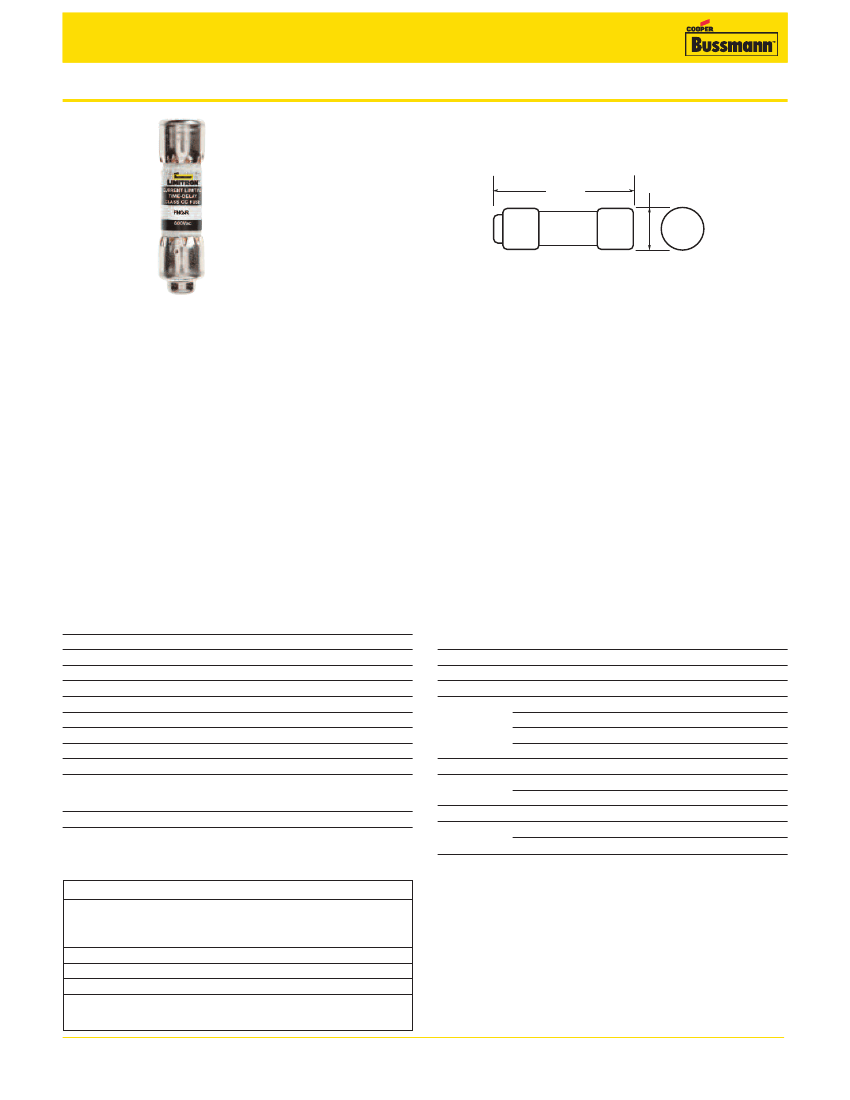

L
IMITRON
™ Class CC
FNQ-R — 600Vac,
1
⁄
4
-30A, Time-Delay Fuses
Dimensions - in
1.5" (± 0.031)
(38.1mm)
0.41" (± 0.005)
(10.3mm)
Description:
Advanced protection Class CC current-limiting,
time-delay fuses.
Catalog Symbol:
FNQ-R-(amp)
Ratings:
Volts — 600Vac
— 300Vdc (15 & 20A)
Amps —
1
⁄
4
-30A
IR — 200kA Vac RMS Sym.
— 20kA Vdc (15 & 20A)
Agency Information:
CE, UL Listed, Std. 248-4, Class CC, Guide JDDZ, File E4273
CSA Certified, Class CC CSA, Class 1422-01,
File 53787–HRC-MISC
RoHS Compliant*
* FNQ-R- ⁄
4
not RoHS complaint.
1
Features:
• Provides 10X better current limitation to help prevent
equipment damage caused by short-circuit events.
• 200kA interrupting rating complies with NEC
®
Section 110.9
for today's large capacity systems.
• Fast-acting fuse helps prevent equipment damage caused
by short-circuit events.
• Rejection type fuse fits both standard and rejection-style
holders.
• The Class CC FNQ-R Limitron fuse meets the needs of
control circuit transformer protection.
• FNQ-R fuses can be sized according to NEC
®
and UL
requirements and still allow the high inrush currents, with
significantly more time-delay than the UL minimum value of
12 seconds at 200% for Class CC fuses.
• Ideal for critical industrial or commercial applications that
have specific current limitation requirements.
Applications:
• Branch Circuits
• Small Control Transformers
• Line Protection
• Industrial Control
3-Pole
BC6033_
CHCC3D_
OPM-NG-_
OPM-1038_
OPM-1038_SW
—
—
—
—
Catalog Numbers (amps)
FNQ-R-
1
⁄
4
FNQ-R-
3
⁄
10
FNQ-R-
4
⁄
10
FNQ-R-
1
⁄
2
FNQ-R-
6
⁄
10
FNQ-R-
3
⁄
4
FNQ-R-
8
⁄
10
FNQ-R-1
FNQ-R-1
1
⁄
8
FNQ-R-1
1
⁄
4
Amp Rating
1
⁄
4
-30
FNQ-R-1
3
⁄
10
FNQ-R-1
4
⁄
10
FNQ-R-1
1
⁄
2
FNQ-R-1
6
⁄
10
FNQ-R-1
8
⁄
10
FNQ-R-2
FNQ-R-2
1
⁄
4
FNQ-R-2
1
⁄
2
FNQ-R-2
8
⁄
10
FNQ-R-3
Carton Qty.
10
FNQ-R-3
2
⁄
10
FNQ-R-3
1
⁄
2
FNQ-R-4
FNQ-R-4
1
⁄
2
FNQ-R-5
FNQ-R-5
6
⁄
10
FNQ-R-6
FNQ-R-6
1
⁄
4
FNQ-R-7
FNQ-R-7
1
⁄
2
FNQ-R-8
FNQ-R-9
FNQ-R-10
FNQ-R-12
FNQ-R-15
FNQ-R-17
1
⁄
2
FNQ-R-20
FNQ-R-25
FNQ-R-30
Recommended Fuse Blocks and Holders
Fuse Amps
0-30
1-Pole
2-Pole
Open Blocks
BC6031_
BC6032_
DIN-Rail Holders
CHCC1D_
CHCC2D_
—
—
—
—
—
—
Panel Mount Holders
HPS
—
HPF
—
In-Line Holders
—
HEY
HEZ
—
0-30
Carton Quantity:
0-30
0-30
Maximum Acceptable Rating of Overcurrent Device
†
Rated Primary
Current (Amps)
< 2A
2A to 9A
> 9A
† UL 508A Table 42.1.
†† 300% for other than motor control applications.
0114
BU-SB14042
Maximum Rating of Overcurrent
Protective Device Expressed As a Percent
of Transformer Primary Current Rating
500
††
167
125
For additional information on Class CC fuse blocks and
holders, see Data Sheets:
• Open Blocks # 1105 (BC Series)
• DIN-Rail Holders # 3185 (CHCC), # 1109 (OPM),
# 1102 (OPM-1038), 1103 (OPM-1038_SW),
• Panel Mount Holders # 2113 (HPS), # 2114 (HPF)
• In-Line Holders # 2126 (HEY), # 2130 (HEZ)
Page 1 of 4
Data Sheet # 1014
L
IMITRON
™ Class CC
FNQ-R — 600Vac,
1
⁄
4
-30A, Time-Delay Fuses

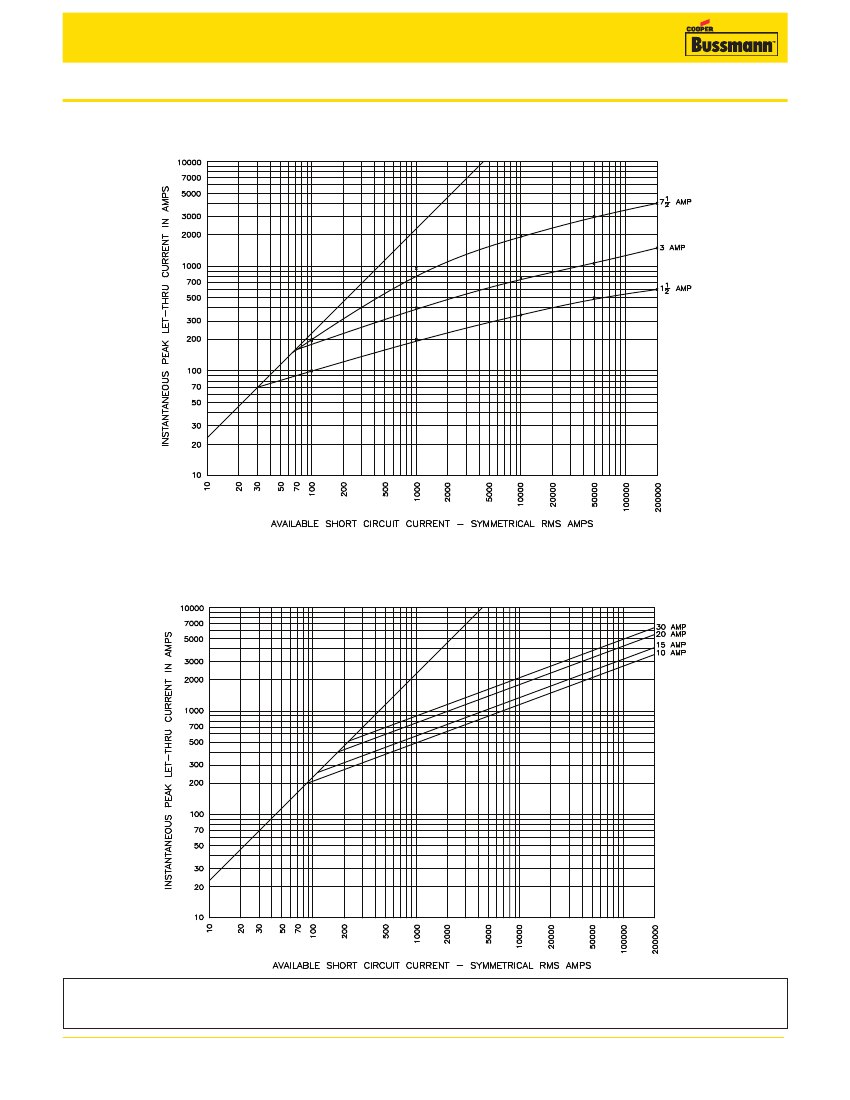

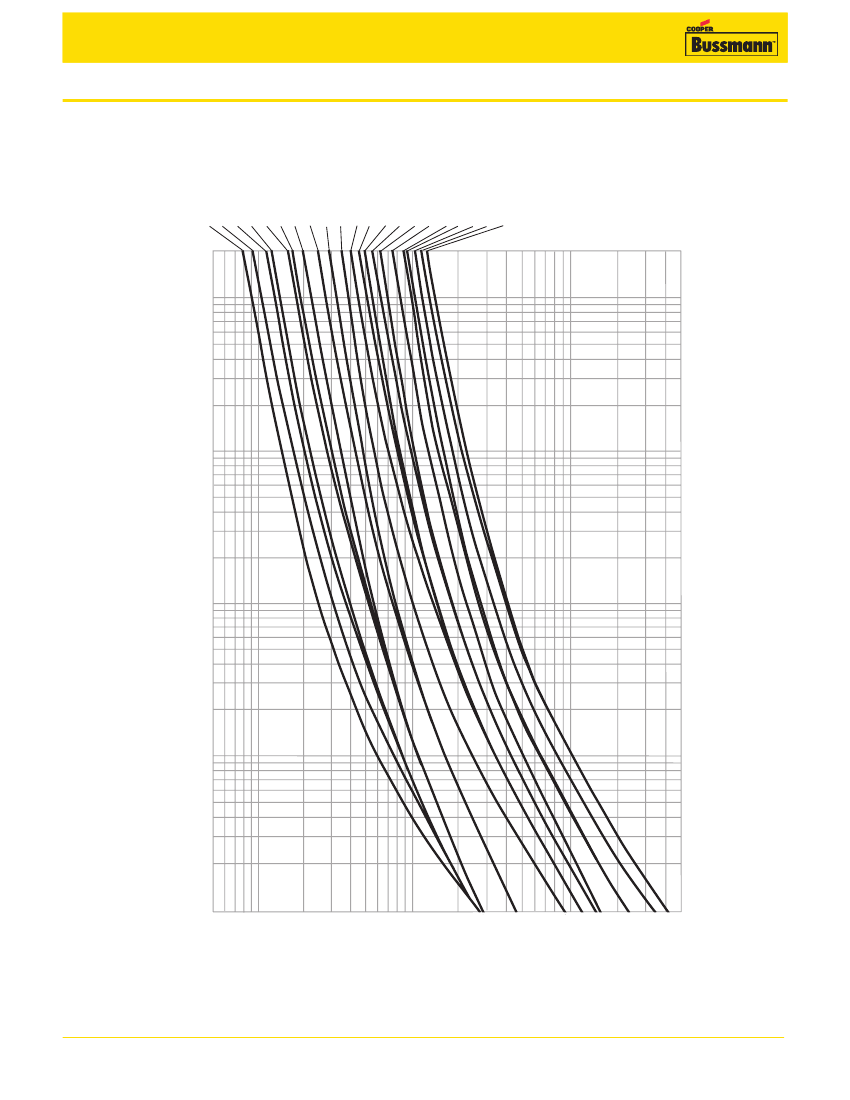

Current-Limitation Curves
1-
1
⁄
2
to 7-
1
⁄
2
