PHAWOZ1500/5900/3K-DR datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> PHAWOZ1500/5900/3K-DR

PHAWOZ1500/5900/3K-DR: DescriptionFilm Capacitor, 1500V, 139uF, Chassis Mount; CategoryPassive components capacitor; File Size118KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

PHAWOZ1500/5900/3K-DR Overview

Film Capacitor, 1500V, 139uF, Chassis Mount

PHAWOZ1500/5900/3K-DR Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	139 µF
Capacitor type	FILM CAPACITOR
Manufacturer's serial number	PHAWOZ
Installation features	CHASSIS MOUNT
Number of terminals	2
Maximum operating temperature	50 °C
Minimum operating temperature	1 °C
Package shape	RECTANGULAR PACKAGE
Rated (DC) voltage (URdc)	1500 V
surface mount	NO
Terminal shape	BINDING POST
Base Number Matches	1

Preview

Download Datasheet

View All

Phawoz

Vishay ESTA

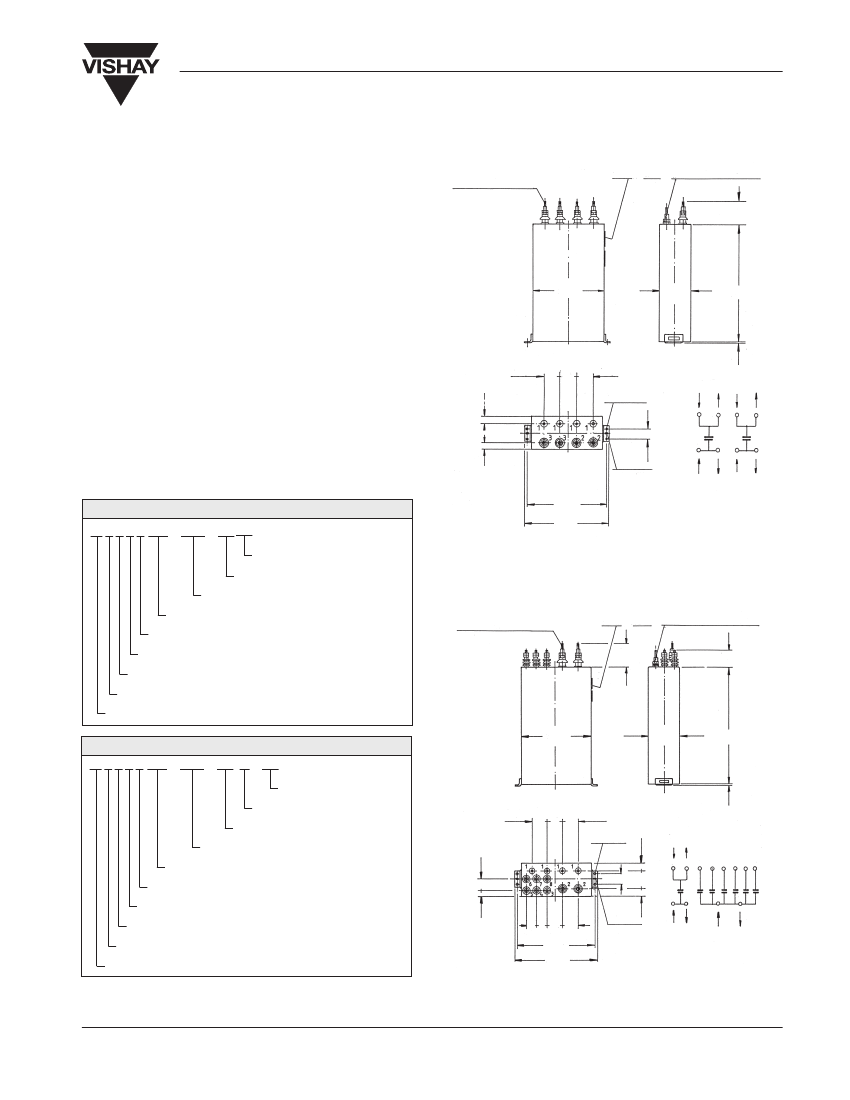

Medium Frequency Capacitors, Water Cooled

ESTAﬁlm

, TWIN OUTPUTS FOR EXTREME CURRENT

LOADING, 1000 - 10000Hz

VERSION A

Total output subdivided in 2 sections of equal capacity

VERSION B

Total output subdivided in 2 sections of equal capacity, with

one of the two sections subdivided in 6 equal-size partial

outputs.

DESIGN

• All-ﬁlm winding in brass sheet welded casing;

• Casing conductive;

• Casing varnish RAL 7033;

• IP00, indoor;

• Ambient temperature 1°C .... 50°C;

• Outﬂowing water temperature 40° C maximum;

• Water-cooled current connections M20;

• Water tubing conductive;

• Partial outputs of version B provided with connection bolts

M12 or M20 (depending on application current);

• Mounting in the upright or horizontal position;

• Upon request, pressure monitoring;

water inlet

and outlet

cooling pipe ø 12 x 1

rating plate water inlet and outlet

82.5

water

2 x ø 9.8

11 x 15

water

407

429

TYPE DESIGNATION: VERSION A

Ph a w o z 750 / 2950 / 3k - . . .

monitoring device *)

frequency (kHz)

total output (kVAr)

voltage (V or kV)

twin outputs

NON-PCB

water-cooled

all ﬁlm dielectric

power capacitor

water inlet

and outlet

cooling pipe ø 12 x 1

Version A

rating plate

water inlet and outlet

117

TYPE DESIGNATION: VERSION B

Ph a w o z 750 / 2940 / 3k S - . . .

monitoring device *)

one selection in partial outputs

frequency (kHz)

82.5

369

165

82.5

2 x ø 9.8

water

total output (kVAr)

voltage (V or kV)

twin outputs

2 3 4 5 6 7 8

1 1

50 50 82.5 82.5

407

429

11 x 15

NON-PCB

water-cooled

all ﬁlm dielectric

power capacitor

*) – DR = pressure switch

water

Version B

Document Number: 13058

Revision 28-Mar-02

www.vishay.com

369

165
