SM6T Series
www.vishay.com
Vishay General Semiconductor
Surface Mount T
RANS
Z
ORB®
Transient Voltage Suppressors

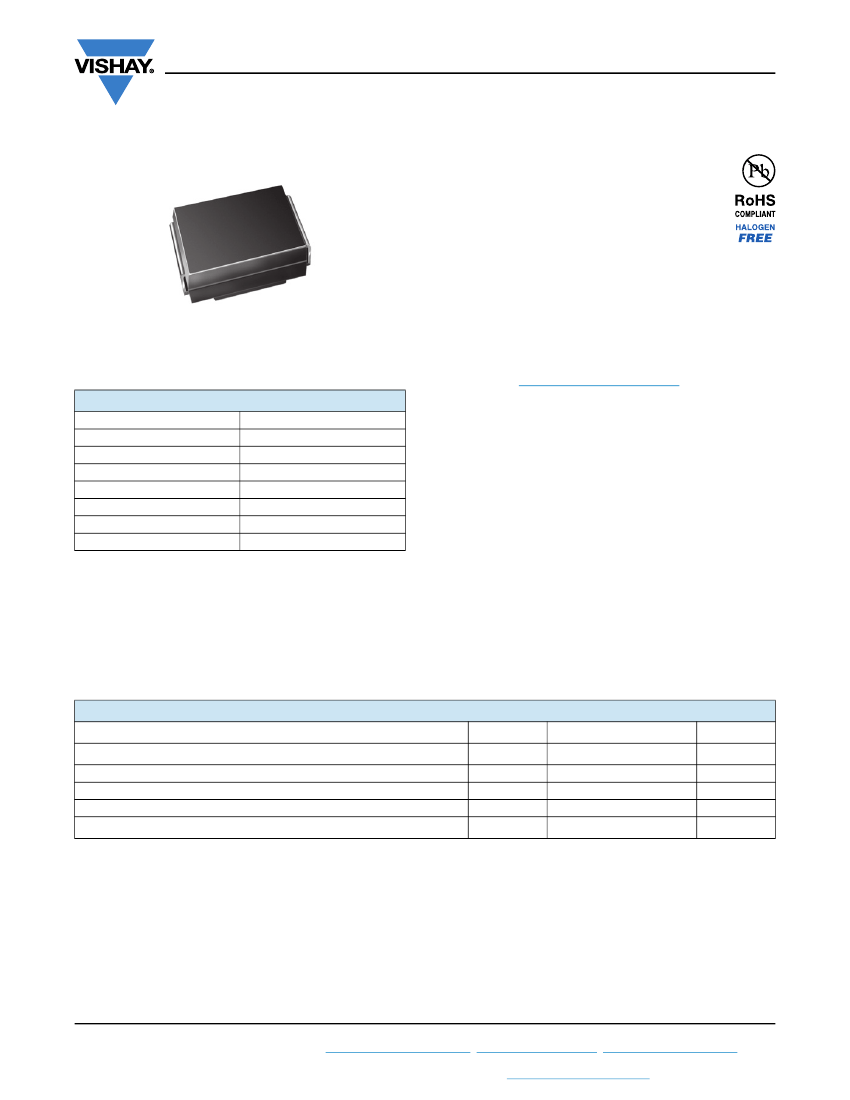

FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• Available in uni-directional and bi-directional
• 600 W peak pulse power capability with a 10/1000 μs
waveform, repetitive rate (duty cycle): 0.01 %
• Excellent clamping capability
• Low inductance
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
DO-214AA (SMBJ)
PRIMARY CHARACTERISTICS
V
BR
V
WM
P
PPM
P
D
I
FSM
(uni-directional only)
T
J
max.
Polarity
Package
6.8 V to 220 V
5.8 V to 188 V
600 W
5.0 W
100 A
150 °C
Uni-directional, bi-directional
DO-214AA (SMBJ)
TYPICAL APPLCIATIONS
Use in sensitive electronics protection against voltage
transients induced by inductive load switching and lighting
on ICs, MOSFET, signal lines of sensor units for consumer,
computer, industrial, and telecommunication.
MECHANICAL DATA
Case:
DO-214AA (SMBJ)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD22-B102
M3 suffix meets JESD 201 class 2 whisker test
per
DEVICES FOR BI-DIRECTION APPLICATIONS
For bi-directional devices use CA suffix (e.g. SM6T12CA).
Electrical characteristics apply in both directions.
Polarity:
For uni-directional types the band denotes
cathode end, no marking on bi-directional types
MAXIMUM RATINGS
(T
A
= 25 °C, unless otherwise noted)
PARAMETER
Peak pulse power dissipation with a 10/1000 μs waveform (fig. 1)
(1)(2)
Peak power pulse current with a 10/1000 μs waveform (fig. 3)
(1)
Power dissipation on infinite heatsink T
A
= 50 °C
Peak forward surge current 10 ms single half sine-wave uni-directional only
(2)
Operating junction and storage temperature range
Notes
(1)
Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2
A
(2)
Mounted on 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pads to each terminal
SYMBOL
P
PPM
I
PPM
P
D
I
FSM
T
J
, T
STG
VALUE
600
See next table
5.0
100
-65 to +150
UNIT
W
A
W
A
°C
Revision: 13-Dec-13
Document Number: 89425
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SM6T Series
www.vishay.com
Vishay General Semiconductor
CLAMPING
VOLTAGE
V
C
AT I
PP
10/1000 μs
(V)
10.5
11.3
14.5
16.7
21.2
25.2
30.6
33.2
37.5
41.5
45.7
49.9
53.9
92.0
137
207
274
328
(A)
57.0
53.0
41.0
36.0
28.0
24.0
20.0
18.0
16.0
14.5
13.1
12.0
11.1
6.50
4.40
2.90
2.20
2.00
CLAMPING
VOLTAGE
V
C
AT I
PP
8/20 μs
(V)
13.4
14.5
18.6
21.7
27.2
32.5
39.3
42.8
48.3
53.5
59.0
64.3
69.7
121
178
265
353
388
(A)
298
276
215
184
147
123
102
93
83
75
68
62
57
33
22.5
15
11.3
10.3
5.7
6.1
7.3
7.8
8.4
8.8
9.2
9.4
9.6
9.7
9.8
9.9
10.0
10.4
10.6
10.8
10.8
10.8
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
DEVICE
TYPE
(1)
DEVICE
MARKING
CODE
UNI
SM6T6V8A
SM6T7V5A
SM6T10A
SM6T12A
SM6T15A
SM6T18A
SM6T22A
SM6T24A
SM6T27A
SM6T30A
SM6T33A
SM6T36A
SM6T39A
SM6T68A
SM6T100A
SM6T150A
SM6T200A
SM6T220A
KE7
KK7
KT7
KX7
LG7
LM7
LT7
LV7
LX7
ME7
MG7
MK7
MM7
NG7
NV7
PK7
PR7
PR8
BI
KE7
AK7
AT7
AX7
LG7
BM7
BT7
LV7
BX7
CE7
MG7
CK7
CM7
NG7
NV7
PK7
PR7
PR8
BREAKDOWN
VOLTAGE
V
BR
AT I
T
(V)
(2)
MIN.
6.45
7.13
9.50
11.4
14.3
17.1
20.9
22.8
25.7
28.5
31.4
34.2
37.1
64.6
95.0
143
190
209
MAX.
7.14
7.88
10.5
12.6
15.8
18.9
23.1
25.2
28.4
31.5
34.7
37.8
41.0
71.4
105
158
210
231
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
TEST
CURRENT
(mA)
STAND-OFF LEAKAGE
CURRENT
VOLTAGE
I
RM
AT V
RM
V
RM
(V)
(μA)
(3)
5.80
6.40
8.55
10.2
12.8
15.3
18.8
20.5
23.1
25.6
28.2
30.8
33.3
58.1
85.5
128
171
188
1000
500
10.0
5.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
T
MAX.
10
-4
/°C
Notes
(1)
For bi-directional devices add suffix “CA”
(2)
V
BR
measured after I
T
applied for 300 μs square wave pulse
(3)
For bipolar devices with V = 10 V or under, the I limit is doubled
R
T
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance, junction to ambient air
Typical thermal resistance, junction to lead
Note
(1)
Mounted on minimum recommended pad layout
SYMBOL
R
JA
(1)
R
JL
VALUE
100
20
UNIT
°C/W
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
SM6T10A-M3/52
SM6T10A-M3/5B
UNIT WEIGHT (g)
0.096
0.096
PREFERRED PACKAGE CODE
52
5B
BASE QUANTITY
750
3200
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 13-Dec-13
Document Number: 89425
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SM6T Series
www.vishay.com
Vishay General Semiconductor

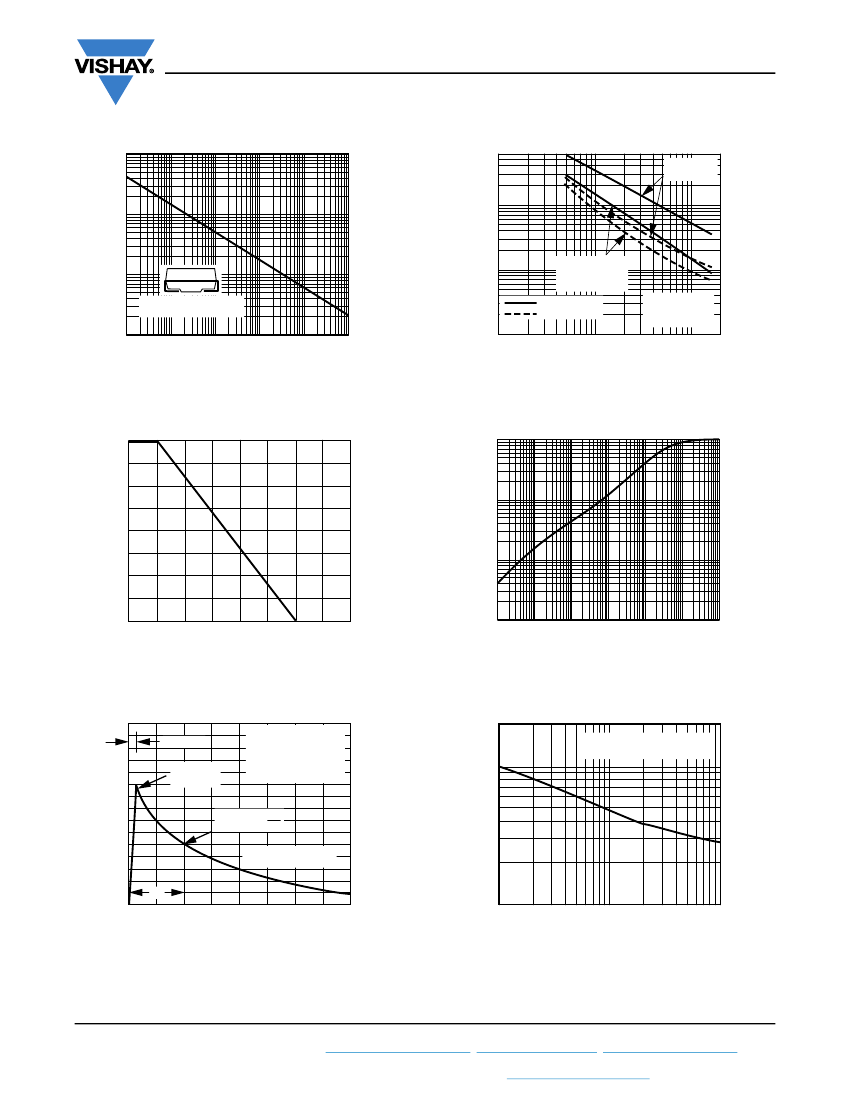

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
100
6000
Measured at
Zero Bias
P
PPM
- Peak Pulse Power (kW)
C
J
- Junction Capacitance (pF)
1000
10
1
0.2 x 0.2" (5.0 x 5.0 mm)
Copper Pad Areas
0.1
0.1 µs
100
V
R
, Measured at
Stand-Off
Voltage V
WM
Uni-Directional
Bi-Directional
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mVp-p
100
200
10
1.0 µs
10 µs
100 µs
1.0 ms
10 ms
1
10
t
d
- Pulse Width (s)
V
WM
- Reverse Stand-Off Voltage (V)
Fig. 1 - Peak Pulse Power Rating Curve
Fig. 4 - Typical Junction Capacitance
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage, %
100
100
75
Transient Thermal Impedance (°C/W)
10
50
1.0
25
0
0
25
50
75
100
125
150
175
200
0.1
0.001
0.01
0.1
1
10
100
1000
T
J
- Initial Temperature (°C)
t - Pulse Duration (s)
Fig. 2 - Pulse Power or Current vs. Initial Junction Temperature
Fig. 5 - Typical Transient Thermal Impedance
150
200
I
PPM
- Peak Pulse Current, % I
RSM
Peak Forward Surge Current (A)
t
r
= 10 µs
Peak Value
I
PPM
T
J
= 25 °C
Pulse Width (t
d
)
is defined as the Point
where the Peak Current
decays to 50 % of I
PPM
8.3 ms Single Half Sine-Wave
Uni-Directional Only
100
100
Half Value - I
PP
I
PPM
2
50
10/1000 µs Waveform
as defined by R.E.A.
t
d
0
0
1.0
2.0
3.0
4.0
10
1
10
100
t - Time (ms)
Number of Cycles at 60 Hz
Fig. 3 - Pulse Waveform
Fig. 6 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 13-Dec-13
Document Number: 89425
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SM6T Series
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AA (SMBJ)
Cathode Band
Vishay General Semiconductor
0.086 (2.20)
0.077 (1.95)
0.155 (3.94)
0.130 (3.30)
Mounting Pad Layout
0.106 MAX
(2.69 MAX)
0.180 (4.57)
0.160 (4.06)
0.012 (0.305)
0.006 (0.152)
0.083 MIN
(2.10 MIN)
0.096 (2.44)
0.084 (2.13)
0.050 MIN
(1.27 MIN)
0.220 REF
0.060 (1.52)
0.030 (0.76)
0.220 (5.59)
0.205 (5.21)
0.008
(0.203)
Max.
Revision: 13-Dec-13
Document Number: 89425
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
