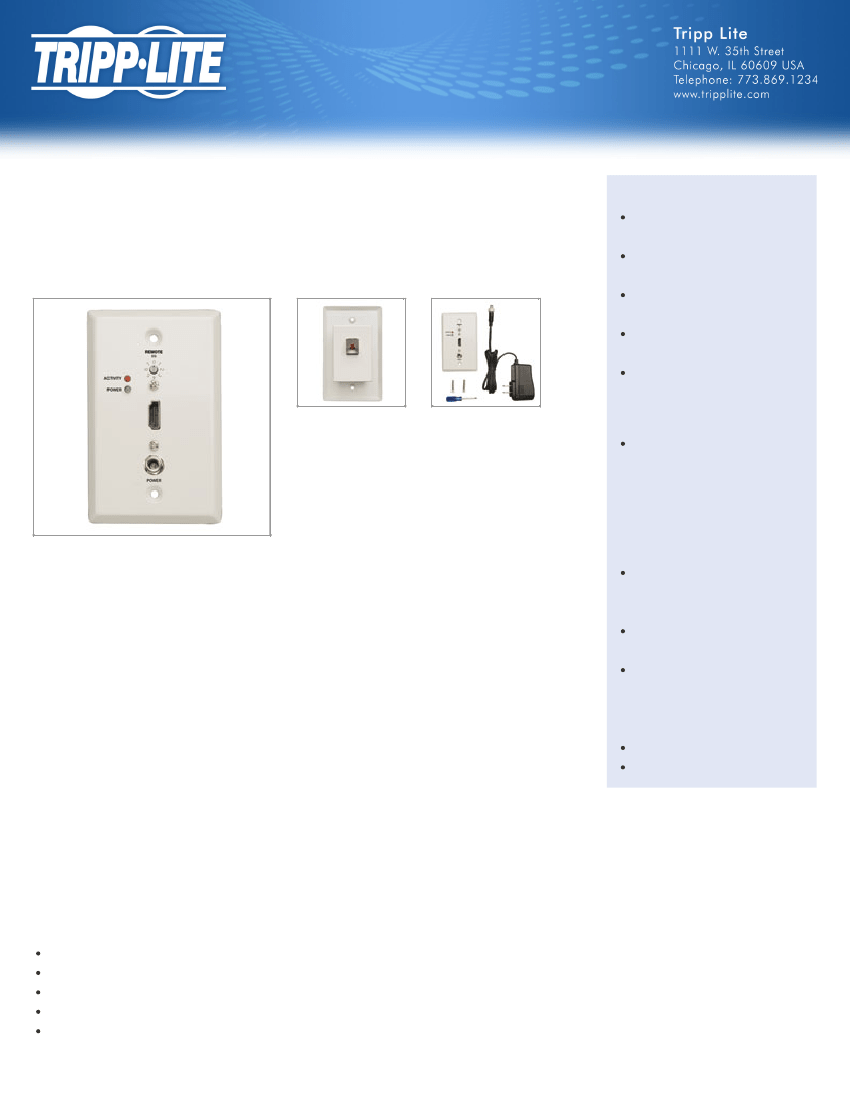

HDMI over Cat5/Cat6 Active Extender, Wallplate
Remote Receiver for Video and Audio, 1080p @ 60
Hz, Up to 200-ft., TAA
MODEL NUMBER:
B126-1A0-WP-1
Highlights
Supports high-definition video
resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel
surround sound audio
Works with all operating systems
and HDMI video sources
Plug and play—no software or
drivers to install
Built-in equalization control lets
you adjust monitor image
System Requirements
For international use, the
B110-INT
power supply can be
purchased separately; it features
plugs for the UK, Europe, and
Australia
Package Includes
Description
The B126-1A0-WP-1 HDMI over Cat5/Cat6 Active Remote Receiver works with Tripp Lite’s
B126-002
or
B126-004
transmitter to extend an HDMI signal to a projector, monitor or television. It’s ideal for digital signs,
trade shows, presentations, classrooms, churches, retail settings and other applications where the video source
is located farther than conventional cables allow or that require multiple displays connected to one source.
B126-1A0-WP-1 HDMI over
Cat5/Cat6 Active Remote
Receiver
Screwdriver for adjusting
equalization
External Power Supply with
The receiver uses HDMI cable (see Tripp Lite’s P568-Series) to connect to the monitor and Cat5e/6 cable to
receive the signal from the transmitter or a remote repeater in the chain (for best results, use 24 AWG solid-wire
Cat5e/6 cable, such as Tripp Lite’s N202-Series). No 110 punchdown connection is required.
NEMA 1-15P Plug(Input:
100–240V, 50/60 Hz, 0.5A;
Output: 5V, 2A, 5 ft.)
Mounting hardware
The B126-1A0-WP-1 can extend a 1080i (60 Hz) signal up to 200 feet, a 1080p (60 Hz) signal up to 150 feet
and a 3D signal up to 125 feet. You can connect up to three
B126-110
remote repeaters in the chain for a total of
four HDMI displays and full signal extension of 700 feet (1080i), 500 feet (1080p) or 400 feet (3D).
Owner’s Manual
In addition to crystal-clear video, the B126-1A0-WP-1 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with
a
B126-002
or
B126-004
transmitter. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits
per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall using the included hardware.
Features
Extends High-Definition Signals
Works in tandem with Tripp Lite’s
B126-002
or
B126-004
transmitter unit
Extends a 1080i (60 Hz) signal up to 200 ft., a 1080p (60 Hz) signal up to 150 ft. and a 3D signal up to 125 ft.
Connect up to 3
B126-110
remote repeaters to the chain for maximum signal range of 700 feet (1080i), 500 feet (1080p) and 400 feet (3D)
Connects to previous link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
No 110 punchdown connection required
1/3
Supports the Latest Video and Audio Resolutions
Works with all operating systems and HDMI video sources
Supports HD resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a
B126-002
or
B126-004
transmitter
Supports 24-bit True Color (8 bits per channel) and HDCP
Built-in equalization control lets you adjust the image on the local monitor
Easy to Set Up and Use
Plug-and-play engineering—no software or drivers to download and install
Connects quickly to local monitor with HDMI cable, such as Tripp Lite’s P568-Series
LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain
Included mounting hardware lets you install the unit on a wall
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
PHYSICAL
Unit Dimensions (hwd / cm)
Included Mounting Accessories
Color
4.5 x 2.75 x 1
Yes
White
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
0 to 40 C (32 to 104 F)
-20 to 60 C (-4 to 140 F)
20 to 90%
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
200
200
200
200
150
200
