MBR25H60CT-E3/4W datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> MBR25H60CT-E3/4W

MBR25H60CT-E3/4W: Descriptiondiode schottky 60v 15a to220ab; CategoryDiscrete semiconductor diode; File Size145KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

MBR25H60CT-E3/4W Overview

diode schottky 60v 15a to220ab

MBR25H60CT-E3/4W Parametric

Parameter Name	Attribute value
Maker	Vishay
package instruction	R-PSFM-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	60 V
Maximum reverse current	100 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

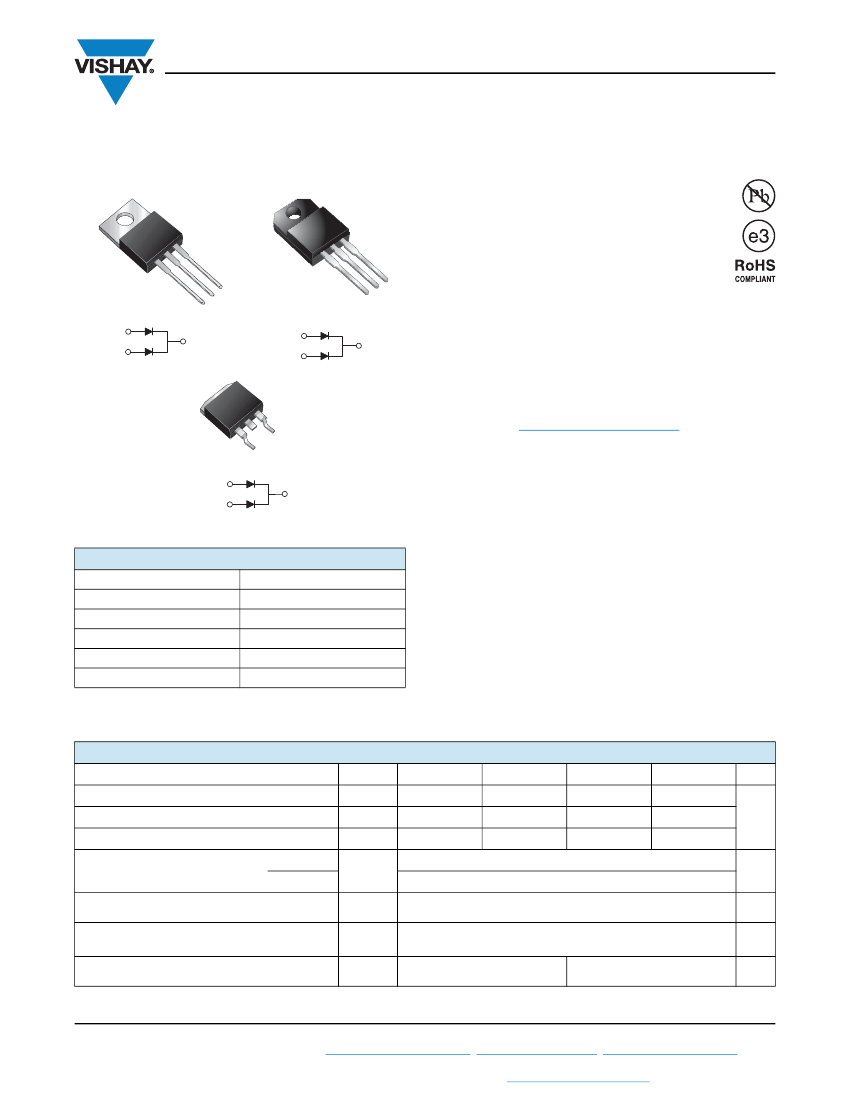

MBR(F,B)25H35CT thru MBR(F,B)25H60CT

www.vishay.com

Vishay General Semiconductor

Dual Common Cathode Schottky Rectifier

High Barrier Technology for Improved High Temperature Performance

TO-220AB

ITO-220AB

FEATURES

• Guardring for overvoltage protection

• Lower power losses, high efficiency

• Low forward voltage drop

• Low leakage current

• High forward surge capability

• High frequency operation

• Meets MSL level 1, per J-STD-020, LF maximum peak of

245 °C (for TO-263AB package)

• Solder bath temperature 275 °C maximum, 10 s, per

JESD 22-B106 (for TO-220AB and ITO-220AB package)

• AEC-Q101 qualified

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

MBR25HxxCT

PIN 1

PIN 3

PIN 2

CASE

MBRF25HxxCT

PIN 1

PIN 3

PIN 2

TO-263AB

MBRB25HxxCT

PIN 1

PIN 2

TYPICAL APPLICATIONS

HEATSINK

For use in low voltage, high frequency rectifier of switching

mode power supplies, freewheeling diodes, DC/DC

converters or polarity protection application.

MECHANICAL DATA

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

2 x 15 A

35 V to 60 V

150 A

0.54 V, 0.60 V

100 μA

175 °C

Case:

TO-220AB, ITO-220AB, TO-263AB

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

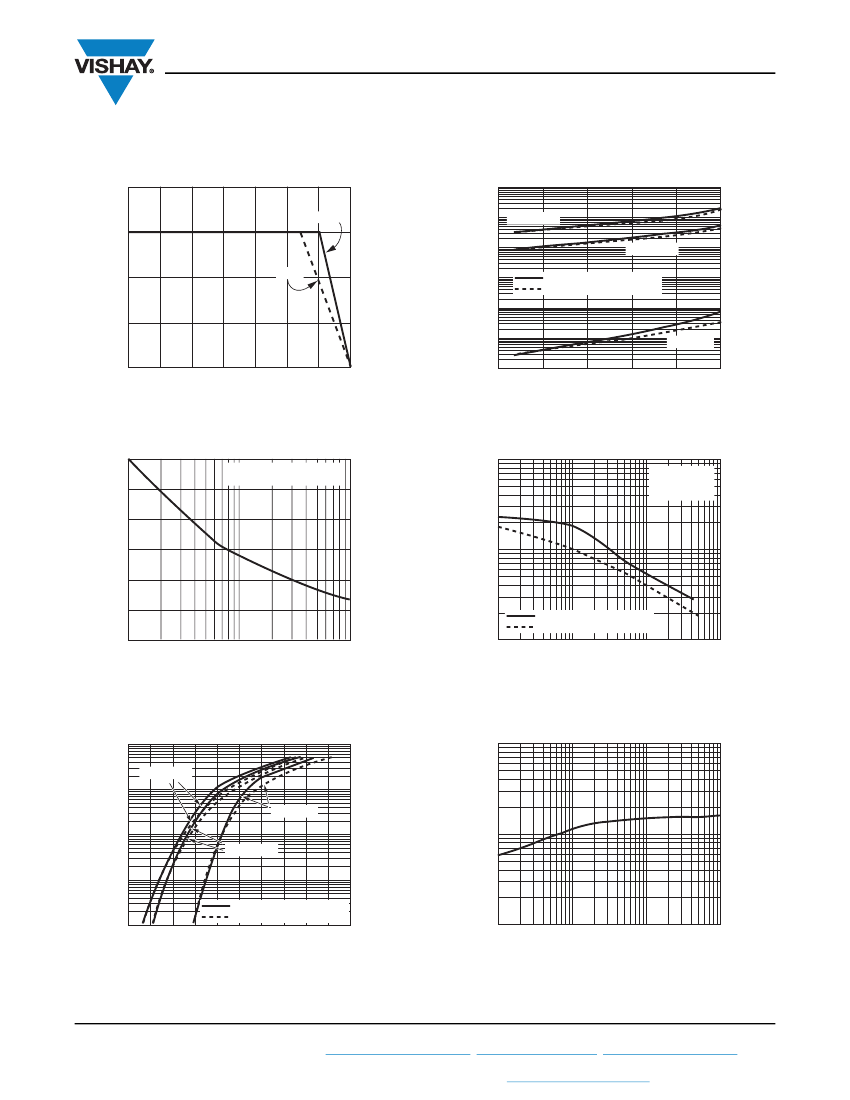

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Working peak reverse voltage

Maximum DC blocking voltage

Max. average forward

rectified current (Fig. 1)

total device

per diode

F(AV)

FSM

RRM

1.0

SYMBOL MBR25H35CT MBR25H45CT MBR25H50CT MBR25H60CT

RRM

RWM

150

0.5

UNIT

Non-repetitive avalanche energy per diode

at 25 °C, I

= 4 A, L = 10 mH

Peak forward surge current 8.3 ms single half

sine-wave superimposed on rated load per diode

Peak repetitive reverse surge current per diode

at t

= 2.0 μs, 1 kHz

Revision: 27-Jun-12

Document Number: 88789

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000

MBR25H60CT-E3/4W Related Products

	MBR25H60CT-E3/4W	MBRB25H35CT-E3/45
Description	diode schottky 60v 15a to220ab	diode schottky 35v 15a to263ab
Maker	Vishay	Vishay
package instruction	R-PSFM-T3	R-PSSO-G2
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
Other features	FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS	FREEWHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.54 V
JEDEC-95 code	TO-220AB	TO-263AB
JESD-30 code	R-PSFM-T3	R-PSSO-G2
Maximum non-repetitive peak forward current	150 A	150 A
Number of components	2	2
Phase	1	1
Number of terminals	3	2
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C
Maximum output current	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE
Maximum repetitive peak reverse voltage	60 V	35 V
surface mount	NO	YES
technology	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
