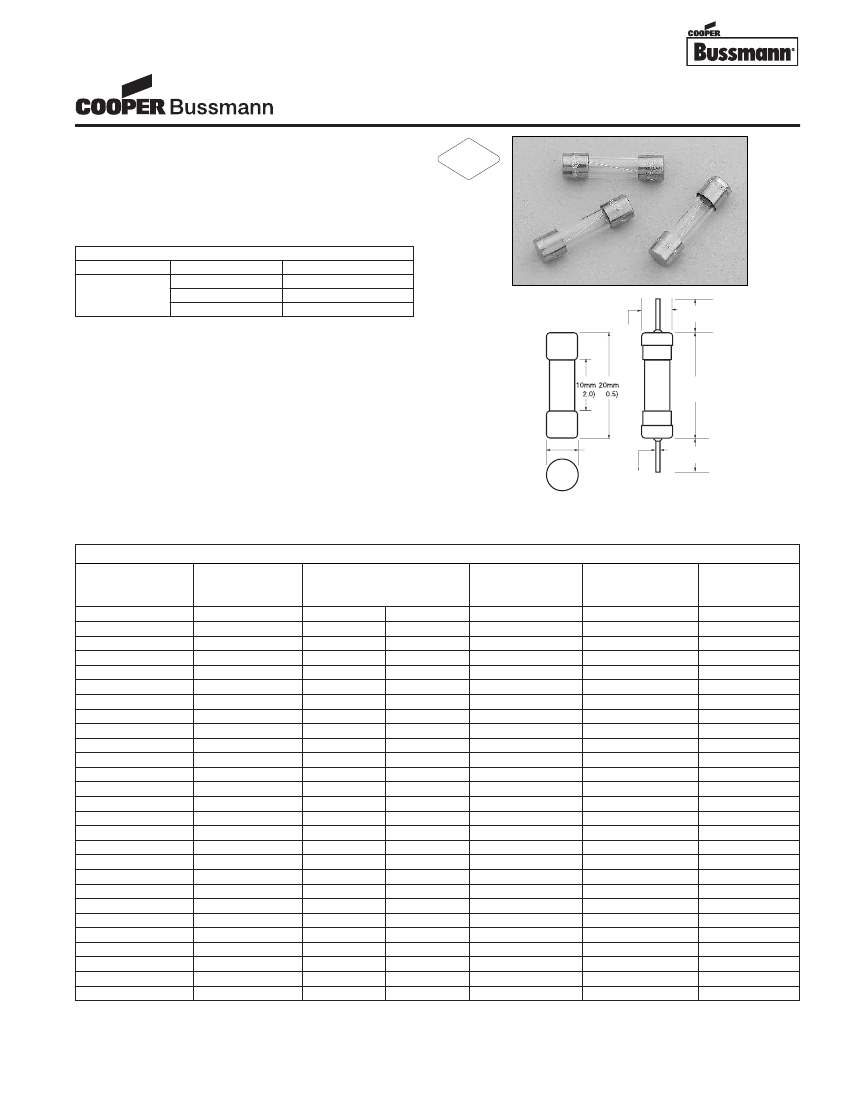

5mm x 20mm Fuses
GMA Series, Fast Acting, Glass Tube
Description
• Fast acting, low breaking capacity
• Optional axial leads available
• 5mm x 20mm physical size
• Glass tube, nickel-plated brass endcap construction
• Designed to UL/CSA 248-14
ELECTRICAL CHARACTERISTICS
Rated Current % of Amp Rating
Opening Time
100%
None
63mA - 10A
135%
60 minutes maximum
200%
2 minutes maximum
RoHS
2002/95/EC
Dimensions
mm
⁄
(inches)
5.54mm
(±.20)
38.10mm
10mm
(±.38)
±
38)
Agency Information
• UL Listed, Guide JDYX, File E19180, 63mA-6A
• UL Recognized Card: (7A-15A) Guide JDYX2,
File E19180
• CSA Certified, Class 1422-01, File E65063, 63mA-6A
• MITI Approval, 1A-15A
• CCC Approval, 63mA-6A
Ordering
• Specify packaging, product, and option code
• For -R option, drop mA or A from product code
(i.e. GMA-2-R)
(±
(±
21.10mm
0mm
(±.81)
5.2mm
(+0.1/-0.2)
0.65mm
(REF)
38.10mm
0mm
(±.38)
38)
• Ratings above 6.3A have a 0.8mm diameter lead
• With TR2 packaging code, lead wire length is 19.05mm
SPECIFICATIONS
Product Code
GMA-63mA
GMA-100mA
GMA-125mA
GMA-200mA
GMA-250mA
GMA-300mA
GMA-315mA
GMA-500mA
GMA-600mA
GMA-750mA
GMA-800mA
GMA-1A
GMA-1.25A
GMA-1.5A
GMA-1.6A
GMA-2A
GMA-2.5A
GMA-3A
GMA-3.15A
GMA-3.5A
GMA-4A
GMA-5A
GMA-6A
GMA-7A
GMA-8A
GMA-10A
GMA-15A
*
**
†
‡
Voltage
Rating
AC
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
125V
125V
125V
125V
125V
125V
125V
125V
125V
AC Interrupting
Rating*
250V
125V
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
10,000A
35A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
100A
10,000A
100A
10,000A
100A
10,000A
100A
10,000A
100A
10,000A
100A
10,000A
-
10,000A
-
10,000A
-
10,000A
-
10,000A
-
10,000A
-
200A
-
200A
-
200A
-
150A
Typical DC Cold
Resistance
(ohms)**
-
-
-
-
-
-
-
0.454
0.256
0.186
0.170
0.163
0.122
0.090
0.080
0.066
0.046
0.039
0.036
0.030
0.026
0.021
0.017
0.012
0.009
0.006
0.004
Typical
Pre-Arc I
2
t
AC†
0.00024
0.0001
0.0024
0.001
0.018
0.019
0.019
0.15
0.32
0.47
0.70
0.48
0.84
1.6
2.0
3.1
4.9
8.8
9.7
13
19
29
45
150
280
280
950
Maximum
Voltage
Drop (mV)‡
4700
4300
2600
3400
2200
470
450
230
200
200
180
300
290
270
260
250
240
215
210
210
205
200
180
110
110
110
100
Interrupting ratings: Interrupting ratings for 63mA - 6A were measured at 70% - 80% power factor on AC. The interrupting ratings for 7A - 15A were measured at 100% power factor on AC.
DC Cold Resistance (Measured at <10% of rated current)
Typical Pre-Arching I
2
t (I
2
t was measured at listed interrupting rating and rated voltage)
Maximum Voltage drop (Voltage drop was measured at 20°C ambient temperature at rated current)
5mm x 20mm Fuses
GMA Series, Fast Acting, Glass Tube

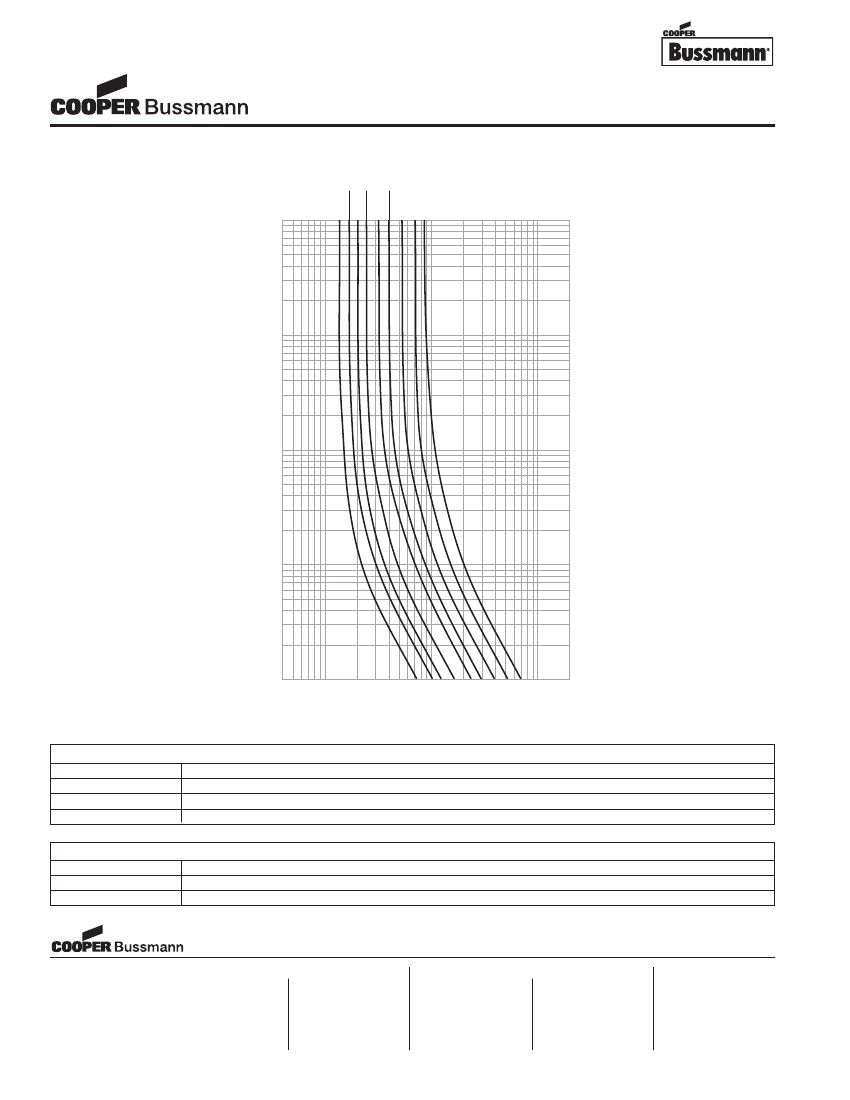

TIME CURRENT CURVE
1.25A
2A
1.5A
2.5A
3A
100
AMPERE
RATING
1A
10
TIME IN SECONDS
1
.1
10
.4
100
CURRENT IN AMPERES
PACKAGING CODE
Packaging Code
BK
BK1
TR2
Description
100 pieces of fuses packed into a cardboard carton
1,000 pieces of fuses packed into a poly bag
1,500 pieces of fuses packed into tape on a reel (19.05mm lead wire length)
OPTION CODE
Option Code
V
-R
Description
Axial leads - copper tinned wire with nickel plated brass overcaps
RoHS compliant version
200
1
.01
4A
5A
6A
Visit us on the web at:
www.cooperbussmann.com
OC-2595 3/07
© Cooper Electronic
Technologies 2007
