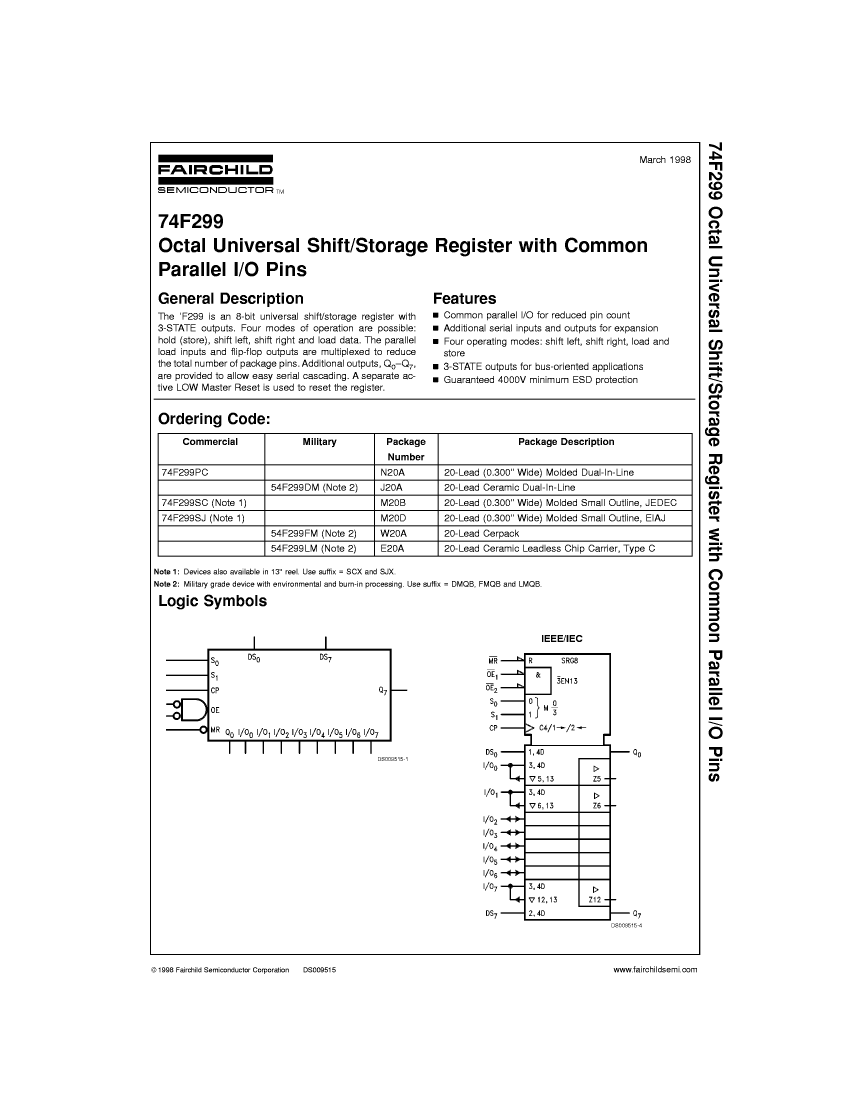

Parallel In Parallel Out, F/FAST Series, 8-Bit, Bidirectional, True Output, TTL, CQCC20, CERAMIC, LCC-20

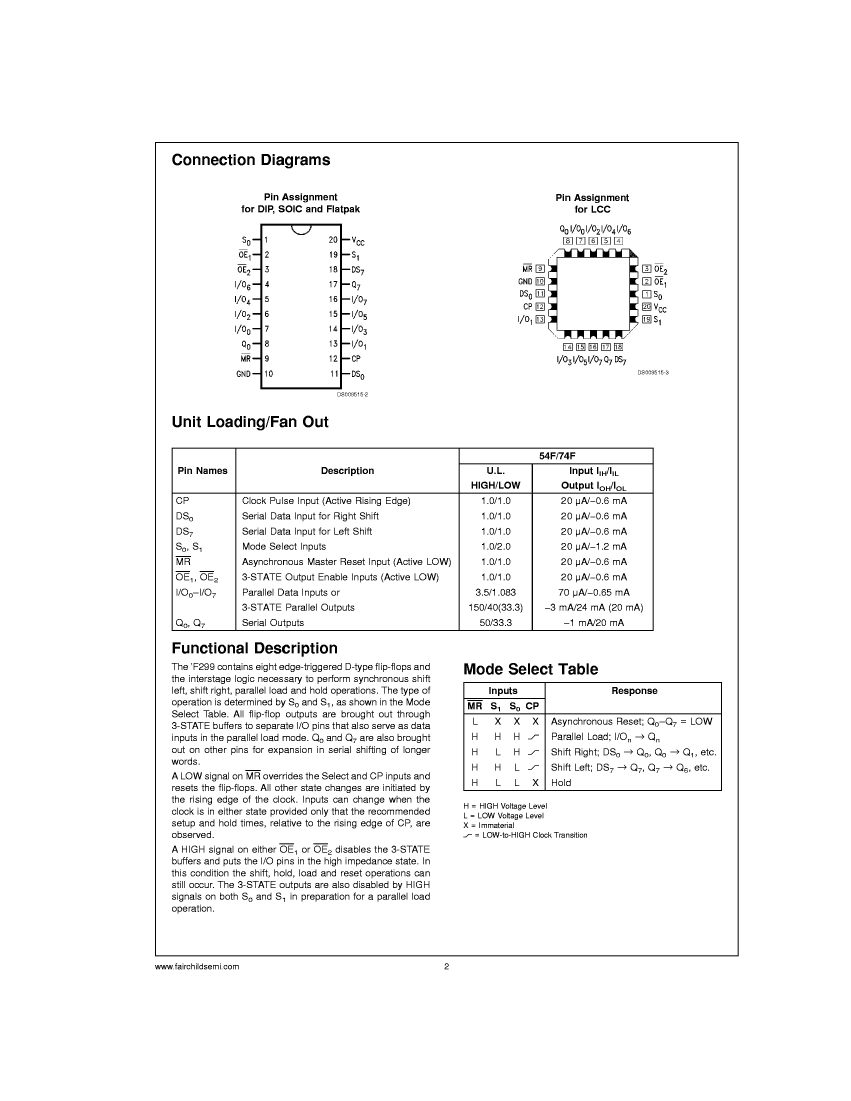

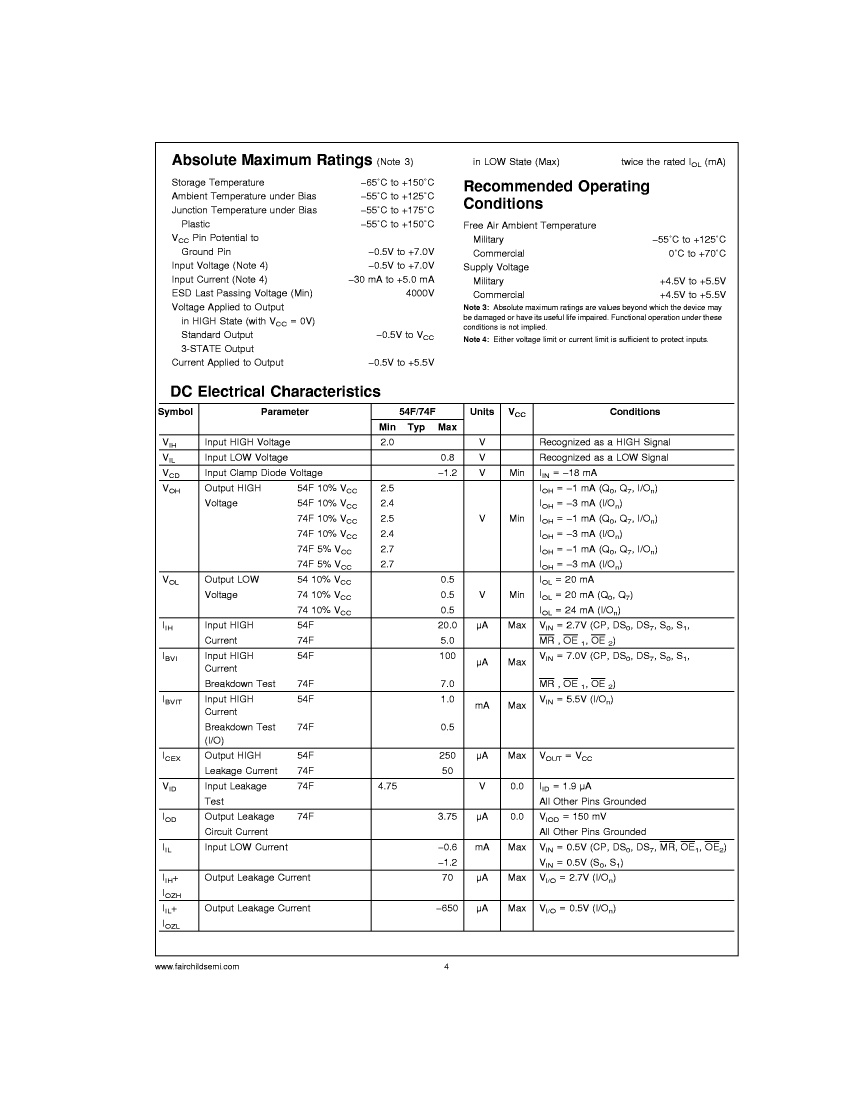

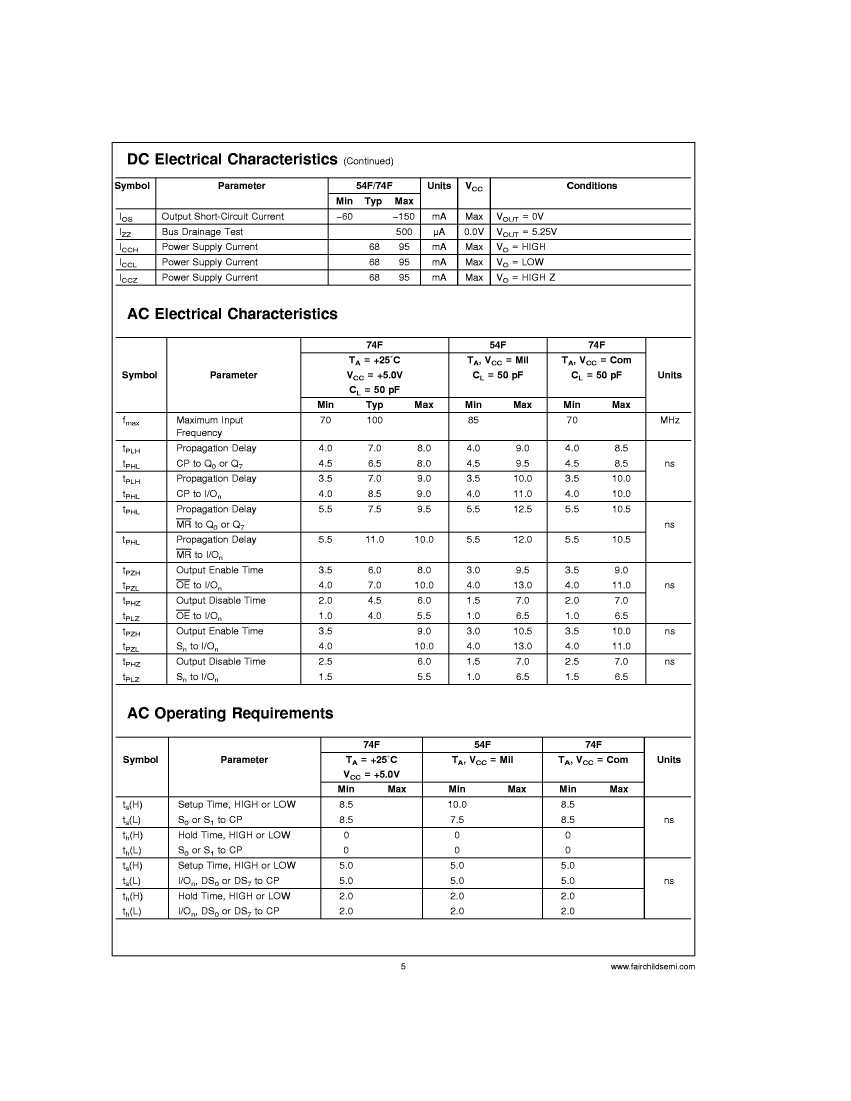

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | QLCC |
| package instruction | QCCN, LCC20,.35SQ |
| Contacts | 20 |
| Reach Compliance Code | compli |
| Other features | HOLD MODE; COMMON I/O PINS |
| Counting direction | BIDIRECTIONAL |
| series | F/FAST |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.89 mm |
| Logic integrated circuit type | PARALLEL IN PARALLEL OUT |
| Maximum Frequency@Nom-Su | 85000000 Hz |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | 5 V |
| propagation delay (tpd) | 11 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 1.905 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Trigger type | POSITIVE EDGE |
| width | 8.89 mm |
| minfmax | 85 MHz |
| Base Number Matches | 1 |
| 54F299LMQB | 54F299FMQB | 54F299DMQB | |
|---|---|---|---|
| Description | Parallel In Parallel Out, F/FAST Series, 8-Bit, Bidirectional, True Output, TTL, CQCC20, CERAMIC, LCC-20 | Parallel In Parallel Out, F/FAST Series, 8-Bit, Bidirectional, True Output, TTL, CDFP20, CERPACK-20 | Parallel In Parallel Out, F/FAST Series, 8-Bit, Bidirectional, True Output, TTL, CDIP20, CERAMIC, DIP-20 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Parts packaging code | QLCC | DFP | DIP |
| package instruction | QCCN, LCC20,.35SQ | DFP, FL20,.3 | DIP, DIP20,.3 |
| Contacts | 20 | 20 | 20 |
| Reach Compliance Code | compli | compliant | compliant |
| Other features | HOLD MODE; COMMON I/O PINS | HOLD MODE; COMMON I/O PINS | HOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | S-CQCC-N20 | R-GDFP-F20 | R-GDIP-T20 |
| JESD-609 code | e0 | e0 | e0 |
| Logic integrated circuit type | PARALLEL IN PARALLEL OUT | PARALLEL IN PARALLEL OUT | PARALLEL IN PARALLEL OUT |
| Number of digits | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | DFP | DIP |
| Encapsulate equivalent code | LCC20,.35SQ | FL20,.3 | DIP20,.3 |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | FLATPACK | IN-LINE |
| power supply | 5 V | 5 V | 5 V |
| propagation delay (tpd) | 11 ns | 11 ns | 11 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
| Maximum seat height | 1.905 mm | 2.286 mm | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO |
| technology | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | FLAT | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | QUAD | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 8.89 mm | 6.731 mm | 7.62 mm |
| minfmax | 85 MHz | 85 MHz | 100 MHz |
| Base Number Matches | 1 | 1 | 1 |
| length | 8.89 mm | - | 24.51 mm |
| Maximum Frequency@Nom-Sup | - | 85000000 Hz | 85000000 Hz |
