1410187-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1410187-1

1410187-1: Descriptionconn daughtercard R/A 20.3mm; CategoryThe connector; File Size308KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1410187-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1410187-1	-	-	View	Buy Now

1410187-1 Overview

conn daughtercard R/A 20.3mm

1410187-1 Parametric

Parameter Name	Attribute value
Datasheets
1410187-x Drawing
Product Photos
1410187-1
RoHS Informati
1410187-1 Statement of Compliance
RoHS 2 Stateme
Standard Package	17
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Daughtercard
Connector Type	Plug, Male Blades
Connector Style	VITA 46, Cente
Number of Positions	112
Number of Positions Loaded	All
Pitch	0.071" (1.80mm)
Number of Rows	7
Number of Columns	16
Mounting Type	Board Edge, Through Hole, Right Angle
Terminati	Solde
Contact Layout, Typical	32 Signal Pairs, 8 Single Signal, 40 Ground
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 105°C
Voltage Rating	50V
Other Names	14101871

Preview

Download Datasheet

View All

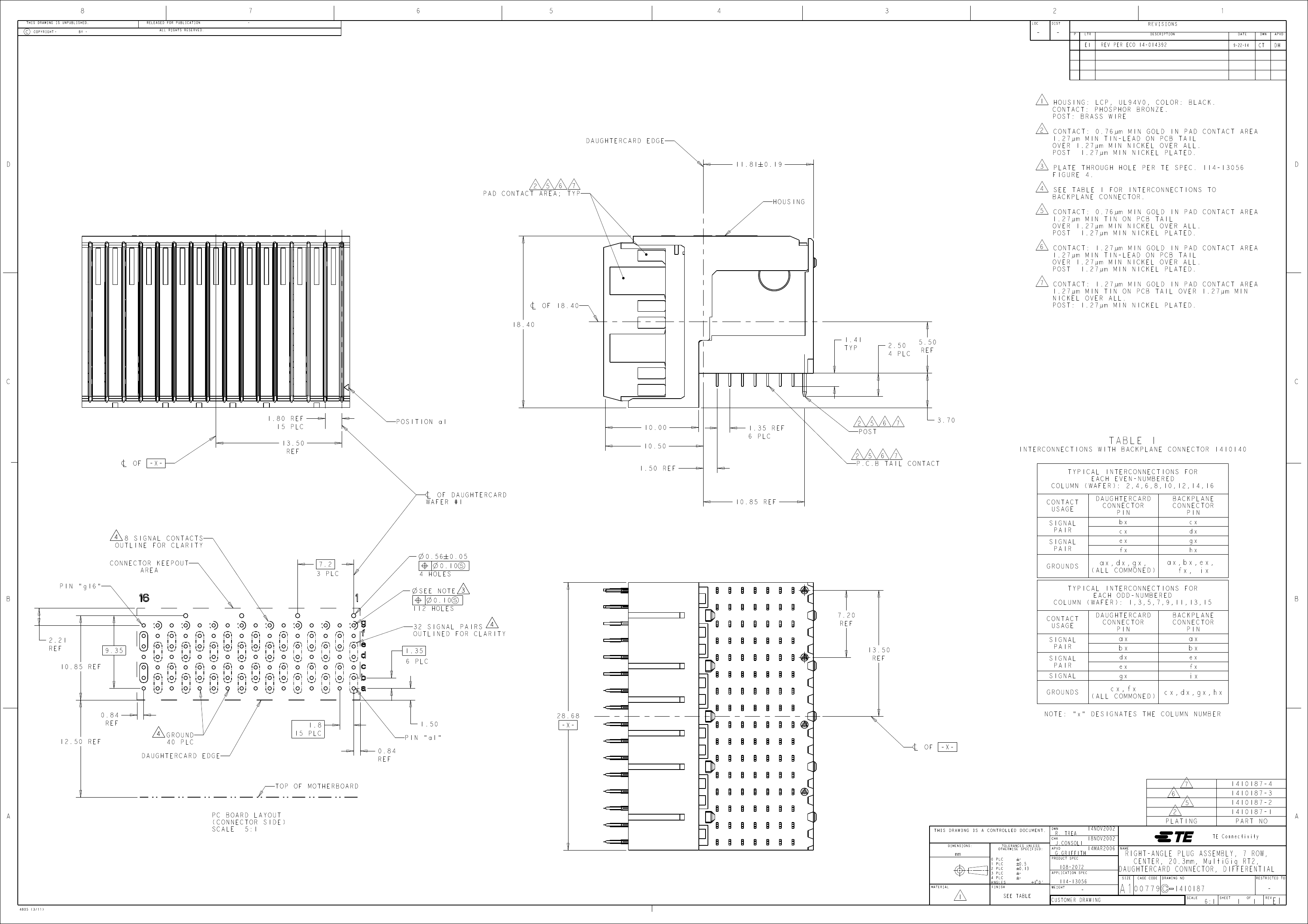

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REV PER ECO 14-014392

9-22-14

HOUSING: LCP, UL94V0, COLOR: BLACK.

CONTACT: PHOSPHOR BRONZE.

POST: BRASS WIRE

CONTACT: 0.76µm MIN GOLD IN PAD CONTACT AREA

1.27µm MIN TIN-LEAD ON PCB TAIL

OVER 1.27µm MIN NICKEL OVER ALL.

POST 1.27µm MIN NICKEL PLATED.

PLATE THROUGH HOLE PER TE SPEC. 114-13056

FIGURE 4.

SEE TABLE 1 FOR INTERCONNECTIONS TO

BACKPLANE CONNECTOR.

CONTACT: 0.76µm MIN GOLD IN PAD CONTACT AREA

1.27µm MIN TIN ON PCB TAIL

OVER 1.27µm MIN NICKEL OVER ALL.

POST 1.27µm MIN NICKEL PLATED.

CONTACT: 1.27µm MIN GOLD IN PAD CONTACT AREA

1.27µm MIN TIN-LEAD ON PCB TAIL

OVER 1.27µm MIN NICKEL OVER ALL.

POST 1.27µm MIN NICKEL PLATED.

CONTACT: 1.27µm MIN GOLD IN PAD CONTACT AREA

1.27µm MIN TIN ON PCB TAIL OVER 1.27µm MIN

NICKEL OVER ALL.

POST: 1.27µm MIN NICKEL PLATED.

DAUGHTERCARD EDGE

2 5

PAD CONTACT AREA; TYP

11.81

0.19

HOUSING

18.40

1.41

TYP

2.50

4 PLC

5.50

REF

1.80 REF

15 PLC

13.50

REF

-X-

POSITION a1

10.00

10.50

1.50

REF

1.35 REF

6 PLC

2 5

POST

3.70

2 5

P.C.B TAIL CONTACT

INTERCONNECTIONS WITH BACKPLANE CONNECTOR 1410140

TYPICAL INTERCONNECTIONS FOR

EACH EVEN-NUMBERED

COLUMN (WAFER): 2,4,6,8,10,12,14,16

CONTACT

USAGE

SIGNAL

PAIR

SIGNAL

PAIR

GROUNDS

DAUGHTERCARD

CONNECTOR

(ALL COMMONED)

BACKPLANE

CONNECTOR

TABLE 1

WAFER #1

10.85

REF

4 8 SIGNAL CONTACTS

OUTLINE FOR CLARITY

CONNECTOR KEEPOUT

AREA

PIN "g16"

7.2

0.56

4 HOLES

SEE NOTE

112 HOLES

32 SIGNAL PAIRS

OUTLINED FOR CLARITY

9.35

REF

1.35

6 PLC

7.20

REF

0.05

3 PLC

ax,dx,gx,

ax,bx,ex,

fx, ix

TYPICAL INTERCONNECTIONS FOR

EACH ODD-NUMBERED

COLUMN (WAFER): 1,3,5,7,9,11,13,15

CONTACT

USAGE

13.50

REF

SIGNAL

PAIR

SIGNAL

PAIR

SIGNAL

GROUNDS

DAUGHTERCARD

CONNECTOR

BACKPLANE

CONNECTOR

2.21

REF

10.85

cx,dx,gx,hx

(ALL COMMONED)

cx,fx

0.84

REF

12.50

REF

GROUND

40 PLC

1.8

15 PLC

0.84

REF

1.50

PIN "a1"

28.68

-X-

NOTE: "x" DESIGNATES THE COLUMN NUMBER

DAUGHTERCARD EDGE

-X-

TOP OF MOTHERBOARD

1410187-4

1410187-3

1410187-2

1410187-1

PART NO

TE Connectivity

PC BOARD LAYOUT

(CONNECTOR SIDE)

SCALE

5:1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

R. TREA

J.CONSOLI

G.GRIFFITH

108-2072

14NOV2002

18NOV2002

14MAR2006

NAME

PLATING

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.5

0.13

PRODUCT SPEC

APPLICATION SPEC

RIGHT-ANGLE PLUG ASSEMBLY, 7 ROW,

CENTER, 20.3mm, MultiGig RT2,

DAUGHTERCARD CONNECTOR, DIFFERENTIAL

1 $ 0'

WEIGHT

114-13056

4805 (3/11)

SEE TABLE

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

1410187

SCALE

6:1

SHEET

REV

1410187-1 Related Products

	1410187-1	1410187-3
Description	conn daughtercard R/A 20.3mm	conn R/A plug DC vita46
Standard Package	17	17
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube
Connector Usage	Daughtercard	Daughtercard
Connector Type	Plug, Male Blades	Plug, Male Blades
Connector Style	VITA 46, Cente	VITA 46, Cente
Number of Positions	112	112
Number of Positions Loaded	All	All
Pitch	0.071" (1.80mm)	0.071" (1.80mm)
Number of Rows	7	7
Number of Columns	16	16
Mounting Type	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle
Terminati	Solde	Solde
Contact Layout, Typical	32 Signal Pairs, 8 Single Signal, 40 Ground	32 Signal Pairs, 8 Single Signal, 40 Ground
Features	Board Guide	Board Guide
Contact Finish	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	50µin (1.27µm)
Col	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C
Other Names	14101871	14101873A99143
