5120658-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5120658-1

Preview

5120658-1: Descriptionconn 2mm HM plug 100pos str gold; CategoryThe connector; File Size174KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5120658-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5120658-1	-	-	View	Buy Now

5120658-1 Overview

conn 2mm HM plug 100pos str gold

5120658-1 Parametric

Parameter Name	Attribute value
Datasheets
5120658-1
Product Photos
5120658-1
RoHS Informati
5120658-1 Statement of Compliance
RoHS 2 Stateme
3D Model
5120658-1.pdf
Standard Package	20
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Backplane
Connector Type	Header, Male Pins and Blades
Connector Style	Dual Beam, Cente
Number of Positions	100
Number of Positions Loaded	All
Pitch	0.098" (2.50mm)
Number of Rows	10
Number of Columns	10
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Layout, Typical	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	-
Current Rating	1.15A
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 105°C
Voltage Rating	250V
Dynamic Catalog	Z-PACK HS3 Series
Mating Products	A101811-ND - CONN RCPT 2MM HM 100POS R/A GOLD120790-1-ND - CONN 2MM HM RCPT 100POS R/A GOLD
Other Names	5120658-1-ND51206581A101802

Preview

Download Datasheet

View All

8

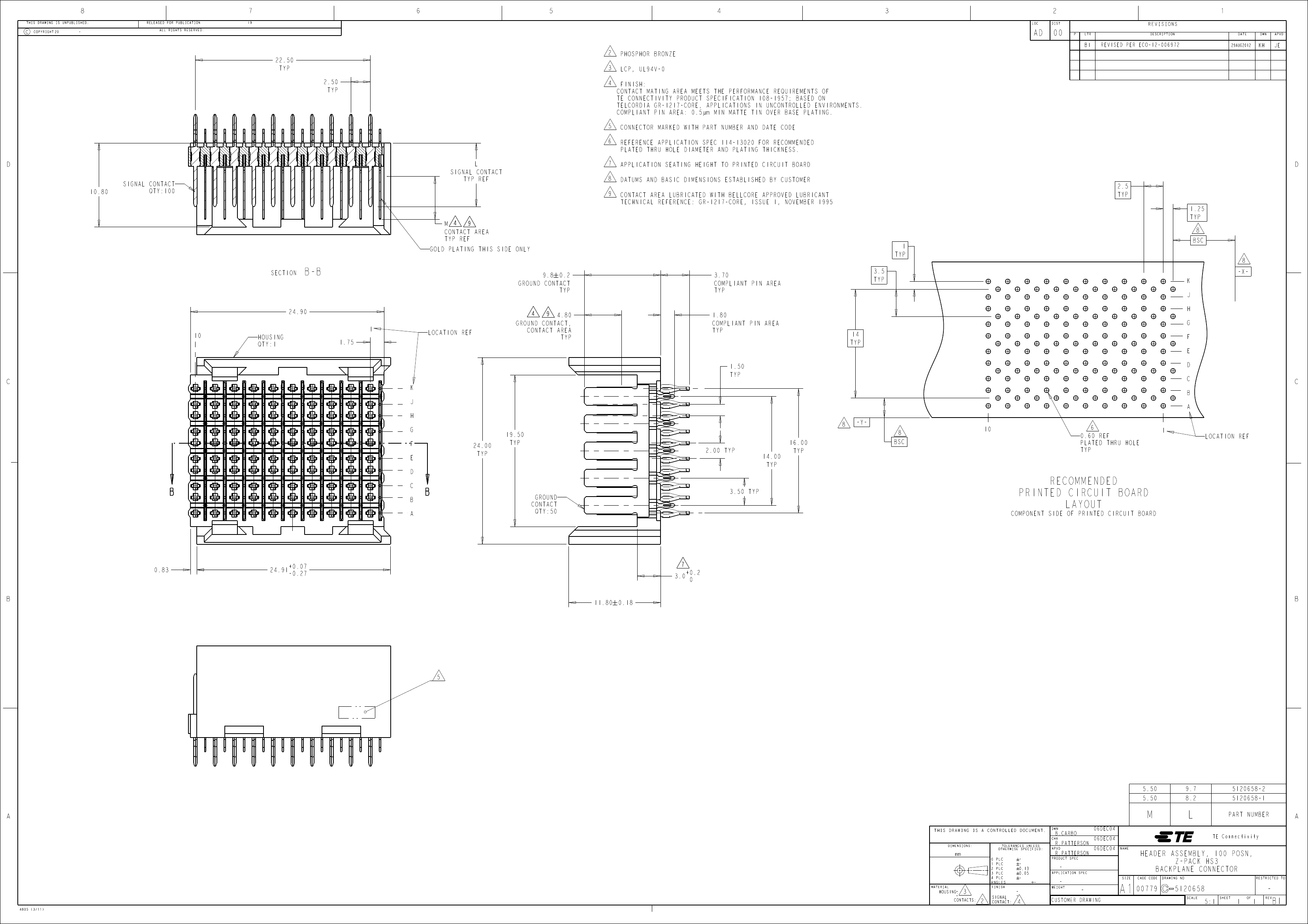

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

6

5

4

3

LOC

2

DIST

P

LTR

1

REVISIONS

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

22.50

TYP

2.50

TYP

D

SIGNAL CONTACT

QTY:100

L

SIGNAL CONTACT

TYP REF

D

2.5

TYP

1.25

TYP

BSC

10.80

GOLD PLATING THIS SIDE ONLY

SECTION

M

CONTACT AREA

TYP REF

1

TYP

3.70

COMPLIANT PIN AREA

TYP

1.80

COMPLIANT PIN AREA

TYP

3.5

TYP

B-B

9.8 0.2

GROUND CONTACT

TYP

4.80

GROUND CONTACT,

CONTACT AREA

TYP

K

J

H

G

-X-

24.90

10

HOUSING

QTY:1

1

1.75

LOCATION REF

14

TYP

F

E

D

C

B

A

C

1.50

TYP

K

J

H

G

F

E

D

24.00

TYP

19.50

TYP

-Y-

16.00

TYP

BSC

C

10

2.00 TYP

14.00

TYP

0.60 REF

PLATED THRU HOLE

TYP

1

LOCATION REF

B

C

B

A

B

GROUND

CONTACT

QTY:50

3.50 TYP

COMPONENT SIDE OF PRINTED CIRCUIT BOARD

RECOMMENDED

PRINTED CIRCUIT BOARD

LAYOUT

0.83

24.91

+0.07

-0.27

3.0

+0.2

0

B

11.80 0.18

B

5.50

9.7

8.2

5120658-2

5120658-1

PART NUMBER

TE Connectivity

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

APVD

PRODUCT SPEC

NAME

M

L

A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

APPLICATION SPEC

HOUSING:

CONTACTS:

WEIGHT

SIGNAL

CONTACT:

A1

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

OF

REV

4805 (3/11)

5120658-1 Related Products

	5120658-1	5120658-2
Description	conn 2mm HM plug 100pos str gold	conn header 100pos 10row Z-pack
Standard Package	20	20
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube
Connector Usage	Backplane	Backplane
Connector Type	Header, Male Pins and Blades	Header, Male Pins and Blades
Connector Style	Dual Beam, Cente	Dual Beam, Cente
Number of Positions	100	100
Number of Positions Loaded	All	All
Pitch	0.098" (2.50mm)	0.098" (2.50mm)
Number of Rows	10	10
Number of Columns	10	10
Mounting Type	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi
Contact Finish	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)
Current Rating	1.15A	1.15A
Material Flammability Rating	UL94 V-0	UL94 V-0
Operating Temperature	-65°C ~ 105°C	-65°C ~ 105°C
Voltage Rating	250V	250V
Mating Products	A101811-ND - CONN RCPT 2MM HM 100POS R/A GOLD120790-1-ND - CONN 2MM HM RCPT 100POS R/A GOLD	A101811-ND - CONN RCPT 2MM HM 100POS R/A GOLD120790-1-ND - CONN 2MM HM RCPT 100POS R/A GOLD
Other Names	5120658-1-ND51206581A101802	51206582
