38-00-7396 datasheet, PDF - EEWORLD Datasheet

38-00-7396: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Polarized Lck, Plug; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

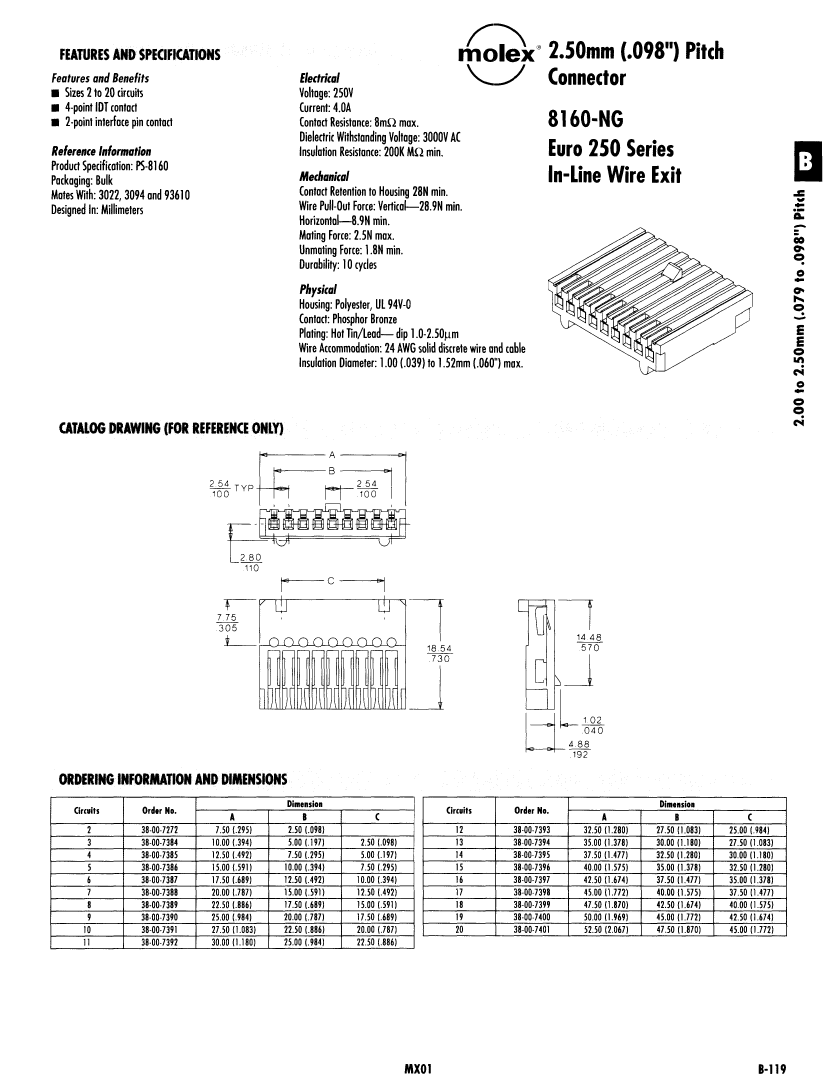

Download Datasheet Parametric View All

38-00-7396 Overview

Board Connector, 15 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Polarized Lck, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	EURO 250 SERIES
subject depth	0.73 inch
body length	1.575 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	8 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	3000VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.502 N
Minimum insulation diameter	0.039 inch
Insulation resistance	200000000000 Ω
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	8160-NG
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Plating thickness	39u inch
Rated current (signal)	4 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	15
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	24 AWG
Evacuation force-minimum value	1.807 N
Base Number Matches	1
