1-6450820-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-6450820-5

1-6450820-5: Descriptionmbxle vert hdr 6p20s; CategoryThe connector; File Size2MB，20 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-6450820-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-6450820-5	-	-	View	Buy Now

1-6450820-5 Overview

mbxle vert hdr 6p20s

1-6450820-5 Parametric

Parameter Name	Attribute value
Datasheets
6450820 Drawing
Product Photos
1-6450820-5
Standard Package	30
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tray
Connector Usage	-
Connector Type	Header, Male Pins and Blades
Connector Style	Multi-Beam
Number of Positions	26
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Layout, Typical	20 Signal, 15 Powe
Features	Board Lock, Mating Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-20°C ~ 105°C
Voltage Rating	-
Other Names	A118248

Preview

Download Datasheet

View All

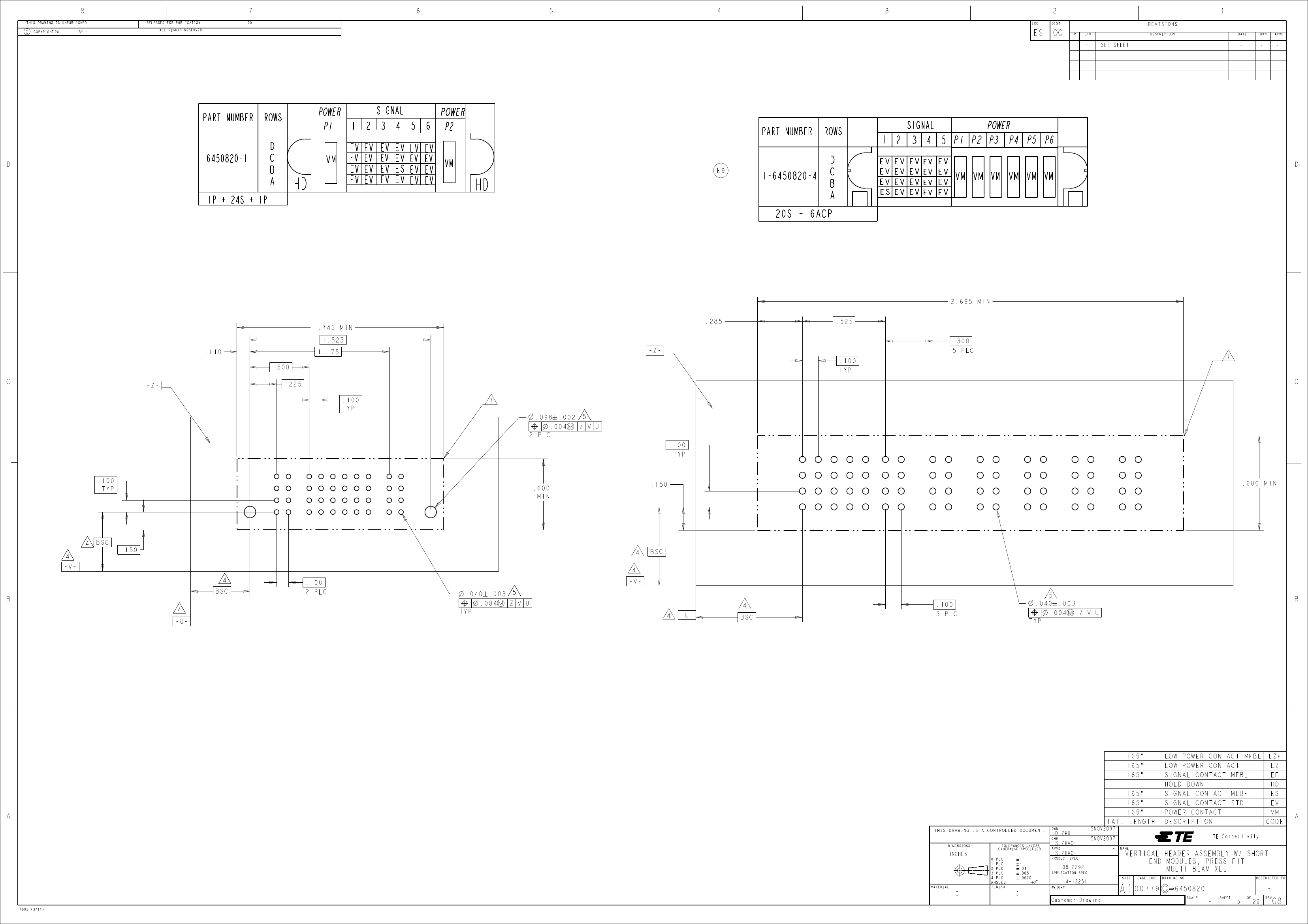

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

ADD NEW PART -25

UPDATE -25 MATING SEQUENCE

19AUG2013

29AUG2013

30AUG2013

.095

DIM TT

DIM D

.137

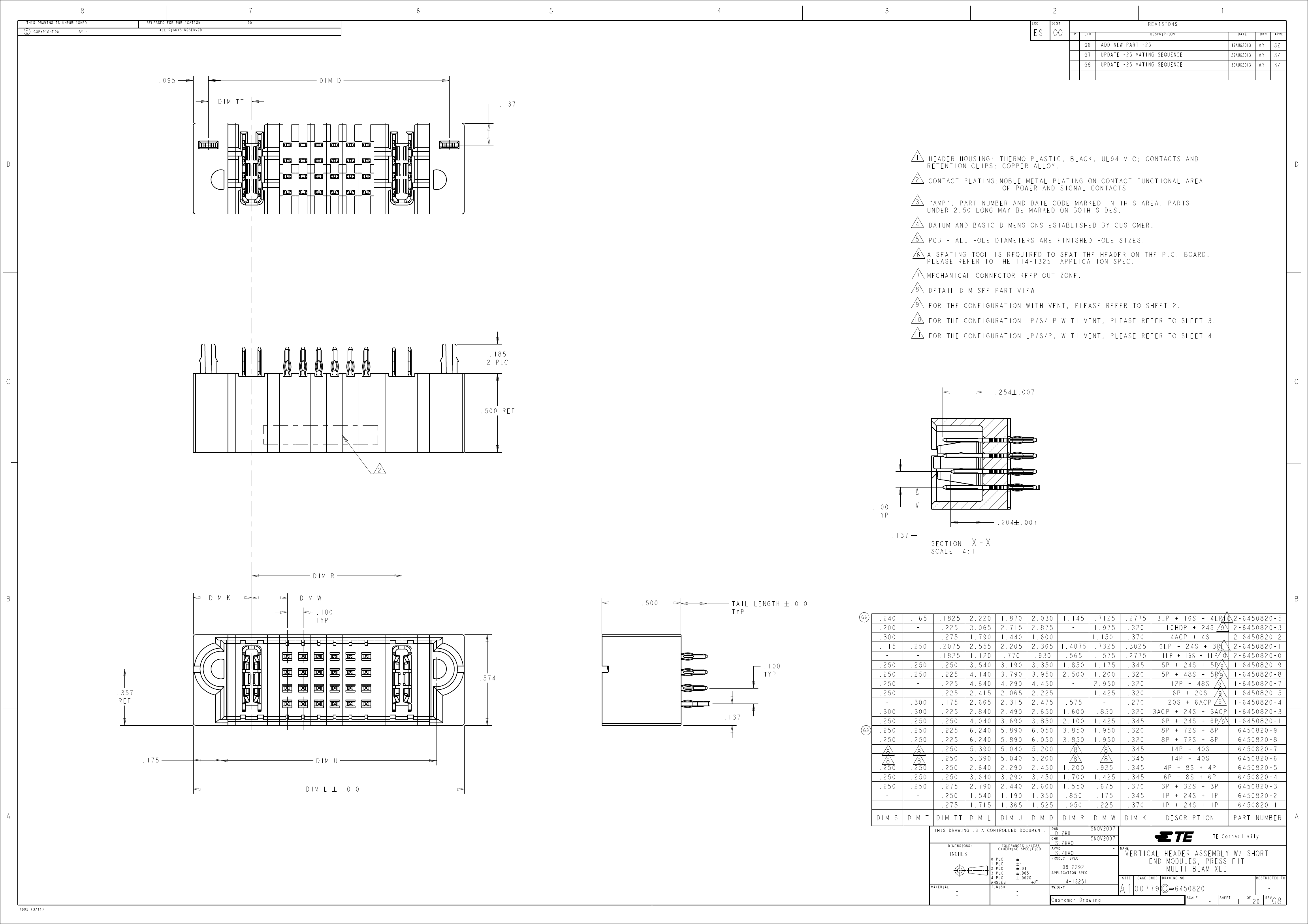

HEADER HOUSING: THERMO PLASTIC, BLACK, UL94 V-O; CONTACTS AND

RETENTION CLIPS: COPPER ALLOY.

CONTACT PLATING:NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA

OF POWER AND SIGNAL CONTACTS

"AMP", PART NUMBER AND DATE CODE MARKED IN THIS AREA. PARTS

UNDER 2.50 LONG MAY BE MARKED ON BOTH SIDES.

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES.

6 A SEATING TOOL IS REQUIRED TO SEAT THE HEADER ON THE P.C. BOARD.

PLEASE REFER TO THE 114-13251 APPLICATION SPEC.

7 MECHANICAL CONNECTOR KEEP OUT ZONE.

.185

2 PLC

DETAIL DIM SEE PART VIEW

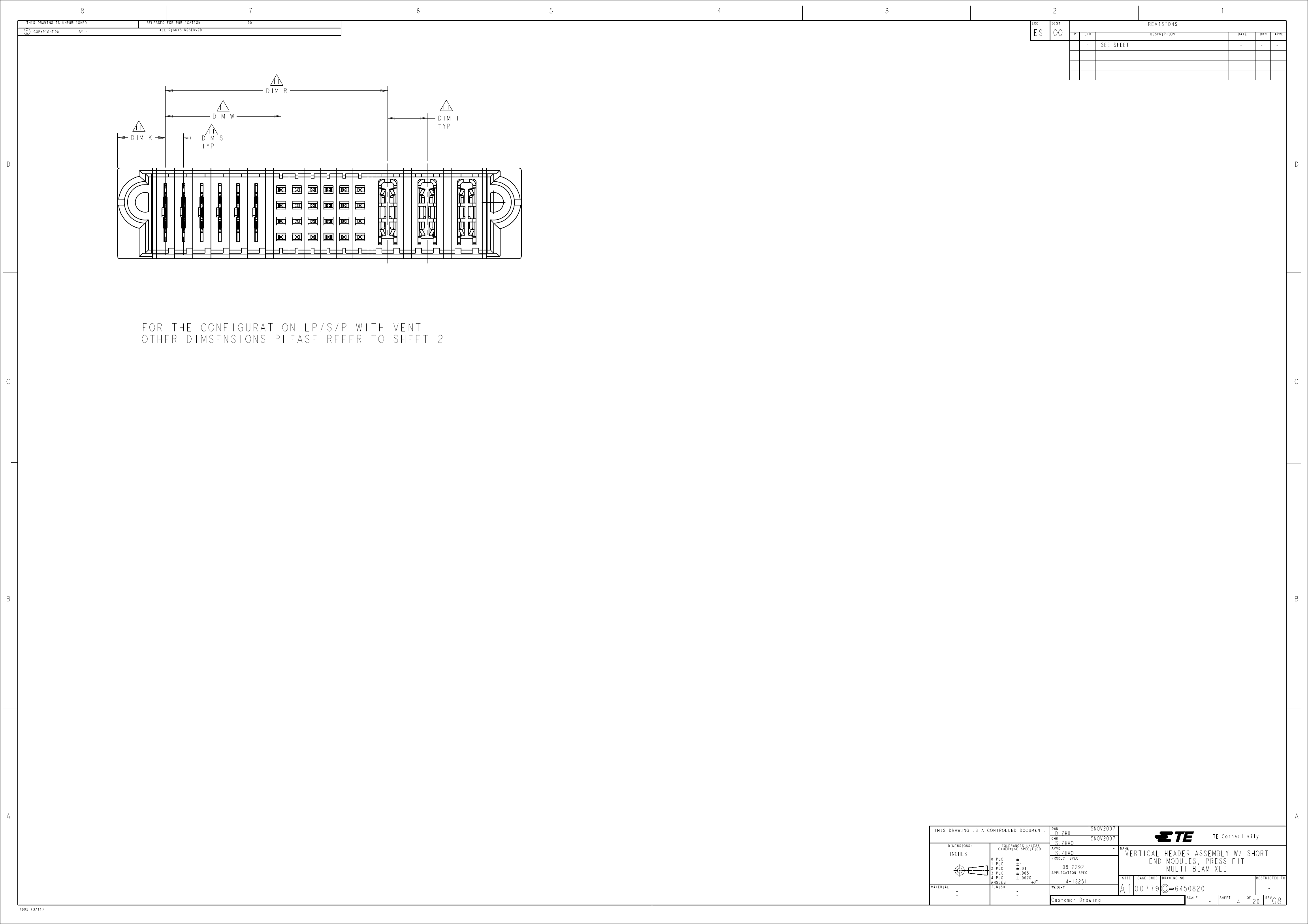

FOR THE CONFIGURATION WITH VENT, PLEASE REFER TO SHEET 2.

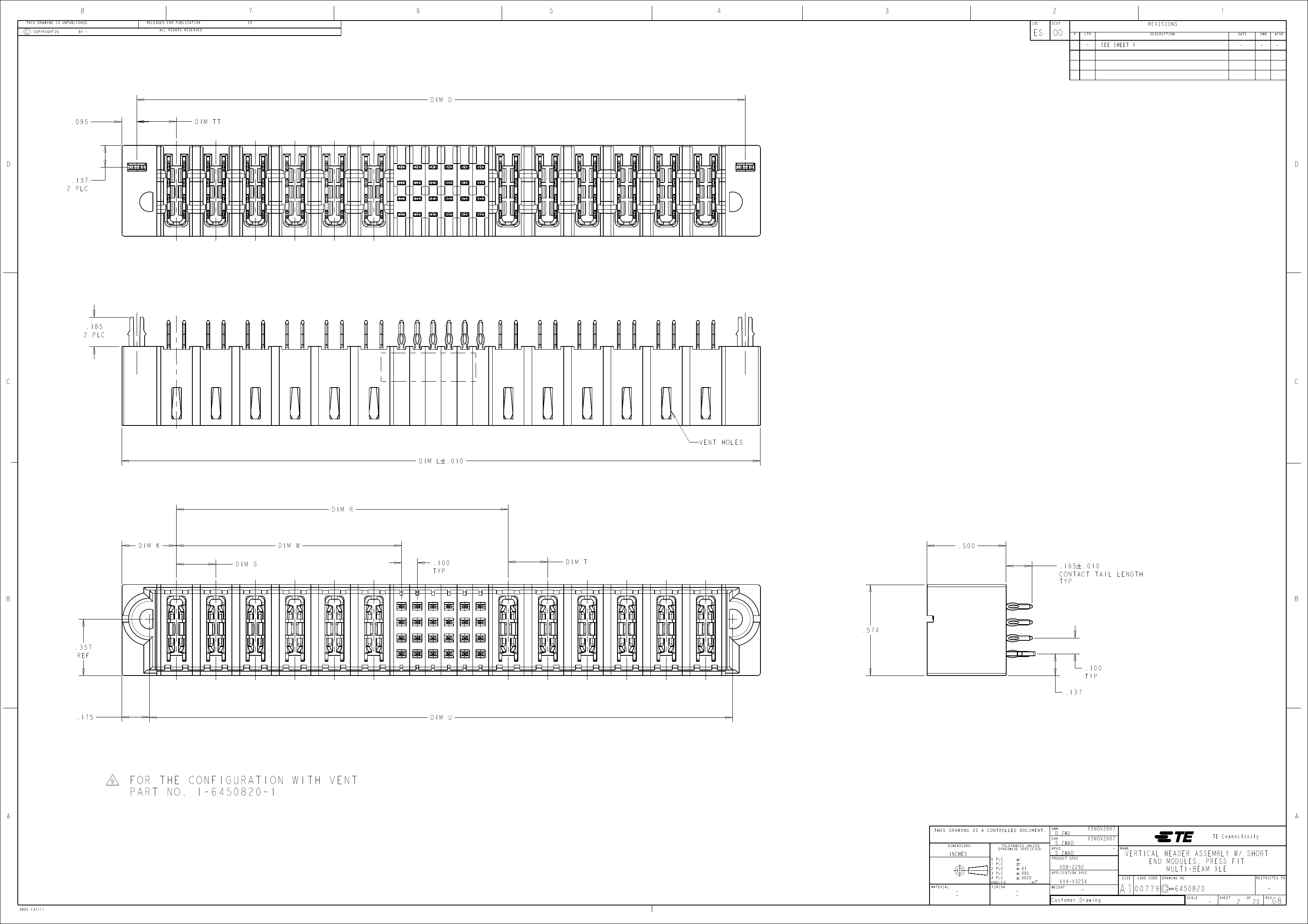

FOR THE CONFIGURATION LP/S/LP WITH VENT, PLEASE REFER TO SHEET 3.

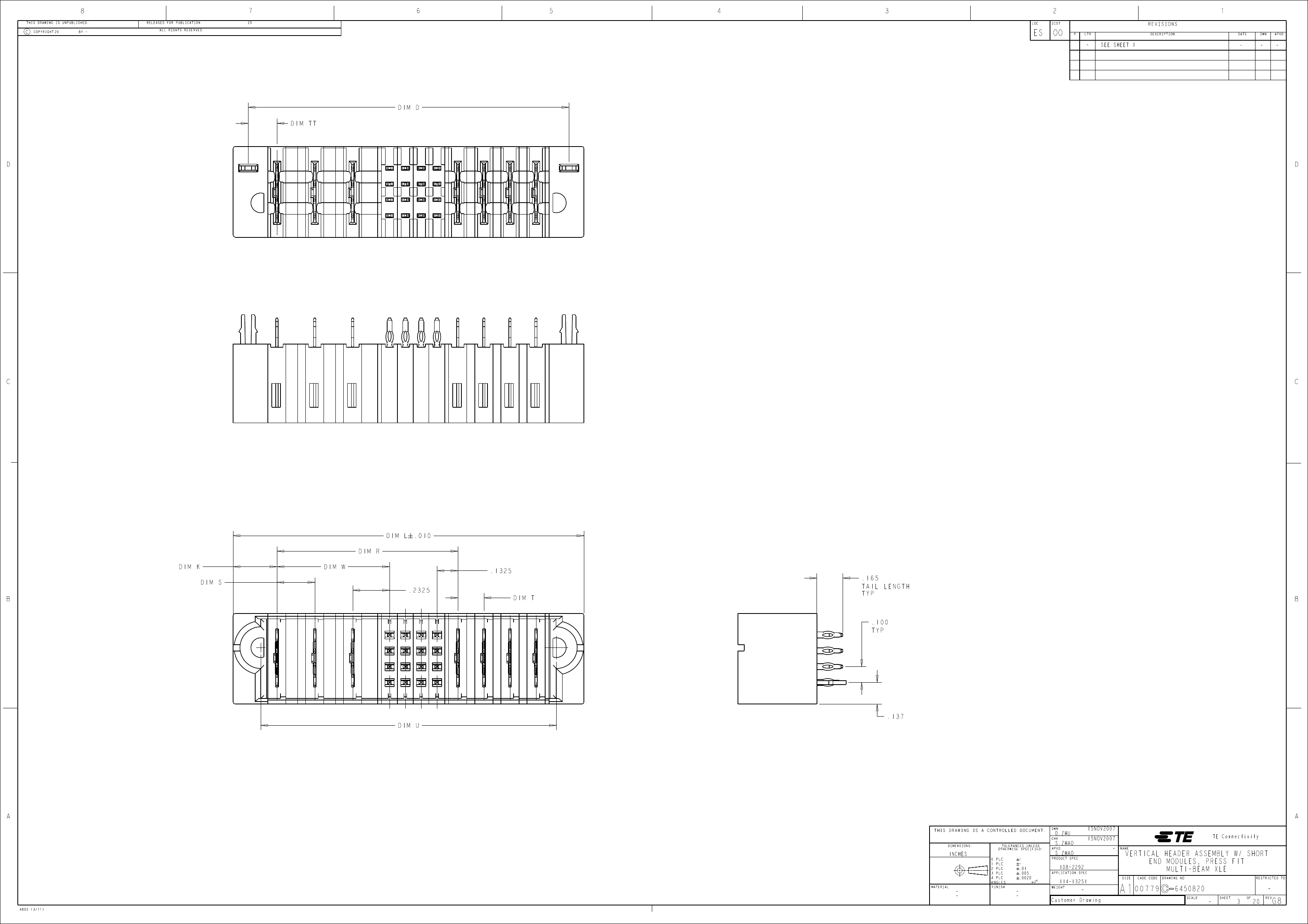

FOR THE CONFIGURATION LP/S/P, WITH VENT, PLEASE REFER TO SHEET 4.

.254

.500

REF

.007

.100

TYP

.137

SECTION

X-X

SCALE

4:1

.204

.007

DIM R

DIM K

DIM W

.100

TYP

.500

TAIL LENGTH

TYP

# .010

.240

.200

.115

.300

.165

.1825

.275

.225

2.220

3.065

1.790

2.555

3.540

4.140

4.640

2.415

2.665

4.040

6.240

5.390

2.640

3.640

2.790

2.840

1.120

1.870

2.715

1.440

2.205

3.190

3.790

4.290

2.065

2.315

3.690

5.890

5.040

2.290

3.290

2.440

1.190

2.490

.770

2.030

2.875

1.600

2.365

3.350

3.950

4.450

2.225

2.475

3.850

6.050

5.200

2.450

3.450

2.600

1.350

1.525

DIM D

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

1.145

.7125

1.150

1.975

.7325

.1575

.2775

.320

.370

3LP + 16S + 4LP 10

10HDP + 24S

6LP + 24S + 3P 11

1LP + 16S + 1LP 10

5P + 24S + 5P

5P + 48S + 5P 9

12P + 48S

20S + 6ACP

6P + 20S

4ACP + 4S

2-6450820-5

2-6450820-3

2-6450820-2

2-6450820-1

1-6450820-9

1-6450820-8

1-6450820-7

1-6450820-5

1-6450820-4

1-6450820-1

6450820-9

6450820-8

6450820-7

6450820-6

6450820-5

6450820-4

6450820-2

6450820-3

1-6450820-3

2-6450820-0

.250

.2075

.1825

.250

.225

.175

.250

.225

.250

.275

.250

.275

DIM TT

.225

.574

.357

REF

.137

.100

TYP

.250

.300

.930

1.4075

1.850

2.500

.565

.3025

.2775

.345

.320

.270

.345

.320

.345

.370

.320

1.175

1.200

2.950

1.425

.850

.300

.250

.300

2.650

.250

2.100

3.850

1.200

1.700

.850

.950

1.600

.575

1.425

1.950

.925

3ACP + 24S + 3ACP

6P + 24S + 6P

8P + 72S + 8P

14P + 40S

.175

DIM U

.250

.010

.250

DIM L

1.540

1.715

DIM L

1.550

1.425

.675

.175

.225

15NOV2007

NAME

4P + 8S + 4P

3P + 32S + 3P

1P + 24S + 1P

DESCRIPTION

6P + 8S + 6P

1.365

DIM U

.345

.370

1P + 24S + 1P

6450820-1

DIM S

DIM T

DIM R

D.ZHU

S.ZHAO

DIM W

DIM K

PART NUMBER

TE Connectivity

THIS DRAWING IS A CONTROLLED DOCUMENT.

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-2292

2 $

WEIGHT

114-13251

Customer Drawing

00779

SIZE

VERTICAL HEADER ASSEMBLY W/ SHORT

END MODULES, PRESS FIT

MULTI-BEAM XLE

CAGE CODE

DRAWING NO

RESTRICTED TO

6450820

SCALE

4805 (3/11)

SHEET

REV

1-6450820-5 Related Products

	1-6450820-5	1-6450820-8	6450820-3	2-6450820-0	6450820-6	6450820-1	6450820-9	6450820-2	6450820-8
Description	mbxle vert hdr 6p20s	mbxle vert hdr 5p48s5p	mbxl vert hdr 3P+32s+3P	mbxl vert hdr 1lp+16s+1lp	xle V/H 2P/24s/1P/2acP/ 5P/2ac	mbxl vert hdr 1P+24s+1P	xle V/H 9P + 72s + 9P	mbxl vert hdr 1P+24s+1P	xle V/H 8P + 72s + 8P
Standard Package	30	12	24	60	12	42	1	42	30
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tray	10 per Stri	Tray	Tray	Tray	Tray	Tray	Tray	Tray
Connector Type	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades
Connector Style	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam
Number of Positions	26	58	38	18	54	26	88	26	88
Number of Positions Loaded	All	All	All	All	47	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	4	4	4	4	4	4	4	4	4
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi
Contact Layout, Typical	20 Signal, 15 Powe	-	32 Signal, 6 Powe	16 Signal, 2 Powe	40 Signal, 14 Powe	24 Signal, 2 Powe	72 Signal, 16 Powe	24 Signal, 2 Powe	72 Signal, 16 Powe
Features	Board Lock, Mating Guide	Board Lock, Mating Guide	Board Lock, Mating Guide	Board Lock, Mating Guide	Board Lock, Mating Guide	Board Lock, Mating Guide	Board Lock, Mating Guide	Board Lock, Mating Guide	Board Lock, Mating Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black	Black	Black	Black	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C
Other Names	A118248	A118249	A109412	A118433	A109413	A109410	A119733	A109411	A109414
