GCB60DHRD-S621: Descriptionconn edgecard 120pos .050 extend; CategoryThe connector; File Size1006KB，2 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

GCB60DHRD-S621 Overview

conn edgecard 120pos .050 extend

GCB60DHRD-S621 Parametric

Parameter Name	Attribute value
Datasheets
Edgecards (p20-21)
Standard Package	1
Category	Connectors, Interconnects
Family	Card Edge Connectors - Edgeboard Connectors
Packaging	Tube
Card Type	PCI 3.3V, 5V 32 Bit (Universal)
Gende	Female
Number of Positions/Bay/Row	11
49
Number of Positions	120
Card Thickness	0.062" (1.57mm)
Number of Rows	2
Pitch	0.050" (1.27mm)
Features	Card Extende
Mounting Type	Board Edge, Straddle Mou
Terminati	Solde
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Contact Type	Hairpin Bellows
Col	Black
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Di
Material - Insulati	Polyamide (PA9T)
Operating Temperature	-65°C ~ 125°C
Read Ou	Dual

Preview

Download Datasheet

View All

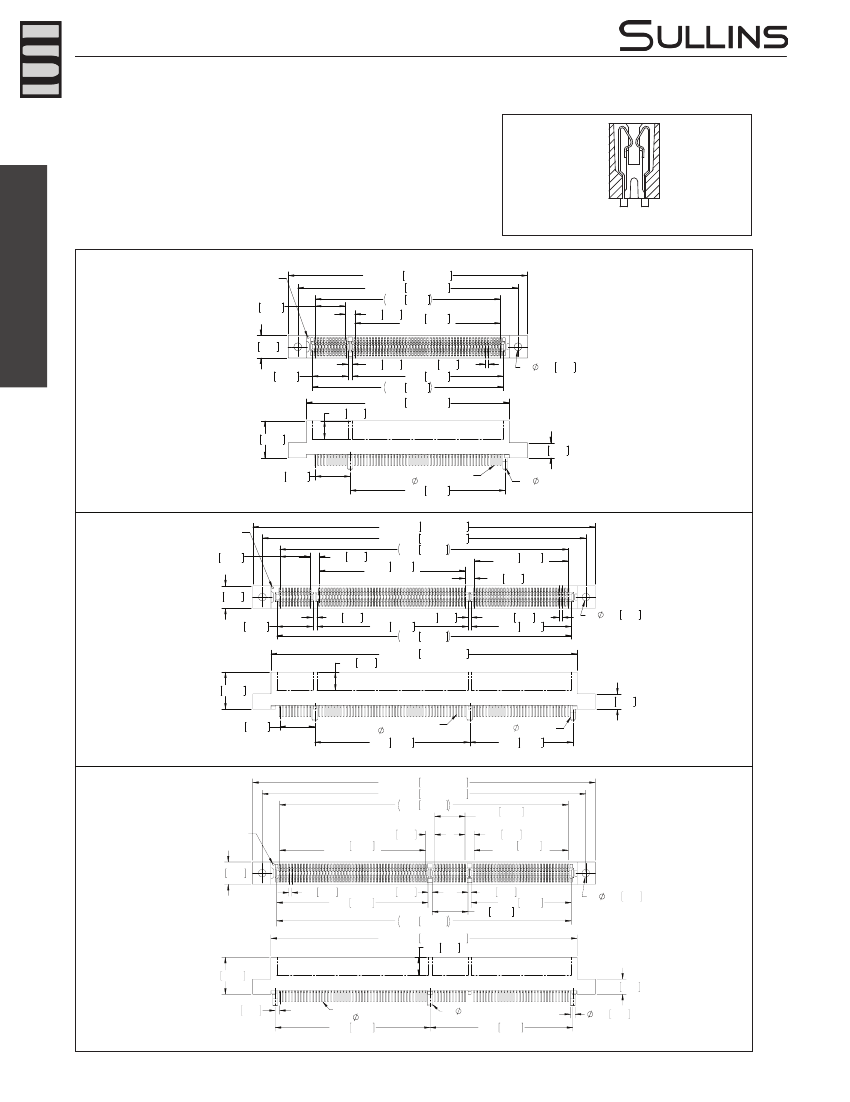

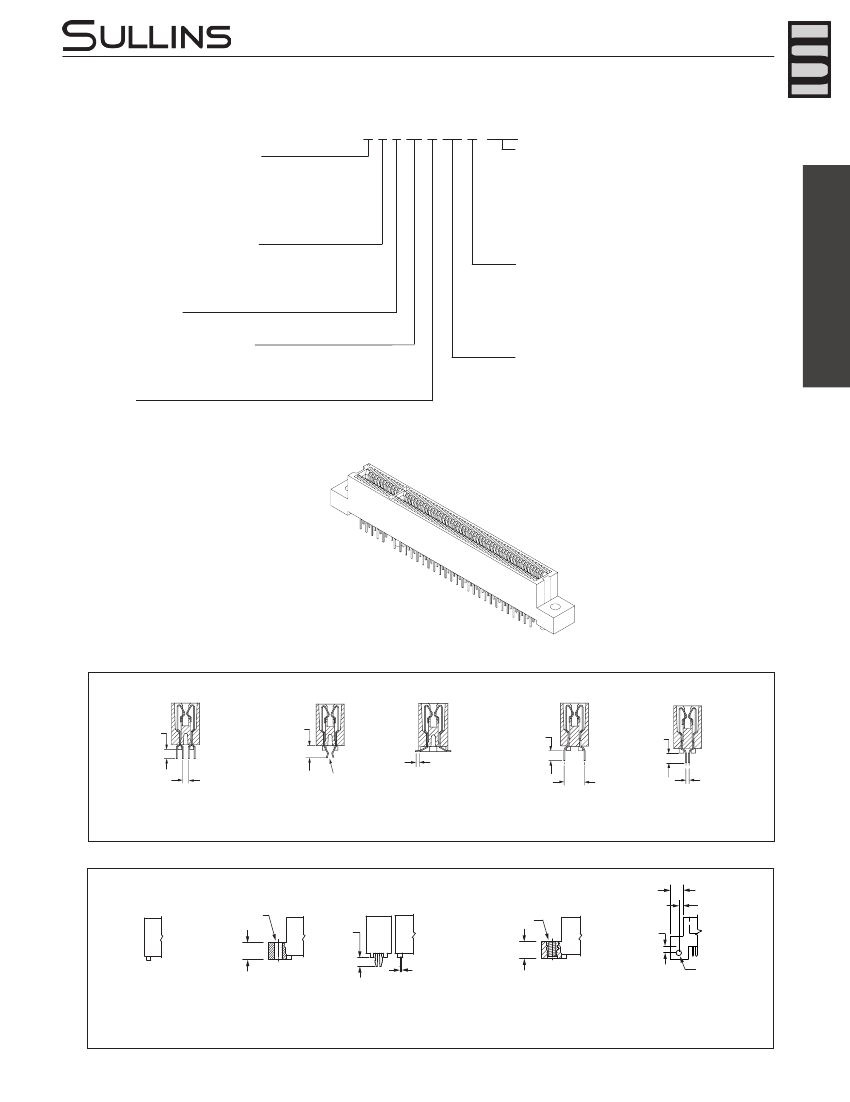

High Density Card Edge

.050” [1.27 mm] Contact Centers, .610” [15.49 mm] Insulator Height,

[PCI] Dip Solder/Card Extender/SMT

SPECIFICATIONS

•

Accommodates .062” ± .008” [1.57 mm ± 0.20 mm] PC board

PPS or PA9T insulator

Molded-in key available

High reliability/high cycle hairpin bellow contacts

1 Amp current rating per contact for contacts fully energized

UL Flammability Rating: 94V-0

FIRST

POSITION

INDICATOR

.500 12.70

(11 POSITIONS)

3.940±.020 100.08±0.51

3.626±.010 92.10±0.25

3.050 77.47

.150 3.81

2.400 60.96

(49 POSITIONS)

Industry Standard Part

READOUT

High Density Card Edge

DUAL (D)

DIMENSIONS

Dimensions in [ ] are in millimeters, all others are in inches.

.370 9.40

.070 1.78

.590 14.99

.050 1.27 TYP.

2X

.125 3.18

THRU.

2.490 63.24

3.150 80.01

3.340±.015 84.84±0.38

.300 7.62 INSERTION DEPTH

.610 15.49

.250 6.35

.575 14.61

.018 X .012 [0.46 X 0.30]

FITS .040 [1.02] MIN.

2.550 64.77

2X

.093[2.36]

GBB60DHHD-S578,

60 (11/49) POSITIONS,32 BIT, 3.3 OR 5 VOLT

FIRST

POSITION

INDICATOR

.500 12.70

(11 POSITIONS)

.150 3.81

5.640±.020 143.26±0.51

5.326±.010 135.28±0.25

4.750 120.65

2.400 60.96

(49 POSITIONS)

1.550 39.37

(32 POSITIONS)

.150 3.81

.370 9.40

.070 1.78

.050 1.27

2.490 63.25

4.850 123.19

.050 1.27 TYP.

1.650 41.91

2X

.125 3.18

THRU.

.590 14.99

5.040±.015 128.02±0.38

.300 7.62 INSERTION DEPTH

.610 15.49

.250 6.35

.575 14.61

.018 X .012 [0.46 X 0.30]

FITS .040 [1.02] MIN.

2.550 64.77

3X

.093[2.36]

1.700 43.18

GBB92DHHD-S330,

92 (11/49/32) POSITIONS, 64 BIT, 3.3 VOLT

5.640±.020 143.26±0.51

5.326±.010 135.28±0.25

4.750 120.65

FIRST

POSITION

INDICATOR

.370 9.40

.050 1.27 TYP.

2.490 63.25

.070 1.78

.050 1.27

1.650 41.91

.590 14.99

2X

.125 3.18

THRU.

.500 12.70

(11 POSITIONS)

.150 3.81

1.550 39.37

(32 POSITIONS)

.150 3.81

2.400 60.96

(49 POSITIONS)

4.850 123.19

5.040±.015 128.02±0.38

.300 7.62 INSERTION DEPTH

.610 15.49

.250 6.35

.075 1.91

.018 X .012 [0.46 X 0.30]

FITS .040 [1.02] MIN.

2.550 64.77

3X

.093[2.36]

2.350 59.69

.078 1.98

GBB92DHHD-S378,

92 (49/11/32) POSITIONS, 64 BIT, 5 VOLT

28

www.sullinscorp.com

|

760-744-0125

|

toll-free 888-774-3100

|

fax 760-744-6081

|

info@sullinscorp.com
