4-640859-5 datasheet, PDF - EEWORLD Datasheet

4-640859-5: Description15cir mta156 edge conn LF; CategoryThe connector; File Size132KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

4-640859-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4-640859-5	-	-	View	Buy Now

15cir mta156 edge conn LF

Parameter Name	Attribute value
Datasheets
640859
RoHS Informati
4-640859-5 Statement of Compliance
RoHS 2 Stateme
3D Model

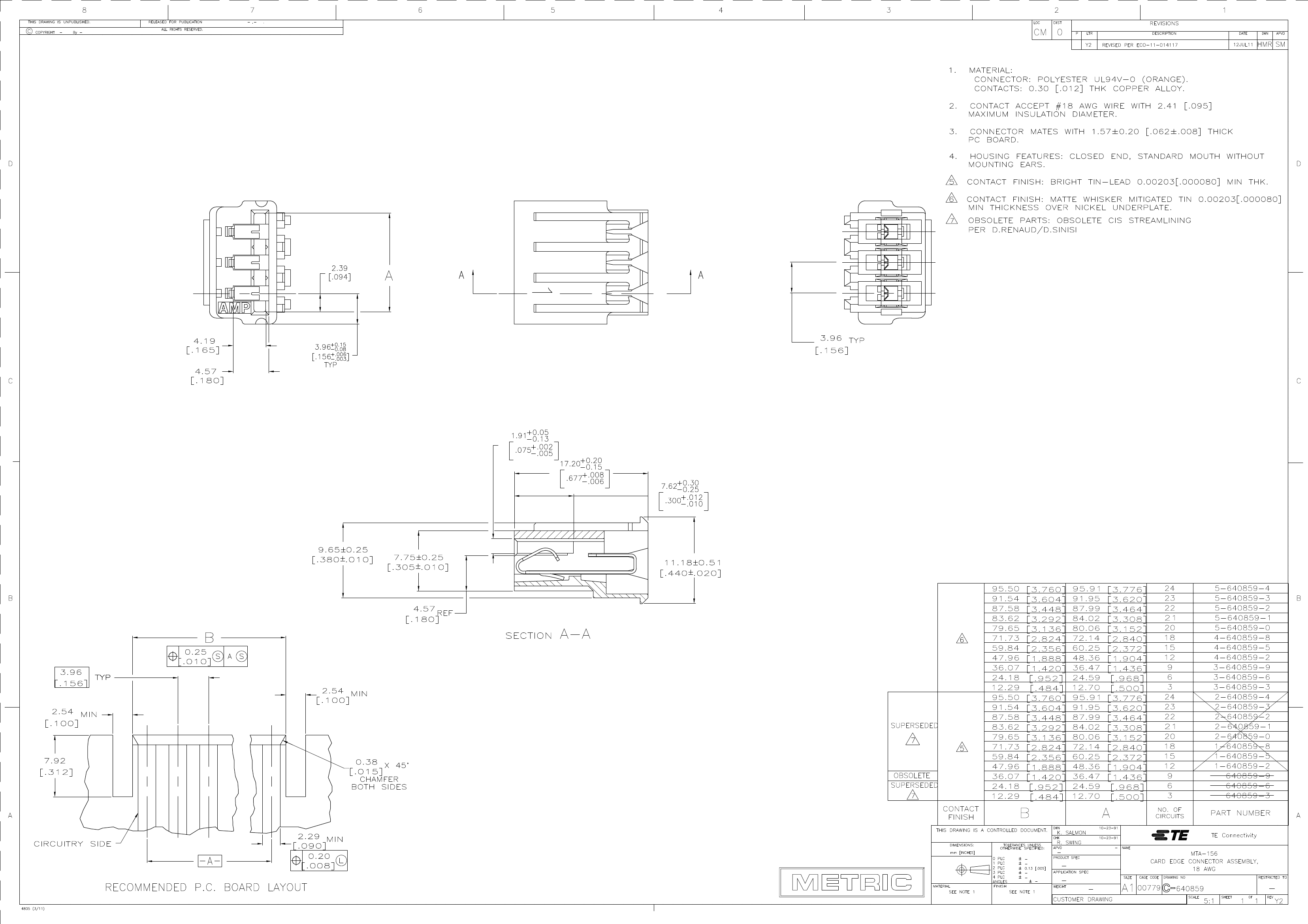

4-640859-5.pdf
Standard Package	500
Category	Connectors, Interconnects
Family	Card Edge Connectors - Edgeboard Connectors
Packaging	Bulk
Card Type	Non Specified - Single Edge
Gende	Female
Number of Positions/Bay/Row	15
Number of Positions	15
Card Thickness	0.062" (1.57mm)
Number of Rows	1
Pitch	0.156" (3.96mm)
Features	-
Mounting Type	Free Hanging (In-Line)
Terminati	IDC
Contact Material	Copper Alloy
Contact Finish	Ti
Contact Finish Thickness	80µin (2.03µm)
Contact Type	-
Col	Orange
Flange Feature	-
Material - Insulati	Polyeste
Operating Temperature	-55°C ~ 105°C
Read Ou	Single
Associated Produc	58061-1-ND - HEAD IDC MTA 156 C/EDGE W/O TL

	4-640859-5	4-640859-8	5-640859-0
Description	15cir mta156 edge conn LF	18cir mta156 edge conn LF	20cir mta156 edge conn LF
Standard Package	500	500	500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors
Packaging	Bulk	Bulk	Bulk
Card Type	Non Specified - Single Edge	Non Specified - Single Edge	Non Specified - Single Edge
Gende	Female	Female	Female
Number of Positions/Bay/Row	15	18	20
Number of Positions	15	18	20
Card Thickness	0.062" (1.57mm)	0.062" (1.57mm)	0.062" (1.57mm)
Number of Rows	1	1	1
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Terminati	IDC	IDC	IDC
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy
Contact Finish	Ti	Ti	Ti
Contact Finish Thickness	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)
Col	Orange	Orange	Orange
Material - Insulati	Polyeste	Polyeste	Polyeste
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Read Ou	Single	Single	Single
Associated Produc	58061-1-ND - HEAD IDC MTA 156 C/EDGE W/O TL	58061-1-ND - HEAD IDC MTA 156 C/EDGE W/O TL	58061-1-ND - HEAD IDC MTA 156 C/EDGE W/O TL
