B064-1012-178-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B064-1012-178-Z

B064-1012-178-Z: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size213KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B064-1012-178-Z Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

B064-1012-178-Z Parametric

Parameter Name	Attribute value
Objectid	304395441
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.197 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B064
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Plating thickness	15u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

NUMBER OF CONTACTS:

CURRENT: 3A

04 thru 80

CONTACT RESISTANCE: 20mΩ Max.

DEFINITION:

INSULATOR RESISTANCE: 5000MΩ Min.

1 - STRAIGHT

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40°C TO +105°C

NUMBER OF ROWS:

2 - DOUBLE ROW

MATERIAL:

INSULATOR: POLYESTER (UL94V-0), STANDARD: P.B.T.

CONTACT: PHOSPHOR BRONZE

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/-

UNIT: mm

Drawn Checked

S.M.

A.M.

B.S.

S.M.

Appproved

Date

S.M.

09/16/03

S.M.

12/15/06

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

FOOTPRINT TYPE:

4 - 15u" Au

7 - 7.62mm (Double Row) 5 - 30u" Au

HOUSING HEIGHT:

1 - 5.0mm

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

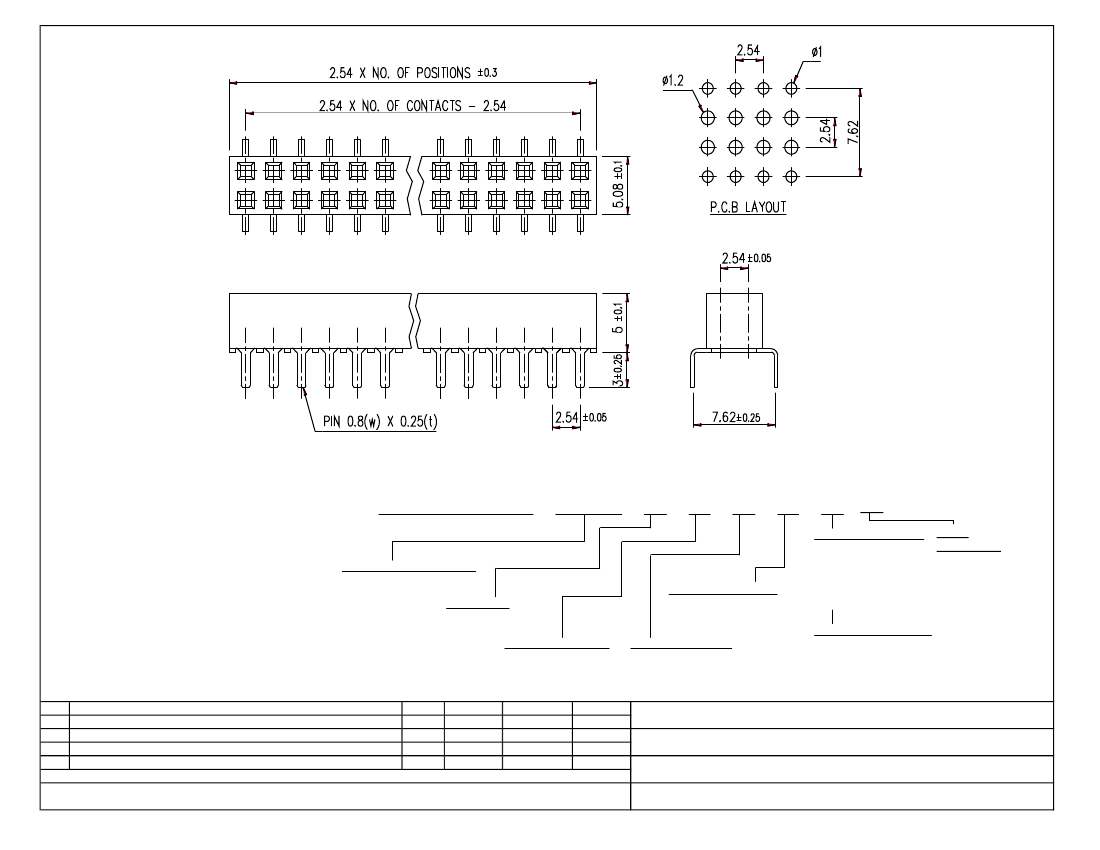

Receptacle Assembly, 2.54mm Pitch, Bottom Entry

Double Row, 5.0mm Height, 7.62mm Footprint, Thru Hole

P/N: B064-XX12-17X-Z

Pg: 1
