TR2/6125FA4A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> TR2/6125FA4A

Preview

TR2/6125FA4A: Descriptionfuse brd mnt 4A 125vac/vdc 2smd; CategoryCircuit protection Circuit protection; File Size100KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

TR2/6125FA4A Overview

fuse brd mnt 4A 125vac/vdc 2smd

TR2/6125FA4A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 125 VDC: 300 A
Fusing characteristics	FAST
body width	2.59 mm
body height	2.59 mm
Body length or diameter	6.1 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	4 J
Manufacturer's serial number	6125FA
Installation features	SURFACE MOUNT
method of packing	TAPE AND REEL
physical size	6.1mm x 2.59mm x 2.59mm
Rated breaking capacity	50 A
Rated current	4 A
Rated voltage (AC)	125 V
Rated voltage (DC)	125 V
Guideline	CSA; UL
surface mount	YES
Terminal shape	END CAP

Preview

Download Datasheet

View All

Brick

™

Fuses

6125FA Series, Fast Acting

Description

• Fast Acting Surface Mount Fuse

• Complies with the EIA-IS-722 Standard

• Solder Immersion Compatible

• Overcurrent protection of systems up to 125VAC/DC

• Wire-in-air design

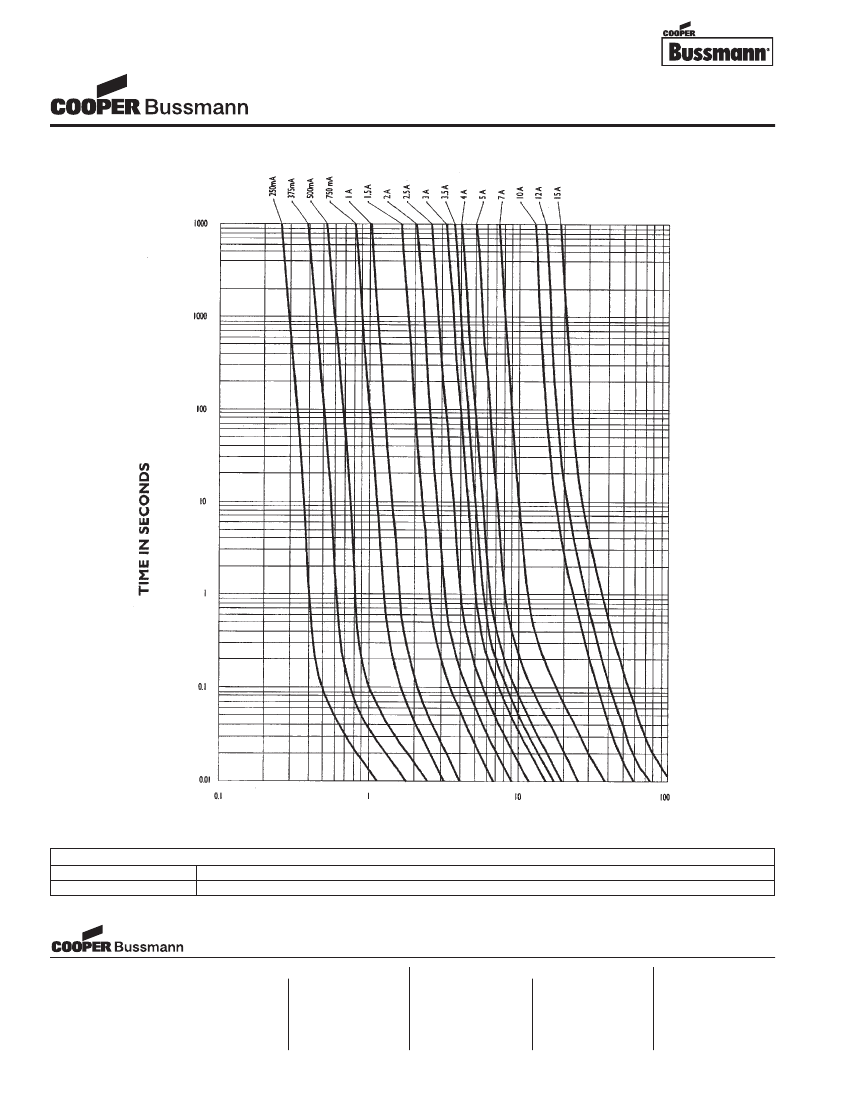

ELECTRICAL CHARACTERISTICS

Opening Time

% of Amp Rating

4 Hours Minimum

100%

5 Seconds Maximum

200%

RoHS

2002/95/EC

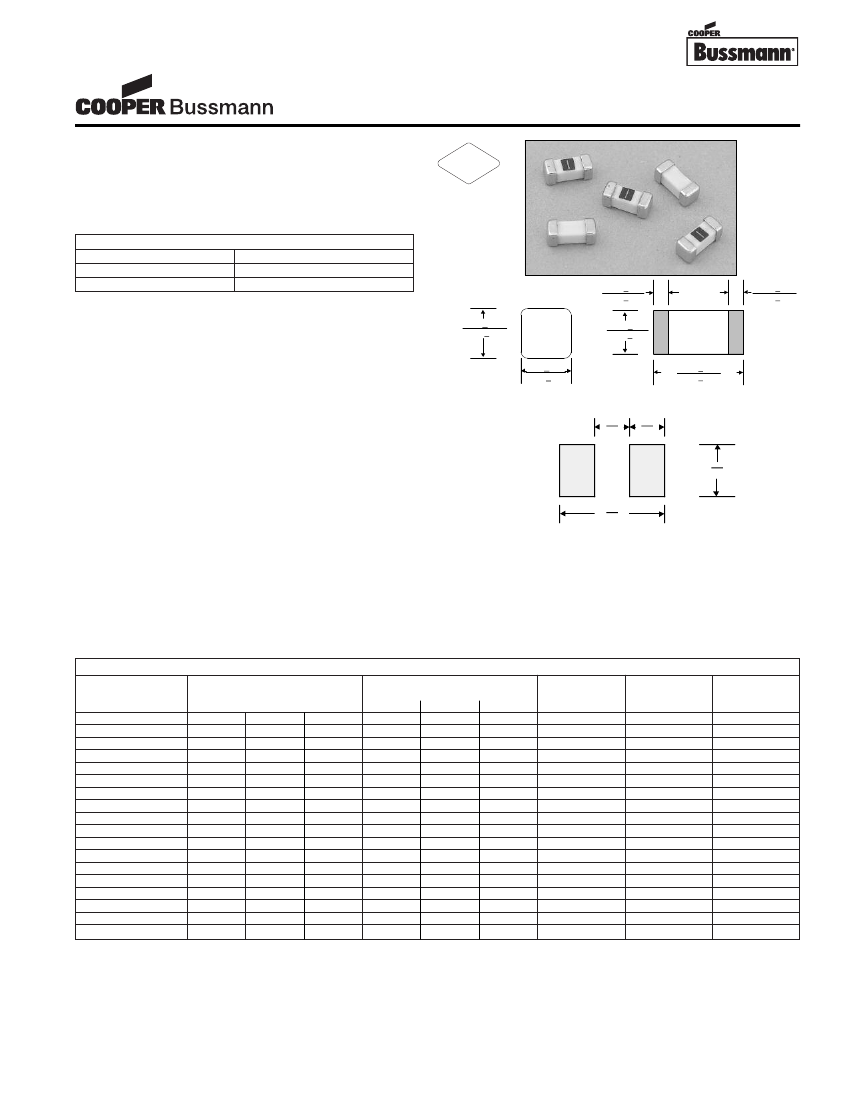

Dimensions

2.59+ .250

(0.102+.010)

mm

⁄

(inches)

Agency Information

• UL Listed Guide and File Numbers (250mA-12A):

JDYX & E19180

• UL Recognized Guide and File Numbers (15A):

JDYX2 & E195337

• CSA Component Acceptance: 053787 C 000 &

Class No: 1422 30

Environmental Data

• Shock: MIL-STD-202, Method 213, Test Condition 1

(100 G’s peak for 6 milliseconds)

• Vibration: MIL-STD-202, Method 201 (10-55 Hz, 0.06

inch, total excursion)

• Salt Spray: MIL-STD-202, Method 101, Test Condition

B (48 hrs)

• Insulation Resistance: MIL-STD-202, Method 302, Test

Condition A (After Opening) 10,000 ohms minimum

• Resistance to Solder Heat: MIL-STD-202, Method 210,

Test Condition F (20 sec, at 260° C)

• Thermal Shock: MIL-STD-202, Method 107, Test

Condition B (-65° C to +125° C)

Ordering

• Specify product and packaging code

Drawing Not to Scale

1.35+.25

(0.053+.010)

1.35 +.25

(0.053+.010)

2.59+.25

(0.102+.010)

Top View

End View

2.59+ .250

(0.102+.010)

6.10+.25

(0.240+.010)

Land Pattern

2.6

(0.102)

3.0

(0.118)

4.0

(0.157)

8.6

(0.339)

Soldering Method

• Wave Solder: 260°C, 10 sec max.

(MIL-STD-202, Method 210)

• Infrared Reflow: 260°C, 30 sec max.

SPECIFICATIONS

Product

Code

6125FA250mA

6125FA375mA

6125FA500mA

6125FA750mA

6125FA1A

6125FA1.25A

6125FA1.5A

6125FA2A

6125FA2.5A

6125FA3A

6125FA3.5A

6125FA4A

6125FA5A

6125FA6.3A

6125FA7A

6125FA10A

6125FA12A

6125FA15A

AC

125V

N/A

Voltage

Rating

DC

125V

N/A

DC

86V

Interrupting

Rating*

125V AC 125V DC 86V DC

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

300A

10,000A

50A

N/A

10,000A

50A

N/A

10,000A

N/A

10,000A

Resistance

(ohms)**

Typ.

0.65

0.36

0.24

0.15

0.11

0.09

0.07

0.05

0.038

0.028

0.025

0.022

0.016

0.012

0.011

0.007

0.006

0.004

Typical

Melt

I

2

t†

0.01

0.03

0.06

0.07

0.14

0.24

0.41

0.80

1.4

2.4

3.3

4.4

7.8

14.0

19.0

44

69

124

Typical

Voltage

Drop (V)‡

0.30

0.25

0.22

0.17

0.16

0.15

0.14

0.13

0.12

0.114

0.107

0.103

0.098

* AC Interrupting Rating (Measured at designated voltage, 100% power factor); DC Interrupting Rating (Measured at designated voltage, time constant of less than 50

microseconds, battery source)

** DC Cold Resistance (Measured at 10% of rated current)

† Typical Melting I

2

t (Measured with a battery bank at rated DC voltage, 10x-rated current, time constant of calibrated circuit less than 50 microseconds)

‡ Typical Voltage Drop (Measured at rated current after temperature stabilizes)

Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at elevated

ambient temperatures.
