DDTA124ECA-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DDTA124ECA-7

DDTA124ECA-7: Descriptiontrans prebias pnp 200mw sot23-3; Categorysemiconductor Discrete semiconductor; File Size242KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

DDTA124ECA-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DDTA124ECA-7	-	-	View	Buy Now

DDTA124ECA-7 Overview

trans prebias pnp 200mw sot23-3

DDTA124ECA-7 Parametric

Parameter Name	Attribute value
Datasheets
DDTA - R1 equals R2 Series - CA
Product Photos
SOT23
Catalog Drawings
SOT-23 Side
SOT-23 T
SOT-(23, 323, 523) Series Circui
Standard Package	1
Category	Discrete Semiconductor Products
Family	Transistors (BJT) - Single, Pre-Biased
Packaging	Cut Tape (CT)
Transistor Type	PNP - Pre-Biased
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1) (Ohms)	22k
Resistor - Emitter Base (R2) (Ohms)	22k
DC Current Gain (hFE) (Min) @ Ic, Vce	56 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transiti	250MHz
Power - Max	200mW
Mounting Type	Surface Mou
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
Other Names	DDTA124ECADICT

Preview

Download Datasheet

View All

DDTA (R1 = R2 SERIES) CA

PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Features



Epitaxial Planar Die Construction

Complementary NPN Types Available (DDTC)

Built-In Biasing Resistors, R1

½R2

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Part Number

DDTA123ECA

DDTA143ECA

DDTA114ECA

DDTA124ECA

DDTA144ECA

DDTA115ECA

SOT23

Mechanical Data



Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.008 grams (approximate)

R1, R2 (NOM)

2.2KΩ

4.7KΩ

10KΩ

22KΩ

47KΩ

100KΩ

OUT

IN B

C OUT

GND(+)

GND (0)

Top View

Device Schematic

Equivalent Inverter Circuit

Ordering Information

(Notes 3 & 4)

Product

DDTA123ECA-7-F

DDTA143ECA-7-F

DDTA114ECA-7-F

DDTA114ECAQ-7-F

DDTA114ECAQ-13-F

DDTA124ECA-7-F

DDTA144ECA-7-F

DDTA144ECAQ-13-F

DDTA115ECA-7-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Marking

P04

P08

P13

P17

P20

P24

Reel size (inches)

Tape width (mm)

Quantity per reel

3,000

10,000

3,000

10,000

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

XXX = Product Type Marking Code, See Ordering Information

YM = Date Code Marking

Y = Year (ex: X = 2010)

M = Month (ex: 9 = September)

XXX

Date Code Key

Year

2002

Code

Month

Code

Jan

2003

2004

Feb

2005

Mar

2006

Apr

2007

2008

2009

Jun

2010

Jul

2011

2012

2013

Sep

2014

Oct

2015

2016

2017

Dec

May

Aug

Nov

DDTA(R1 = R2 SERIES) CA

Document number: DS30333 Rev. 9 - 2

1 of 5

www.diodes.com

November 2013

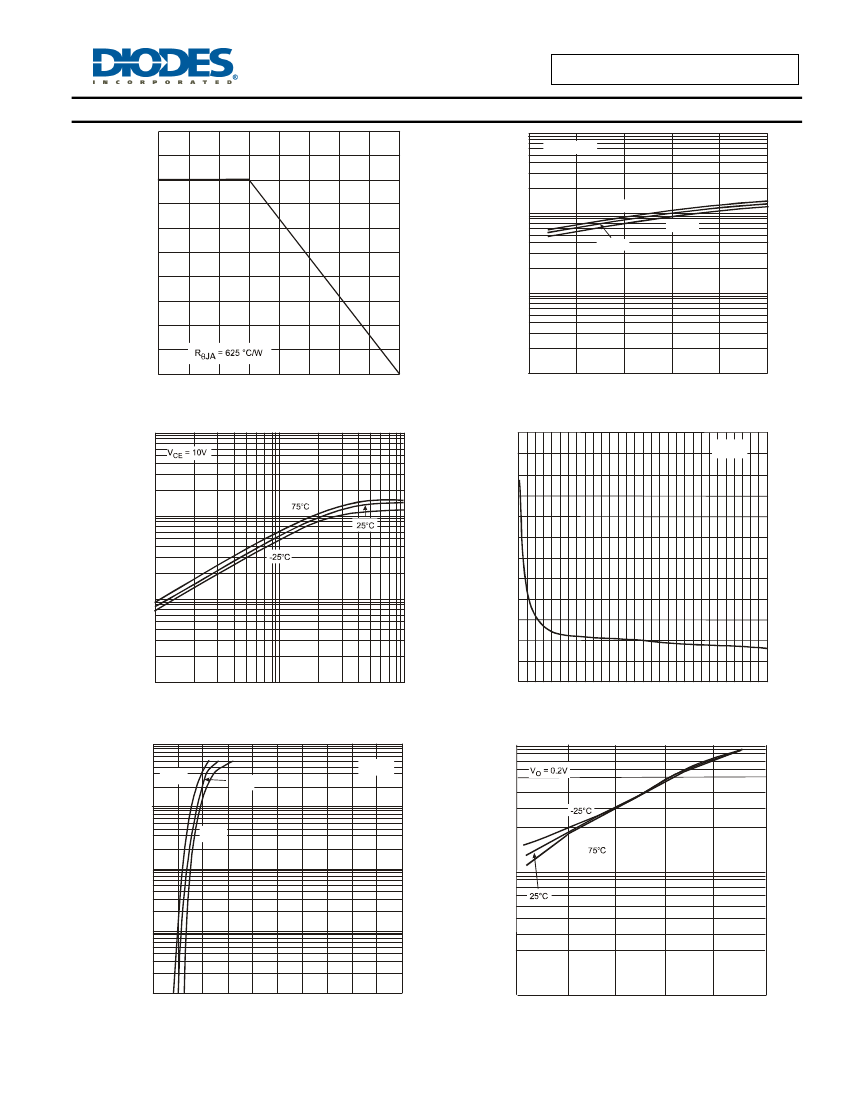

DDTA (R1 = R2 SERIES) CA

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DDTA(R1 = R2 SERIES) CA

Document number: DS30333 Rev. 9 - 2

5 of 5

www.diodes.com

November 2013

DDTA124ECA-7 Related Products

	DDTA124ECA-7	DDTA115ECA-7	DDTA123ECA-7	DDTA114ECA-7	DDTA144ECAQ-13-F
Description	trans prebias pnp 200mw sot23-3	trans prebias pnp 200mw sot23-3	trans prebias pnp 200mw sot23-3	trans prebias pnp 200mw sot23-3	Small Signal Bipolar Transistor, 0.03A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, GREEN, PLASTIC PACKAGE-3
Standard Package	1	1	3,000	3,000	-
Category	Discrete Semiconductor Products	Discrete Semiconductor Products	Discrete Semiconductor Products	Discrete Semiconductor Products	-
Family	Transistors (BJT) - Single, Pre-Biased	Transistors (BJT) - Single, Pre-Biased	Transistors (BJT) - Single, Pre-Biased	Transistors (BJT) - Single, Pre-Biased	-
Packaging	Cut Tape (CT)	Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR)	-
Transistor Type	PNP - Pre-Biased	PNP - Pre-Biased	PNP - Pre-Biased	PNP - Pre-Biased	-
Current - Collector (Ic) (Max)	100mA	100mA	100mA	100mA	-
Voltage - Collector Emitter Breakdown (Max)	50V	50V	50V	50V	-
Resistor - Base (R1) (Ohms)	22k	100k	2.2k	10k	-
Resistor - Emitter Base (R2) (Ohms)	22k	100k	2.2k	10k	-
DC Current Gain (hFE) (Min) @ Ic, Vce	56 @ 5mA, 5V	82 @ 5mA, 5V	20 @ 20mA, 5V	30 @ 5mA, 5V	-
Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA	300mV @ 250µA, 5mA	300mV @ 500µA, 10mA	300mV @ 500µA, 10mA	-
Current - Collector Cutoff (Max)	500nA	500nA	500nA	500nA	-
Frequency - Transiti	250MHz	250MHz	250MHz	250MHz	-
Power - Max	200mW	200mW	200mW	200mW	-
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	-
Package / Case	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	-
Supplier Device Package	SOT-23-3	SOT-23-3	SOT-23-3	SOT-23-3	-
Other Names	DDTA124ECADICT	DDTA115ECA7DDTA115ECADICT	DDTA123ECADITR	DDTA114ECADITR	-
