3-6600333-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-6600333-9

3-6600333-9: Descriptionmbxlverthdr3p+24s+3P; CategoryThe connector; File Size3MB，21 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-6600333-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-6600333-9	-	-	View	Buy Now

3-6600333-9 Overview

mbxlverthdr3p+24s+3P

3-6600333-9 Parametric

Parameter Name	Attribute value
Datasheets
6600333 Drawing
Product Photos
3-6600333-9
Standard Package	1,080
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tray
Connector Usage	-
Connector Type	Header, Male Pins and Blades
Connector Style	Multi-Beam
Number of Positions	30
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Layout, Typical	24 Signal, 6 Powe
Features	Board Lock, Mating Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-20°C ~ 105°C
Voltage Rating	-
Other Names	A108377

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

DIM D # .008

REV PER ECR-13-015977

REV PER ECR-13-004893

14OCT2013

25NOV2013

.150

REF

DIM TT

REF

DIM W # .008

.100

TYP

.006

HEADER HOUSING: THERMO PLASTIC, BLACK, UL94 V-O; CONTACTS AND

RETENTION CLIPS: COPPER ALLOY.

CONTACT PLATING: NOBLE METAL PLATING ON CONTACT FUNCTIONAL

AREA OF POWER AND SIGNAL CONTACTS

"AMP", PART NUMBER AND DATE CODE MARKED IN THIS AREA. PARTS

UNDER 2.50 LONG MAY BE MARKED ON BOTH SIDES.

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES.

APPLIES TO POWER MODULES ON LEFT SIDE OF SIGNAL CAVITIES OF

HOUSING.

APPLIES TO POWER MODULES ON RIGHT SIDE OF SIGNAL CAVITIES OF

HOUSING.

.050

REF

TYP

8. A SEATING TOOL IS REQUIRED TO SEAT THE HEADER ON THE P.C. BOARD.

PLEASE REFER TO THE 114-13038 APPLICATION SPEC.

DIM L # .010

.185

2 PLC

RETENTION CLIP

2 PLC

PIN CONTACT, SIGNAL

TYP

POWER CONTACT

TYP

MECHANICAL CONNECTOR KEEP OUT ZONE.

VARAIBLE DIMENSION SHOWN VIEW.(SEE SHEET 6)

DIM. M

MATING LENGTH

REF.

DIM G

REF

DIM K

DIM S

TYP

DIM R

(HEADER HOUSING)

DIM T

TYP

.500

TAIL LENGTH # .010(POWER CONTACTS)

TAIL LENGTH # .020 (PIN CONTACTS)

.175

.357

2 PLC

.574

.100

TYP

REF

SECTION

H-H

.120 REF

(HEADER HOUSING)

DIM U # .010

.137 (POWER AND PIN CONTACTS)

.137 # .004 (RETENTION CLIPS)

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

J.McCLINTON

D.TROUT

R.WHYNE

23MAR2005

NAME

TE Connectivity

INCH

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-1973

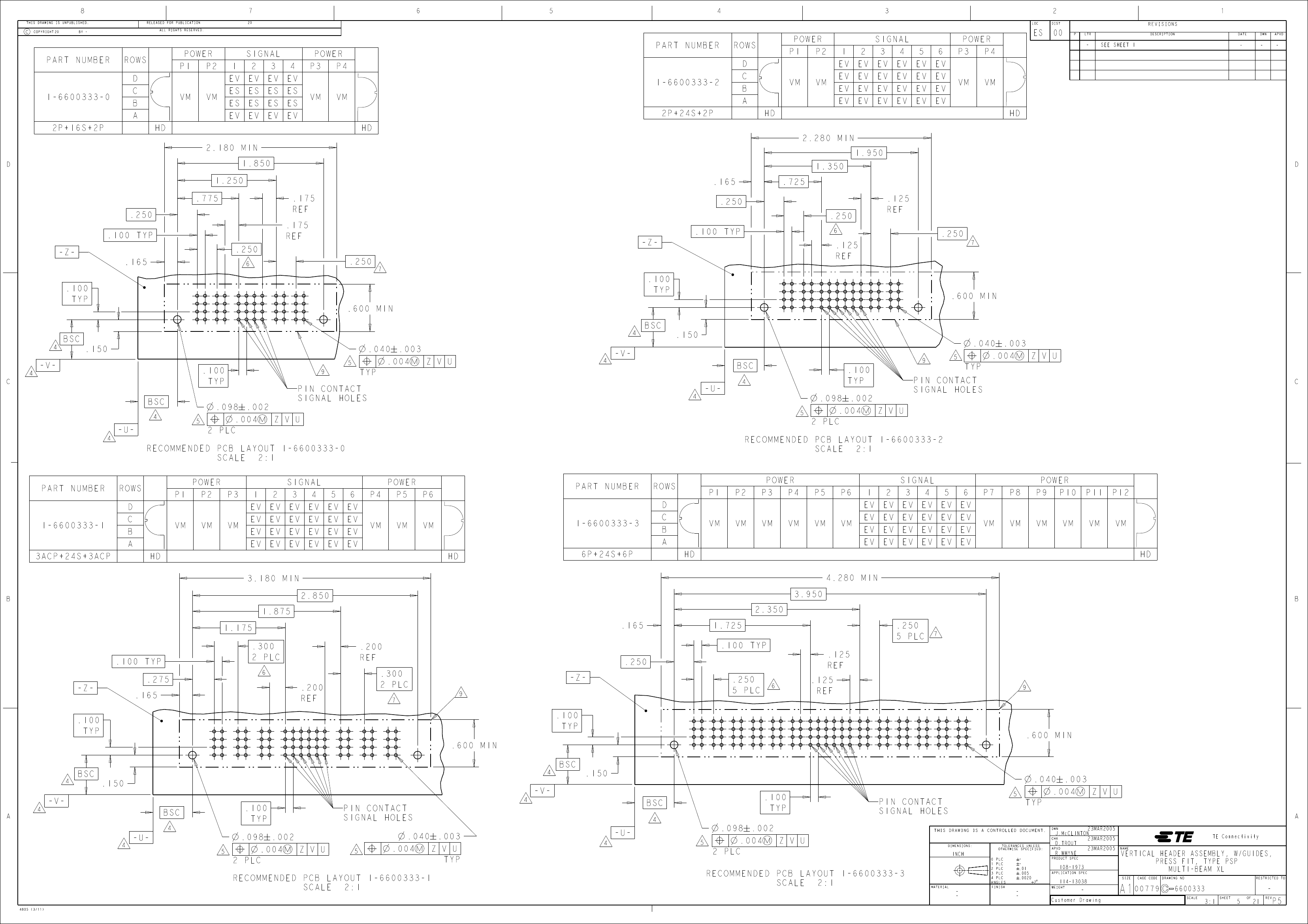

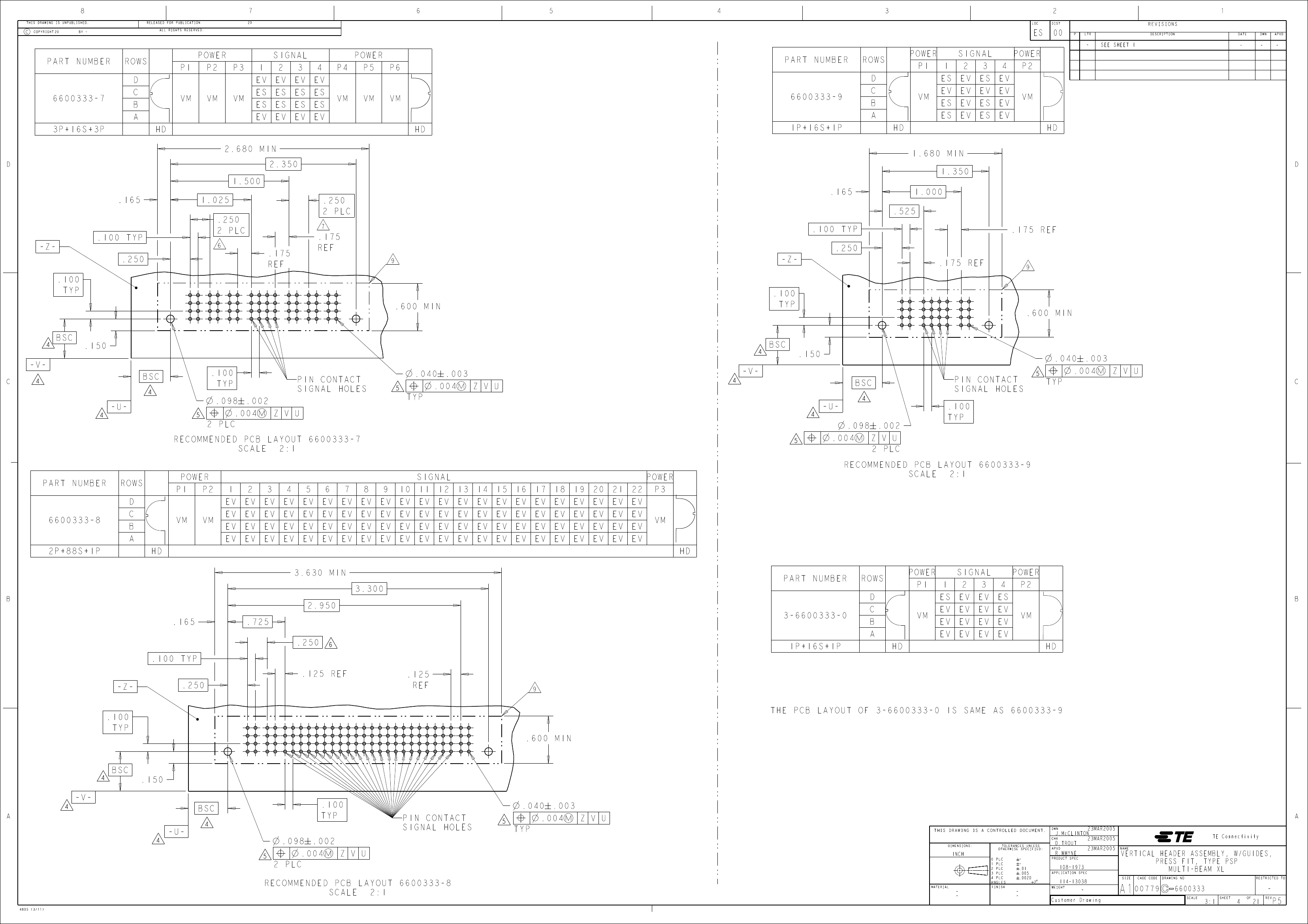

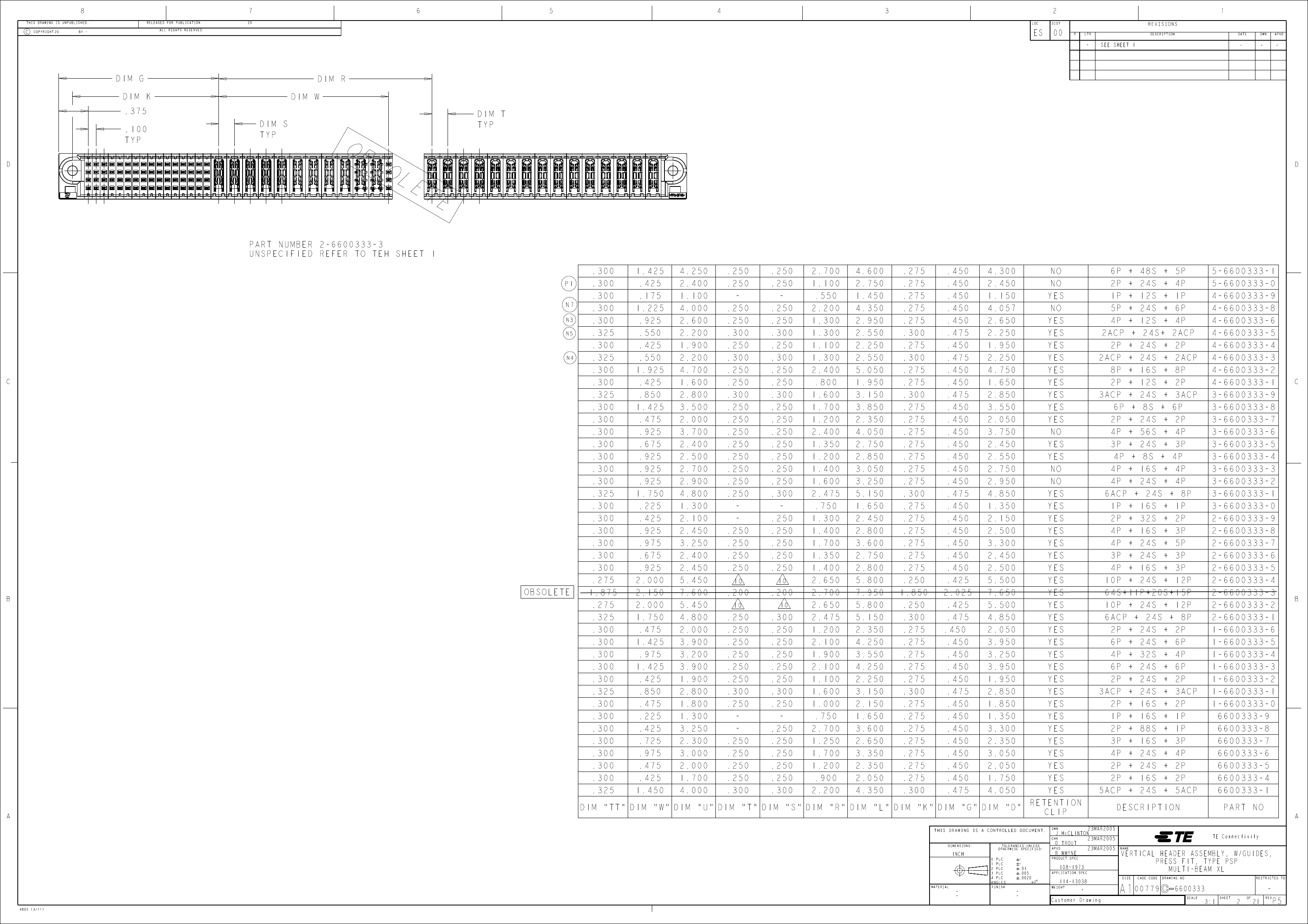

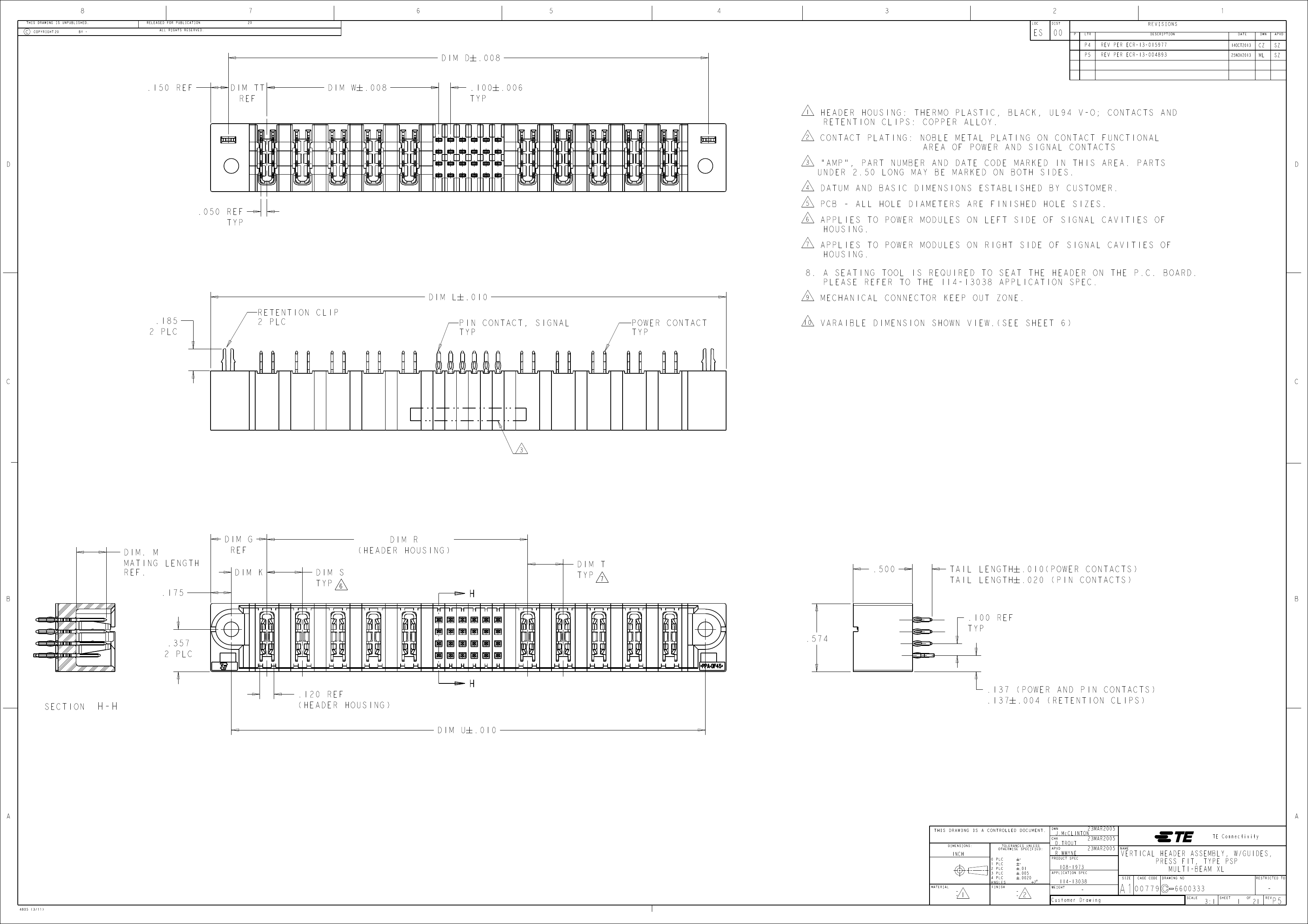

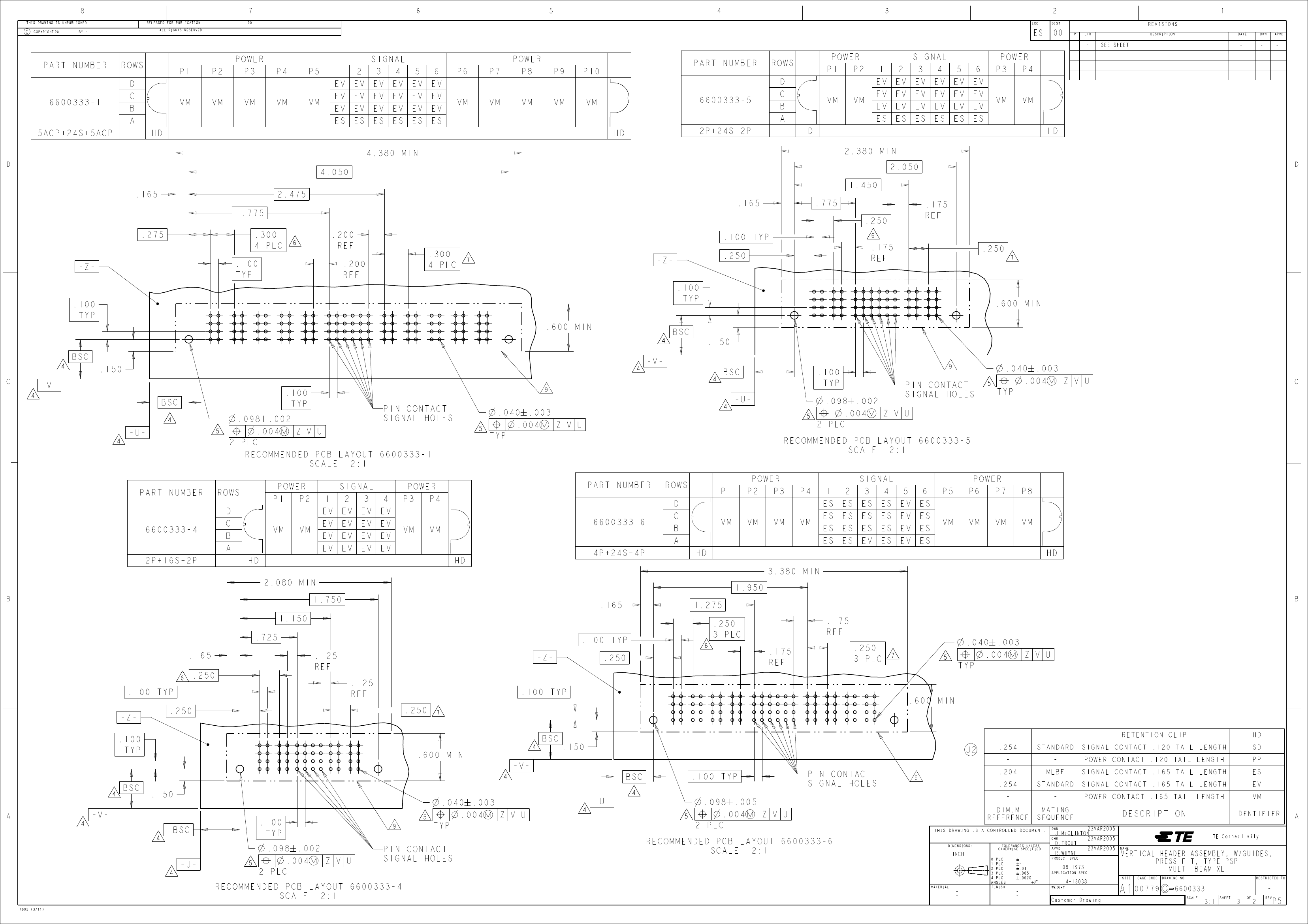

VERTICAL HEADER ASSEMBLY, W/GUIDES,

PRESS FIT, TYPE PSP

MULTI-BEAM XL

SIZE

CAGE CODE

DRAWING NO

2 $

WEIGHT

114-13038

Customer Drawing

00779

RESTRICTED TO

6600333

SCALE

4805 (3/11)

3:1

SHEET

REV

3-6600333-9 Related Products

	3-6600333-9	2-6600333-5	1-6600333-0	1-6600333-1	3-6600333-6
Description	mbxlverthdr3p+24s+3P	mbxlverthdr4p+16s+3P	mbxl vert hdr 2P+16s+2P	mbxl vert hdr 3acp+24s+3acp	mbxlverthdr4p+56s+4P
Standard Package	1,080	960	900	900	90
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tray	Tray	Tray	Tray	Tray
Connector Type	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades	Header, Male Pins and Blades
Connector Style	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam
Number of Positions	30	23	20	30	64
Number of Positions Loaded	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	4	4	-	-	4
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi
Contact Layout, Typical	24 Signal, 6 Powe	16 Signal, 7 Powe	16 Signal, 4 Powe	24 Signal, 6 Powe	56 Signal, 8 Powe
Features	Board Lock, Mating Guide	Board Lock	Board Lock, Mating Guide	Board Lock, Mating Guide	Mating Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C
Other Names	A108377	A108352	A107781	A107782	A108376
