RXEF040-AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> RXEF040-AP

RXEF040-AP: Descriptionpolyswitch ptc reset 0.4A ammo; CategoryCircuit protection; File Size39KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

RXEF040-AP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RXEF040-AP	-	-	View	Buy Now

RXEF040-AP Overview

polyswitch ptc reset 0.4A ammo

RXEF040-AP Parametric

Parameter Name	Attribute value
Datasheets
RXEF040
PolySwitch, Radial-leaded Catalog
Product Photos
RXEF040
Product Training Modules
Circuit Protection Products
Video File
TE Connectivity PolySwitch Devices -- Another Geek Mome
Catalog Drawings
RXEF040(-2)
Standard Package	2,000
Category	Circuit Protecti
Family	PTC Resettable Fuses
Packaging	Tape & Box (TB)
Voltage - Max	72V
Current - Max	40A
Current - Hold (Ih) (Max)	400mA
Current - Trip (It)	800mA
R Min/Max	0.550 ~ 0.860 Ohm
Time to Tri	3.8s
Package / Case	Radial, Disc
Other Names	D73744-000

Preview

Download Datasheet

View All

PolySwitch®

PTC Devices

Overcurrent Protection Device

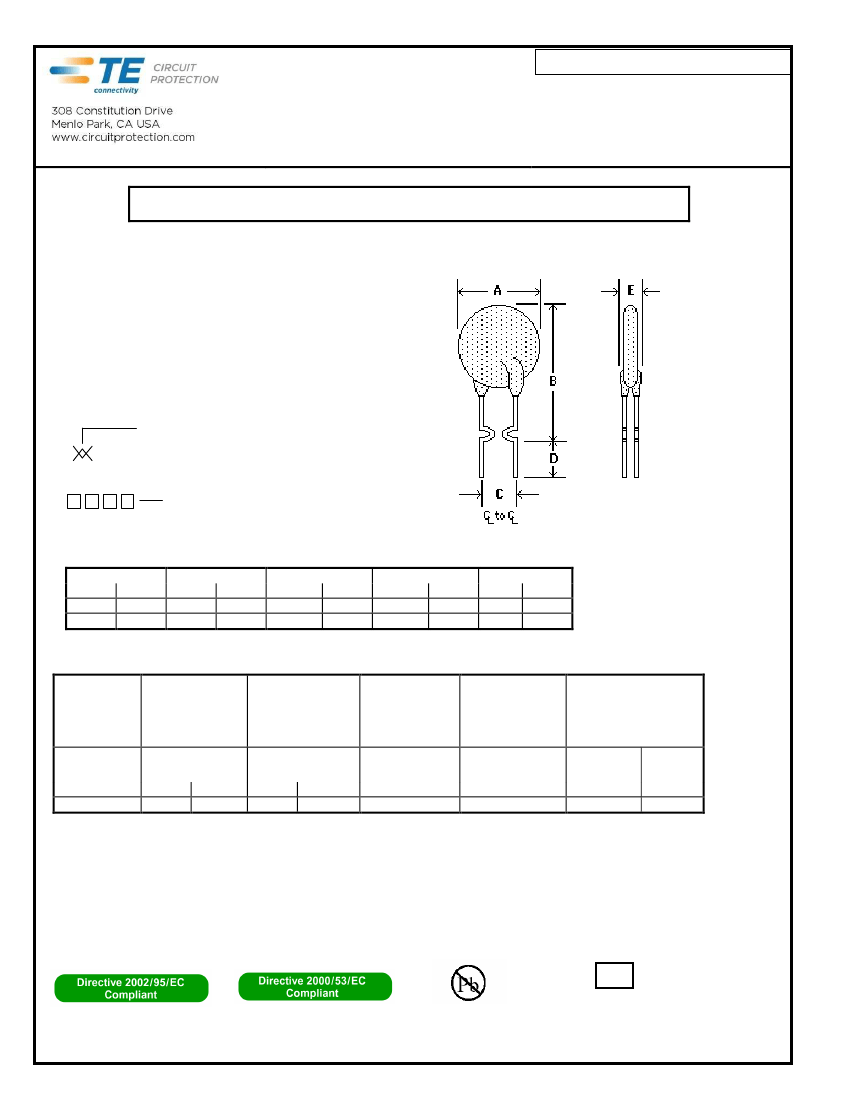

PRODUCT: RXEF040

DOCUMENT: SCD25218

REV LETTER: I

REV DATE: SEPTEMBER 26, 2014

PAGE NO.: 1 OF 1

Specification Status: Released

Electrical Rating

Voltage: 72 V max (AC or DC)

Current: 40 A max (AC or DC)

Insulating Material:

Cured, Flame Retardant Epoxy Polymer

meets UL94 V-0 Requirements

Lead Material:

24 AWG Tin Plated Copper Clad Steel

Marking:

Manufacturer’s Mark

X40

and Part Identification

Lot Identification

TABLE I. DIMENSIONS:

mm:

in*:

MIN

MAX

MIN

MAX

7.6

13.5

(0.30)

(0.53)

*Rounded off approximation

MIN

4.3

(0.17)

MAX

5.8

(0.23)

MIN

7.6

(0.30)

MAX

MIN

MAX

3.0

(0.12)

TABLE II. PERFORMANCE RATINGS:

I HOLD

RATED

CURRENT

RATINGS

INITIAL

RESISTANCE

VALUES

TIME TO TRIP

ONE HOUR

POST-TRIP

RESISTANCE

STANDARD

TRIP

OHMS

AT 20°C

MAX

1.29

TRIPPED- STATE

POWER

DISSIPATION

AMPERES

AT 20°C

HOLD

0.40

AMPERES

AT 20°C

HOLD

0.40

TRIP

0.80

OHMS

AT 20°C

MIN

0.55

MAX

0.86

SECONDS AT

20°C, 2.0A

MAX

3.8

WATTS

AT 20°C

NOMINAL

0.56

WATTS

AT 20°C

MAX

0.82

Agency Recognitions:

Reference Documents:

Precedence:

Effectivity:

CAUTION:

UL, CSA, TUV, CQC

PS300

This specification takes precedence over documents referenced herein.

Reference documents shall be the issue in effect on the date of invitation for bid.

Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.

Materials Information

ROHS Compliant

ELV Compliant

Pb-Free

Halogen Free*

* Halogen Free refers to: Br≤900ppm, Cl≤900ppm, Br+Cl≤1500ppm.
