11800FL111147-01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 11800FL111147-01

11800FL111147-01: DescriptionBoard Connector, 47 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size97KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

11800FL111147-01 Overview

Board Connector, 47 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

11800FL111147-01 Parametric

Parameter Name	Attribute value
Objectid	308873473
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.071 inch
subject depth	0.094 inch
body length	2.37 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	118
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.5908 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	47

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

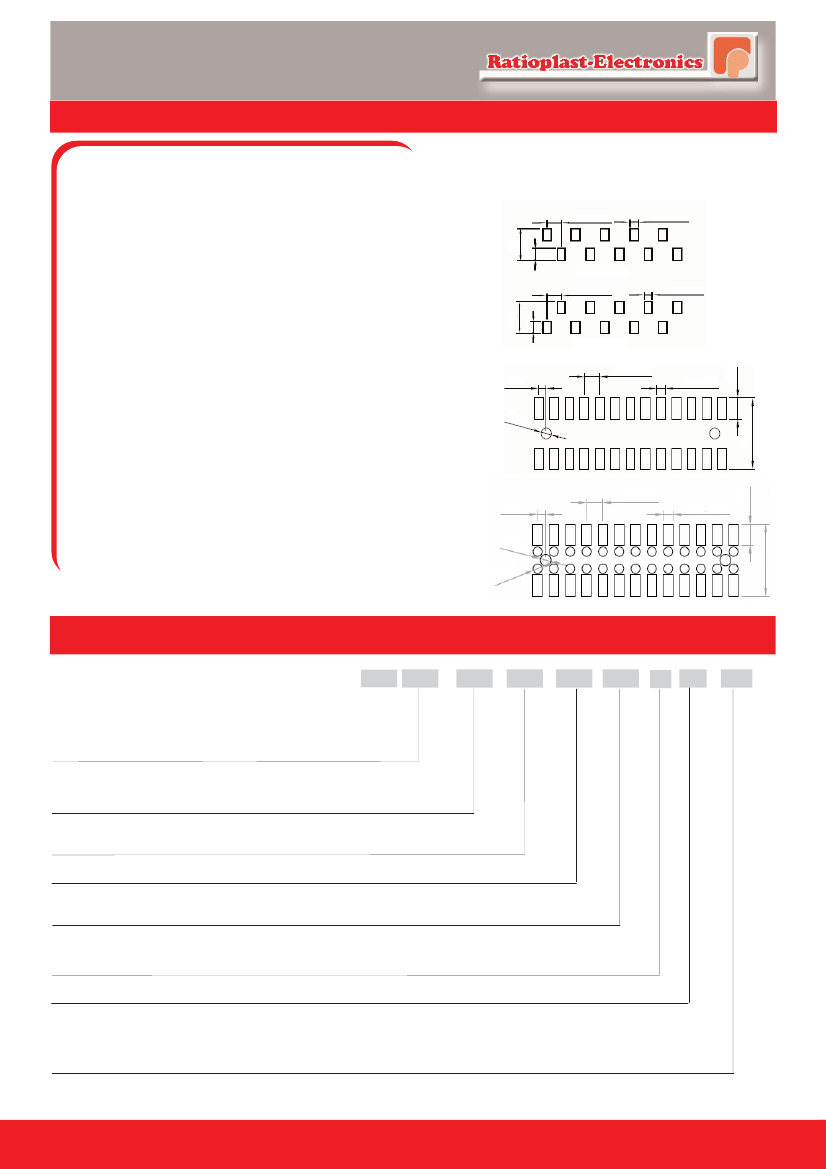

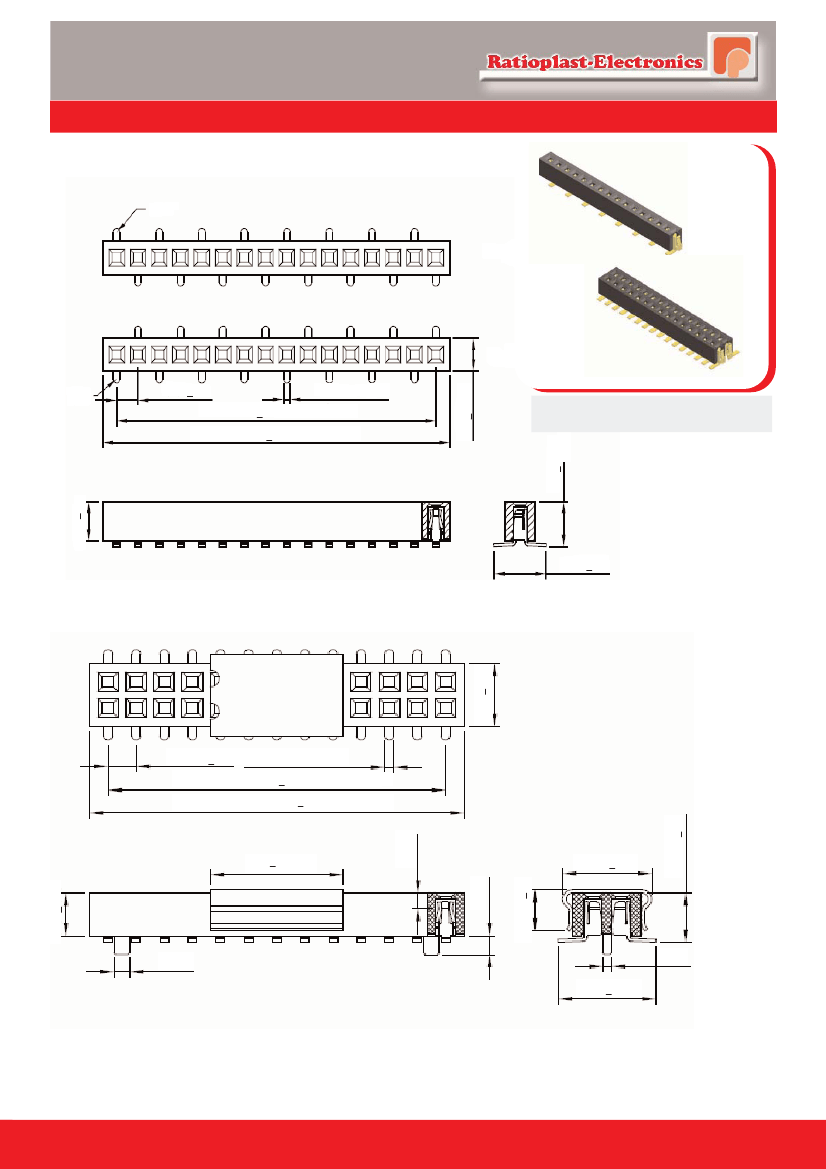

Serie 118

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

SMT BUCHSENLEISTE

SMT FEMALE HEADER

RASTER 1,27mm für Vierkantstift 0,4mm, beiseitig steckbar

PITCH 1,27mm for square contact 0,4mm, dual entry

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Nylon 6T

Hochtemperaturfest, UL94-V0

Schwarz

Kupfer

250 V AC

- 40°C ... +105°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

1,27

4,20

0,74

Layout 1

1,60

1,27

4,20

0,74

Layout 2

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

More technical Information on request

Nylon 6T

High temperature, UL94-V0

Black

Copper alloy

250 V AC

- 40°C ... +105°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

0,64

Ø 0,8

0,74

1,60

5,40

Technical Data

Insulator

1,60

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

1,27

0,64

Ø 0,8

0,7

0,74

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

118 XX

X XX - XX

00 = Ohne Positionierhilfe - Without locating peg (Standard)

01 = Mit Positinierhilfe - With locating peg (nur 2- reihig - only 2- row)

Veredelung - Plating

FL = Flash Vergoldet - Flash gold plated(Au) (Standard)

Andere Veredelungen auf Anfrage - Other plating on request

1 = 1- reihig - 1- row

2 = 2- reihig - 2- row

1 = Liegend - Lying

1 = 1,27 mm Raster - Pitch

9 = Sonderraster - Other pitch

0 = 2- reihig - 2- row

1 = Layout 1 (nur 1- reihig - only 1- row)

2 = Layout 2 (nur 1- reihig - only 1- row)

Polzahl - Number of contacts (06... 98)

01= Verpackt in Stangen ohne PP-Pad - Packed in tubes without PP-Pad (Standard)

11= Verpackt in Stangen mit PP-Pad (auf Anfrage) - Packed in tubes with PP-Pad (on request)

02 = Verpackt auf Rolle ohne PP-Pad (auf Anfrage) - Reel packing without PP-Pad (on request)

12 = Verpackt auf Rolle mit PP-Pad (auf Anfrage) - Reel packing with PP-Pad (on request)

Seite: 58

Version 1 / 2011

www.ratioplast.com
