EBW-PK28-P004H2-3Z-E2200: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size172KB，3 Pages; ManufacturerExcel Cell Electronic Co., Ltd.

Download Datasheet Parametric View All

EBW-PK28-P004H2-3Z-E2200 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Receptacle

EBW-PK28-P004H2-3Z-E2200 Parametric

Parameter Name	Attribute value
Objectid	304407838
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.075 inch
subject depth	0.217 inch
body length	0.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Durability	50 Cycles
maximum insertion force	4.8928 N
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	PK28
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
Evacuation force-minimum value	.5004 N

Preview

Download Datasheet

View All

ECE

－

The Name You Can Trust!

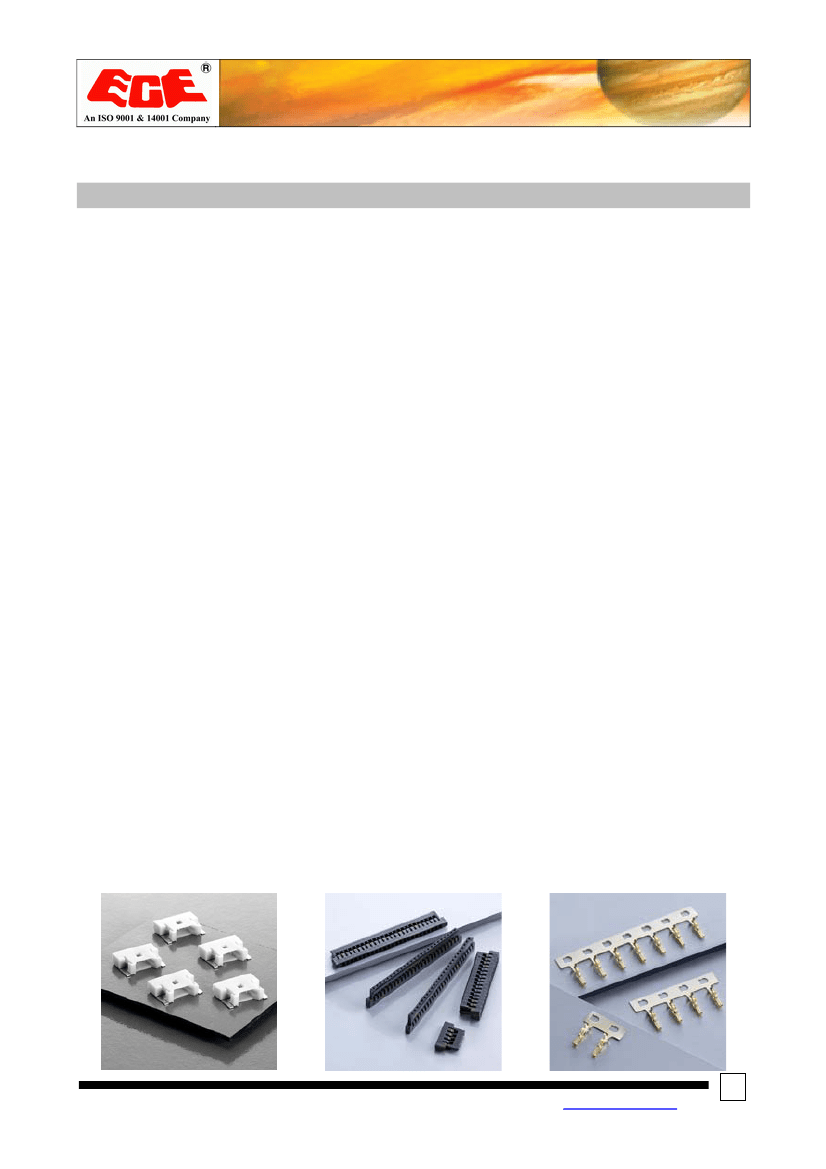

1.25mm Contact Spacing, Board to Wire Connectors

EBW-PK28 SERIES

■

FEATURES

1.25mm contact spacing.

No. of contacts: 2~15 pin.

Connector height: 1.91mm

Available in embossed type for automatic mounting.

■

SPECIFICATIONS

1.ELECTRICAL

Voltage rating: 125VAC

Current rating: 1.0A

Contact resistance:

20mΩ max.(initial)

Insulation resistance: 100MΩ min.

2.MECHANICAL

Durability: Mate & Unmate with applicability for

50 times, Contact resistance: 20mΩ max.

(initial), 40mΩ max. (final).

Connector Mating Force: 0.5kgf*n (4.9N*n) max.

(n: Pin)

Connector Unmating Force: 0.05kgf*n (0.49N*n)

min. (n: Pin)

Terminal Retention Force: 0.3kgf (2.94N) min.

■

MATERIALS

1.MATERIAL

Contacts: Copper Alloy

Insulator Housing:

High Temp. Thermoplastic

Hold down: Copper Alloy

2.PLATING

Contact:

Nickel In All Area

Tin & Au over Nickel (RoHS Compliant)

Hold Down:

Nickel In All Area

Tin over Nickel (RoHS Compliant)

■

PACKING

1.Packing method

All connectors are packed in reel method.

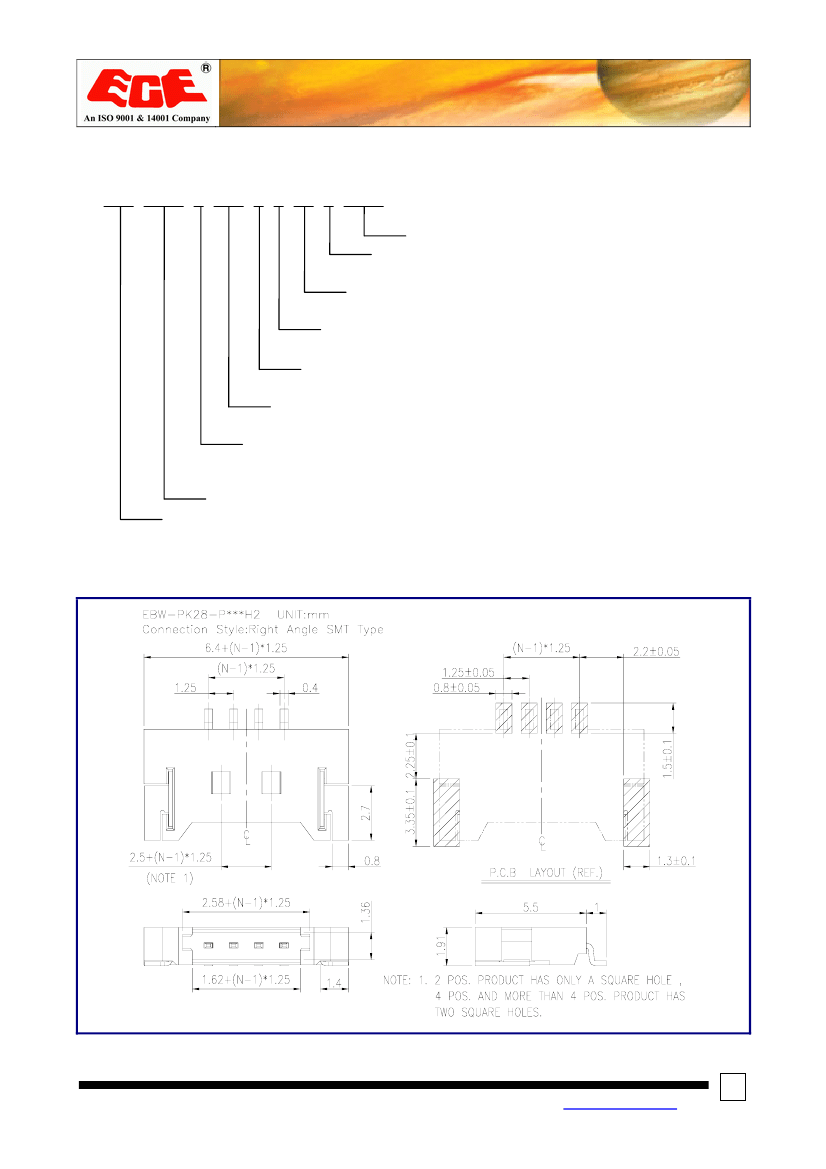

EBW-PK28-P***H2

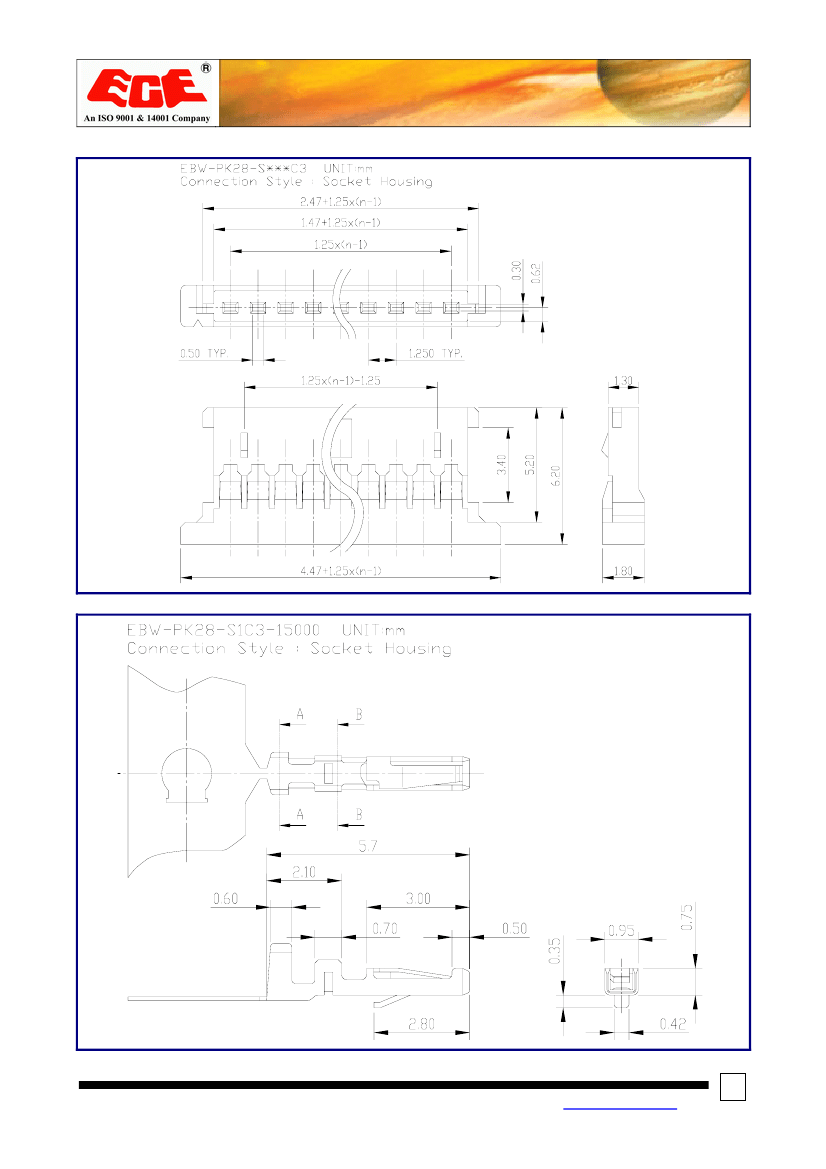

EBW-PK23-S***C3

EBW-PK28-S1C3-15000

For the latest product information, Please visit our website at

www.ece.com.tw
