532430-3 datasheet, PDF - EEWORLD Datasheet

532430-3: Descriptionhdi pin assy 2 row 40 pos; CategoryThe connector; File Size203KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

532430-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	532430-3	-	-	View	Buy Now

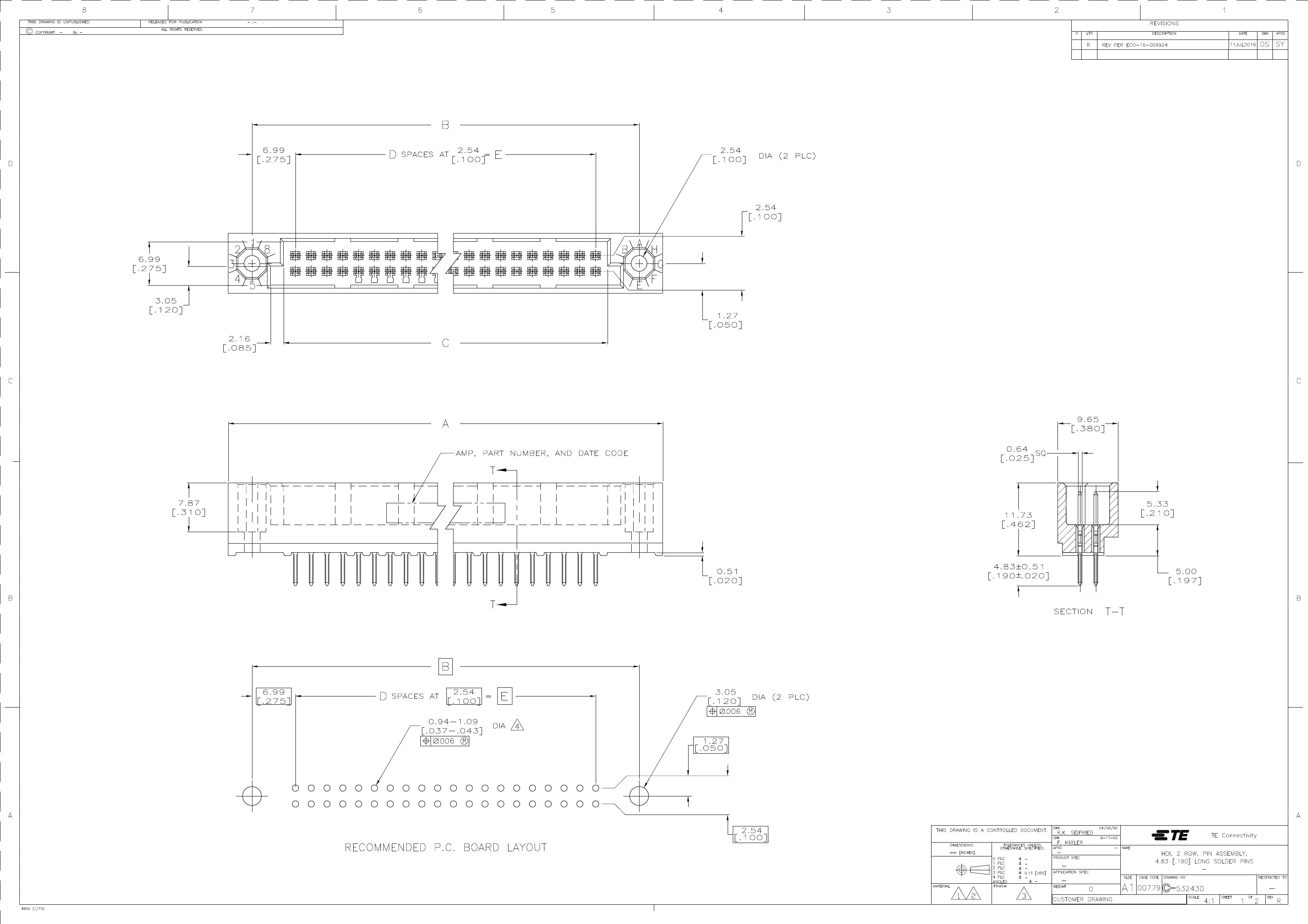

hdi pin assy 2 row 40 pos

Parameter Name	Attribute value
Datasheets
532430
RoHS Informati
532430-3 Statement of Compliance
3D Model
532430-3.pdf
Standard Package	360
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)
Number of Positions	40
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Number of Columns	-
Mounting Type	Through Hole
Terminati	Solde
Contact Layout, Typical	-
Features	Mating Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Natural
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 125°C
Voltage Rating	-

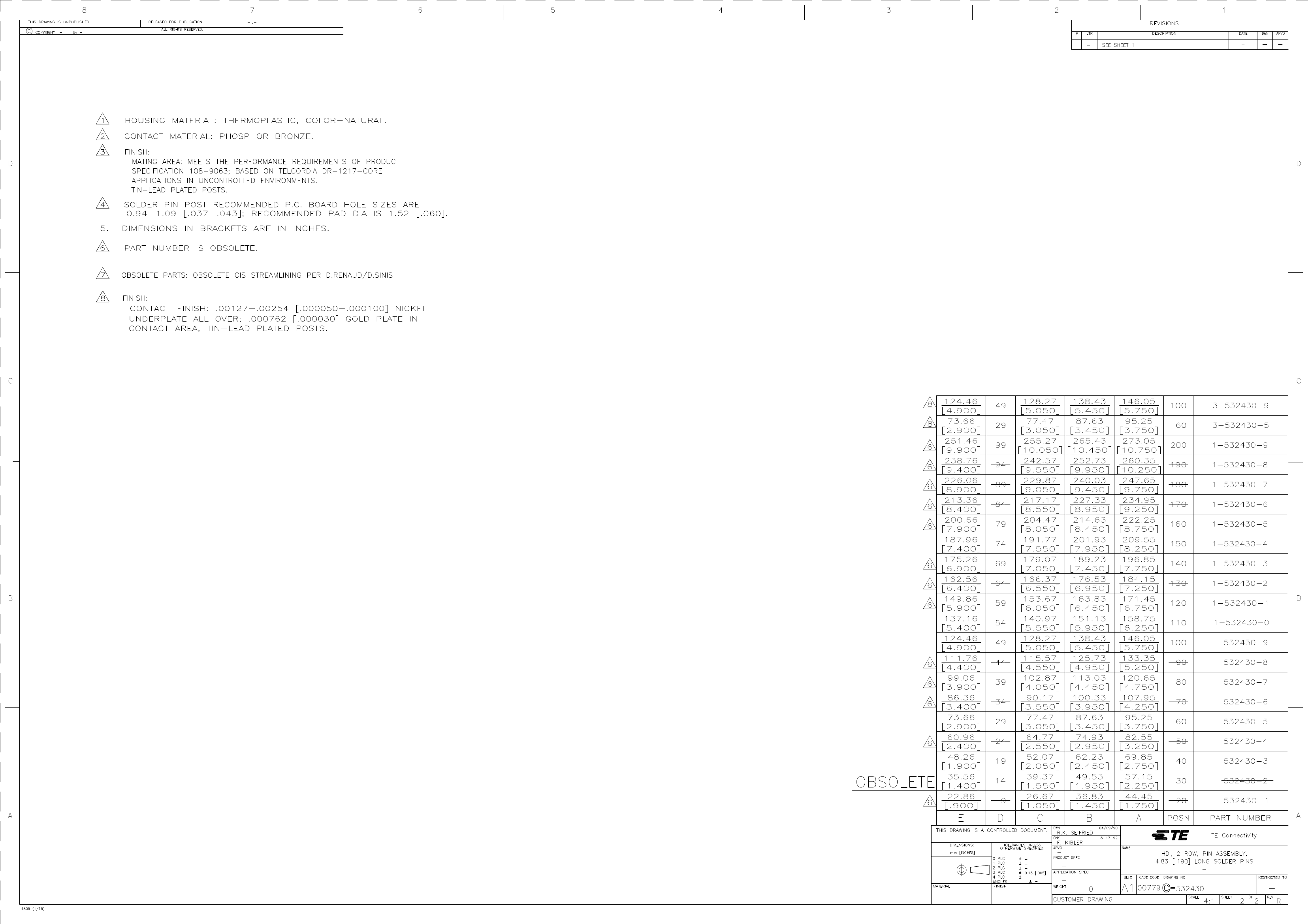

	532430-3	532430-7	532430-9	532430-5
Description	hdi pin assy 2 row 40 pos	hdi pin assy 2 row 80 pos	hdi pin assy 2 row 100 pos	hdi pin assy 2 row 60 pos
Standard Package	360	4	540	270
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)
Number of Positions	40	80	100	60
Number of Positions Loaded	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde
Features	Mating Guide	Mating Guide	Mating Guide	Mating Guide
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Natural	Natural	Natural	Natural
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C
