conn 2mm FB rcpt 120pos R/A gold
| Parameter Name | Attribute value |
| Datasheets | |
| 5223004 | |
| RoHS Informati | |
| 5223004-4 Statement of Compliance | |
| RoHS 2 Stateme | |

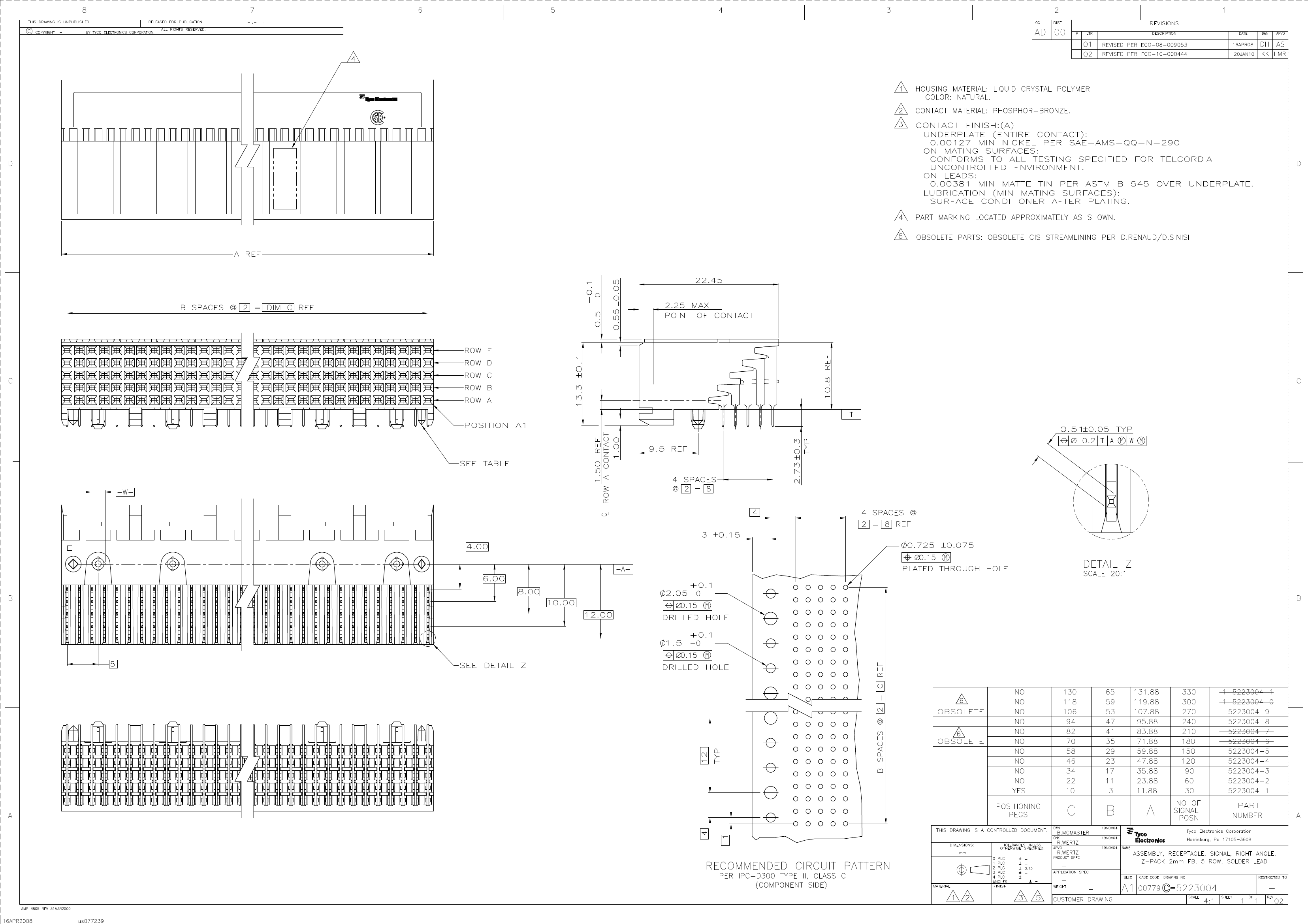

| 3D Model | |
| 5223004-4.pdf | |
| Standard Package | 960 |
| Category | Connectors, Interconnects |
| Family | Backplane Connectors - Specialized |
| Packaging | Tube |
| Connector Usage | - |
| Connector Type | Receptacle, Female Sockets |
| Connector Style | Futurebus |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 5 |
| Number of Columns | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Terminati | Solde |
| Contact Layout, Typical | - |
| Features | Space |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Col | Natural |
| Current Rating | - |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 125°C |
| Voltage Rating | 30V |
| Mating Products | 5223011-4-ND - FB-5R,ASY,120,SIG,HDR,SL,4.25A99414-ND - CONN HEADER 120POS 2MM PRESSFITA97834-ND - CONN HEADER 120PS VERT PRESS-FIT5223524-4-ND - 2MMFB,5R,ASY,120,SIG,HDR,EN5223011-4-ND - FB-5R,ASY,120,SIG,HDR,SL,4.25A99414-ND - CONN HEADER 120POS 2MM PRESSFITA97834-ND - CONN HEADER 120PS VERT PRESS-FIT |
| 5223004-4 | 1-5223004-0 | 1-5223004-1 | 5223004-2 | 5223004-8 | |
|---|---|---|---|---|---|
| Description | conn 2mm FB rcpt 120pos R/A gold | conn rcpt 300pos R/A 2mm solder | conn rcpt 330pos R/A 2mm solder | conn rcpt 60pos R/A 2mm solder | conn rcpt 240pos R/A 2mm solder |
| Standard Package | 960 | 4 | 4 | 24 | 120 |
| Category | Connectors, Interconnects | Connectors, Interconnects | Connectors, Interconnects | Connectors, Interconnects | Connectors, Interconnects |
| Family | Backplane Connectors - Specialized | Backplane Connectors - Specialized | Backplane Connectors - Specialized | Backplane Connectors - Specialized | Backplane Connectors - Specialized |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus |
| Number of Positions | 120 | 300 | 330 | 60 | 240 |
| Number of Positions Loaded | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 5 | 5 | 5 | 5 | 5 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Terminati | Solde | Solde | Solde | Solde | Solde |
| Features | Space | Space | Space | Space | Space |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Col | Natural | Natural | Natural | Natural | Natural |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Voltage Rating | 30V | 30V | 30V | 30V | 30V |
| Mating Products | 5223011-4-ND - FB-5R,ASY,120,SIG,HDR,SL,4.25A99414-ND - CONN HEADER 120POS 2MM PRESSFITA97834-ND - CONN HEADER 120PS VERT PRESS-FIT5223524-4-ND - 2MMFB,5R,ASY,120,SIG,HDR,EN5223011-4-ND - FB-5R,ASY,120,SIG,HDR,SL,4.25A99414-ND - CONN HEADER 120POS 2MM PRESSFITA97834-ND - CONN HEADER 120PS VERT PRESS-FIT | - | - | 5223011-2-ND - FB-5R,ASY,060,SIG,HDR,SL,4.255223010-2-ND - FB-FR,ASY,060,SIG,HDR,SL,4.25A115342-ND - CONN HEADER 60 SIGNAL VERT GOLDA97833-ND - CONN HEADER 60POS VERT PRESS-FIT5223524-2-ND - 2MMFB,5R,ASY,060,SIG,HDR,EN5223011-2-ND - FB-5R,ASY,060,SIG,HDR,SL,4.255223010-2-ND - FB-FR,ASY,060,SIG,HDR,SL,4.25A115342-ND - CONN HEADER 60 SIGNAL VERT GOLD223055-2-ND - CONN HEADER 60 SIGNAL VERT GOLDA99413-ND - CONN HEADER 60POS 2MM PRESSFITA97833-ND - CONN HEADER 60POS VERT PRESS-FIT | 5223016-8-ND - FB-5R,ASY,240,SIG,HDR,EN,4.255223011-8-ND - FB-5R,ASY,240,SIG,HDR,SL,4.255223002-8-ND - FB-5R,ASY,240,SIG,HDR,EN,4.255223000-8-ND - FB-5R,ASY,240,SIG,HDR,SL,4.25 |
