621-M25-360-LT2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 621-M25-360-LT2

621-M25-360-LT2: DescriptionD Subminiature Connector,; CategoryThe connector The connector; File Size355KB，3 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

621-M25-360-LT2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	621-M25-360-LT2	-	-	View	Buy Now

621-M25-360-LT2 Overview

D Subminiature Connector,

621-M25-360-LT2 Parametric

Parameter Name	Attribute value
Objectid	8366988104
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.5
body width	0.492 inch
subject depth	0.395 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	MACHINED
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	POLYAMIDE6T
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40 UNC
Installation option 2	INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.84 mm
Plating thickness	15u inch
Rated current (power)	5 A
Guideline	UL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.118 inch
Terminal pitch	2.77 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

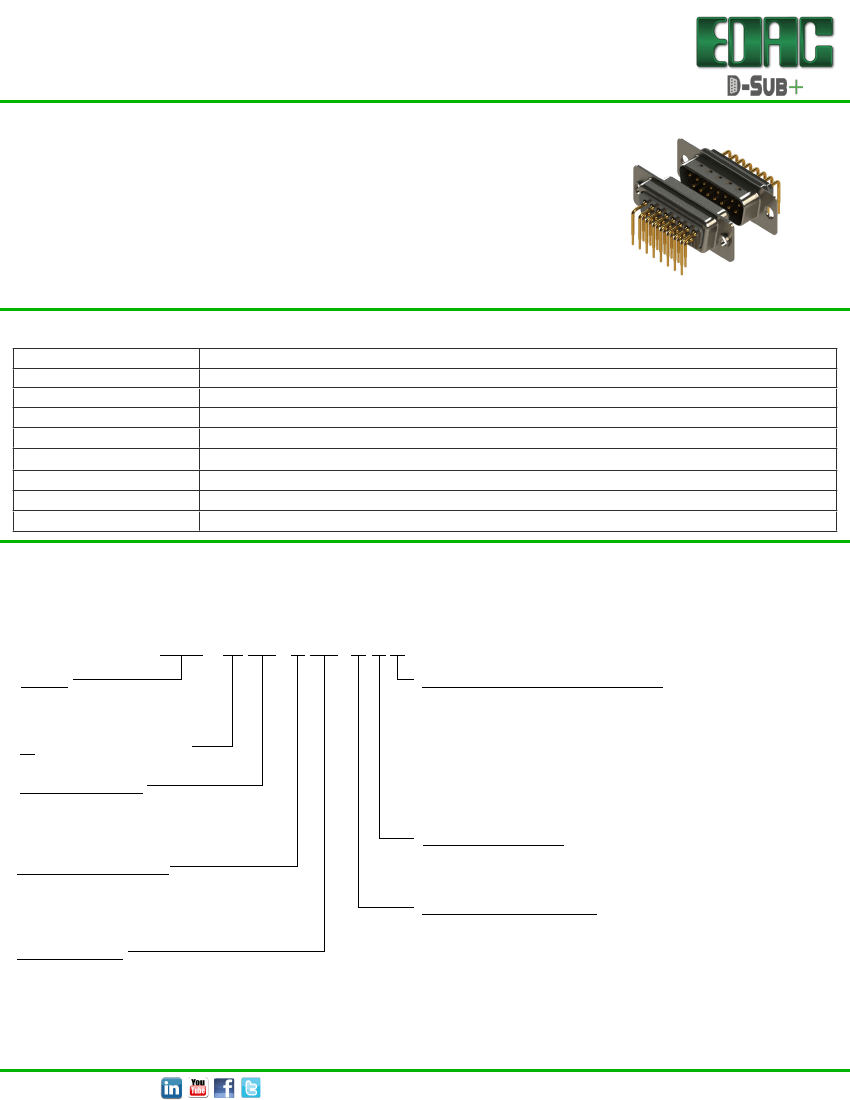

621M/622M

SERIES

D-Sub Connectors: Right Angle, 0.283”(7.20mm) Footprint

Features:

•

Two contact rows with 0.283”(7.20mm) footprint, right angle bend D-Sub with machined contacts

0.109”(2.77mm) contact spacing x 0.112”(2.84mm) row spacing

Plug and receptacle in 9, 15, 25, 37 or 50 contact sizes

Pin and socket contact mating design with P.C. tail termination

Metal shell provides EMI/RFI shielding, plug shell indents provide grounding and additional mating

retention

Grounding features include brackets with four prong boardlock for exceptional retention to P.C. board

Mounting options for panel mount or connector mating include through hole, threaded inserts and

threaded standoffs

Insulation housings are offered in different colors: black, white, green and blue

D-shaped connector mating outline provides polarization

Specifications:

Insulator Material

Contact Material

Contact Plating

Shell Material

Current Rating

Contact Resistance

Dielectric Withstanding Voltage

Insulation Resistance

Operating Temperature

PA6T, UL 94V-0, Color: Black, White, Blue or Green

Precision Machined Copper Alloy

Gold Plating over Nickel All Over

Nickel Plated Steel (Optional Tin Plating)

5 amps

10 Milliohms maximum

5000 megaohms minimum

1000 V AC rms at Sea Level

-55°C To +125°C

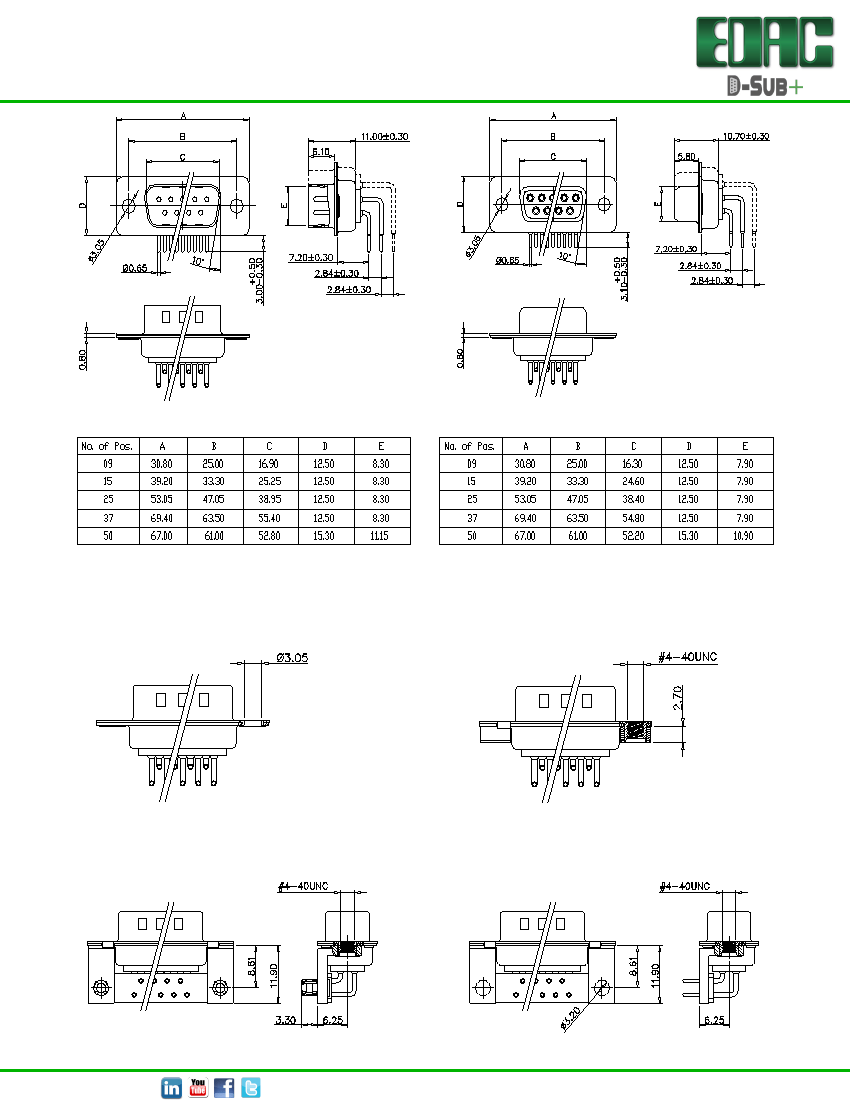

Ordering Code:

621-M25-260-BN3

SERIES:

621: PLUG (PIN)

622: RECEPTACLE (SOCKET)

M: MACHINED CONTACTS

NO. OF CONTACTS:

09 - 9 CONTACTS 25 - 25 CONTACTS

15 - 15 CONTACTS 37 - 37 CONTACTS

50 - 50 CONTACTS

CONTACT FINISH CODE:

2 - GOLD FLASH PLATING

3 - 15 MICROINCHES OF GOLD PLATING

6 - 30 MICROINCHES OF GOLD PLATING

CONTACT CODE:

60 - .283"(7.20MM) FOOTPRINT RIGHT ANGLE PC TAIL

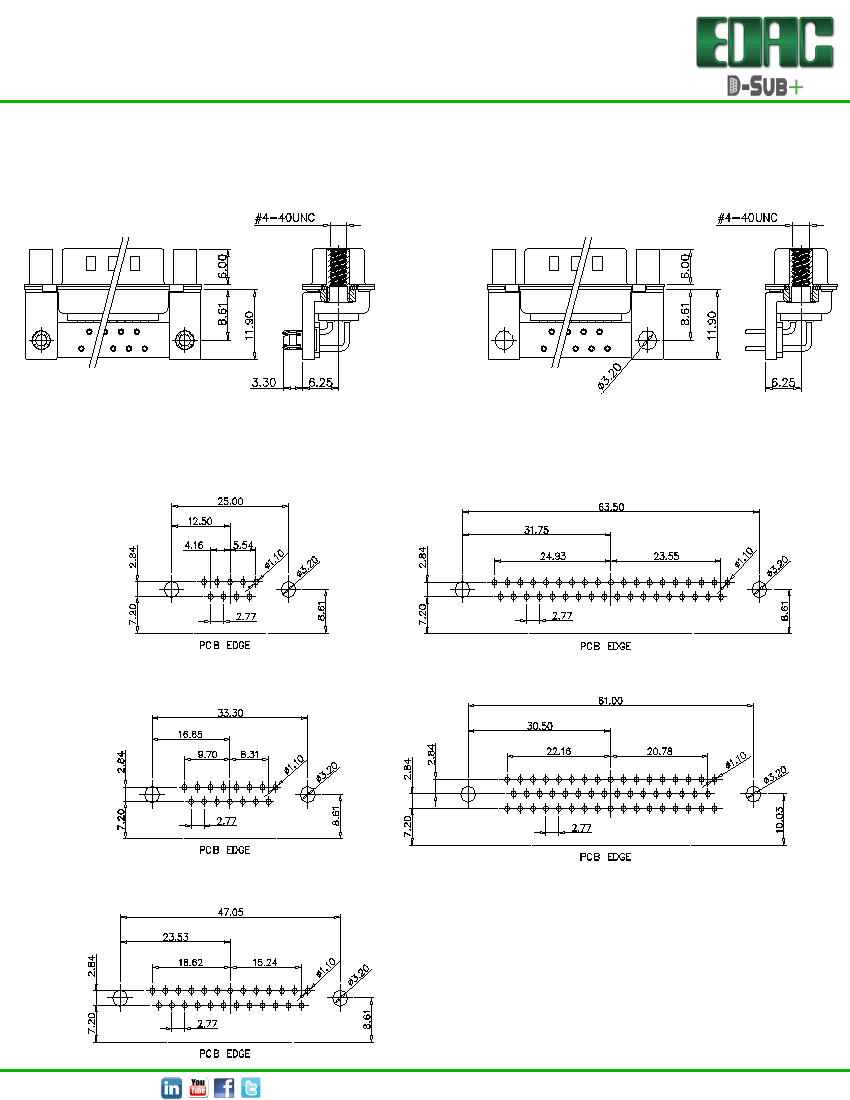

MOUNTING & GROUNDING OPTIONS:

1 - Ø.120"(Ø3.05) THROUGH HOLE

2 - 4-40 UNC INSERT

3 - 4-40 UNC INSERT + STABILIZER PCB + BOARDLOCKS

4 - 4-40 UNC INSERT + STABILIZER PCB + Ø.126"(Ø3.20) HOLE

5 - 4-40 UNC STANDOFF + STABILIZER PCB + BOARDLOCKS

6 - 4-40 UNC STANDOFF + STABILIZER PCB + Ø.126"(Ø3.20) HOLE

SHELL PLATING CODE:

N - NICKEL

T - TIN

HOUSING MATERIAL CODE:

B - BLACK

W - WHITE

G - GREEN

L - BLUE
