K85R1X-BD-P-NR: DescriptionD Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size736KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

K85R1X-BD-P-NR Overview

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,

K85R1X-BD-P-NR Parametric

Parameter Name	Attribute value
Objectid	1293105153
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.445 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET & JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
reliability	COMMERCIAL
Housing size	3/B
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

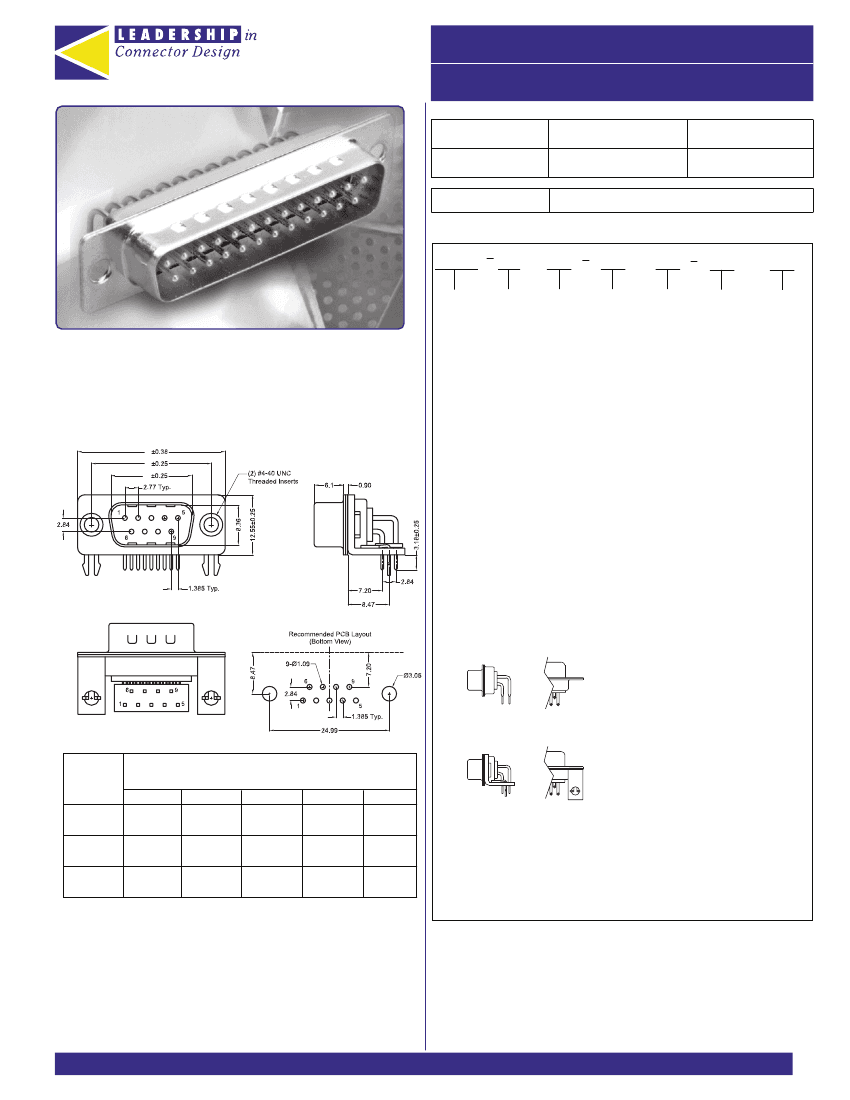

D-SUBMINIATURE CONNECTORS

KYCON

RoHS

Documentation &

Ordering Information

Drawing

Sample

Stock

Email

CofC

RFQ

K85R1X Series

Kycon Part #

K85R1X-ED-9P-NJ

Part Number Builder

K85R1X

Series

E

D

9

P

N

J

Shell Contact Number of Contact

Size Construction Contacts

Type

Mounting Jack Screw

Options

K85R1X Series

Right Angle PCB Mount Open Body

K85R1X Dimensions

Dimensions in mm

C

B

A1

Series

K85R1X - Kycon D-Subminiature Connector, Right Angle PCB

K85R1X

Termination .283" (7.2 mm) Footprint

Shell Size

E

- 9 Contacts

E

A

- 15 Contacts

A

B

- 25 Contacts

B

Contact Construction

D

- Precision Formed Right Angle

Pin Contact Type

P

- Pin Contact (Plug)

S

- Socket Contact (Receptacle)

Mounting Option

Blank

- No Mounting Brackets

Blank

N

- Mounting Brackets with Grounding Board Locks and

Riveted Threaded Inserts

-Blank Option

-N Option

Number

of Contacts

(Shell Size)

Dimensions in mm

A

16.33

24.66

38.38

A1

16.92

25.25

38.96

B

24.99

33.32

47.04

C

30.81

39.14

53.04

D

20.19

27.51

41.96

9 (E)

15 (A)

25 (B)

Jack Screw Option

Blank

- No Jack Screws

J

- 4-40 Hex Jack Screws

R

- 4-40 Round Riveted Jack Screws

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Contact Kycon for other plating options

2012

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
