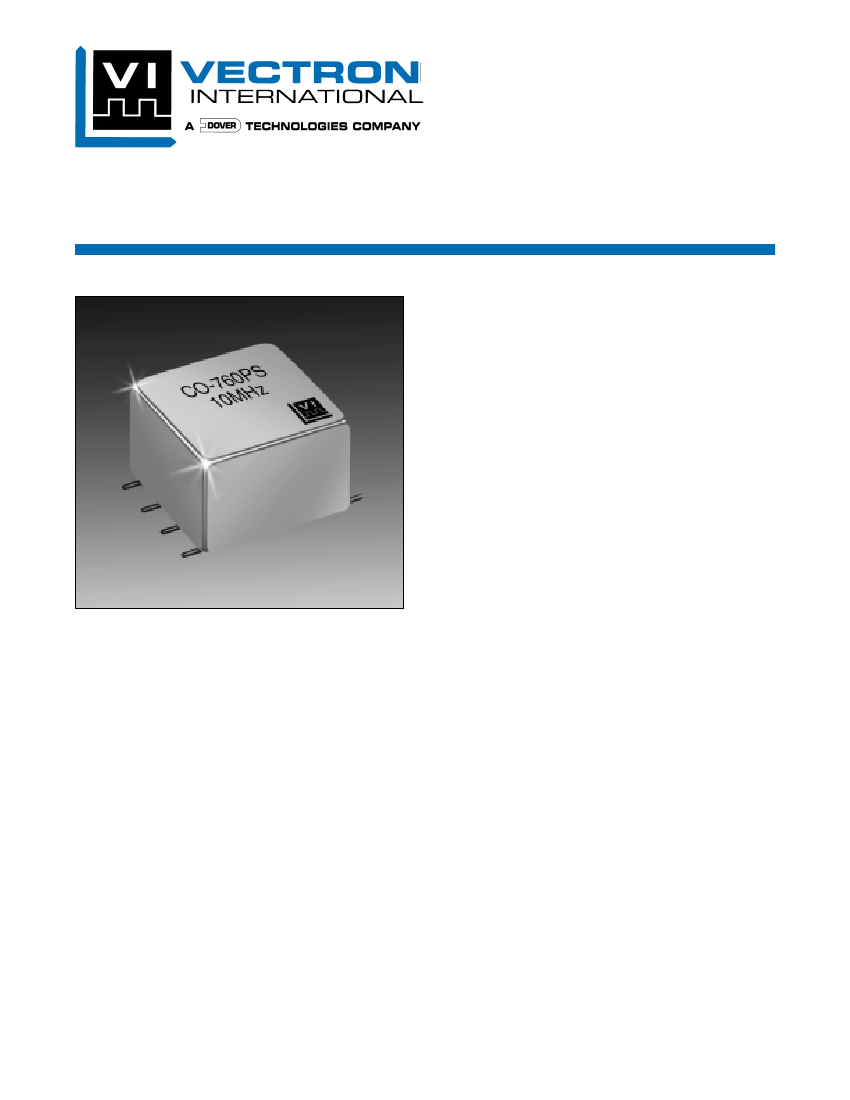

Product Data Sheet

CO-760PS Series

Surface Mount Oven Controlled Crystal Oscillators

Features

• Frequencies Available from 4.8 MHz to 61.44 MHz.

• Stability as high as ±2 x 10

-8

over -20°C to +70°C

• Aging: 5 x 10

-9

/ day to 5 x 10

-10

/ day

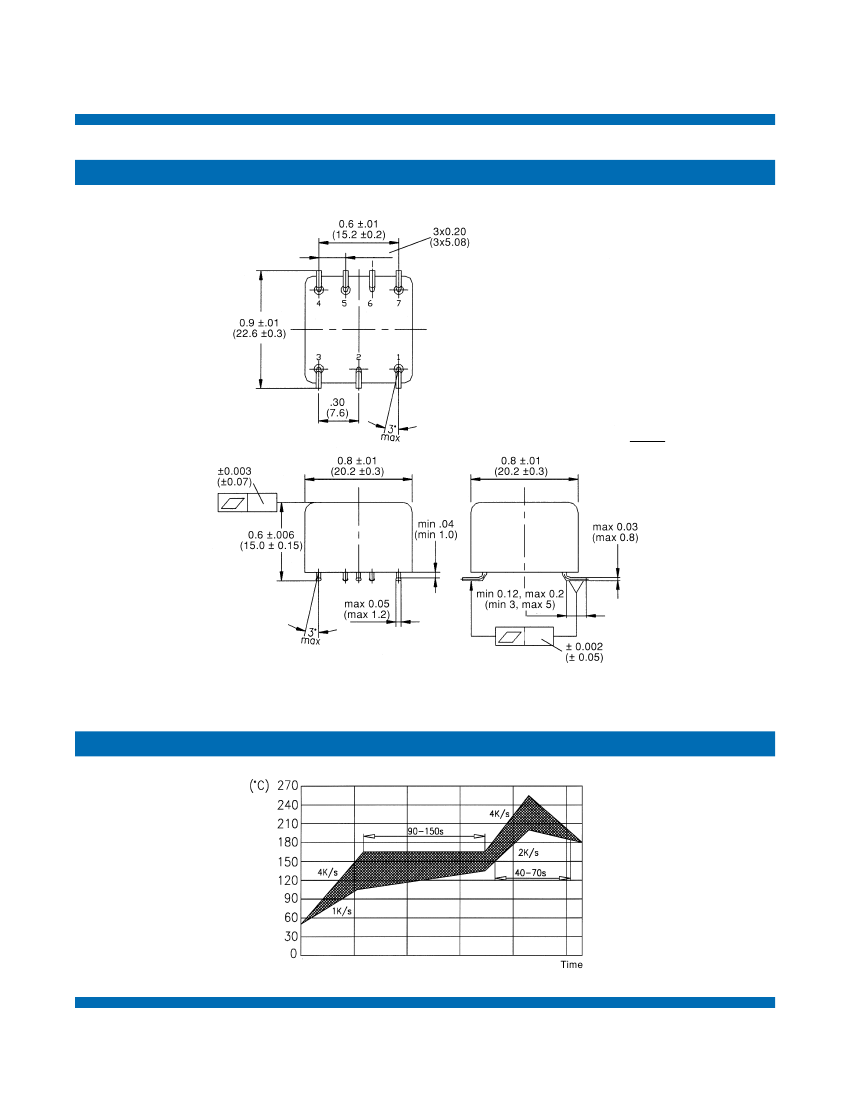

• Package: 0.8” x 0.8” x 0.6” (20.5 x 20.5 x 15.2 mm)

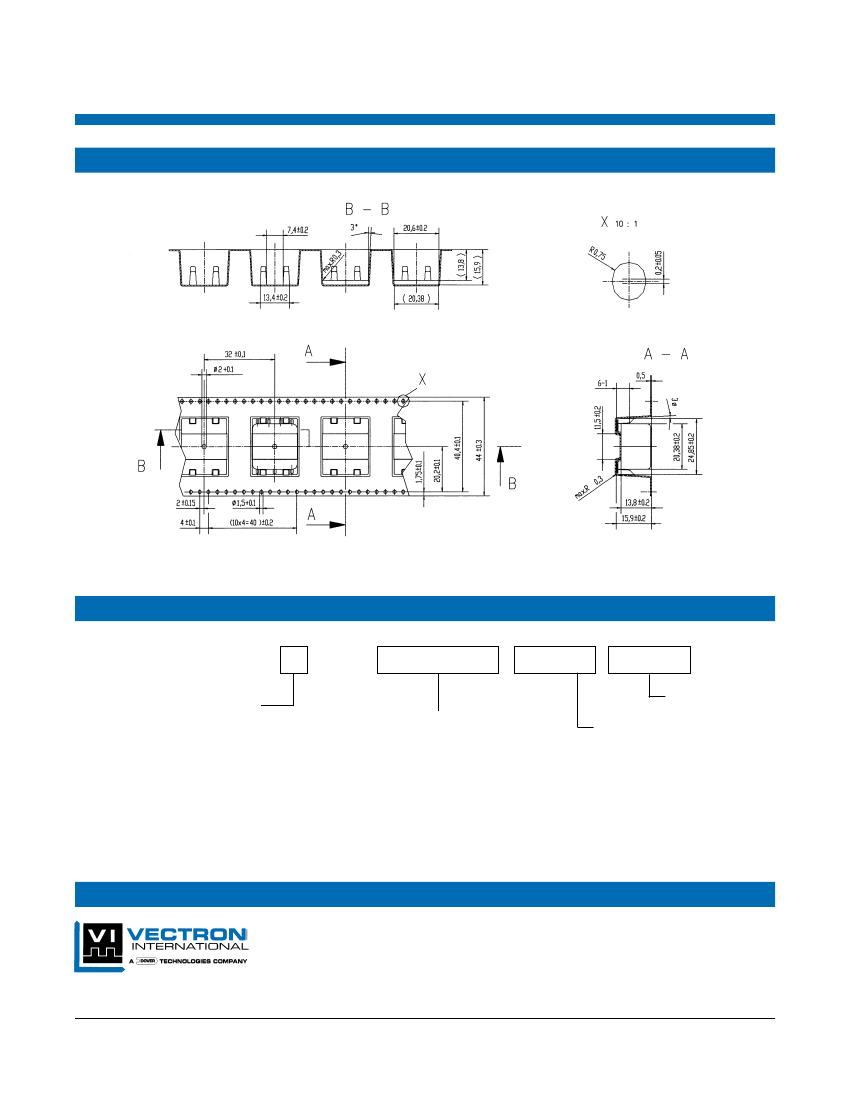

• Low Profile, Surface Mount Design

• Supply Voltage: +5 volts or +3.3 volts

Applications

• Telecommunication Systems

• Wireless Communication Equipment

• Data Communications

• Instrumentation

Description

Vectron International has introduced a series of low profile,

surface mount, oven controlled crystal oscillators (OCXOs)

available in frequencies from 4.8 MHz to 61.44 MHz.

The model CO-760PS provides exceptionally low aging

rates and high temperature stabilities and is packaged

as a surface mount device (SMD), measuring 0.8” x

0.8” x 0.6” (20.5mm x 20.5 mm x 15.2 mm).

The oscillators are available with SC or AT cut crystals

and provide an aging rate as low as 5 x 10

-10

/day with

temperature stabilities from ± 2 x 10

-8

over -20°C to

+70°C and operate from a +5V supply steady power of

1watt. The phase noise floor at 50 kHz is - 140 dBc/Hz

for AT cut crystals and - 145 dBc/Hz for SC types,

depending on the output frequency.

The product finds application in telecommunications,

data communications, frequency synthesizers, timing,

navigation, telemetry and instrumentation systems.
