REVISION X
DO NOT
SCALE FROM
THIS PRINT
(NO OF POS X .07874 [2.0000])
-.010[.25]
((NO OF POS - 1) X .07874[2.0000]) .003[0.08]
C
L
+.005[.13]
MMT-1XX-XX-X-XV-XX-XX-XX
No OF POSITIONS
-02 THRU -36
(PER ROW)
C
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATION
-T: MATTE TIN CONTACT AND TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-F: 3µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
BODY SPECIFICATION
-SV: SINGLE (USE 2TS-XX-SV-X)
-DV: DOUBLE (USE 2TS-XX-D-X)
OPTION
-P: PICK & PLACE PAD
(SEE FIG 6, SHT 3)
-TR: TAPE & REEL (SEE NOTE 6)
-FR: FULL REEL QTY. TAPE & REEL
(SEE NOTE 7)
OPTION
POLARIZED (SPECIFY POS -XX
AS POS TO BE OMITTED)
OPTION
-LC: LOCKING CLIP (SEE NOTE 5)
(USE LC-05-TM; SEE FIG 4 & 5, SHT 3)
-A: ALIGNMENT PIN
(SEE FIG 3, SHT 2)
(FOR -DV USE 2TS-XX-DV-A)
(FOR -SV USE 2TS-XX-SV-A)
02
.0787 1.999
REF
2 MAX SWAY
(EITHER DIRECTION)
01
.0197 0.500 SQ
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
T-1S13-XX-X-2
(TYP)
C
POST HEIGHT
- .005
[0.13]
(SEE TABLE 1)
.079 2.00
REF
+.000
[0.00]
2 MAX SWAY
(EITHER DIRECTION)
C
90°±3°
.0394
- .0000
1.001
+.0100
+0.254
0.000
(SEE NOTE 4)
C
.006[0.15]
.060 1.52 (TYP)
2TS-XX-SV-X

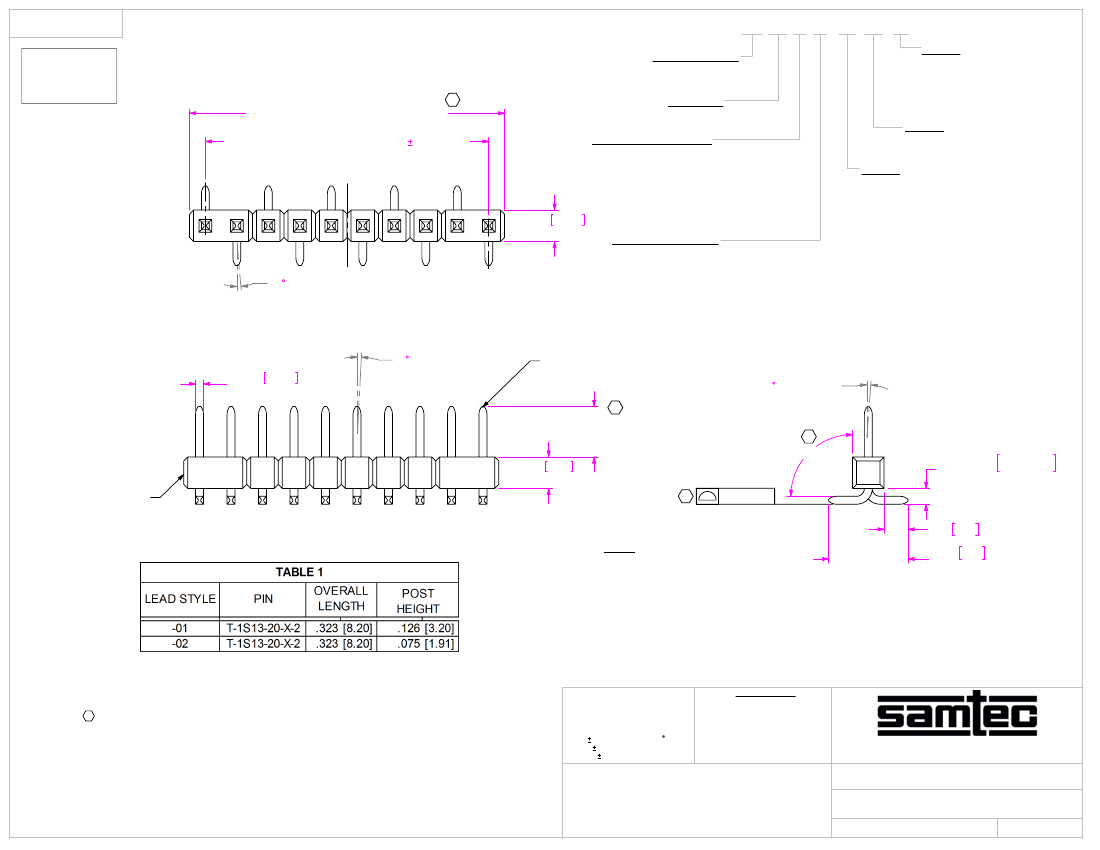

FIG 1
MMT-110-01-X-SV SHOWN
.1987 5.05 REF
(SEE NOTE 3)
NOTES:
REPRESENTS A CRITICAL DIMENSION.
MINIMUM PUSHOUT FORCE: 2 LB
TAILS WILL BE SHEARED ON -02 LEAD STYLE.
MEASURED FROM BEND.
DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
6. -TR OPTION ORDERS INVOLVING PARTIAL REEL QUANTITIES MAY BE PACKAGED
ACCORDING TO THE SAMTEC PACKAGING EFFICIENCY STANDARDS (SPES) FOUND
ON WWW.SAMTEC.COM.
7. -FR OPTION WILL BE SHIPPED AT THE MAX QUANTITY PER REEL, BASED ON OPTIONS SELECTED.
1.
2.
3.
4.
5.
C
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
TERMINAL: PHOS BRONZE
2 mm TERMINAL SV/DV
MMT-1XX-XX-X-XV-XX-XX-XX
GREG R
06/22/1992
SHEET
1
OF
3
F:\DWG\MISC\MKTG\MMT-1XX-XX-X-XV-XX-XX-XX-MKT.SLDDRW
BY:
REVISION X
02
C
L
2TS-XX-D-X
.157 4.00
REF
01
2 MAX SWAY
(EITHER DIRECTION)
.0787 2.000
C
L

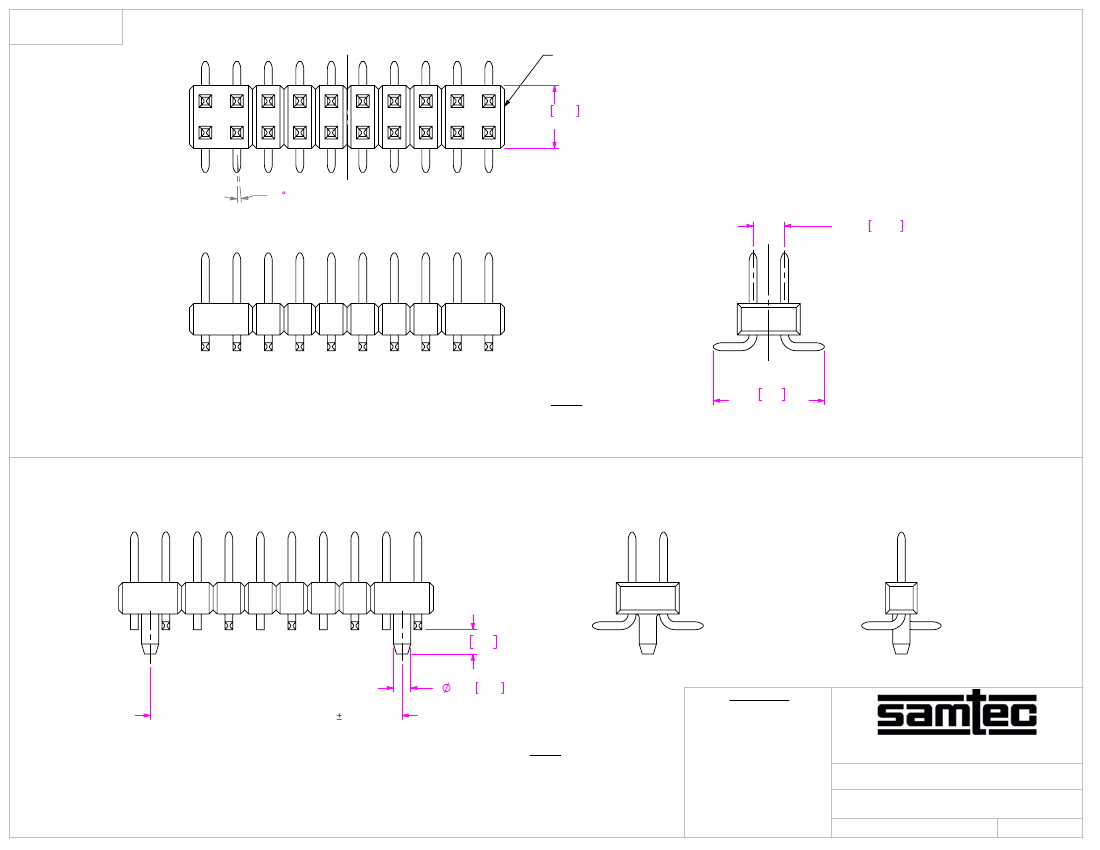

FIG 2
MMT-110-01-X-DV SHOWN
(DIFFRENT AS SHOWN, OTHERWISE SAME AS FIG 1)
.2774 7.05 REF
(SEE NOTE 3)
.061 1.54
.043 1.09 REF (TYP)
((NO OF POS - 2) X .07874[2.0000]) .003[0.08]
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
FIG 3
-A: ALIGNMENT PIN
MMT-110-01-X-XV-A SHOWN
(DIFFRENT AS SHOWN, OTHERWISE SAME AS FIG 1)
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
2 mm TERMINAL SV/DV
SHEET SCALE: 4:1
MMT-1XX-XX-X-XV-XX-XX-XX
GREG R
06/22/1992
SHEET
2
OF
3
F:\DWG\MISC\MKTG\MMT-1XX-XX-X-XV-XX-XX-XX-MKT.SLDDRW
BY:
REVISION X
LC-05-TM
.055 1.40
LC-05-TM
((NO OF POS - 2) X .07874[2.0000]) .003[0.08]
.055 1.40
((NO OF POS - 2) X .07874[2.0000]) .003[0.08]

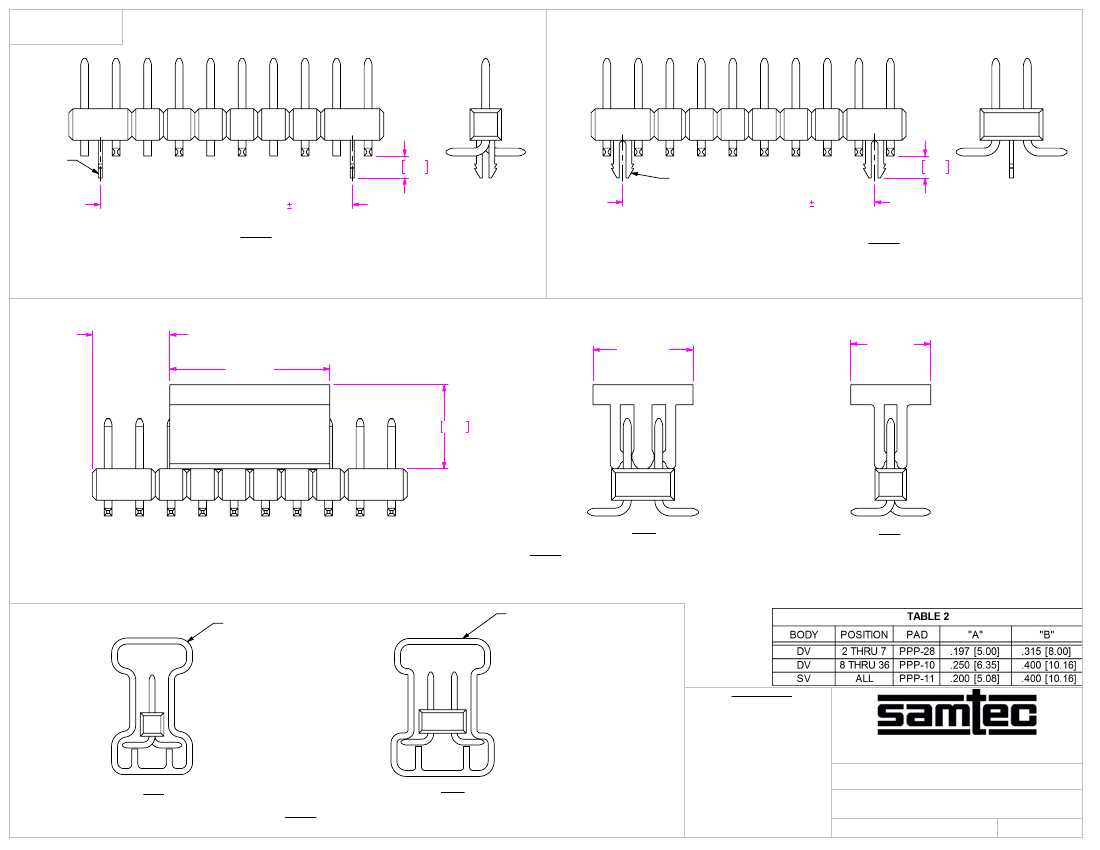

FIG 4
