350-90-150-00-001100 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 350-90-150-00-001100

Preview

350-90-150-00-001100: DescriptionIC Socket, SIP50, 50 Contact(s),; CategoryThe connector socket; File Size68KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

350-90-150-00-001100 Overview

IC Socket, SIP50, 50 Contact(s),

350-90-150-00-001100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP HEADER
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (150)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP50
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e0
Number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

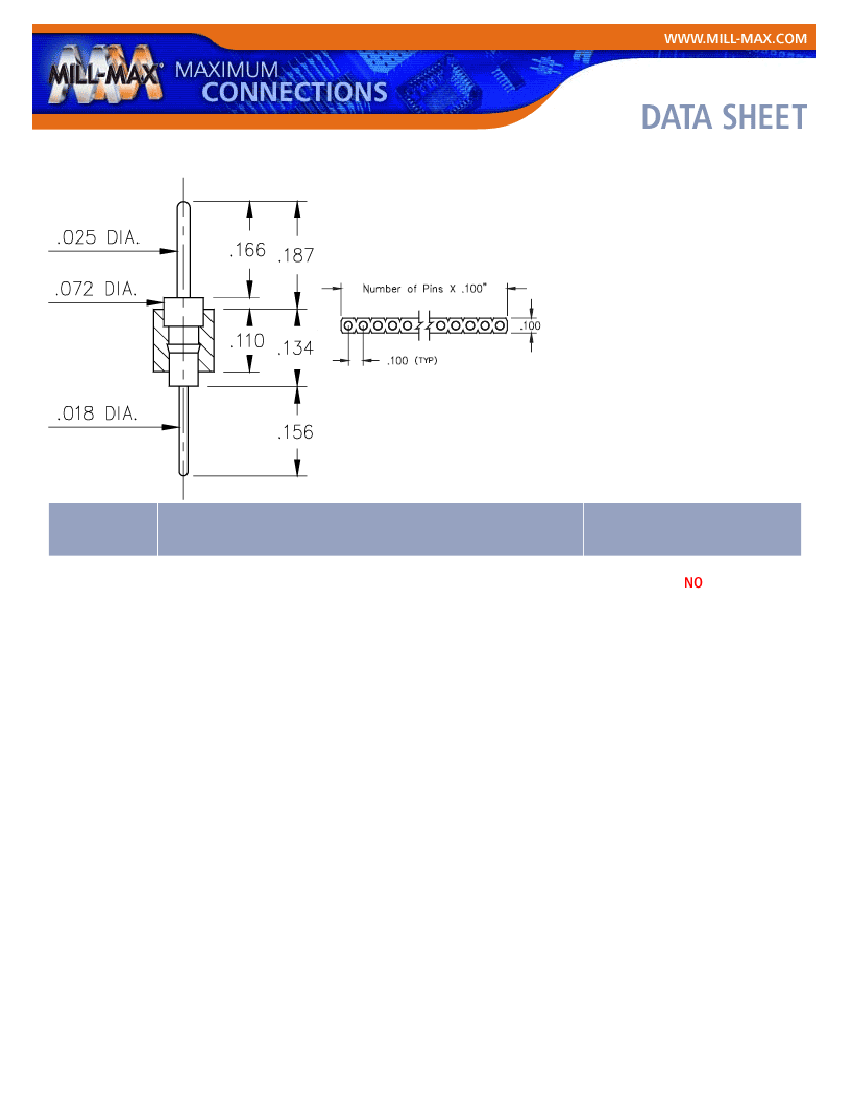

Product Number: 350-90-150-00-001100

Description:

Interconnect Header

.100 Grid; Straight Pin Header

.025 Pin Head with Solder Tail

Single Row

Through Hole

Plating Code:

90

Shell Plating:

200 " Tin/Lead(93/7) over 100

Nickel

"

#

Of

Pins

50

Mill-Max

Part

Number

350-90-150-00-001100

RoHS

Compliant

LOOSE PIN:

Loose Pin Used: 0290

BRASS ALLOY

(UNS C36000) per ASTM B 16

Properties of BRASS ALLOY:

Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%†

Hardness as machined: 80-90 Rockwell B

Density: .307 lbs/in3

Electrical conductivity: 26% IACS*

Melting point: 900°C/885°C (liquidus/solidus)

†(3 to 4% lead is used to permit “free machining” and is permitted by EC Directive 2002/95Annex 6; so all pin materials are

RoHS compliant)

*International Annealed Copper Standard, i.e. as a % of pure copper.

INSULATOR INFORMATION:

PCT

Polyester, (Thermx CG933, black)

High Temperature

Properties of PCT Polyester:

Brand: Thermx

Mill-Max Mfg. Corp. Datasheet – Last Modified 1/19/2008

Page 1 of 2
