Bus system connector - SACC-FS-5SC SH DN SCO - 1432787
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bus system connector, CANopen , DeviceNet™, 5-position, shielded, Socket straight M12, A-coded, Spring-
cage connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
®
Your advantages
Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Save time, thanks to installation with SPEEDCON fast locking system
Spring-cage connection: connect more securely, even in the case of shock and vibration, thanks to high contact forces
Reliable signal transmission - 360° shielding in environments with electromagnetic interference
Key Commercial Data
Packing unit
GTIN
GTIN
4046356348430
1 pc
Technical data
Dimensions
External diameter
Stripping length of the sheath
Stripping length of the individual wire
4 mm ... 8 mm
33 mm
10 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 85 °C (Plug / socket)
IP65
IP67
General
Rated current at 40°C
Rated voltage
4A
60 V DC
48 V AC
11/19/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1432787
Bus system connector - SACC-FS-5SC SH DN SCO - 1432787
Technical data
General
Number of positions
Insulation resistance
Coding
Standards/regulations
Signal type/category
Status display
Overvoltage category
Degree of pollution
Connection method
Conductor cross section
Conductor cross section AWG
Insertion/withdrawal cycles
Torque
5
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
Shock, vibration EN 50155:2001
CANopen
No
II
3
Spring-cage connection
0.14 mm² ... 0.5 mm²
26 ... 20
≥ 100
0.4 Nm (M12 knurl)
0.8 Nm (Connector with coupling sleeve)
3 Nm (Pressure nut with coupling sleeve)
Assembly instructions
AWG 18 wire cross section upon request
The wires can be connected both with ferrules and without ferrules
®
DeviceNet™
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
V0
CuSn
Ni/Au
TPU
Zinc die-cast, nickel-plated
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Standard designation
Standards/regulations
Connection in acc. with standard
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
Shock, vibration
EN 50155:2001
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/19/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1432787
Bus system connector - SACC-FS-5SC SH DN SCO - 1432787

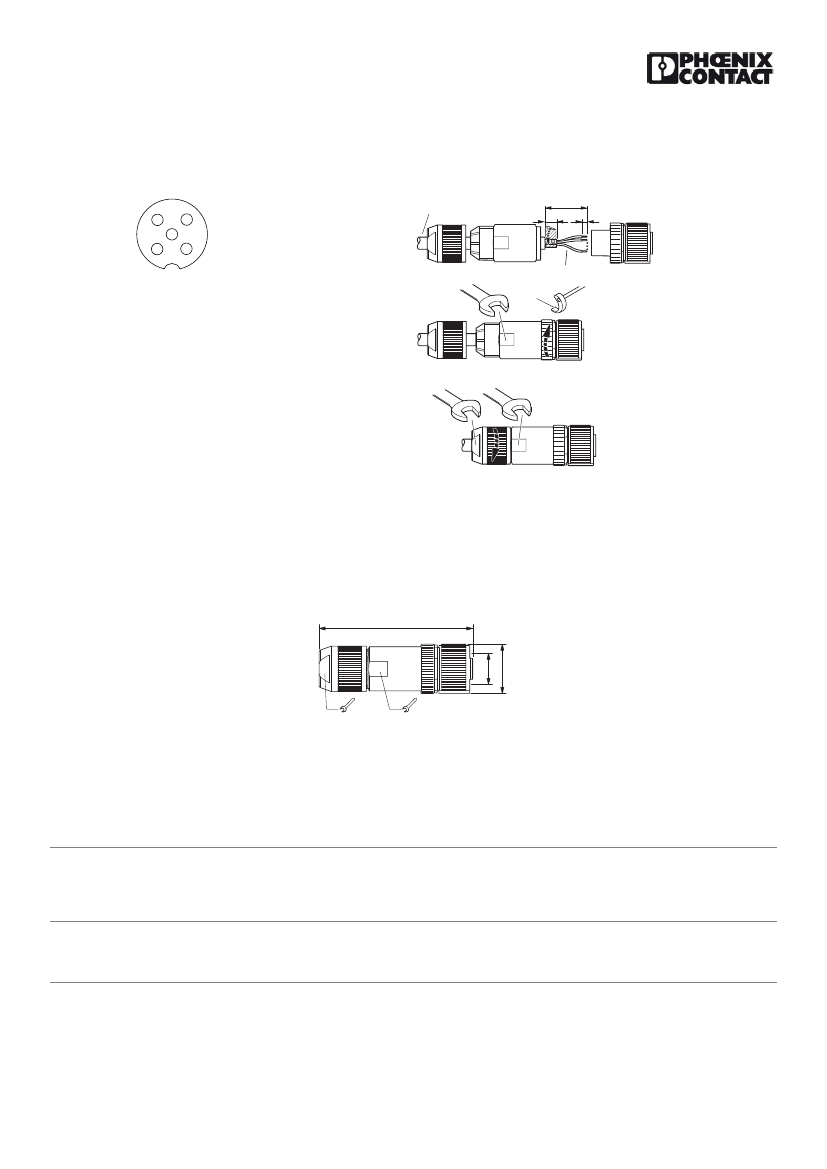

Schematic diagram
3
5
4
Functional drawing
Ø 4 - 8 mm
33
12
10
2
1
0,14 - 0,5 mm²
16
Pin assignment M12 socket, 5-pos., A-coded,
socket side view
20 mm
0,8 Nm
13
16
3 Nm
Slide the pressure nut and sleeve housing along the cable, strip the cable, shorten the shield,
strip the single wires, connect the wires, in the case of a straight sleeve housing gently twist the
wires together, stick the shielding foil around the shortened shield, in the case of a cable outside
diameter < 6 mm stick an additional shielding foil around the wire pack, screw the sleeve housing
to the plug insert, screw the pressure nut tight.
Dimensional drawing
ca. 59
M12
13
16
Socket M12-SPEEDCON, straight, shielded
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
Ø19
11/19/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1432787
Bus system connector - SACC-FS-5SC SH DN SCO - 1432787
Approvals
UL Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
125 V
4A
FILE E 118976
cUL Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
125 V
4A
FILE E 118976
EAC
EAC-Zulassung
cULus Recognized
