TAZE106M10CBSZ0800 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TAZE106M10CBSZ0800

TAZE106M10CBSZ0800: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2010, CHIP; CategoryPassive components capacitor; File Size218KB，25 Pages; ManufacturerAVX

Download Datasheet Parametric View All

TAZE106M10CBSZ0800 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2010, CHIP

TAZE106M10CBSZ0800 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1603614346
package instruction	, 2010
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	5.19
capacitance	10 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e0
leakage current	0.001 mA
Manufacturer's serial number	TAZ
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
size code	2010
surface mount	YES
Delta tangent	0.06
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	J BEND

Preview

Download Datasheet

View All

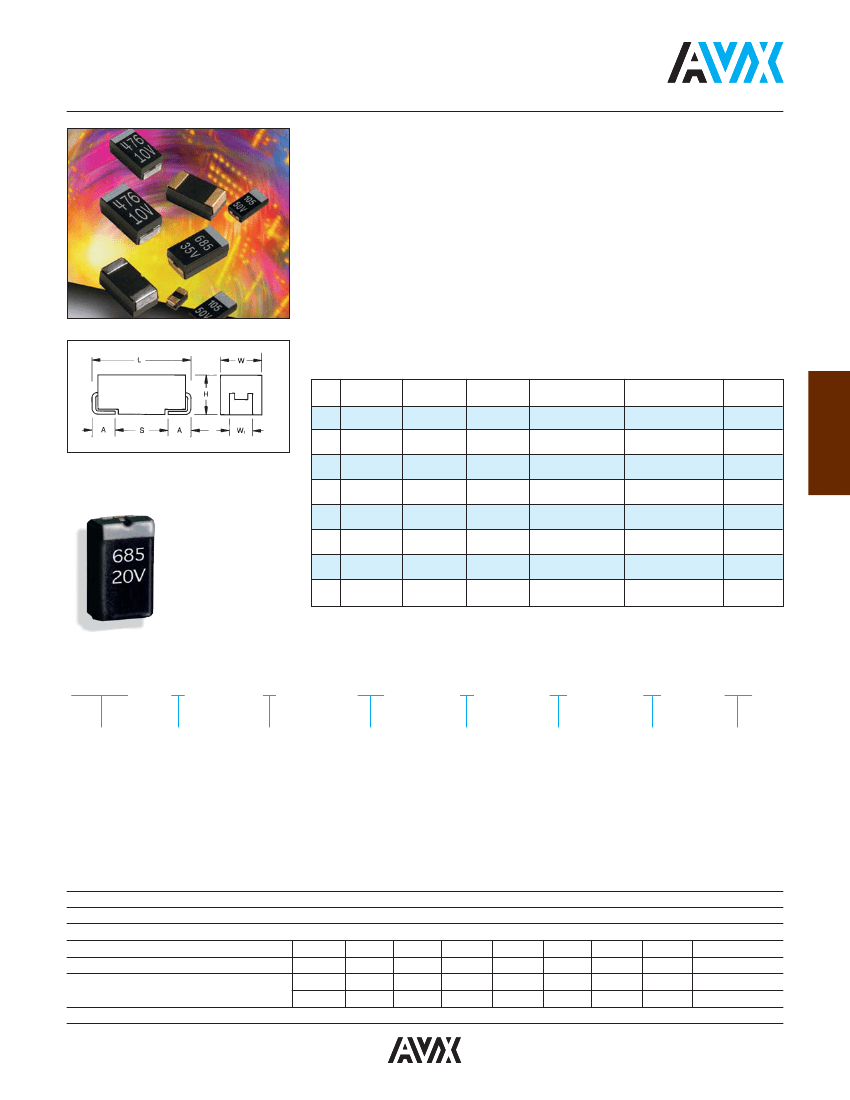

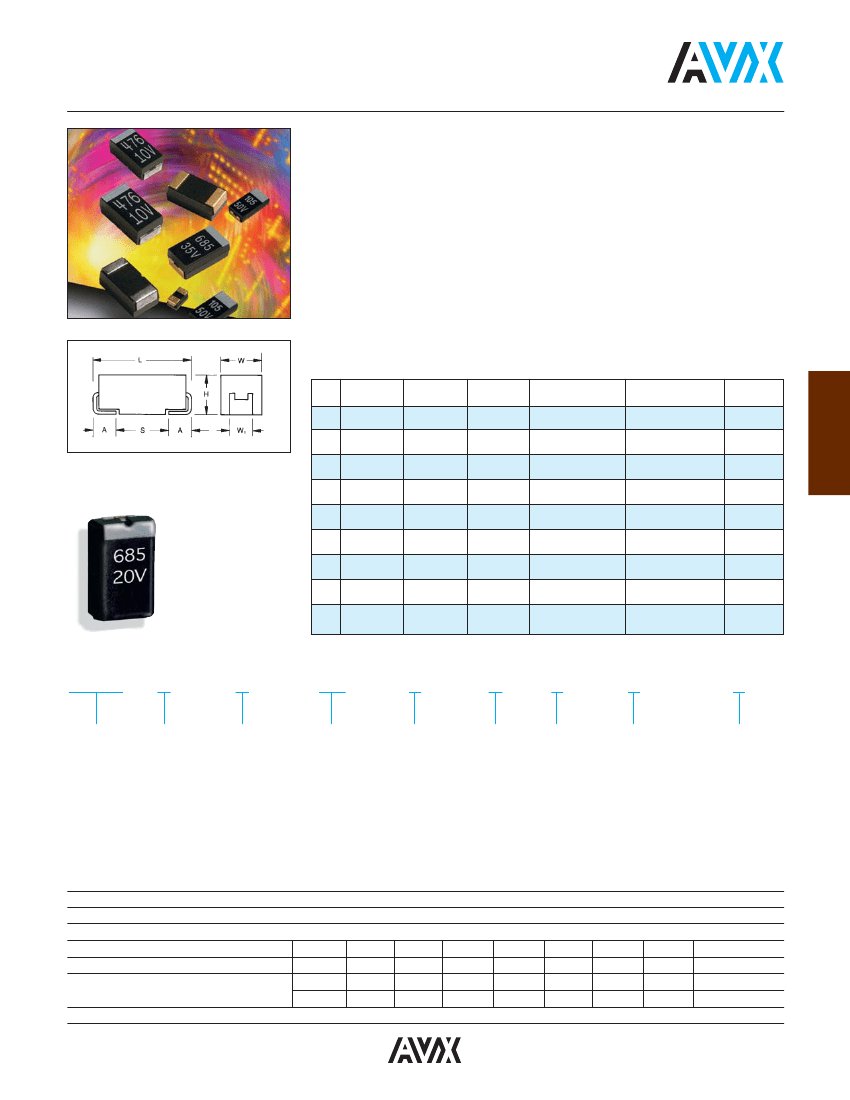

TAZ Series

CWR09 - MIL-PRF-55365/4

Fully qualified to MIL-PRF-55365/4,

this series represents the most flexible

of surface mount form factors, offering

eight case sizes (A through H). This

series is fully interchangeable with

CWR06 conformal types, while offering

the advantages of molded body/

compliant termination construction,

polarity and capacitance. The molded

construction is compatible with a wide

range of SMT board assembly

processes including wave or reflow

solder, conductive epoxy or compres-

sion bonding techniques. The five smaller

cases are characterized by their low

profile construction, with the A case

being the world’s smallest molded mili-

tary tantalum. There are three termination

finishes available: fused solder plated (“K”

per MIL-PRF-55365), hot solder dipped

(“C”) and gold plated (“B”). In addition,

the molding compound has been select-

ed to meet the requirements of UL94V-0

and outgassing requirements of NASA

SP-R-0022A.

CASE DIMENSIONS:

Case Length (L)

Width (W)

Height (H)

Code ±0.38 (0.015) ±0.38 (0.015) ±0.38 (0.015)

2.54 (0.100)

3.81 (0.150)

5.08 (0.200)

3.81 (0.150)

5.08 (0.200)

5.59 (0.220)

6.73 (0.265)

7.24 (0.285)

1.27 (0.050)

2.54 (0.100)

3.43 (0.135)

2.79 (0.110)

3.81 (0.150)

1.27 (0.050)

1.78 (0.070)

Term. Width (W

)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

millimeters (inches)

Term. Length (A)

±0.13 (0.005)

0.76 (0.030)

1.27 (0.050)

S min

1.80 (0.071)

1.65 (0.065)

2.92 (0.115)

1.65 (0.065)

2.92 (0.115)

3.43 (0.135)

3.56 (0.140)

0.70 (0.028)

MARKING

(White marking on black body)

Polarity Stripe (+)

Capacitance Code

Rated Voltage

3.30±0.13

(0.130±0.005)

2.67±0.13

2.79 (0.110)

(0.105±0.005)

3.68+0.13/-0.51

2.79 (0.110) (0.145+0.005/-0.020)

HOW TO ORDER

CWR09

Type

Voltage

Code

C = 4Vdc

D = 6Vdc

F = 10Vdc

H = 15Vdc

J = 20Vdc

K = 25Vdc

M = 35Vdc

N = 50Vdc

Termination

Finish

K = Solder Fused

C = Hot Solder

Dipped

B = Gold Plated

225

Capacitance

Code

pF code:

1st two digits

represent

significant

figures 3rd digit

represents

multiplier

(number of zeros

to follow)

Capacitance

Tolerance

M = ±20%

K = ±10%

J = ±5%

Reliability

Grade

Weibull: B =

0.1%/1000 Hrs.

(90% C =

0.01%/1000

Hrs. conf.)

Comm: Z =

Non ER

Surge Test

Option

A = 10 cycles,

+25°C

B = 10 cycles,

-55°C &

+85°C

C = 10 cycles,

-55°C &

+85°C

before

Weibull

Packaging

Bulk = Standard

\TR = 7" T&R

\TR13 = 13" T&R

\W = Waffle

TECHNICAL SPECIFICATIONS

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated Voltage: (V

)

Category Voltage: (V

)

Surge Voltage: (V

)

Temperature Range:

Unless otherwise specified, all technical

0.1 µF to 100 µF

±5%; ±10%; ±20%

2.7

5.2

3.4

-55°C to +125°C

data relate to an ambient temperature of 25°C

85°C:

125°C:

85°C:

125°C:
