MXR-8R-6SA

Description
conn recept 6pos femle board MT
CategoryThe connector    The connector
File Size386KB,6 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet Parametric View All

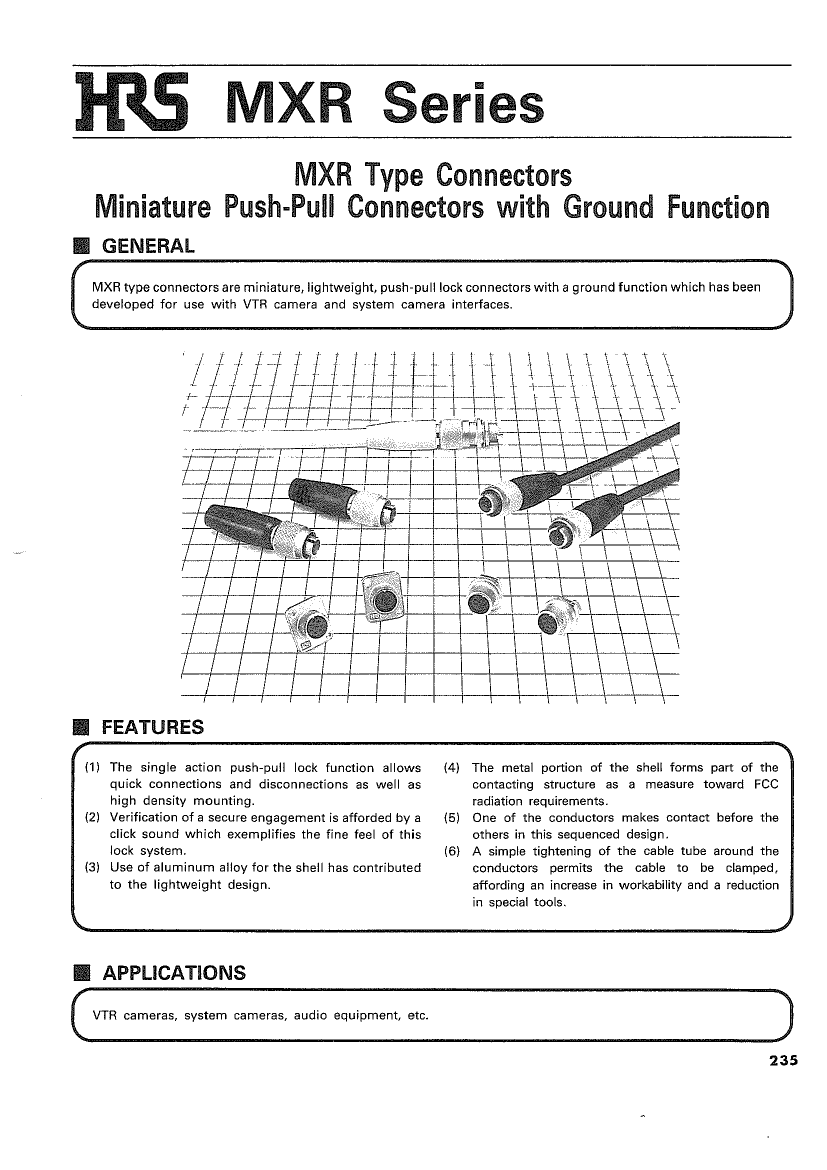

MXR-8R-6SA Overview

conn recept 6pos femle board MT

MXR-8R-6SA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknow
Other featuresHIGH DENSITY, POLARIZED
Back shell typeSOLID
body width0.709 inch
subject depth0.61 inch
body length0.591 inch
Body/casing typeRECEPTACLE
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Coupling typeSNAP
DIN complianceNO
Dielectric withstand voltage300VAC V
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
MIL complianceNO

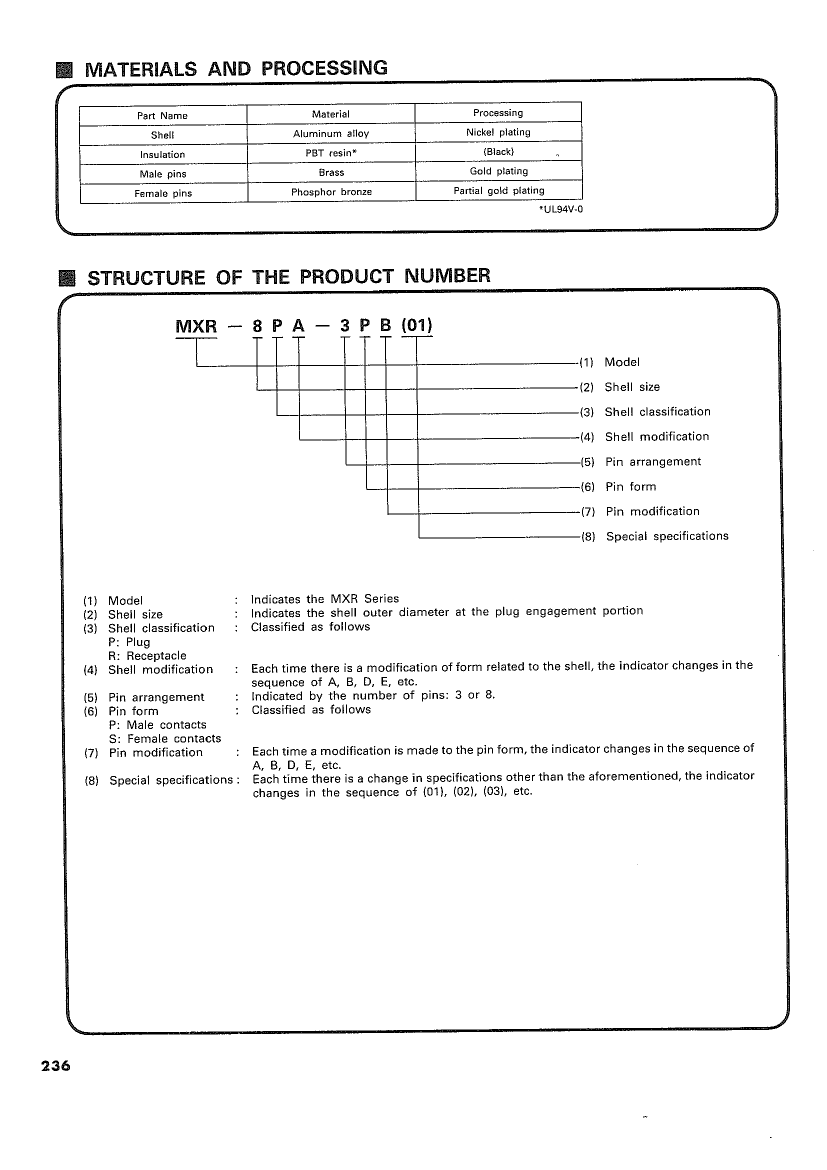

Manufacturer's serial numberMXR

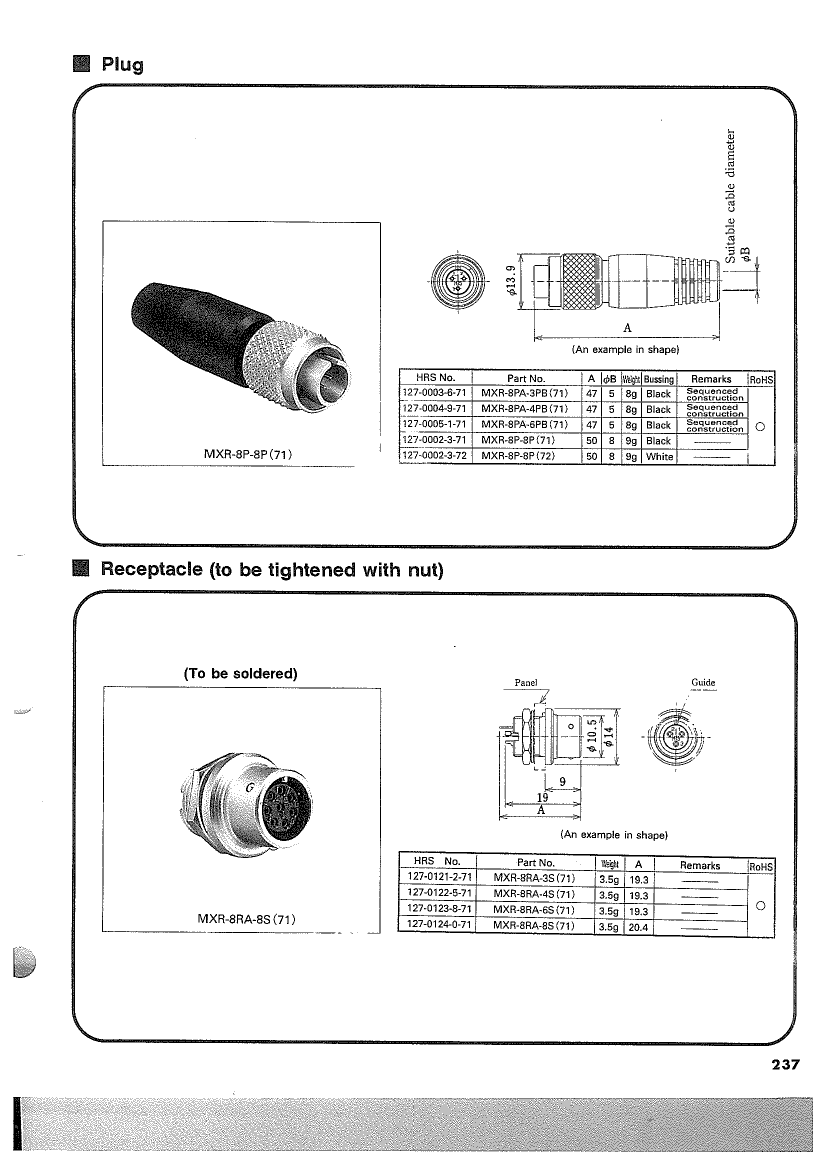

Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO

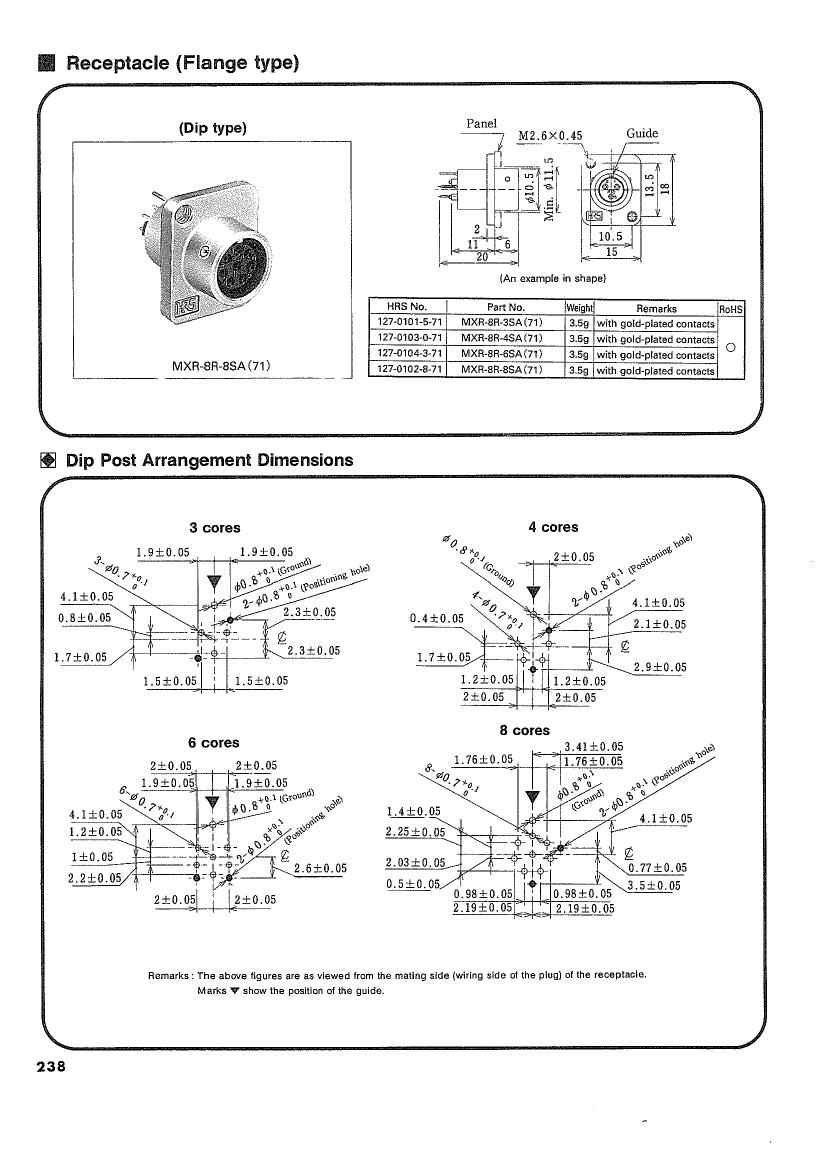

Installation option 1M2.6X0.45
Installation option 2MOUNTING FLANGE
Installation methodSTRAIGHT
Installation typePANEL
Number of ports1
OptionsGENERAL PURPOSE
polarization keyPOLAR PIN POSITION
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialALUMINUM ALLOY
Housing size8
Terminal length0.118 inch
Termination typeSOLDER
Total number of contacts6
Base Number Matches1

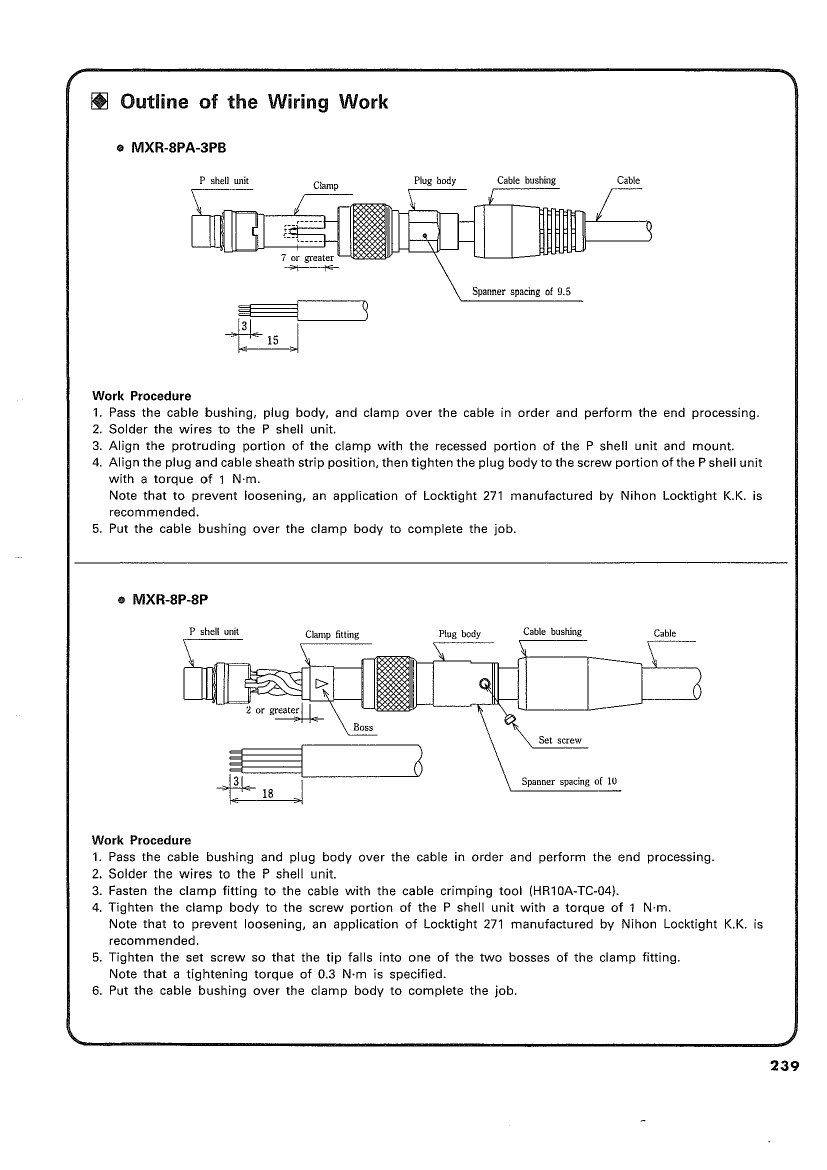

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
