22658138

Description
RF Connector Adapter, 4.1/9.5-7/16, Female-Female
CategoryThe connector    The connector
File Size86KB，1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric Compare View All

22658138 Overview

RF Connector Adapter, 4.1/9.5-7/16, Female-Female

22658138 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
Adapter type4.1/9.5-7/16
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderFEMALE-FEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number314195
Maximum operating frequency2.5 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Base Number Matches1

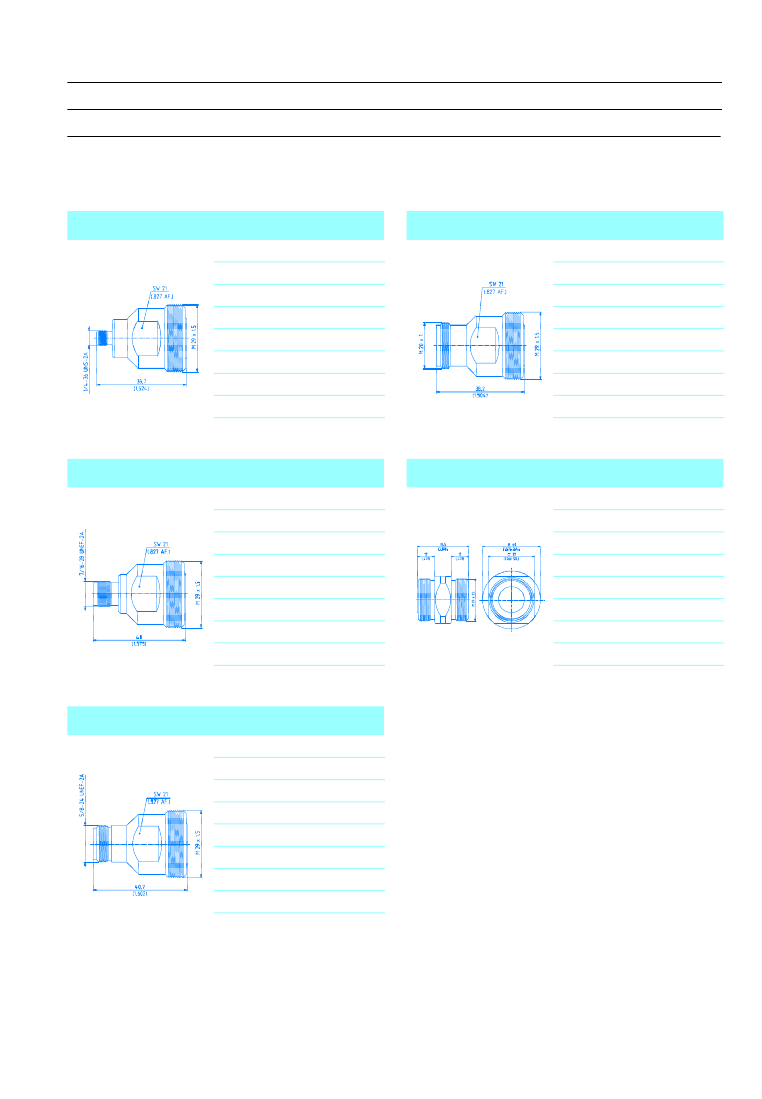

Preview

Download Datasheet
SUHNER
â
TEST+MEASUREMENT
LOW PIM ADAPTORS
Female – female
274
Type
Item
Interface 1
Interface 2
PIM prod.
Impedance
Max. freq.
Matings
Material
Weight
31 PC3.5-716-50-1
22658135
PC3.5mm(f)
DIN 7/16(f)
£
-165 dBc
50
W
2.5 GHz
³
500
Brass / CuBe
88.7 g
277
Type
Item
31 4195-716-50-1
22658138
DIN 4.1/9.5(f)
DIN 7/16(f)
£
-165 dBc
50
W
2.5 GHz
³
500
Brass / CuBe
98.1 g
Interface 1
Interface 2
PIM prod.
Impedance
Max. freq.
Matings
Material
Weight
275
Type
Item
31 TNC-716-50-1
22658134
TNC(f)
DIN 7/16(f)
£
-165 dBc
50
W
2.5 GHz
³
500
Brass / CuBe
84.3 g
278
Item
Type
Interface 1
Interface 2
PIM prod.
Impedance
Max. freq.
Matings
Material
Weight
31 716-50-0-2
22658136
DIN 7/16(f)
DIN 7/16(f)
£
-165 dBc
50
W
2.5 GHz
³
500
Brass / CuBe
139.9 g
Interface 1
Interface 2
PIM prod.
Impedance
Max. freq.
Matings
Material
Weight
276
Type
Item
Interface 1
Interface 2
PIM prod.
Impedance
Max. freq.
Matings
Material
Weight
31 N-716-50-2
22658137
N(f)
DIN 7/16(f)
£
-165 dBc
50
W
2.5 GHz
³
500
Brass / CuBe
86.4 g
SUHNER
®
Test+Measurement
81

22658138 Related Products

22658138 31N-716-50-2 22658134 22658135 22658137 22658136 31PC3.5-716-50-1 314195-716-50-1 31716-50-0-2 31TNC-716-50-1
Description RF Connector Adapter, 4.1/9.5-7/16, Female-Female RF Connector Adapter, N-7/16, Female-Female RF Connector Adapter, TNC-7/16, Female-Female RF Connector Adapter, PC3.5-7/16, Female-Female RF Connector Adapter, N-7/16, Female-Female RF Connector Adapter, 7/16-7/16, Female-Female RF Connector Adapter, PC3.5-7/16, Female-Female RF Connector Adapter, 4.1/9.5-7/16, Female-Female RF Connector Adapter, 7/16-7/16, Female-Female RF Connector Adapter, TNC-7/16, Female-Female
Reach Compliance Code compli compli compli compli compliant compliant compliant compliant compliant compliant
Adapter type 4.1/9.5-7/16 N-7/16 TNC-7/16 PC3.5-7/16 N-7/16 7/16-7/16 PC3.5-7/16 4.1/9.5-7/16 7/16-7/16 TNC-7/16
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω
Connector type RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER
Contact point gender FEMALE-FEMALE FEMALE-FEMALE FEMALE-FEMALE FEMALE-FEMALE FEMALE-FEMALE FEMALE-FEMALE FEMALE-FEMALE FEMALE-FEMALE FEMALE-FEMALE FEMALE-FEMALE
Coupling type THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED
DIN compliance NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO NO NO NO
Manufacturer's serial number 314195 31N 31TNC 31PC3.5 31N 31716 31PC3.5 314195 31716 31TNC
Maximum operating frequency 2.5 GHz 2.5 GHz 2.5 GHz 2.5 GHz 2.5 GHz 2.5 GHz 2.5 GHz 2.5 GHz 2.5 GHz 2.5 GHz
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO NO NO NO NO NO NO NO NO
Base Number Matches 1 1 1 1 1 1 1 1 1 1
