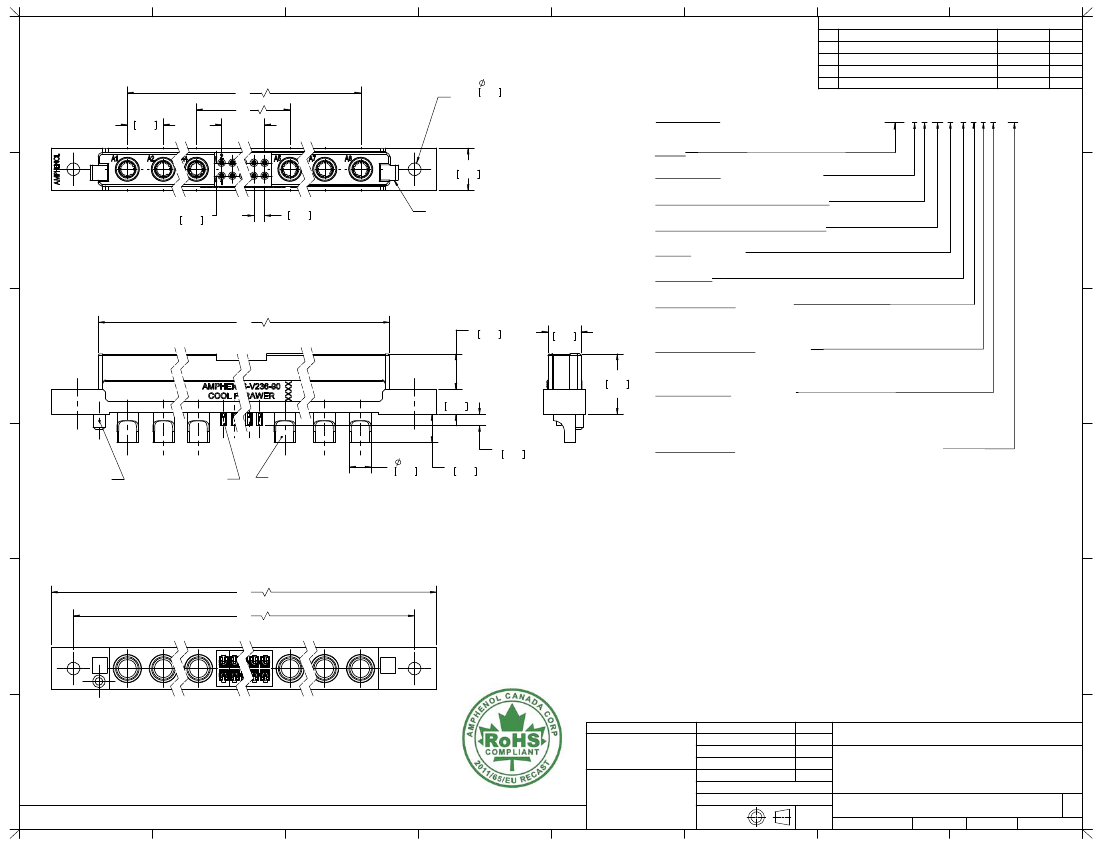

PART NUMBER:
DWR - T X XX S - V X 1 X - 0X
10.80
.425
SERIES
DWR
PRODUCT TYPE
T = SLIMDRAWER FINISHED CONNECTOR
NUMBER OF POWER CONTACT POSITIONS
2, 4, 6, 8 OR A = 10
NUMBER OF SIGNALCONTACT POSITIONS
00, 04, 06, 08, 10 ... 40
GENDER
S = SOCKET (FEMALE)
ORIENTATION
V = VERTICAL
CONTACT OPTIONS
2 = COOLBAND POWER SIZE CB8
3 = COOLBAND POWER SIZE CB10
STD SIGNAL
CONTACT TERMINATION
1 = SOLDER CUP TAIL: POWER 8 AWG,
SIGNAL 20 AWG.
15.37
.605
REF
PLATING OPTIONS
2 = 0.38µm [15µ”] GOLD
3 = 0.76µm [30µ”] GOLD
6 = 5.08µm [200µ”] SILVER POWER,
0.38µm [15µ”] GOLD SIGNAL
MOUNTING OPTION
00 = NO MOUNTING FEATURE
01 = NO MOUNTING EARS
02 = 3.25mm [.128"] DIA THROUGH HOLE FOR MOUNTING OR GUIDE PIN
04 = #4-40 THREADED HOLE
06 = M3 THREADED HOLE
3
2
3.30
.130
2.74
.108
TYP.
SLOT ACCEPTS PIN CONNECTOR
HOUSING BLADE LOCATED OFF
CENTRE TO PREVENT IMPROPER
MATING
2
D
9.02
.355
8.40
.331
3
6.35
.250
2.82
.111
ORIENTATION PEG
PREVENTS ASSEMBLY
ERRORS
SIGNAL SOLDER
CUP ACCEPTS UP
TO 20 AWG WIRE
POWER SOLDER
CUP ACCEPTS UP
TO 8 AWG WIRE
5.49
.216
7.20
.283
4
4
SPECIAL CONFIGURATIONS
MANY UNIQUE FEATURES ARE READILY
AVAILABLE TO SUIT CUSTOMER REQUIREMENTS.
CONTACT AUTHORIZED AMPHENOL
REPRESENTATIVE FOR DETAILS.
NOTES:
A
B
1.
MATERIALS: ALL MATERIALS ARE RoHS COMPLIANT PER EU DIRECTIVE 2011/65/EU AND AMENDMENTS.
- HOUSING: HIGH TEMPERATURE RESISTANT NYLON, UL FLAMMABILITY RATING 94V-0, COLOUR BLACK
- SIGNAL CONTACTS: PHOSPHOR BRONZE PLATED WITH GOLD OVER 1.27µm (50µ”) NICKEL ON THE MATING
AREA AND 2.54µm (100µ”) MATTE TIN OVER NICKEL ON THE TAILS.
- COOLBAND POWER CONTACTS: BERYLLIUM COPPER MATING GRID, COPPER ALLOY BALANCE, PLATED
WITH GOLD OR SILVER OVER 1.27µm (50µ”) NICKEL ON THE MATING GRID AND SILVER OVER NICKEL OR
MATTE TIN BALANCE.
WHEN MATED WITH PIN CONNECTOR DWR-TXXXP-VXXX-XX, THE ORDER OF MECHANICAL AND ELECTRICAL
ENGAGEMENT IS A) HOUSING BLADES, B) HOUSING SHROUD, C) POWER CONTACTS AND D) SIGNAL CONTACTS.
ELECTRICAL CHARACTERISTICS
- CURRENT RATING: UP TO 55A POWER, 4A SIGNAL
- DIELECTRIC WITHSTANDING VOLTAGE: 1500VDC
UL FILE NUMBER E64911
S.CAELERS APR06/11
A.GREEN
APR11/11
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
ENG. REL. NO.
REF.
THIRD
ANGLE
PROJECTION
5
5
2.
3.
- INSULATION RESISTANCE: 5000 MEGOHMS
- OPERATING TEMPERATURE: -55°C TO +105°C
4.
UNLESS SPECIFIED OTHERWISE DRAWN
PRIMARY UNITS
SECONDARY
Amphenol Canada Corp.
DWR SERIES SLIM DRAWER SOCKET
CONNECTOR, POWER & SIGNAL CONTACTS,
SOLDER CUP TAILS (POWER: 8 AWG, SIGNAL:
20 AWG), RoHS COMPLIANT
DWG.
NO.
REV
6
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
6
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR
ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-DWR-TXXXS-VX1X-0X
03554
DWG SIZE:
C
SCALE:
E
1
OF
2
2:1
H
SHEET
E
F
G
A
B
C
D
E
F
G
REVISIONS
REV
DESCRIPTION, ECN, EAR NO.
H

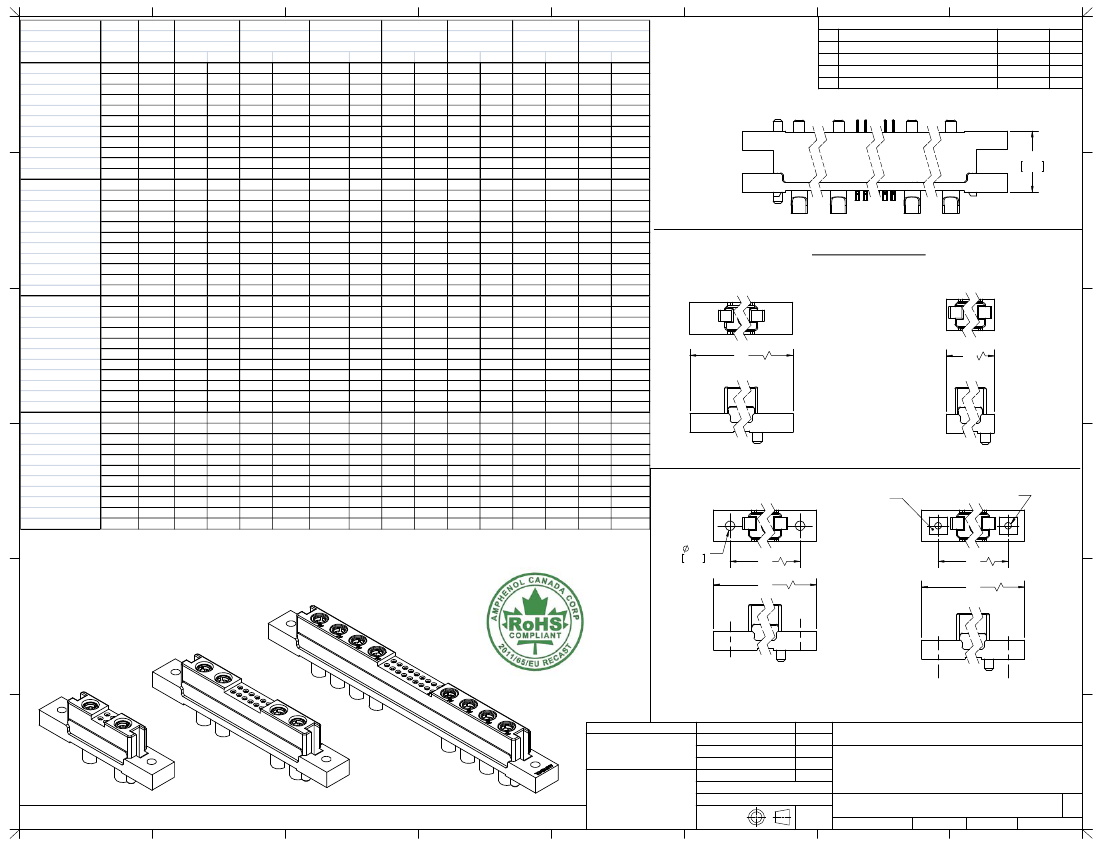

Socket Connector
