HSC-PH2-E1-A(62) datasheet, PDF

Datasheet> All Categories > The connector> HSC-PH2-E1-A(62)

HSC-PH2-E1-A(62): Descriptionconn SC plug housing short lengt; CategoryThe connector; File Size753KB，21 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

HSC-PH2-E1-A(62) Overview

conn SC plug housing short lengt

HSC-PH2-E1-A(62) Parametric

Parameter Name	Attribute value
Datasheets
HSC Series
Standard Package	1
Category	Connectors, Interconnects
Family	Fiber Optic Connectors - Housings
Connector Type	Plug
For Use With/Related Products	HSC Ferrules
Simplex/Duplex	Simplex
Cable Diamete	2.0mm
Mounting Type	Free Hanging (In-Line)
Housing Material	-
Housing Col	-
Boot Col	Blue
Ingress Protecti	-
Material Flammability Rating	UL94 V-0
Features	Strain Relief
Fiber Core Diamete	9.5µm/50µm
Fiber Cladding Diamete	125µm
Operating Temperature	-25°C ~ 70°C
Housing Finish	-
Other Names	704-0464-4-62

Preview

Download Datasheet

View All

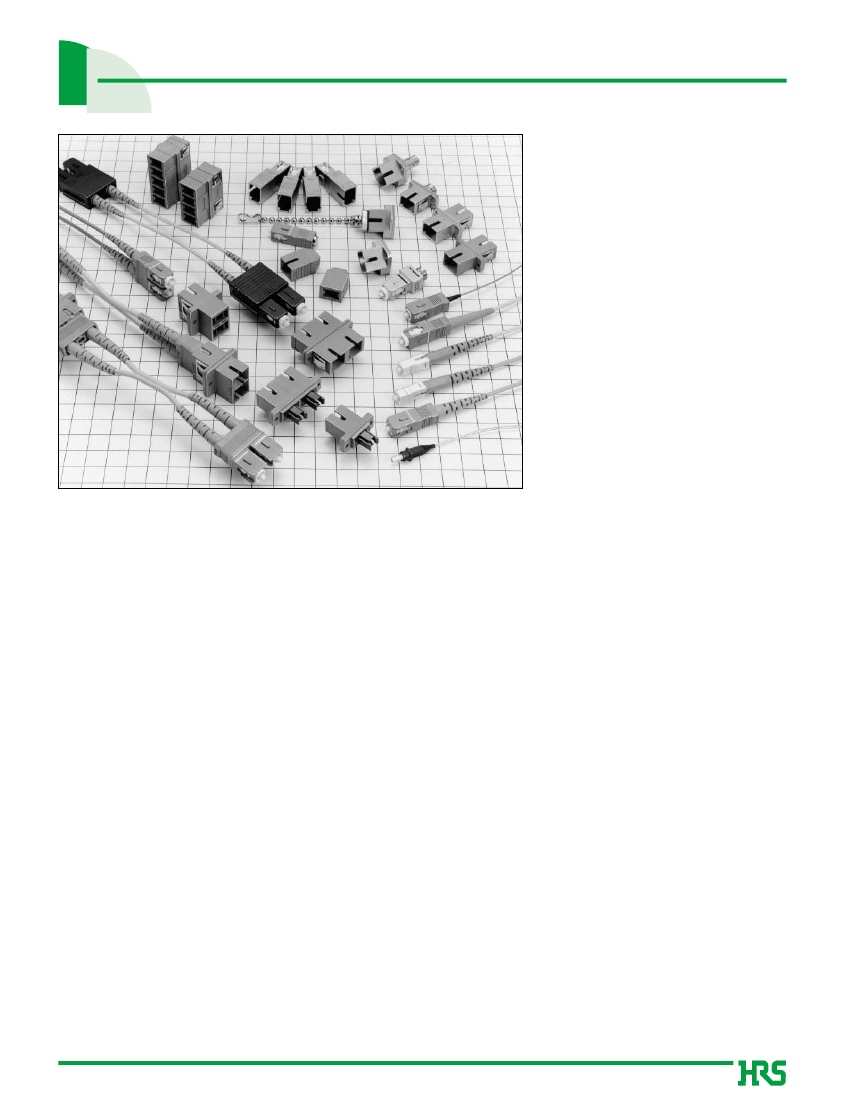

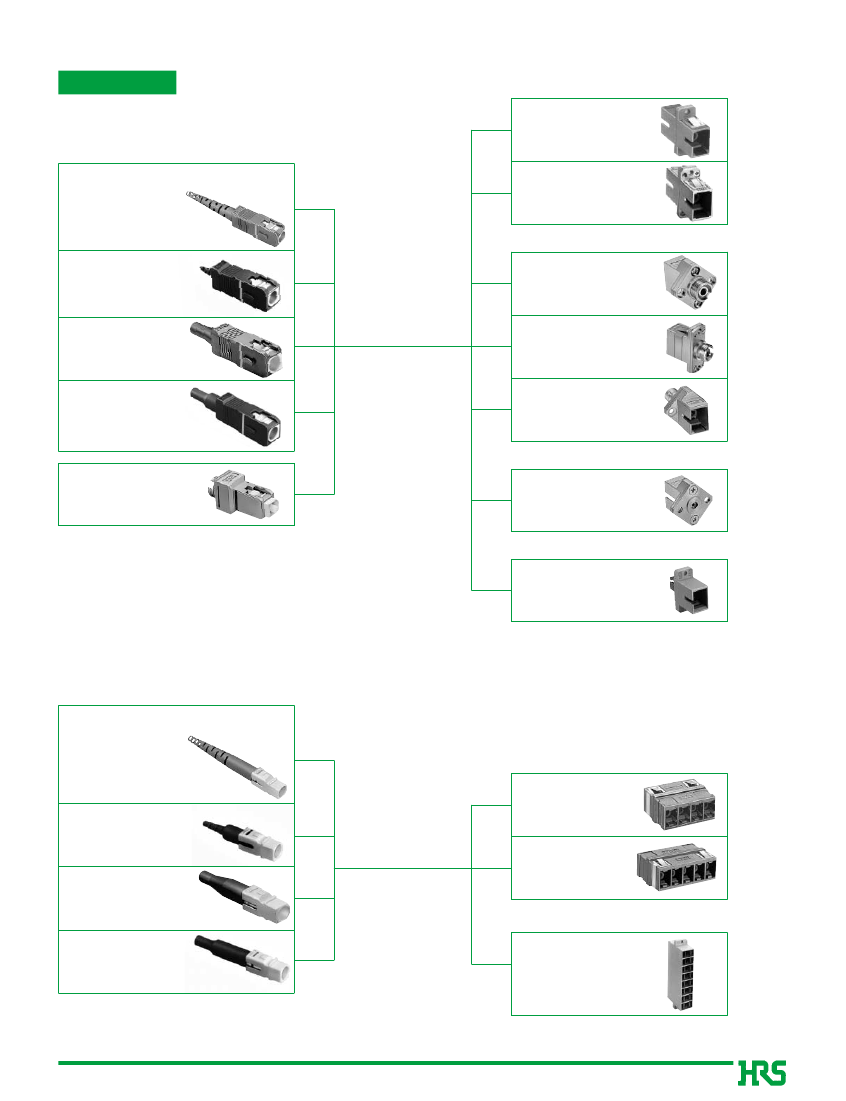

SC Type Fiber Optic Connectors

HSC Series

sFeatures

1. JIS, IEC standards compliant and fully intermateable with NTT's SC products.

JIS C 5973 (F04 type fiber optic connectors)

IEC 61754-4

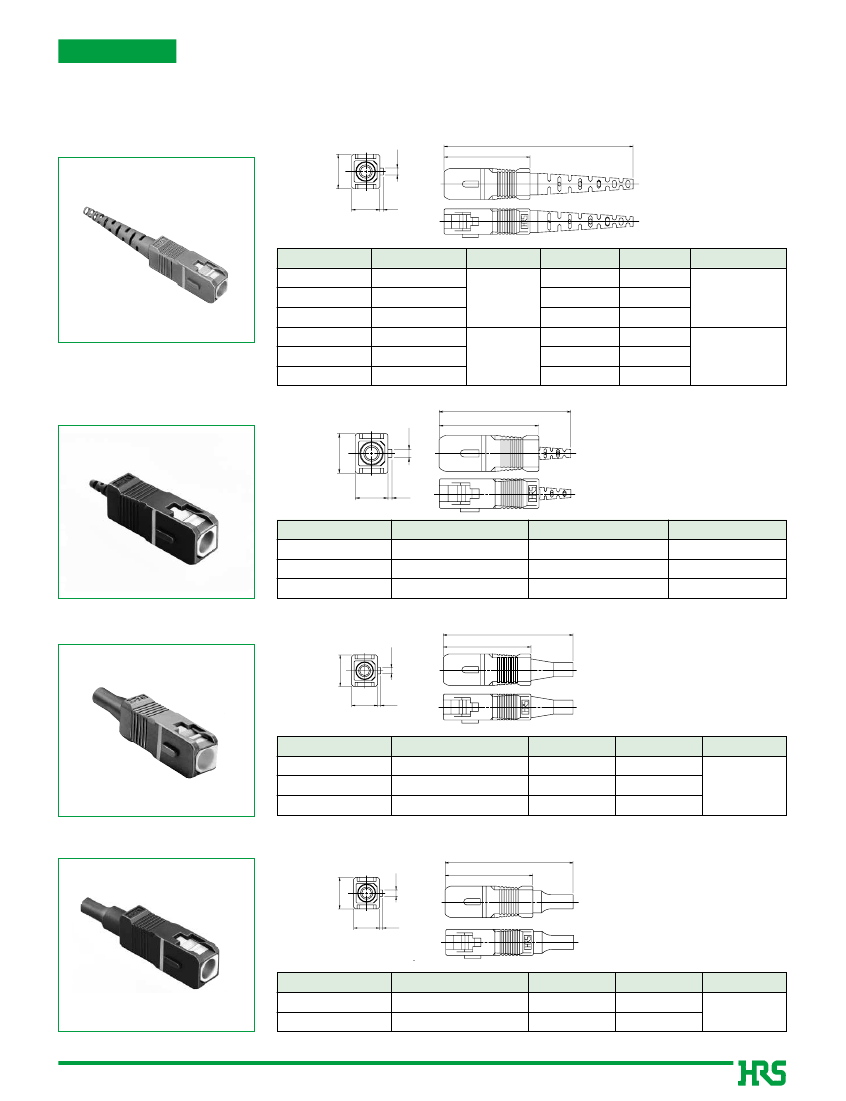

2. Plugs with strain relief boot

Long strain relief boot assures that there are no performance losses when a pull force is applied in a vertical

bend direction.

The color of the boot identify the type of polishing:

Blue: PC polishing

Light purple: Advanced PC (AdPC) polishing

Green: Angled PC polishing (APC)

Other colors are also possible.

3. Zirconia Split Sleeve Adapter

Reduces the possibility of powdering caused by the repeated insertion and withdrawal of ferrule.

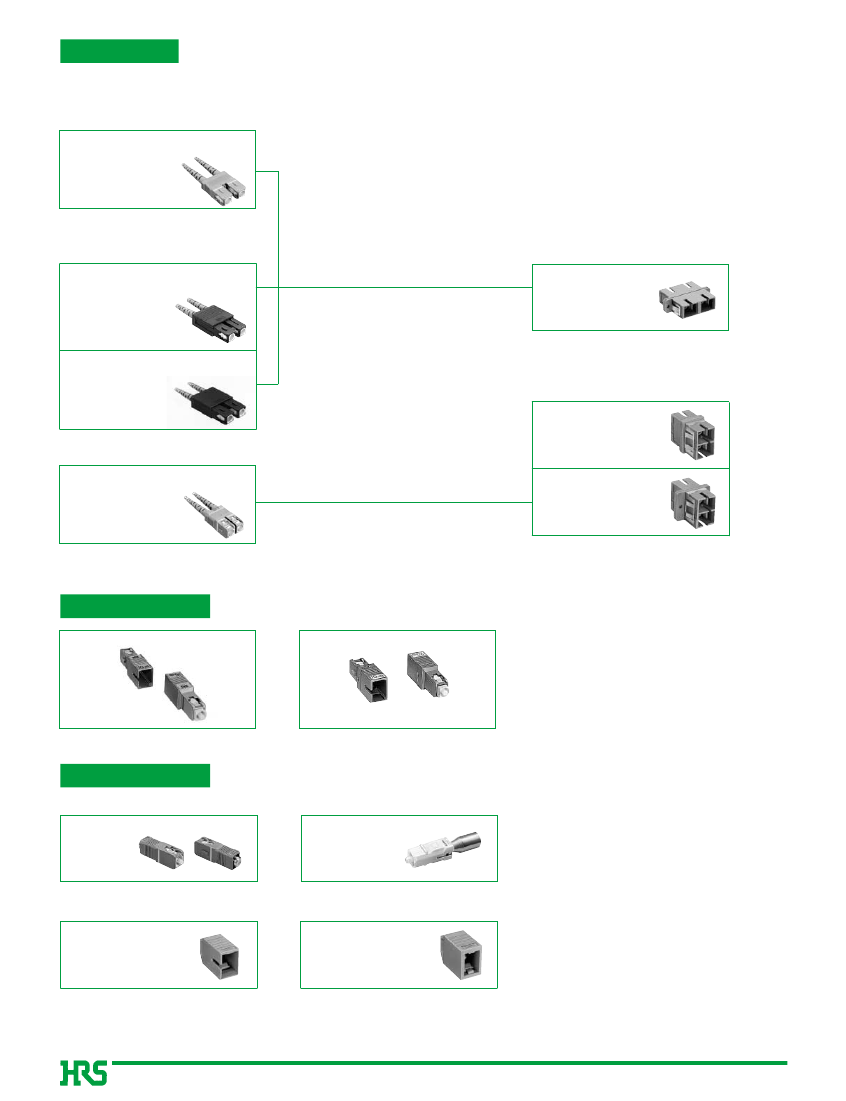

4. Duplex SC Type: Rigid Type

Available in following types;

H type – 8.5 mm spacing between the fibers, for high density applications.

F type – 12.7 mm spacing between the fibers, low profile, for LAN applications.

Refer to page 39 for further information.

5. Duplex SC Type: Adjustable Type -- Comply With ANSI Standards

Floating mechanism with Duplex SC plug.

It is also fully compatible with the HSCF fixed type.

6. Simplified Plugs and Receptacles.

Small size (23.8mm plug length) simplified SC plug is designed for equipments inside connection.

Refer to page 43 for further information.

sApplications

LAN, public communications lines, CableTV, computer transmission systems, test equipment, and other

applications requiring reliable fiber optic connections.
